1/10th Scale

Overall Width Hex to Hex - 182mm (7.17”)

Wheelbase - 313mm (12.3”)

Axle Ratio 3.75:1

Pinion 15T 32P

Spur 52T 32P

Overall Front Ratio 38.3:1

Overall Rear Ratio 40.9:1

Final Overdrive 6.5%

90mm Shocks

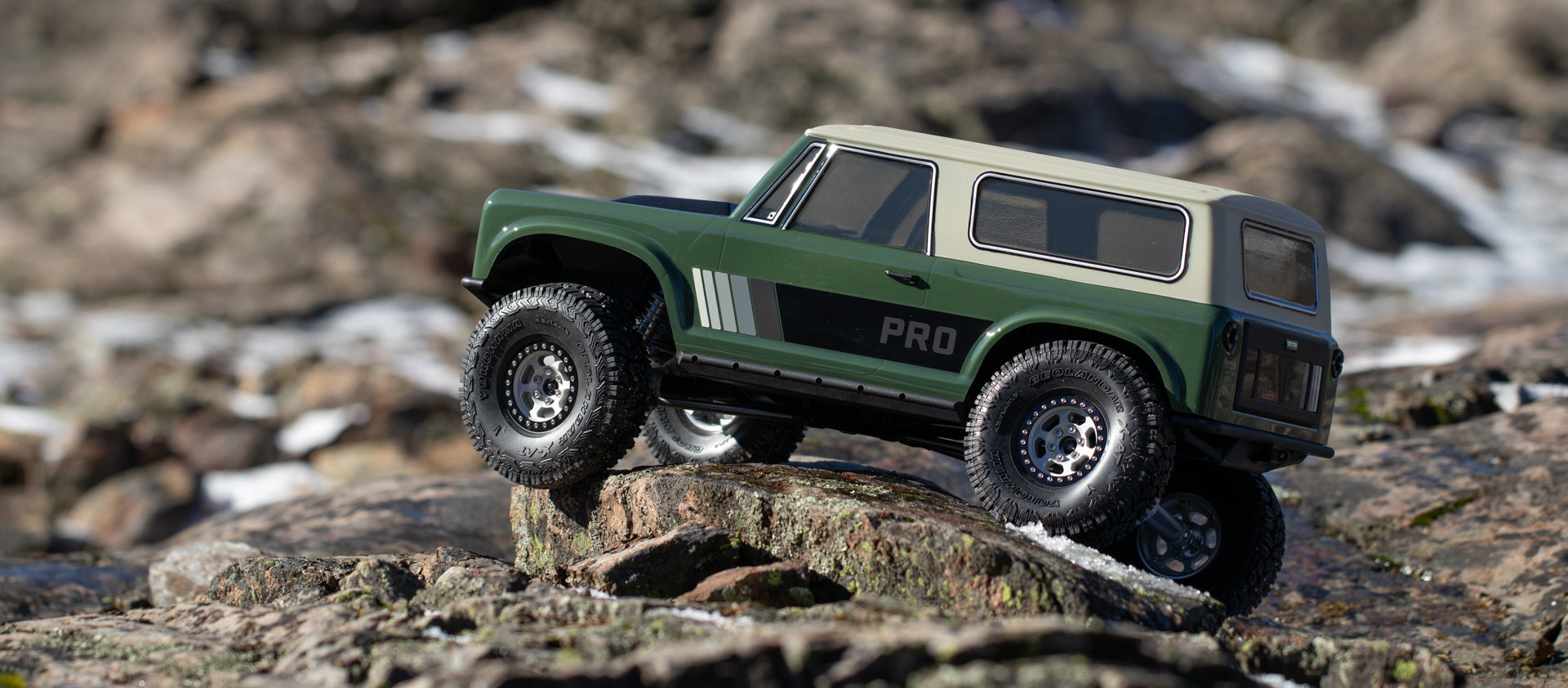

VS4-10 Origin Classic Pro

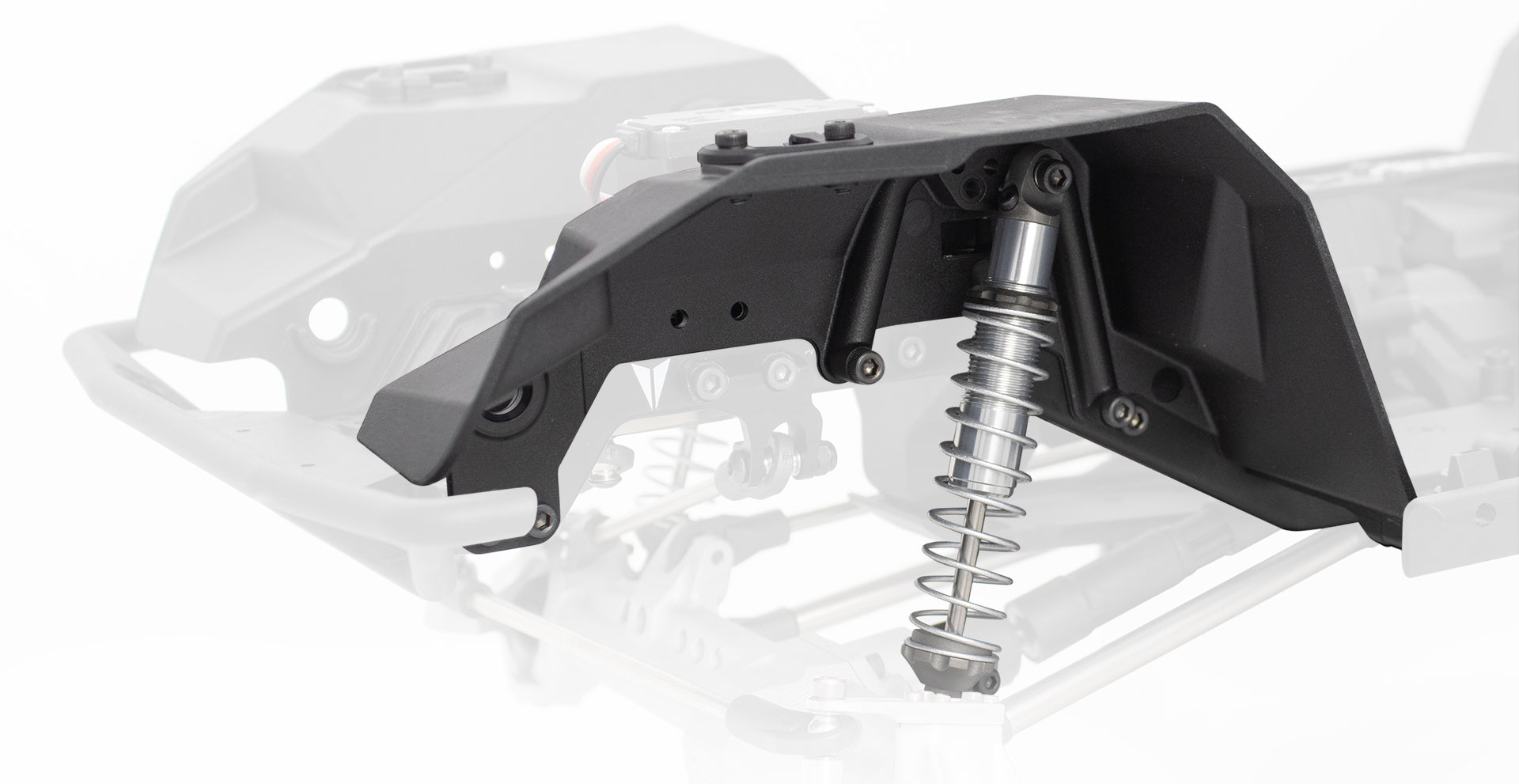

Built on the proven VS4-10 chassis, the Origin Classic Pro brings back the original body design from Vanquish Products’ first kit with a refined, clipless mounting system integrated into molded inner fenders. These new inner fenders feature adjustable shock positions with integrated shock towers, a first for the VS4-10 platform. The VFD transmission delivers durable performance with a low, forward-biased weight distribution.

Included with machined aluminum F10 straight axles that provide reliable strength, premium scale looks of an anodized finish, an exclusive set of clear 1.9" Battle Born Wheels X-Ray wheels and broad compatibility with a wide range of option parts.

VFD Transmission

The VFD Transmission is designed to provide an optimal balance of performance, scale appearance, strength and versatile optional accessories. The VFD’s design places the motor forward and as low as possible to keep the weight where you want it. Out of the box the VFD Spec transmission provides a 6.5% overdrive to provide better turning and climbing performance without taxing your electronics. The T-case utilizes unique replaceable bearing plates to provide adjustable bearing positioning. The modular design of the bearing plates allow for optional gear ratios used to be used inside the T-case. The VFD transmission is compatible with 540 brushed and brushless motors*

Internally, the VFD is built for durability with hardened chromoly shafts, sintered metal internal gears, replaceable bearing plates reinforcing critical load points. A slipper eliminator ensures maximum power transfer, while the molded transmission housing maintains a scale appearance. The extended skid plate provides added protection for the motor in rough terrain.

Compatible with 540 brushed and brushless motors*

• Standard Overdrive 6.5%
• Sintered Internal Gears
• Hardened Chromoly Shafts
• Molded VFD Extended Skid Plate for Motor Protection
• Molded Battery and Electronic trays
• Full ball bearing transmission
• Scale Molded Transmission Housing
• Molded 6mm motor plate
• Molded Spur Gear Cover
• 32P 52T Spur and 15T Steel Pinion

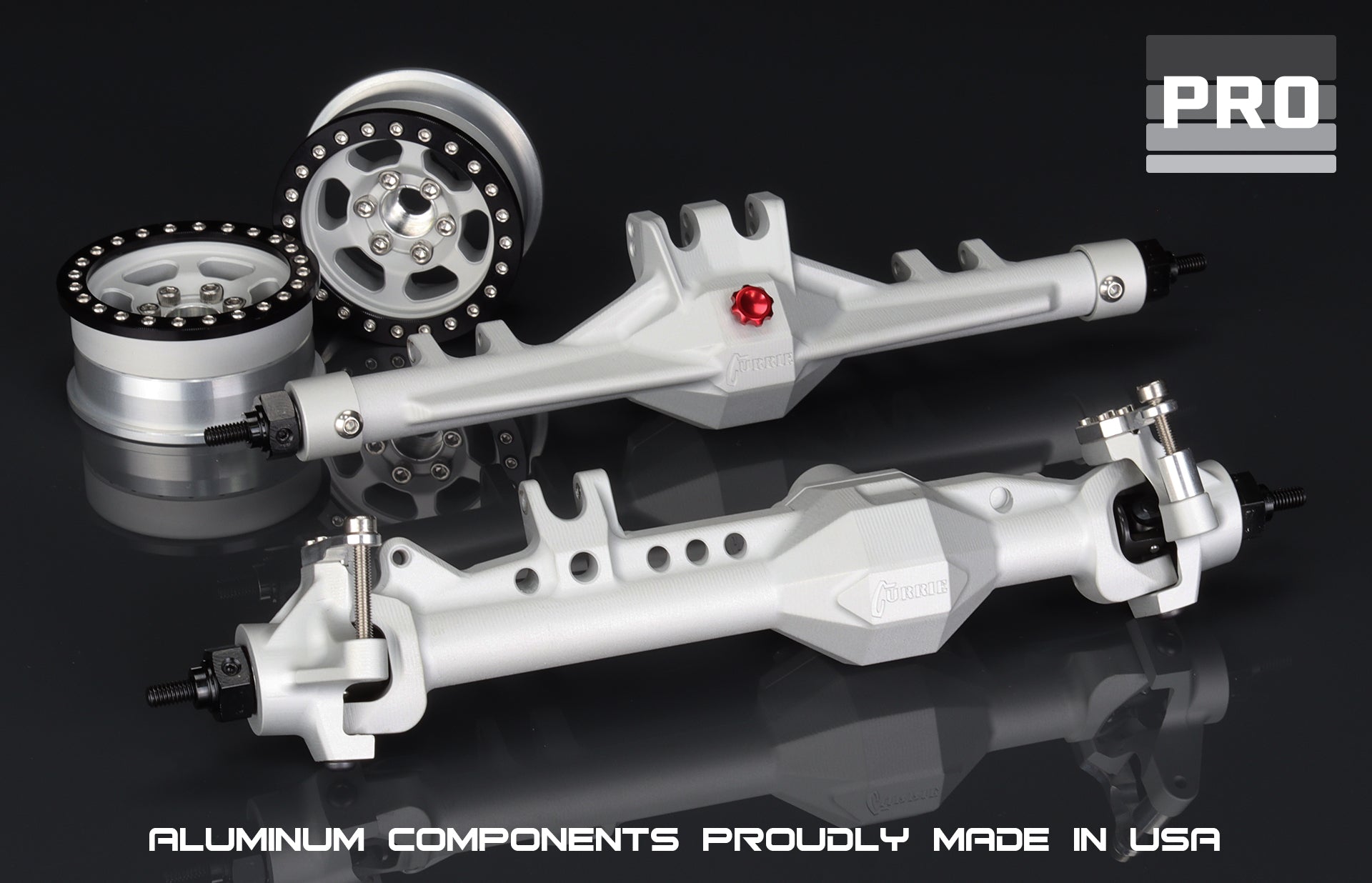

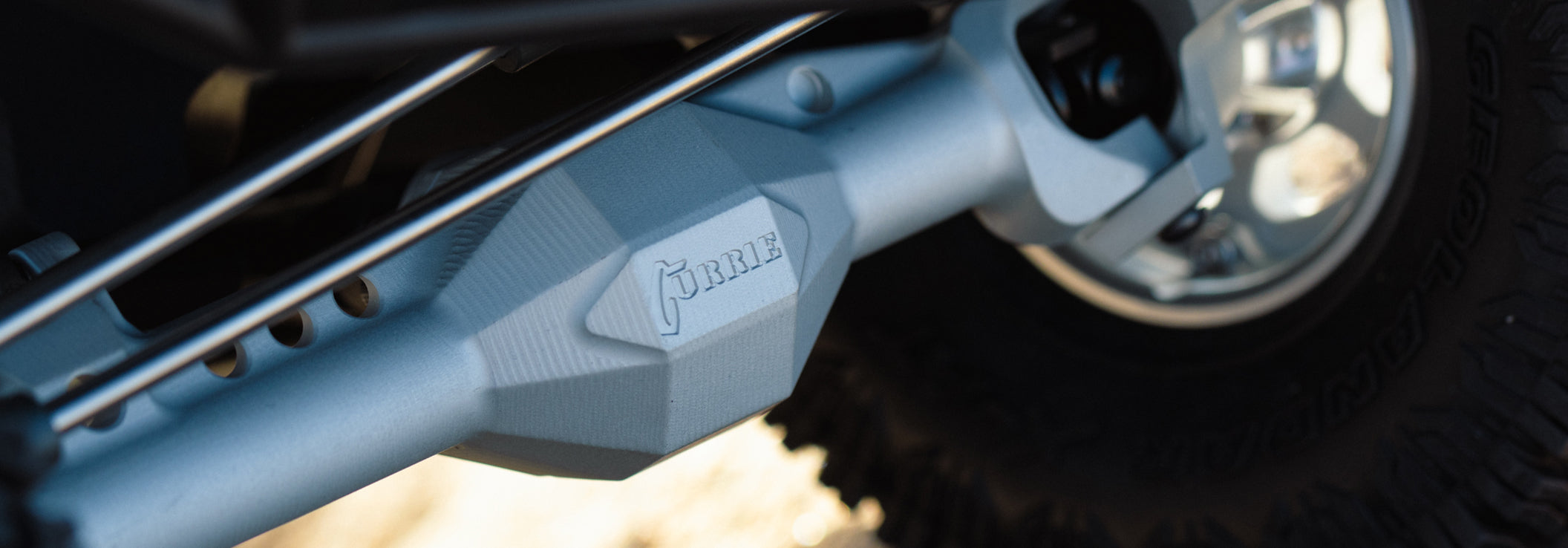

F10 Aluminum Straight Axles

The F10 Machined Aluminum Straight axles benefit from Vanquish Product’s years of design experience in making the industry’s best aluminum axles. Made in USA with US sourced aluminum, the F10 Aluminum Straight axles feature an ultra rigid design with an integrated truss that ties both ends of the axle together, and oversized C's with an integrated pan-hard mount.

• Universal Style Axle Shafts
• 49 Degrees of Steering
• Aluminum VS4-10 Straight Axle Steering Knuckles
• High Caster reinforced C-Hub
• High-Pinion Hypoid Axle Gears (30/8)

• 5mm Output shafts with M4 wheel nut
• One-Piece Aluminum Bearing Retainers
• Adjustable Lower Shock Mounting Position
• Scale removable aluminum third member
• Made in USA with US sourced aluminum

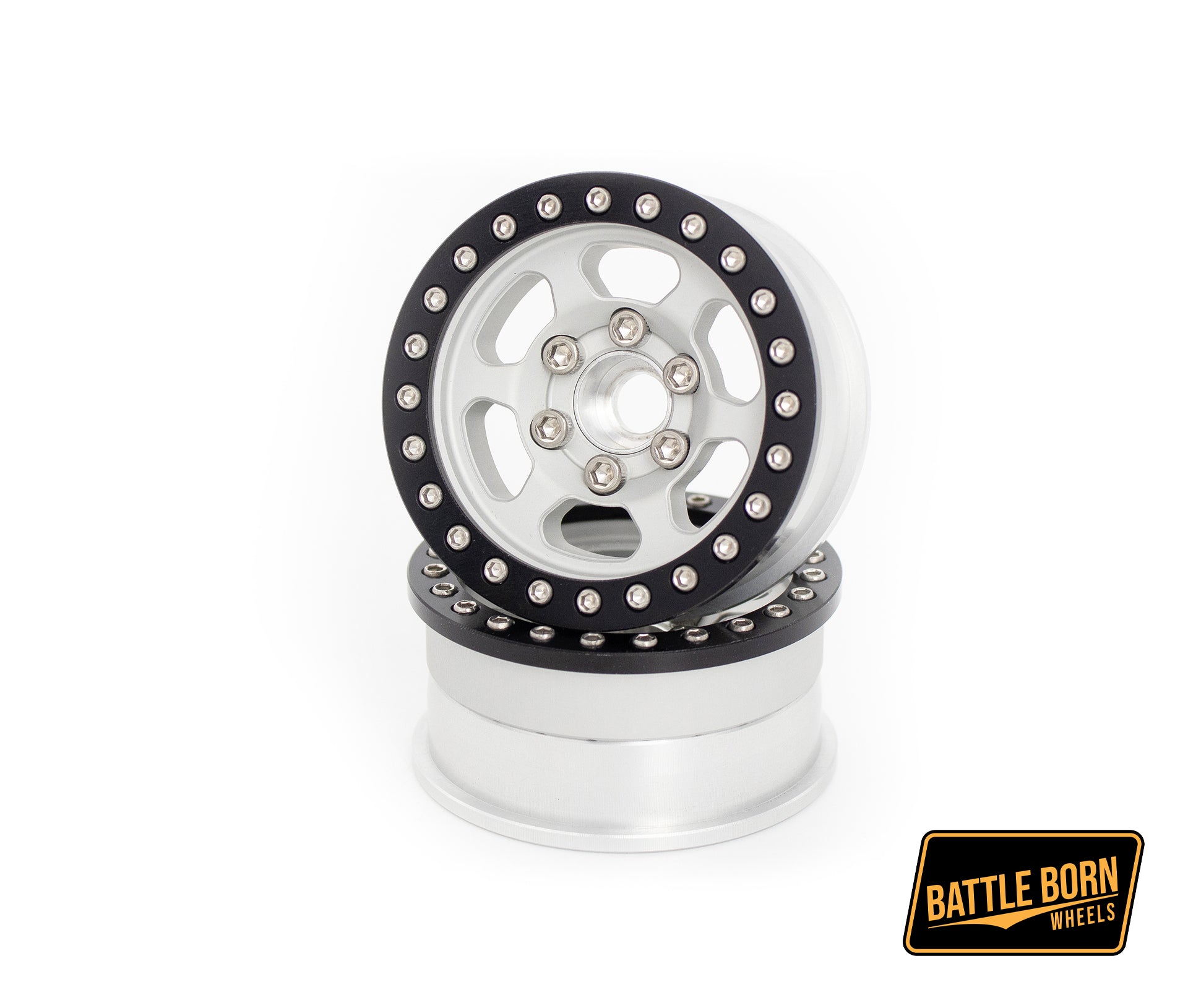

Battle Born Wheels 1.9" X-Ray

Making its debut with the H10 Origin, the 1.9" Battle Born Wheels X-Ray returns as the wheel of choice for the Origin Classic Pro.

• Clear finish
• Exclusive product, wheels cannot be purchased separately
• Includes clear 475 SLW hubs
• Made in USA with US sourced aluminum

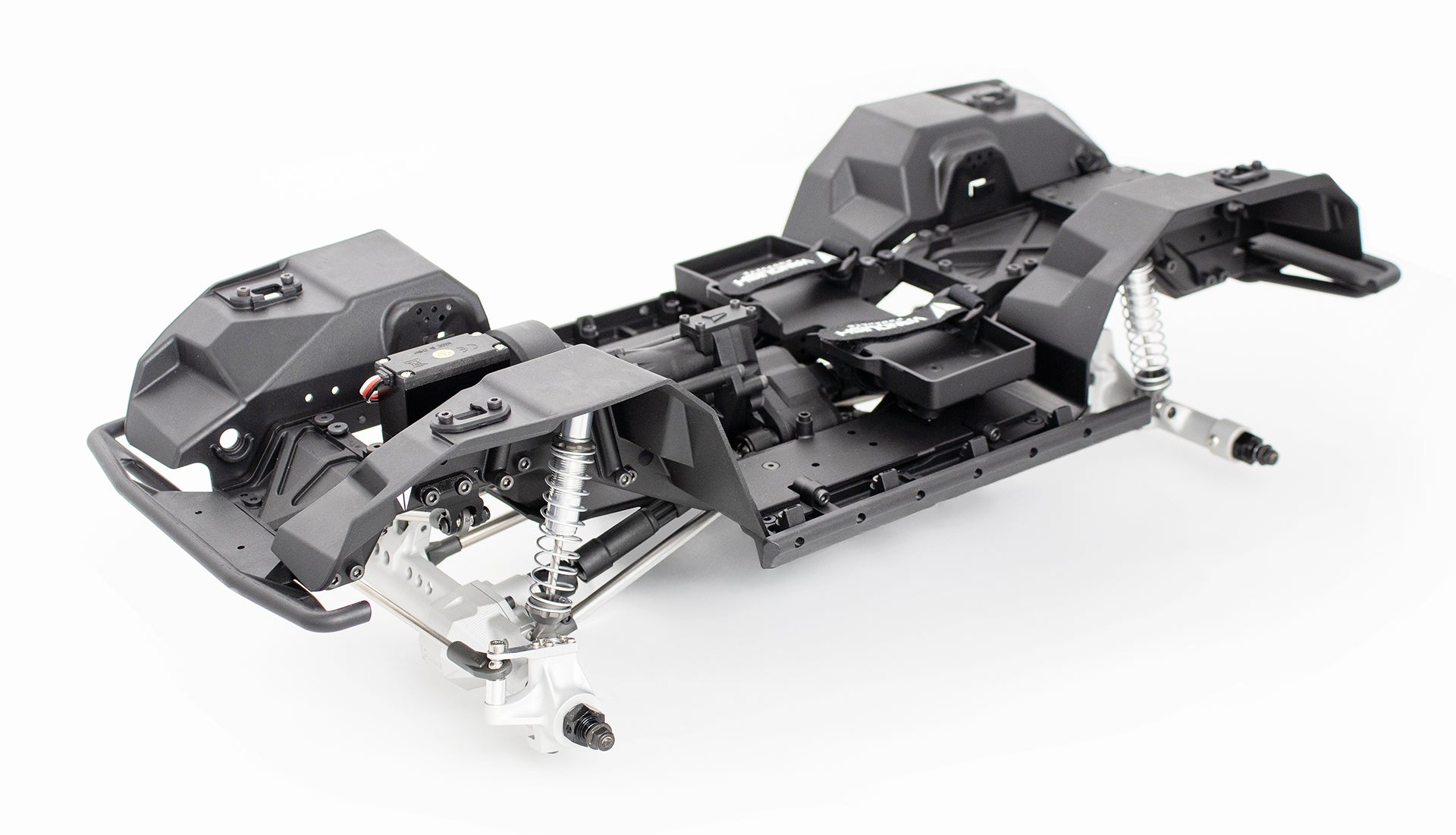

Chassis

Vanquish Products VS4-10 Chassis is made to provide you with a balance of scale looks and unhindered performance. The steel C-channel design provides scale detail, molded front and rear cross members fill the chassis rails in the highest stress locations for ultimate strength and provide features like dual servo mounts, winch line routing, and a fuel cell. The molded rock sliders come with a replaceable outer portion. The pan-hard mount on the chassis is made from machined aluminum to withstand the impacts of severe trail conditions. Molded inner fenders double as adjustable shock towers to capture the top of the 90mm Incision S8E Shocks.

• Heavy Duty High Clearance Steel C-Channel Frame Rails
• Integrated battery tray and electronic mounting positions

• Stainless Steel links

Suspension

Equipped with Incision 90mm S8E shocks, the VS4-10 delivers smooth suspension articulation with dual o-ring seals, keyed spring cups and polished steel shock shafts. The 3-link front suspension with pan-hard keeps the servo hidden for scale realism without sacrificing suspension travel.

• S8E Incision 90mm Shocks with bleeder screw shock cap

• Stainless Steel Links
• Stainless Steel Pivot Balls
• Stainless Steel offset lower shock pivot balls for tuning shock width at axle

Includes

• Threadlock
• Grease
• 30wt Shock Oil


Specifications

• 1/10th Scale
• Overall Width Hex to Hex - 182mm (7.17”)
• Wheelbase - 313mm (12.3”)
• Axle Ratio 3.75:1
• Pinion 15T 32P
• Spur 52T 32P
• Overall Front Ratio 38.3:1
• Overall Rear Ratio 40.9:1
• Final Overdrive 6.5%
• 90mm Shocks

Items Required for Assembly

• TOOLS
• PAINT
• 1.9x4.65” TIRES
• TRANSMITTER / RECEIVER
• 540 MOTOR (STANDARD LENGTH)
• STEERING SERVO (25T SERVO HORN INCLUDED IN KIT)
• ESC
• BATTERY

Required Items

TOOLS

PAINT

1.9x4.65” TIRES

TRANSMITTER / RECEIVER

540 MOTOR (STANDARD LENGTH)

STEERING SERVO (25T SERVO HORN INCLUDED IN KIT)

ESC

BATTERY

Disclaimer

Please note: This is an unassembled kit, tires, and electronics are not included. Some product photos may show completed builds with wheels, tires, and electronics for demonstration purposes only.

If you encounter any issues with missing or damaged parts, please reach out to our customer service team for assistance.
