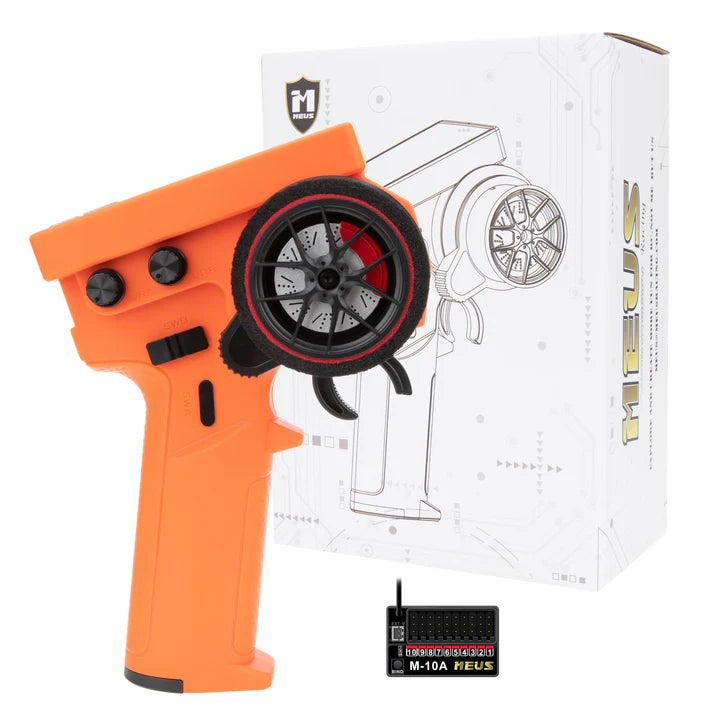

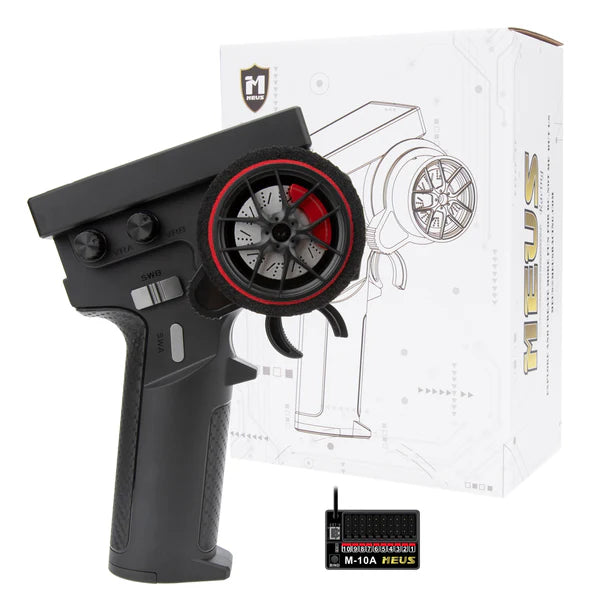

MEUS Racing ME-10B RC Transmitter 8CH 2.4GHz & Receiver with Coach Mode for 1/8 1/10 1/18 1/24 TRX4 TRX4M SCX10 SCX24

MEUS Racing ME-10B RC Transmitter: 8 Channels, 2.4GHz with Receiver and Coach Mode, Designed for 1/8, 1/10, 1/18, and 1/24 RC crawler cars, boats, and upgrade parts for TRX4, TRX4M, SCX10, and SCX24.

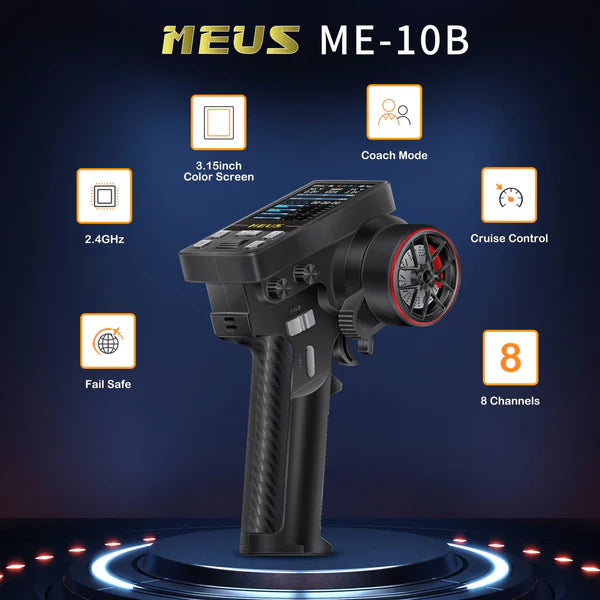

Key Features:

• Self-developed 2.4GHz Technology: Offers stable performance and enhanced anti-interference capabilities.

• Fast Response Time: This product features a power amplifier that extends the remote control distance up to 300 meters on the ground and 800 meters in the air within 3 seconds.

• 8 Channels: Includes one 3-gear channel, two knob channels, and five button channels for versatile operations.

• Clear User Interface: Equipped with a color screen that displays real-time parameters for each channel at a glance.

• Robust Functionality: This RC transmitter includes fail-safe features, cruise control, low-voltage warnings, and a wide range of customizable functions, making it suitable for beginners and advanced users.

• Coach Mode: Allows two transmitters to control a single car simultaneously, with one transmitter having priority. This feature is great for training or engaging in parent-child activities.

• User-Friendly and Ergonomic Design:
    (1) Comes with a lock function to prevent accidental operations, a 15-second auto-off feature, and is rechargeable.

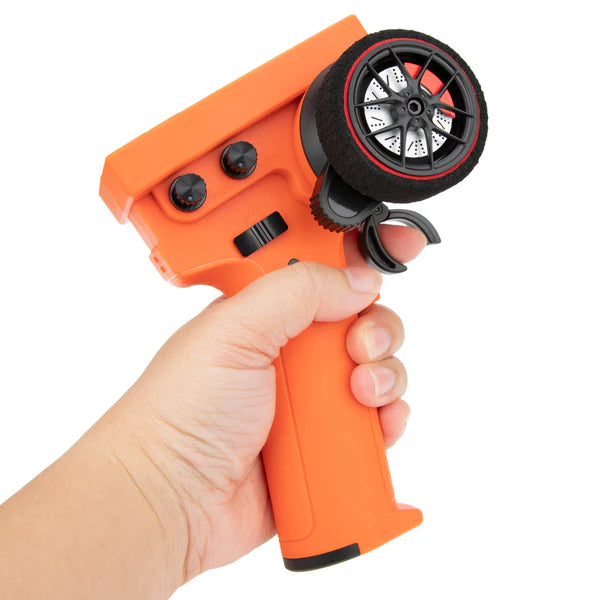

    (2) The 4-bearing wheel and anti-slip trigger, which can be adjusted for force and position, ensure smoother and more precise control.


• Versatile Terrain Compatibility: This RC transmitter and receiver kit is suitable for both off-road and on-road use, including RC crawlers, RC short course cars, RC boats, RC motorcycle

The transmitter can be used on 8 model cars and stores all the different settings for each car.

Manual>>ME-8B RC Transmitter Manual

Specifications of Transmitter:

• Suitable for Model Type: RC cars, RC boats, RC tanks, etc.
• Channels: 8
• Frequency range: 2.4GHz
• RF Power: Less than 20dbm
• Response Time: PWM≤20MS
• Receiving sensitivity: -96dbm
• Transmitting power: 160MA-300MA
• Battery: 18650 (Rechargeable)
• Power supply: DC 3.7V-9V
• Net Weight: 190g
• Control Distance: about 300m on the ground, 800 on the air.

M-10A Receiver's Specifications(comes with transmitter):

• Model Number: M-10A

• Channels: 10
• Frequency range: 2.4GHz
• Working current: 35mA
• Receiving distance: 300-800m
• Input voltage: DC 4V-9V
• Voltage Feedback: 0-27V (300m)

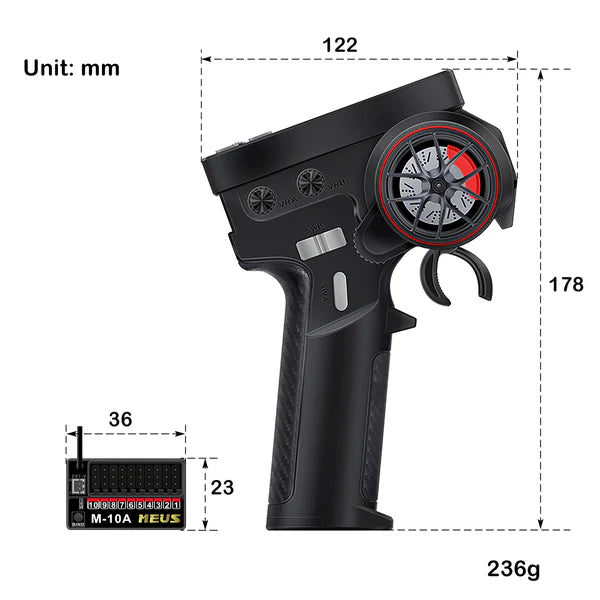

• Dimensions: 36*23*13mm
• Gyro: No
• Weight: 8.5g
• Application: RC cars, RC boats, RC tanks, etc.

Package List:

• 1 × RC Transmitter
• 1 × M-10A Receiver
• 1 × 18650 Rechargeable Battery
• 1 × User Manual
• 1 × Type-c data cable
• 1 × Voltage return line

Other Channels Receivers:

M-01A Receiver's Specifications:

• Model Number: M-01A
• Channels: 8
• Frequency range: 2.4GHz
• Working current: 35mA
• Receiving distance: 300-800m
• Info Feedback: Signal/Voltage(300m)
• Input voltage: DC 4V-9V
• Voltage Feedback: 0-27V (300m)
• Dimensions: 38*25*13mm
• Gyro: No
• Weight: 10g
• Application: RC cars, RC boats, RC tanks, etc.
• Other functions: With light control (Can control turn signals and brake lights)

M-04A Receiver's Specifications:

• Model Number: M-04A
• Channels: 4
• Frequency range: 2.4GHz
• Working current: 20mA
• Receiving distance: 300-800m
• Info Feedback: Signal (50m)
• Input voltage: DC 4V-9V
• Voltage Feedback: No
• Dimensions: 32*18*13mm

• Gyro: No
• Weight: 5g
• Application: RC cars, RC boats, RC tanks, etc.

M-04B Receiver's Specifications:

• Model Number: M-04B
• Channels: 4
• Frequency range: 2.4GHz
• Working current: 20mA
• Receiving distance: 100-300m
• Info Feedback: Signal (50m)
• Input voltage: DC 4V-9V
• Voltage Feedback: No
• Dimensions: 22*15*10mm
• Gyro: No
• Weight: 3g
• Application: RC cars, RC boats, RC tanks, etc.

M-06A Receiver's Specifications:

• Model Number: M-06A
• Channels: 6
• Frequency range: 2.4GHz
• Working current: 35mA
• Receiving distance: 300-800m
• Info Feedback: Signal/Voltage (300m)
• Input voltage: DC 4V-9V
• Voltage Feedback: 0-27V(300m)
• Dimensions: 38*24*13mm
• Gyro: No
• Weight: 7.4g
• Application: RC cars, RC boats, RC tanks, etc.

M-06AT Receiver's Specifications:

• Model Number: M-06AT
• Channels: 6
• Frequency range: 2.4GHz
• Working current: 39mA
• Receiving distance: 300-800m
• Info Feedback: Signal/Voltage (300m)
• Input voltage: DC 4V-9V
• Voltage Feedback: 0-27V(300m)
• Dimensions: 38*24*13mm
• Gyro: Yes (not for planes)
• Weight: 7.4g
• Application: RC cars, RC boats, RC tanks, etc.
