Description

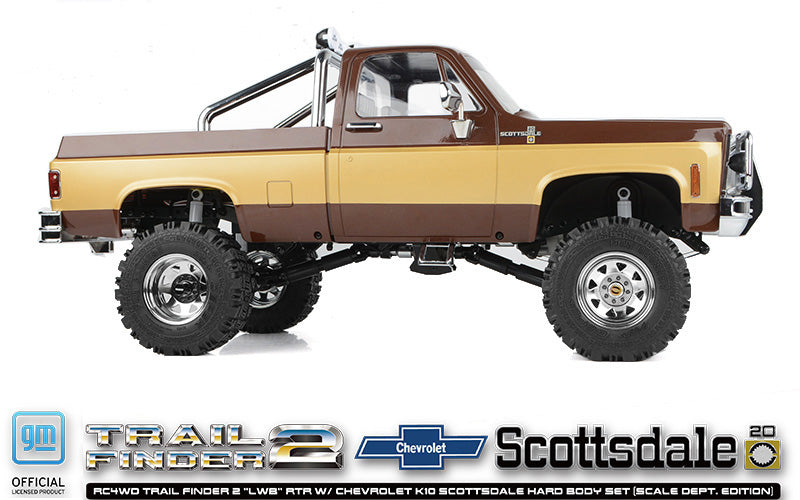

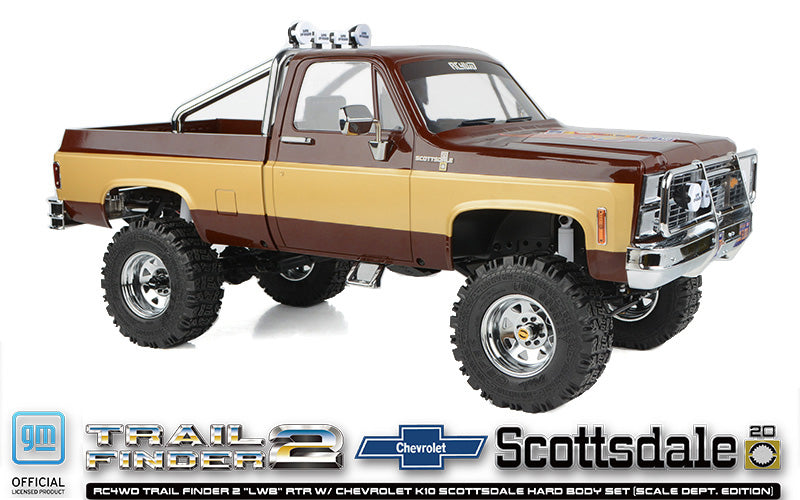

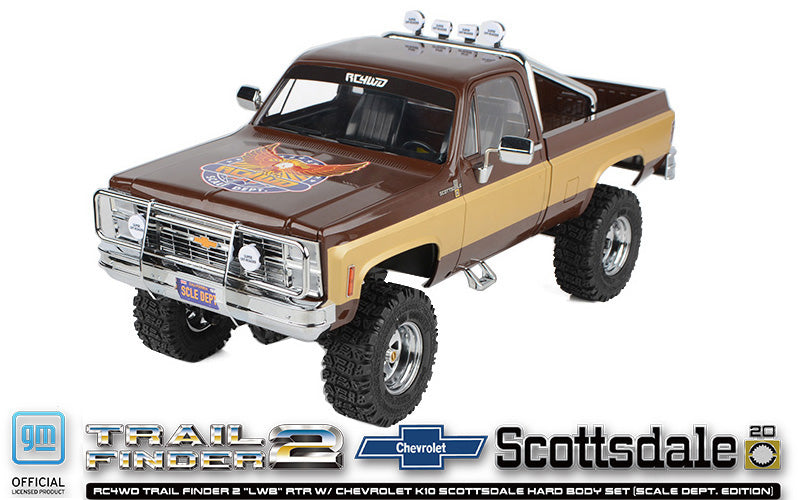

RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Scale Dept. Edition)
Chevrolet K10 Scottsdale Hard BodySmall Block V8 Engine Bay W/ Dress Up KitHalogen Style Lights (retro Look)Chrome Front Grille For Chevrolet Blazer And K10 (80's)Chrome Single Tube Roll Bar And Front Push BarChrome Rear Step Bumper8 Lug Chrome Deep Dish Wagon 1.9" Steel Stamped Beadlock WheelsDick Cepek Fun Country 1.9" Scale TiresK44 Ultimate Scale Cast Axles (XVD)X-Ring Scale Shock Absorbers 70/80mmFront Inner FendersTwister High Torque Metal Gear Digital Servo45T 540 Brushed Crawler MotorR3 Single Speed TransmissionCenter Mounted Hammer Transfer CaseChrome Side StepsOutcry III Waterproof ESC6-Cell 3000mAh NIMH Battery Pack
Hammer Transfer CaseRatio: 1.47:1Gears: Wide .8 Mod Hardened Steel GearsFeatures: 8 Bearings, Cast Casing, Hardened GearsR3 Scale Single Speed TransmissionRatios: Pinion/Spur 14/64 = 4.57:1Internal Ratio: 1.78:1Gears - Wide Steel .8 Mod, Delrin Spur, Slipper ClutchK44 Ultimate Scale Cast AxlesRatio: 2.67:1Hex To Hex Width: 177mm (6.96")Shock AbsorbersX-ring Scale Shock Absorbers 70/80mm
WheelsType: RC4WD 8 Lug Deep Dish Wagon 1.9" Steel Stamped Beadlock Wheels (Chrome)Fits Standard: 12mm HexWidth: 1.26in / 32.0mmOD: 2.08in / 53.0mmTiresType: RC4WD Dick Cepek Fun Country 1.9" Scale TiresOuter Diameter: 3.94in / 100mmWidth: 1.52in / 38.8mmInner Diameter: 1.81in /46.0mmTF2 Truck DimensionsWheelbase: 312.0mm(12.3")Width: 220.0mm(8.7")Height: 251.0mm(9.9")Ground Clearance: 62.0mm(2.4")Final Drive Ratio: 31.9:1
DRIVETRAINThe R3 Single Speed Transmission comes with a tough cast metal case, wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminum motor mount for added toughness.The Trail Finder 2 includes the Hammer Transfer Case that features a cast metal exterior and heavy-duty .8 Mod Widened Gears, ensuring lasting functionality.Drawing on the success of the RC4WD MOA Gear Sets, the Trail Finder 2 has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.The most scale-accurate axles on the market, the K44 Ultimate Scale Cast Axles feature high steer knuckles, XVDs, lower mounting points, and a compact offset front pumpkin.The driveshafts on the Trail Finder 2 feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.
SUSPENSIONThe Trail Finder 2 has a multi-purpose, molded fuel cell that serves as an electronics storage box and provides additional RC realism by storing away any protruding wires.The Trail Finder 2 includes Scale 70mm and 80mm White Shocks with Internal Springs. These ultimate scale shock absorbers offer realistic looks and ultimate performance. They are machined from billet aluminum with internal springs and are customizable.With strength in mind, the ladder frame design of the Trail Finder 2 is made with CNC machined, billet aluminum and comes with scale shock hoops, a chassis servo mount, and transmission and transfer case mounts.The Scale Dept. Edition includes a set of rugged 8 Lug Deep Dish Wagon Wheels. These 1.9" Chrome-Plated wheels are formed with stamped steel and are finished off with Scale Wheel Hubs.Every RTR needs a tough set of tires to hit the trails and the included RC4WD Dick Cepek Fun Country 1.9" Scale Tires deliver the perfect amount of traction with its advanced X2S3 compound. The scale details complete the look in just the right size.
DETAILSThe Chevrolet K10 Scottsdale features exquisite scale details, including door handles, updated mirrors, new rear step bumper and the new front grille. It also has a complete molded plastic engine bay that comes painted with decals installed for an extremely scale appearance.The Chevrolet K10 Scottsdale Hard Body is constructed of durable hard plastic with a classic shape that replicates the full-size model with accuracy and authenticity.The Chevrolet K10 Scottsdale Hard Body features a molded, realistic drop bed and an opening hood and tailgate. The masters of scale are unmatched when it comes to details.The Chevrolet K10 Scottsdale Hard Body set includes an improved dashboard with preinstalled, super-scale interior decals and door panels.Straight out of the box, an LED light set comes professionally installed and concealed, keeping that realistic look. Included are chrome-plated parts and colored lenses for that scale look! Now including the old school halogen headlights.
ELECTRONICSThe Trail Finder 2 includes a high-quality XR3 3 Channel 2.4Ghz Radio System. Expanding user experience, this radio system comes with a total of three radio channels!The Trail Finder 2 is powered by the RC4WD 45 Turn Crawler Motor. With its sealed end bell for increased durability and long lasting performance, you're sure to get where you're going!Included is the popular RC4WD Outcry III Waterproof ESC Brushed Speed Controller, with built-in drag brake, for reliable constant power on demand at any time!With a massive 277.6oz@6V of torque and a full metal geared drivetrain, the RC4WD Twister Metal Gear Digital Servo has the power and performance needed to outmaneuver and overcome tough terrain.It's ALL in the box! Everything you need is provided to get you on the trails today!
What's Included:- 1x RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Scale Dept. Edition)
Description
RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Scale Dept. Edition)
Chevrolet K10 Scottsdale Hard Body
Small Block V8 Engine Bay W/ Dress Up Kit
Halogen Style Lights (retro Look)
Chrome Front Grille For Chevrolet Blazer And K10 (80's)
Chrome Single Tube Roll Bar And Front Push Bar
Chrome Rear Step Bumper
8 Lug Chrome Deep Dish Wagon 1.9" Steel Stamped Beadlock Wheels
Dick Cepek Fun Country 1.9" Scale Tires
K44 Ultimate Scale Cast Axles (XVD)
X-Ring Scale Shock Absorbers 70/80mm
Front Inner Fenders
Twister High Torque Metal Gear Digital Servo
45T 540 Brushed Crawler Motor
R3 Single Speed Transmission
Center Mounted Hammer Transfer Case
Chrome Side Steps
Outcry III Waterproof ESC
6-Cell 3000mAh NIMH Battery Pack
Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Hardened Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears
R3 Scale Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1
Internal Ratio: 1.78:1
Gears - Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
K44 Ultimate Scale Cast Axles
Ratio: 2.67:1
Hex To Hex Width: 177mm (6.96")
Shock Absorbers
X-ring Scale Shock Absorbers 70/80mmWheels
Type: RC4WD 8 Lug Deep Dish Wagon 1.9" Steel Stamped Beadlock Wheels (Chrome)
Fits Standard: 12mm Hex
Width: 1.26in / 32.0mm
OD: 2.08in / 53.0mm
Tires
Type: RC4WD Dick Cepek Fun Country 1.9" Scale Tires
Outer Diameter: 3.94in / 100mm
Width: 1.52in / 38.8mm
Inner Diameter: 1.81in /46.0mm
TF2 Truck Dimensions
Wheelbase: 312.0mm(12.3")
Width: 220.0mm(8.7")
Height: 251.0mm(9.9")
Ground Clearance: 62.0mm(2.4")
Final Drive Ratio: 31.9:1
DRIVETRAIN
The R3 Single Speed Transmission comes with a tough cast metal case, wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminum motor mount for added toughness.
The Trail Finder 2 includes the Hammer Transfer Case that features a cast metal exterior and heavy-duty .8 Mod Widened Gears, ensuring lasting functionality.
Drawing on the success of the RC4WD MOA Gear Sets, the Trail Finder 2 has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.
The most scale-accurate axles on the market, the K44 Ultimate Scale Cast Axles feature high steer knuckles, XVDs, lower mounting points, and a compact offset front pumpkin.
The driveshafts on the Trail Finder 2 feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.
SUSPENSION
The Trail Finder 2 has a multi-purpose, molded fuel cell that serves as an electronics storage box and provides additional RC realism by storing away any protruding wires.
The Trail Finder 2 includes Scale 70mm and 80mm White Shocks with Internal Springs. These ultimate scale shock absorbers offer realistic looks and ultimate performance. They are machined from billet aluminum with internal springs and are customizable.
With strength in mind, the ladder frame design of the Trail Finder 2 is made with CNC machined, billet aluminum and comes with scale shock hoops, a chassis servo mount, and transmission and transfer case mounts.
The Scale Dept. Edition includes a set of rugged 8 Lug Deep Dish Wagon Wheels. These 1.9" Chrome-Plated wheels are formed with stamped steel and are finished off with Scale Wheel Hubs.
Every RTR needs a tough set of tires to hit the trails and the included RC4WD Dick Cepek Fun Country 1.9" Scale Tires deliver the perfect amount of traction with its advanced X2S3 compound. The scale details complete the look in just the right size.
DETAILS
The Chevrolet K10 Scottsdale features exquisite scale details, including door handles, updated mirrors, new rear step bumper and the new front grille. It also has a complete molded plastic engine bay that comes painted with decals installed for an extremely scale appearance.
The Chevrolet K10 Scottsdale Hard Body is constructed of durable hard plastic with a classic shape that replicates the full-size model with accuracy and authenticity.
The Chevrolet K10 Scottsdale Hard Body features a molded, realistic drop bed and an opening hood and tailgate. The masters of scale are unmatched when it comes to details.
The Chevrolet K10 Scottsdale Hard Body set includes an improved dashboard with preinstalled, super-scale interior decals and door panels.
Straight out of the box, an LED light set comes professionally installed and concealed, keeping that realistic look. Included are chrome-plated parts and colored lenses for that scale look! Now including the old school halogen headlights.
ELECTRONICS
The Trail Finder 2 includes a high-quality XR3 3 Channel 2.4Ghz Radio System. Expanding user experience, this radio system comes with a total of three radio channels!
The Trail Finder 2 is powered by the RC4WD 45 Turn Crawler Motor. With its sealed end bell for increased durability and long lasting performance, you're sure to get where you're going!
Included is the popular RC4WD Outcry III Waterproof ESC Brushed Speed Controller, with built-in drag brake, for reliable constant power on demand at any time!
With a massive 277.6oz@6V of torque and a full metal geared drivetrain, the RC4WD Twister Metal Gear Digital Servo has the power and performance needed to outmaneuver and overcome tough terrain.
It's ALL in the box! Everything you need is provided to get you on the trails today!
What's Included:
- 1x RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Scale Dept. Edition)
