True 1/10 scale RTR

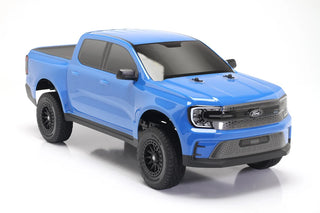

Ford Ranger MS-RT 1/10 Scale 4 wheels Drive Truck

Length: 21.65 inches (550mm)

Width: 9.1 inches (230mm)

Wheelbase:  12.95 inches (329mm)

Ground Clearance:  2.2inches (55mm).

Weight: 4.7 lb. 2.15 kg.

Available in two colors

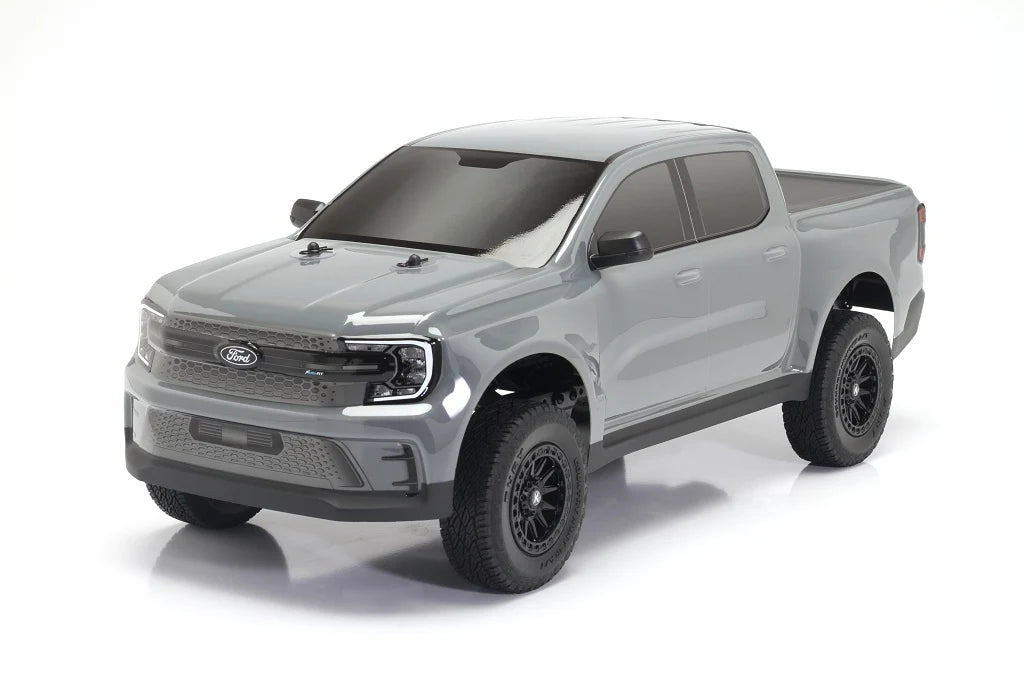

Item: 8972 - MS-RT Cool Grey

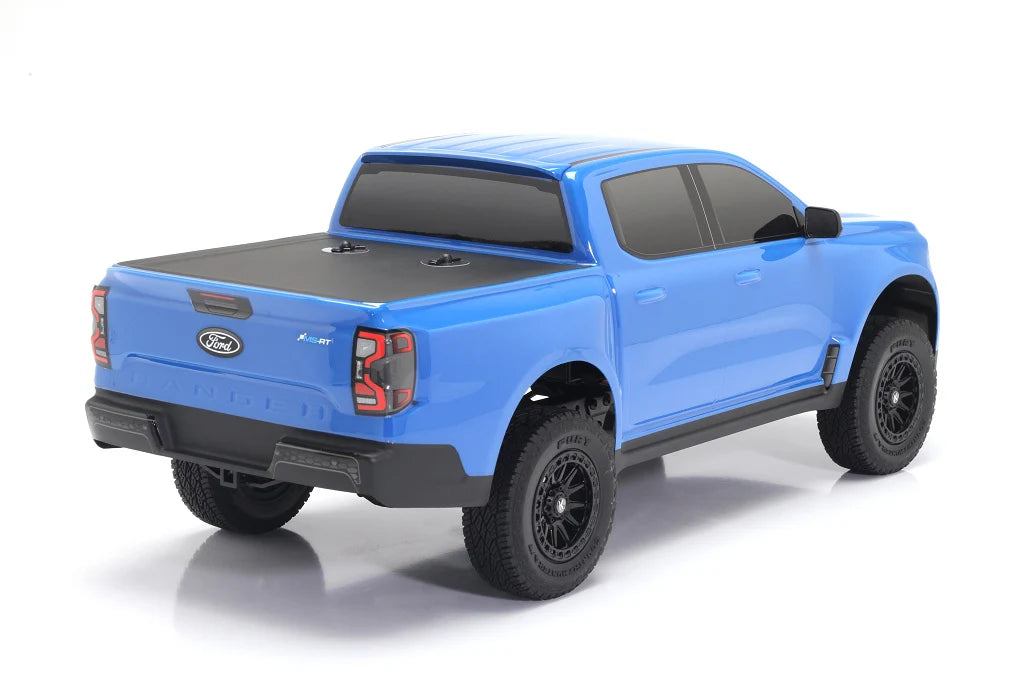

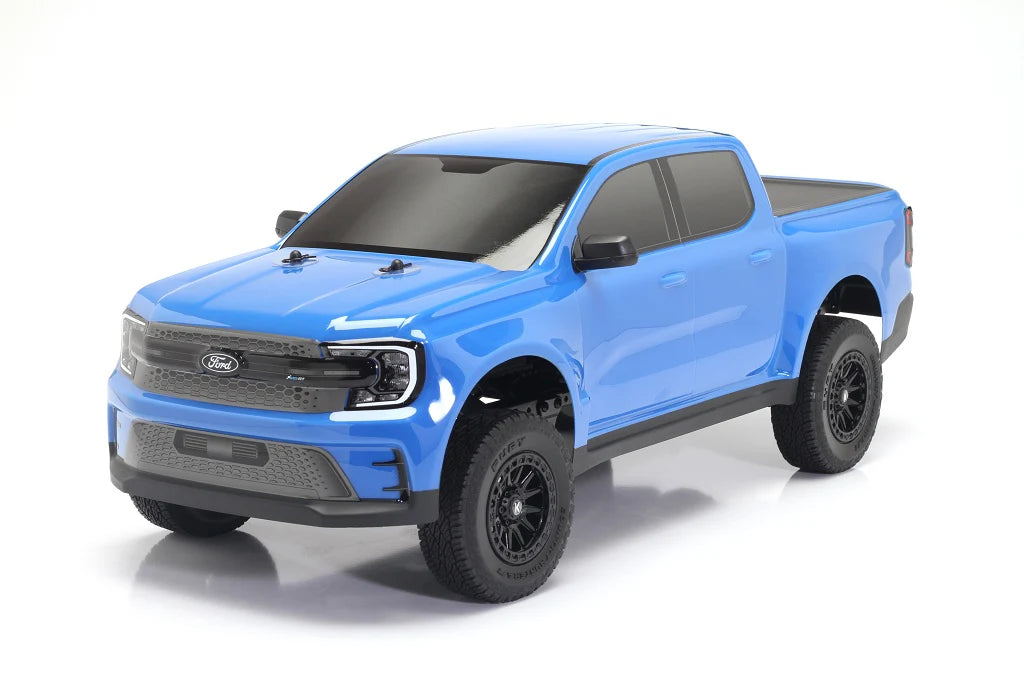

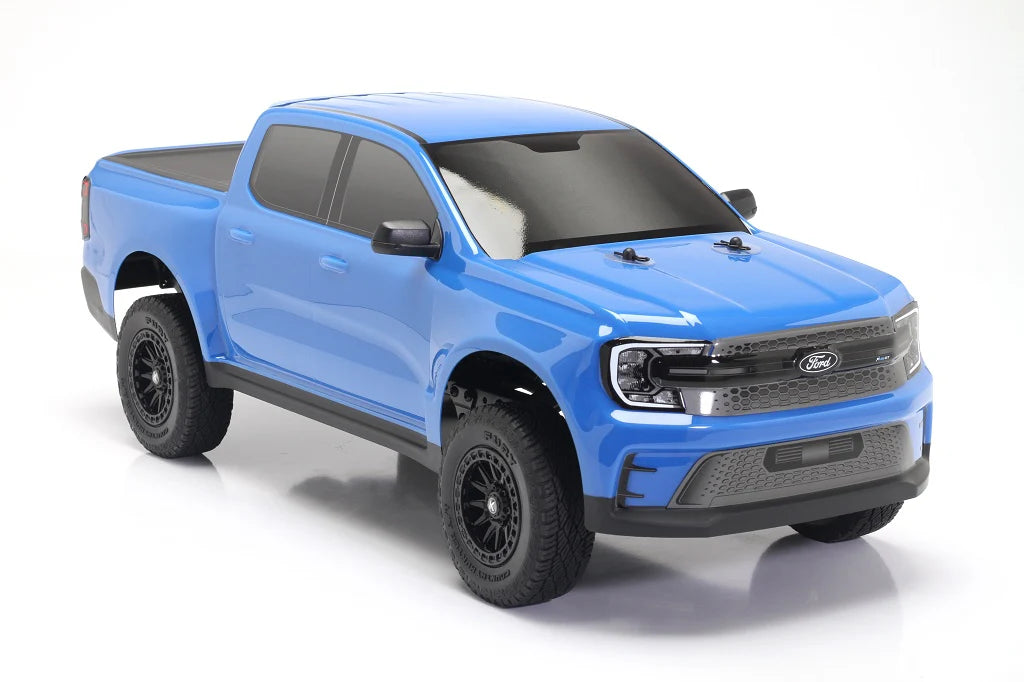

Item: 8973 - MS-RT Fast Blue

* KG1 FORGED K0105F Adrenaline wheel.  52mm x 26mm

* 78mm Big Bore Oil Filled Adjustable Coil Over Shocks

* 60A WP-1060-Brushed ( HobbyWing)

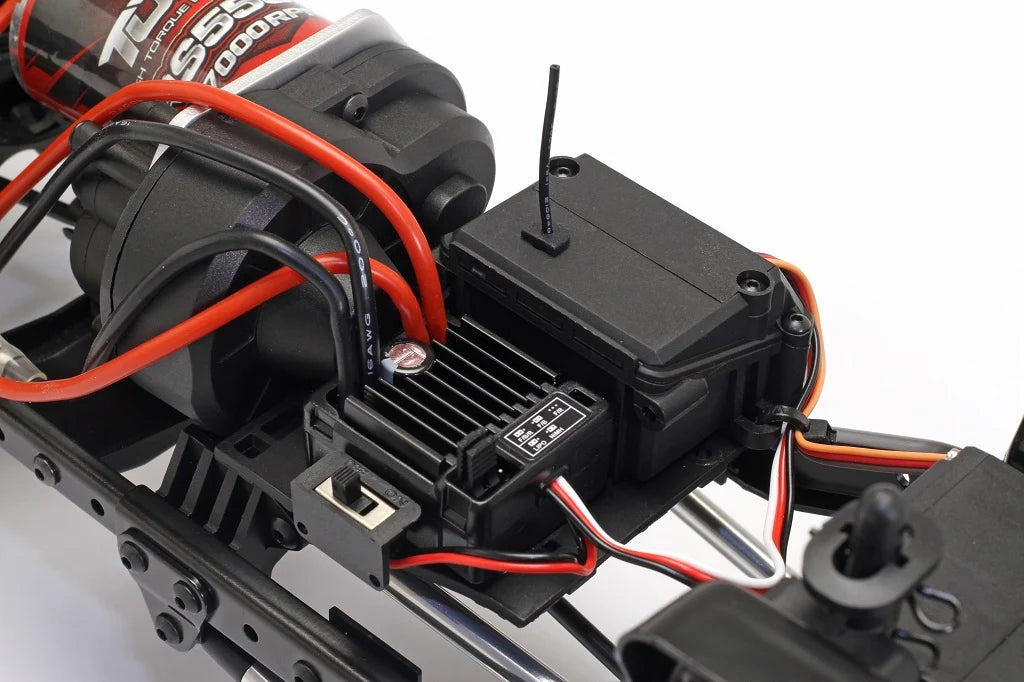

ESC-60A WP-1060-Brushed (Powered by HobbyWing):

• Water-proof and dust-proof for all weather
• Built-In Capacitor Module
• Automatic throttle range calibration
• Low voltage cut-off protection for Li-Po (lithium polymer) and NiMH battery
• Over-Heat protection and throttle signal loss protection
• Easily programmed with jumpers

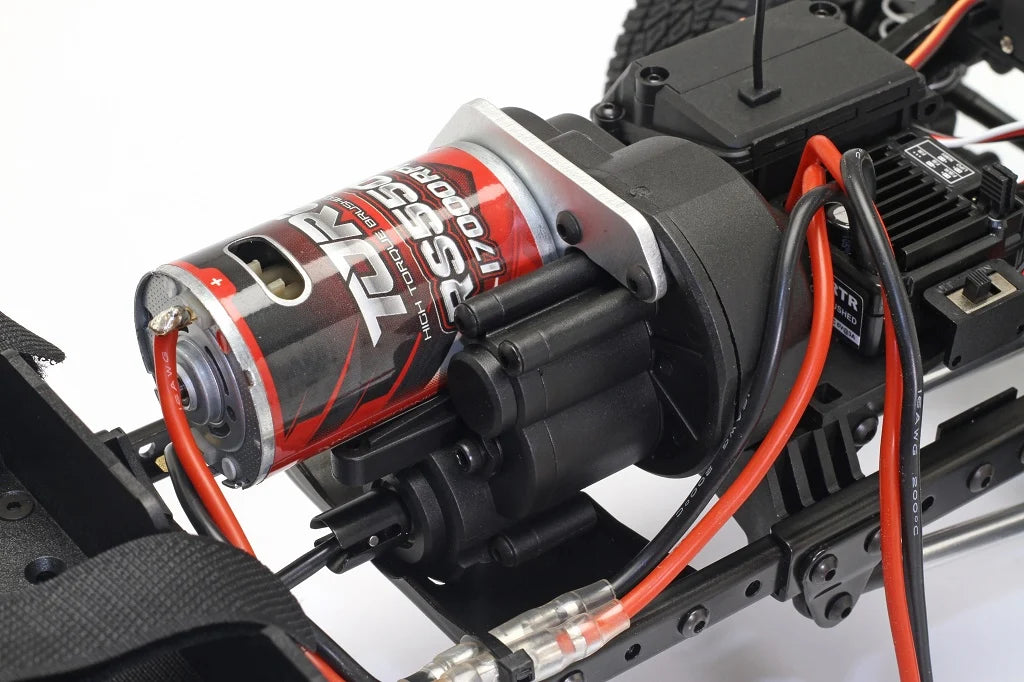

Motor-RS-550 high Torque Motor - Power By Mabuchi Motor

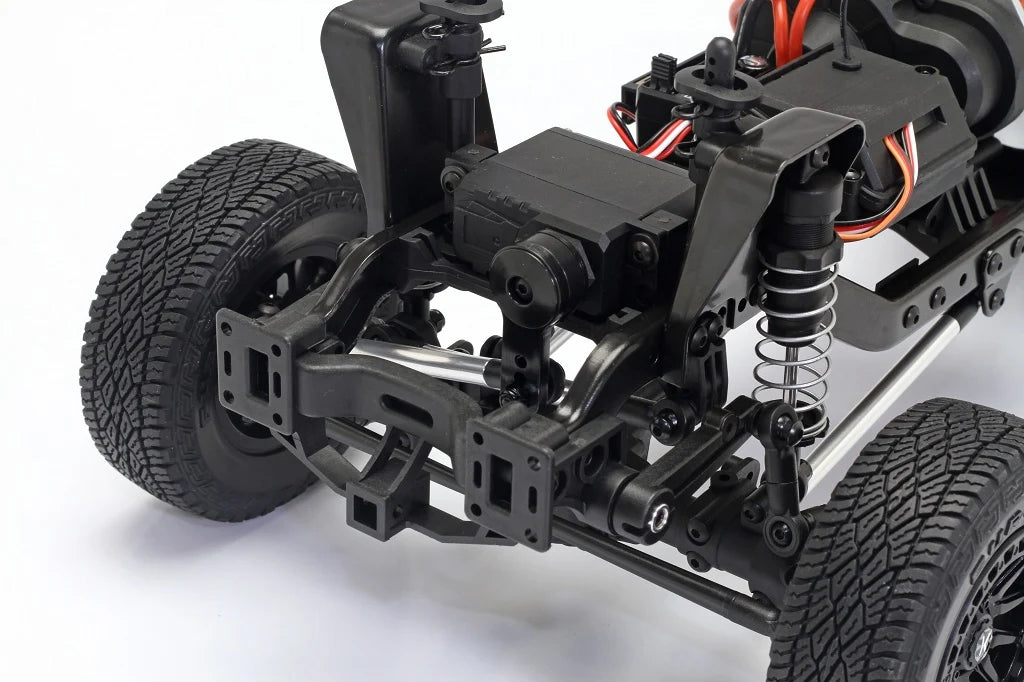

Servo -12Kg Servo O.E.M. by Savox:

• 4.8V 0.26 sec/60deg 10.0 kg-cm
• 6.0V 0.23 sec/60deg 12.0 kg-cm
• 25T Horn Gear Spline

Radio System:

• Pistol-Grip AMP 30 3 Channel Transmitter
• Digital Trimming
• Steering Dual-Rate (ST D/R) Adjustment
• End Point Adjustment (EPA)
• Built in Failsafe

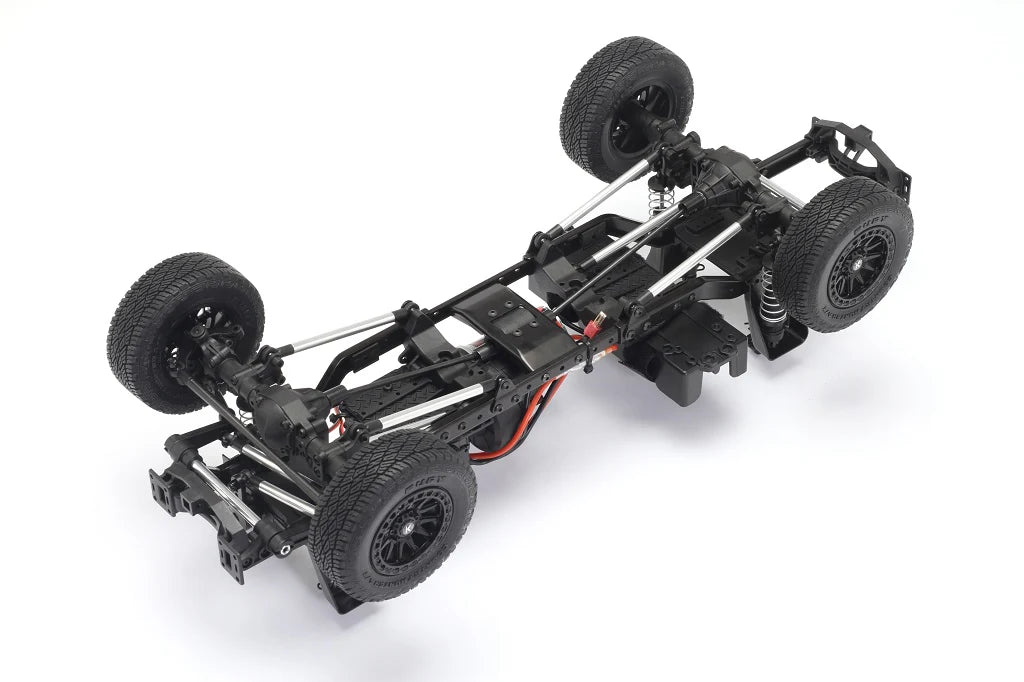

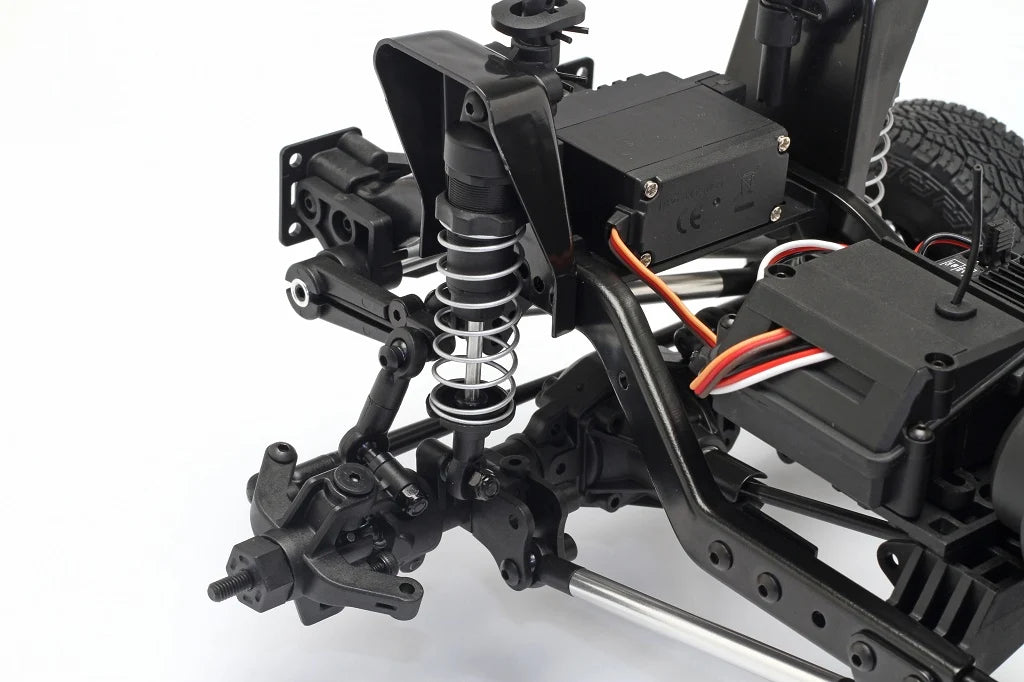

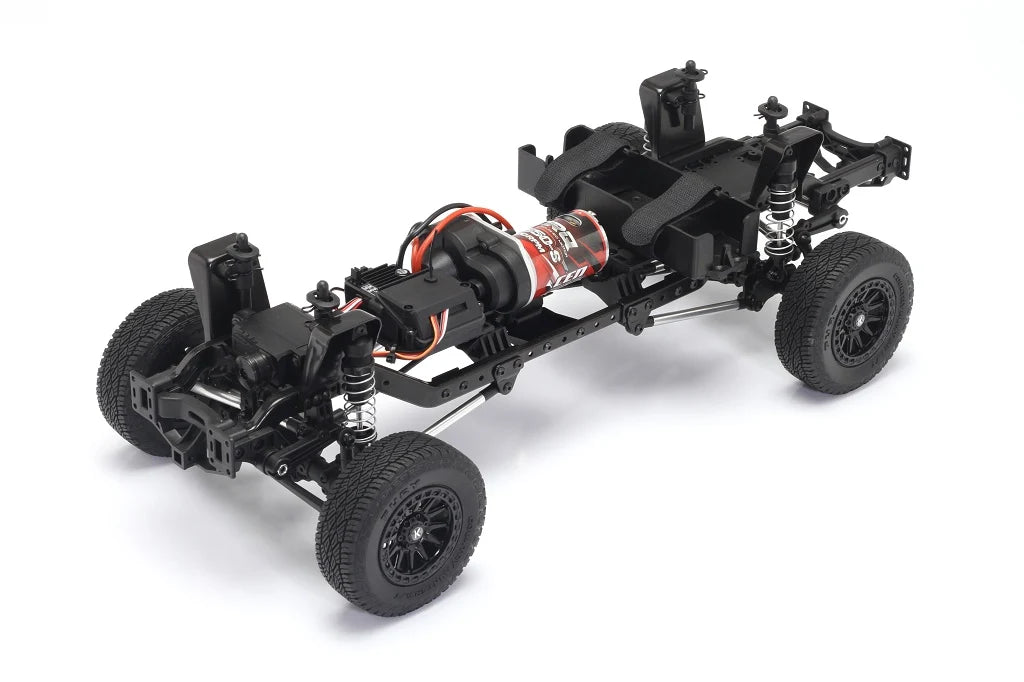

  Chassis:
• Steel Frame
  - CMS (Chassis Mounted Servo) Chassis Design
  - Stamped Steel Shock Hoops
  - Steel Skid Plate.
  - Full Precision Ball Bearing Support
  - Adjustable Turnbuckles
  - Steel skid Plate

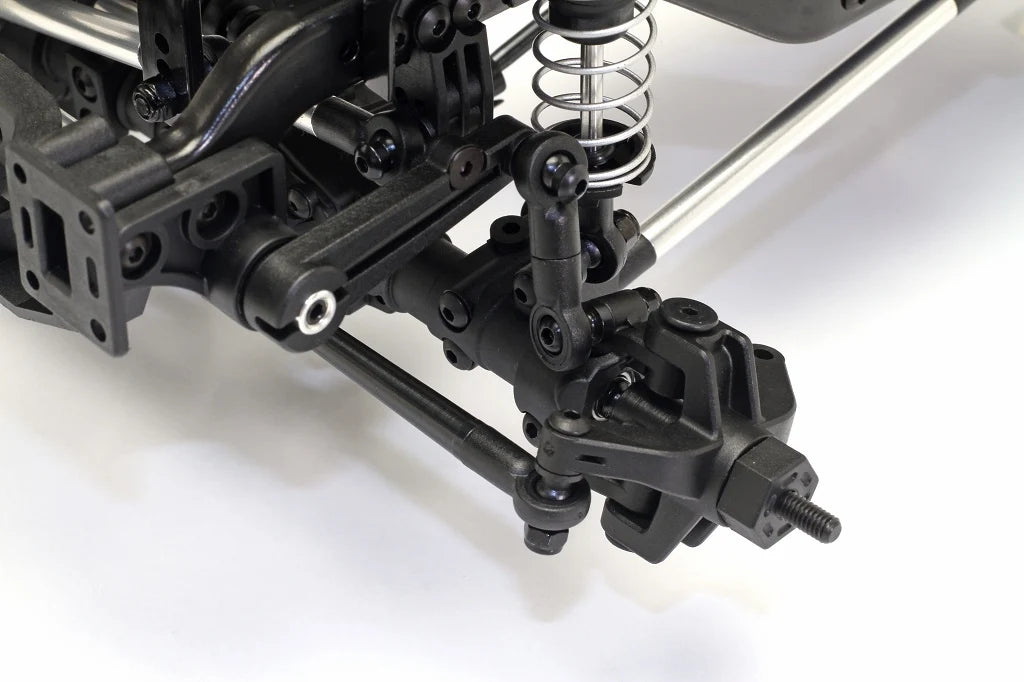

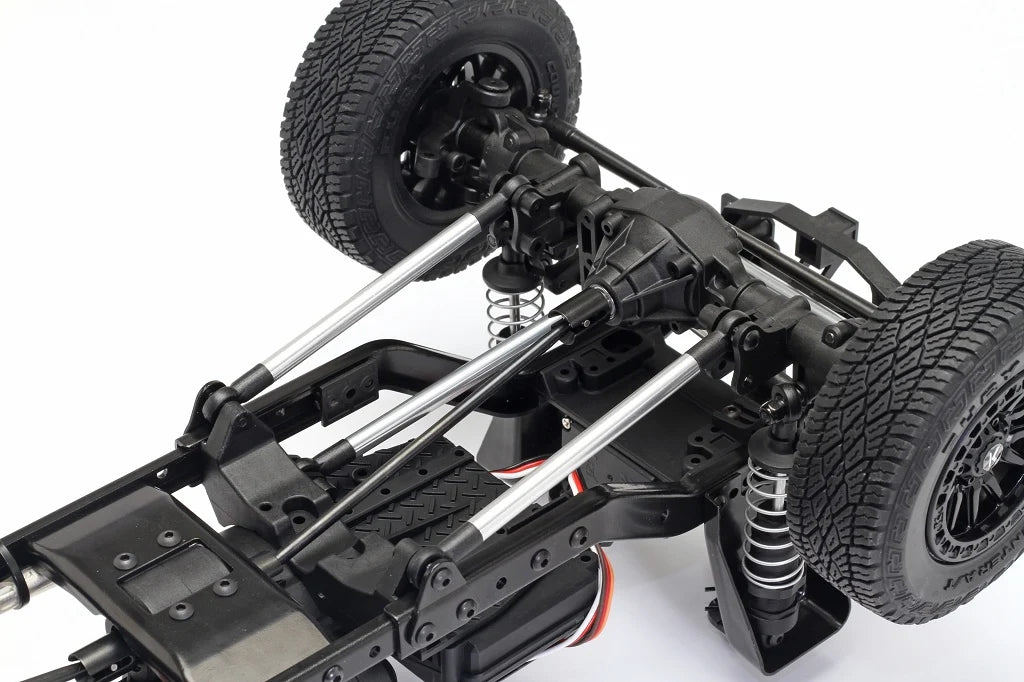

Suspension:

• 78mm Big Bore Oil Filled Adjustable Coil Over Shocks.
• 12mm over size shock body with 3mm Hardened Steel Polished Shaft.
• Harden Steel Steering Drag Link.
• CNC Machined 6mm Aluminum Linkage.
• Front / Rear Sway Bar.

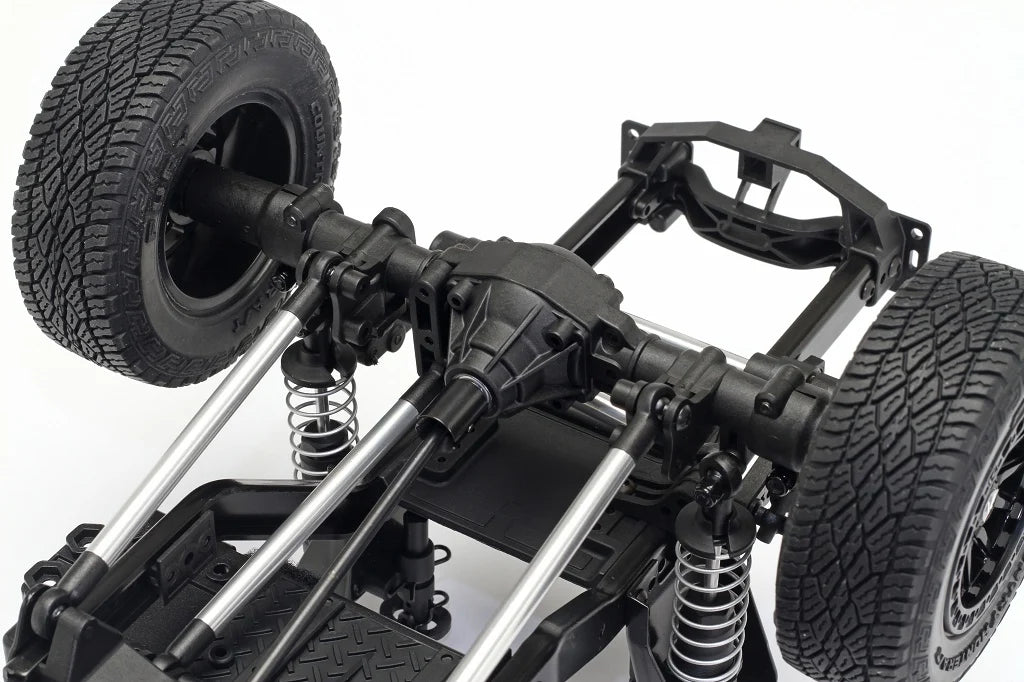

Drivetrain:

• Sway bar included
• 4 Wheel Drive
• Center Shaft Drive Train for more power transferred to the wheels
• Highly Efficient Transmission System
• Wide Range Easy Changeable Gear Box Design
• Sealed transmission eliminates dirt and dust
• Sealed Axle housing
• Sealed Transmission Case
• 5mm Hardened Steel Axle shaft
• Differential Center Locker Front/Rear Planetary Gear Type
• Metal Transmission Gears

• Planetary Gear type Differential

Specs:

Length: 21.65 inch (550mm)
Width: 9.1 inch (230mm)
Wheelbase: 12.95 inch (329mm)
Ground Clearance: 2.2 inch (55mm)
Weight: 4.7 lb. 2.15kg

Gear Ratio:

• Hi / Speed Ratio 1.56:1
• Hi / Torque Ratio 2.8:1
• Spur / Pinion Gear 32p85/32p10T
• Ring & Pinion Gear30/15T 2:1

Tires:

Official Licensed Fury Tires

• Country Hunter R/T Tire
• 46mm x 91mm x 31mm

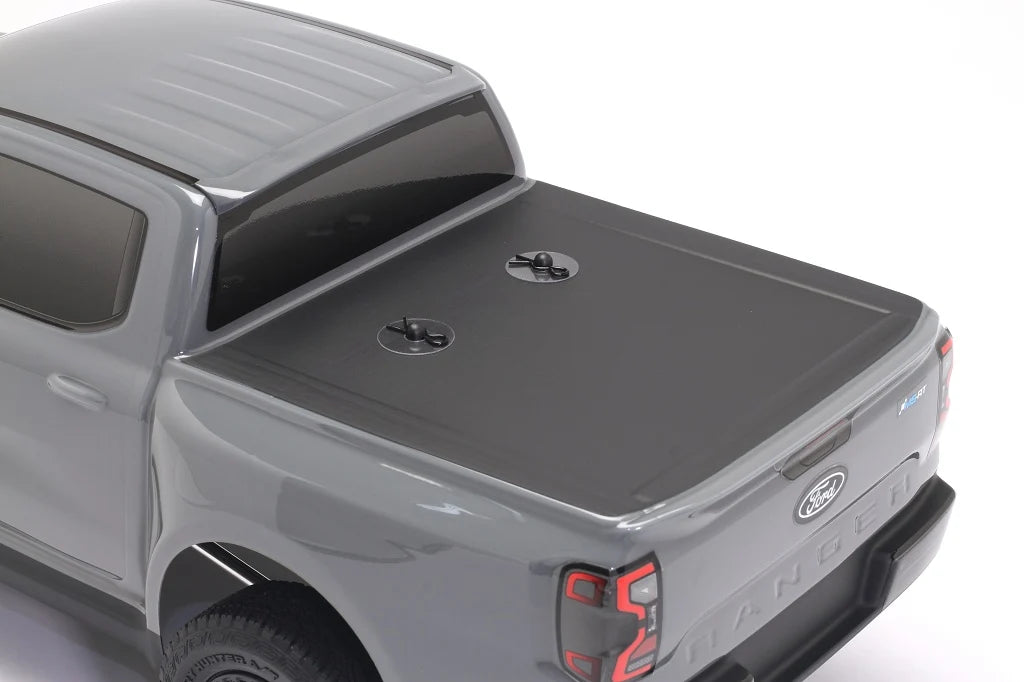

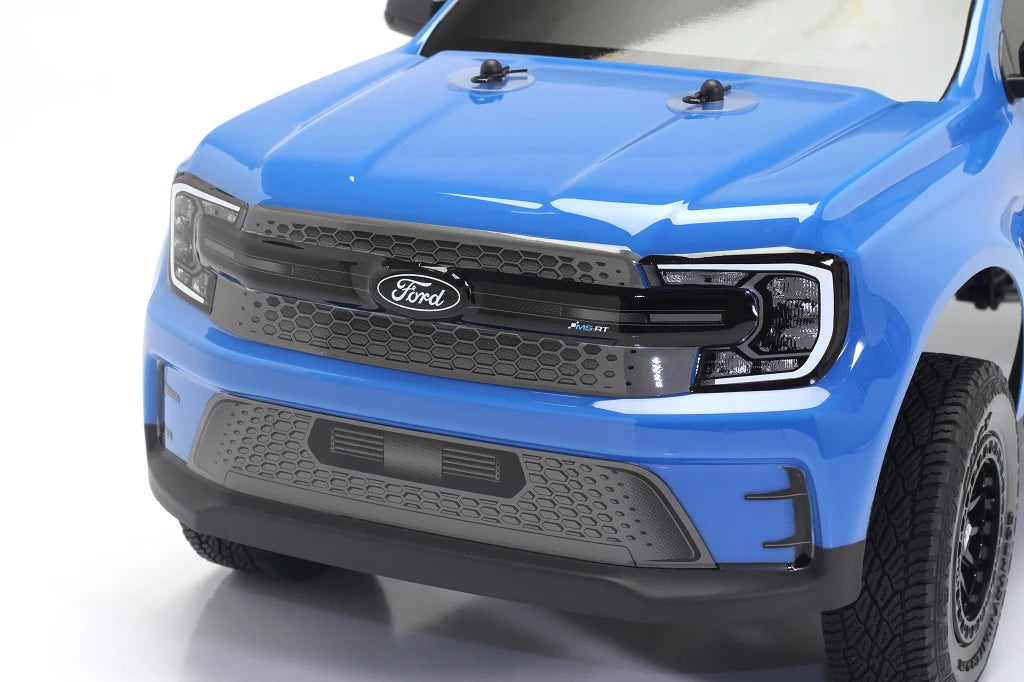

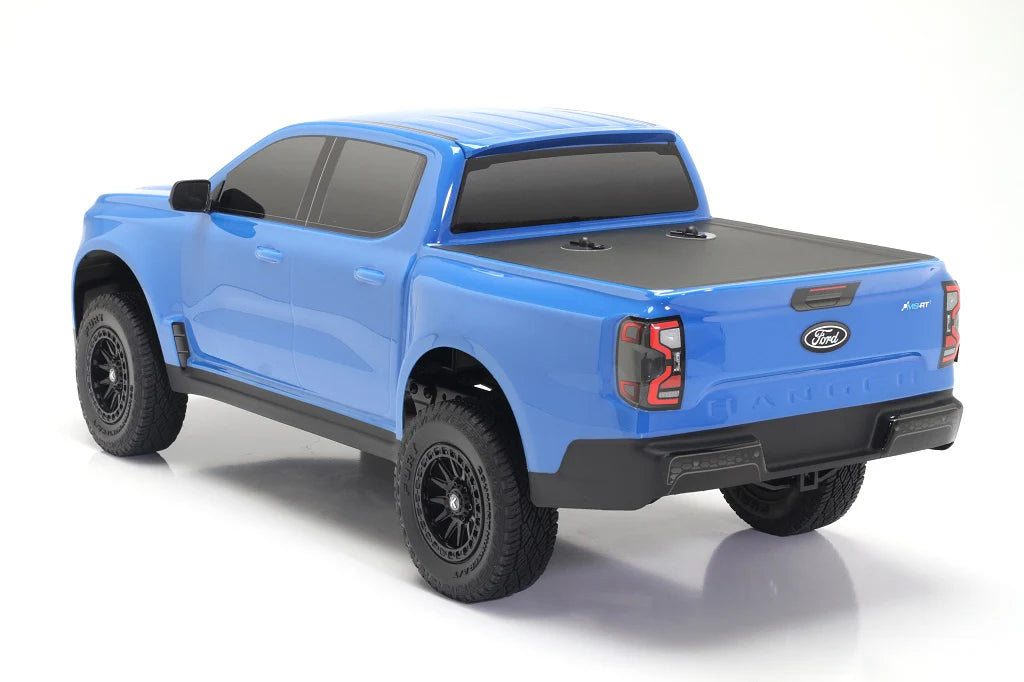

Body:

Official Licensed by Ford Motor

• Ford Ranger MS-RT
• Scale Body Details

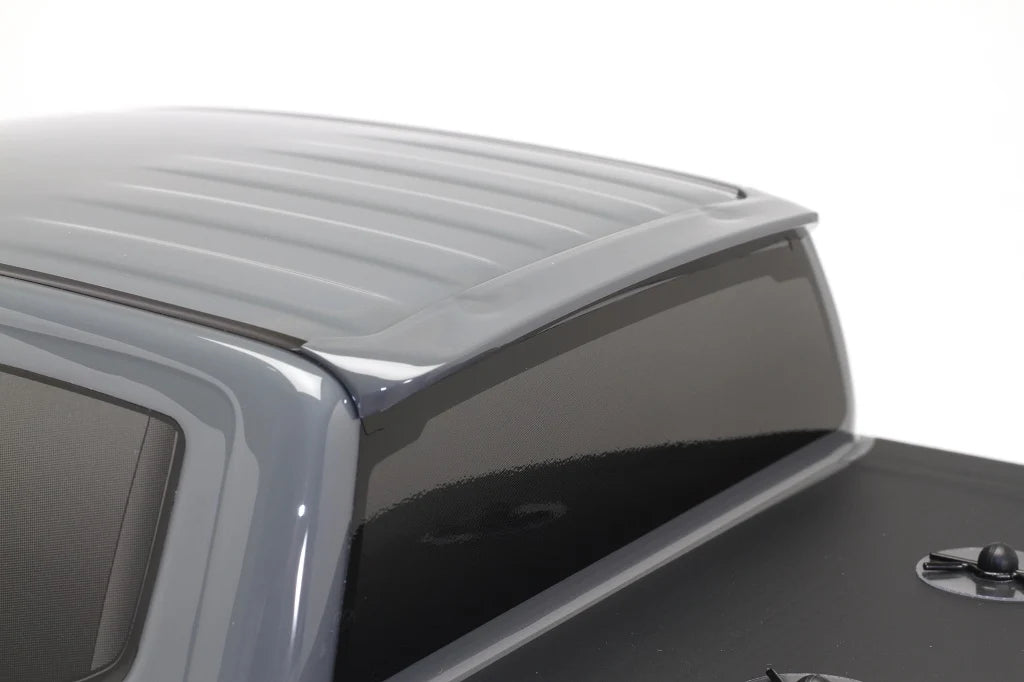

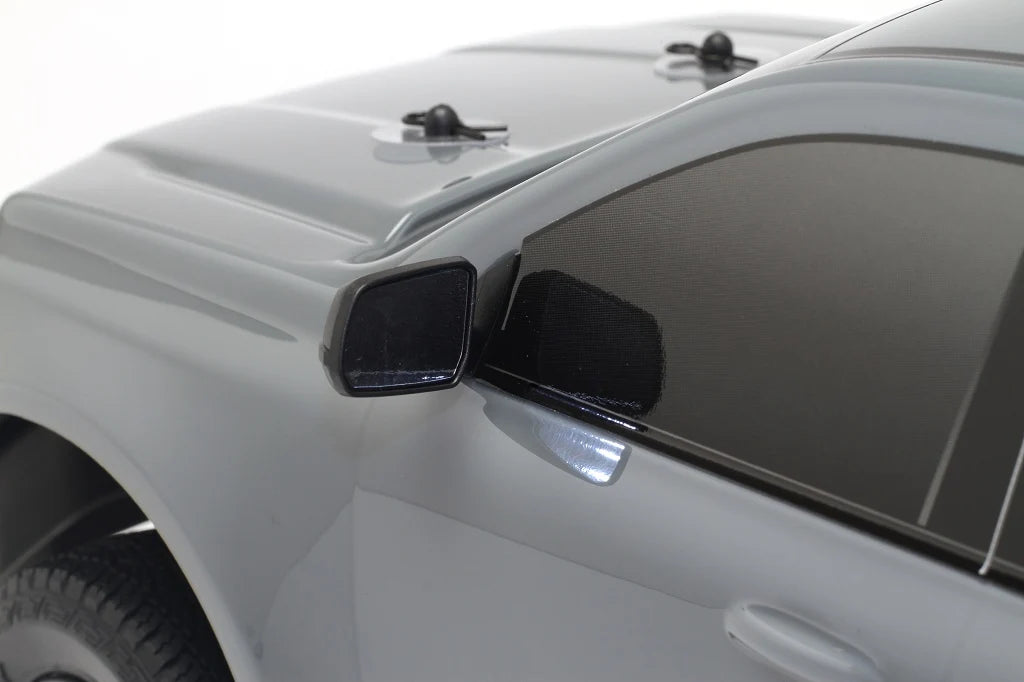

• Injection Molding Mirror and Roof Spoiler

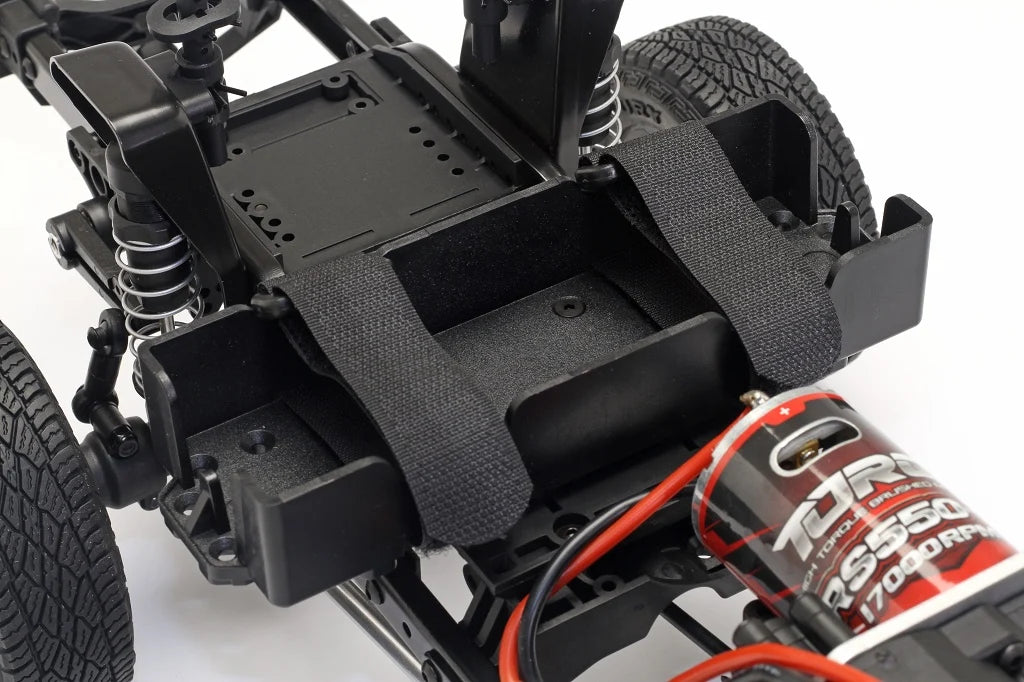

Battery:

Battery and Charger not included
