Description
MODEL SPECS
Name: BIGFOOT 4X4 BL-2s Type: Monster Truck Skill Level: 1 Scale: 1/10 Weight: 5.98 pounds (2.7 kg) Length: 17.87 inches (454 mm) Width: 13.10 inches (333 mm) Front Track: 13.10 inches (333 mm) Rear Track: 13.10 inches (333 mm) Height: 8.34 inches (212 mm) MOTOR SPECS
Name: BL-2s 3300 Kv Motor Type: Sensorless brushless Weight: 7.51 ounces (213 g) Length: 3.15 inches (80 mm) Diameter: 1.42 inches (36 mm) Shaft Size: 3 mm Connector Type: Traxxas Quick Connect Motor Plug ESC SPECS
Name: BL-2s Electronic Speed Control ESC Type: Brushless Case Size: 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm) Weight: 3.07 ounces (87 g) Motor Connectors: Traxxas Quick Connect Motor Plug Battery Connectors: Traxxas High-Current Connector - Licensed BIGFOOT No. 8 Clipless Body
- Brilliant blue metallic officially licensed Ford® F-150® body
- Chrome front and rear bumpers
- Holds tight for intense action
- Quick and easy removal
- BL-2s™ Waterproof Electronic Speed Control
- Heat sink accepts accessory cooling fan (3340)
- Three Programmable Drive Profiles
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
- LiPo battery packs: 2 cells (7.4 volts)
- 3300 Kv Brushless Motor
- Integrated cooling fan
- Low-maintenance design
- Efficient ball bearings
- 3300 Kv
- TQ™ 2.4 GHz Transmitter
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control
- Extreme Heavy-Duty Upgrade Kit Installed
- Strengthened C-hubs, axle carriers, and steering blocks
- Maxx-duty driveshafts
- Oversize diameter
- 6 mm axles
- Steel wheel hexes

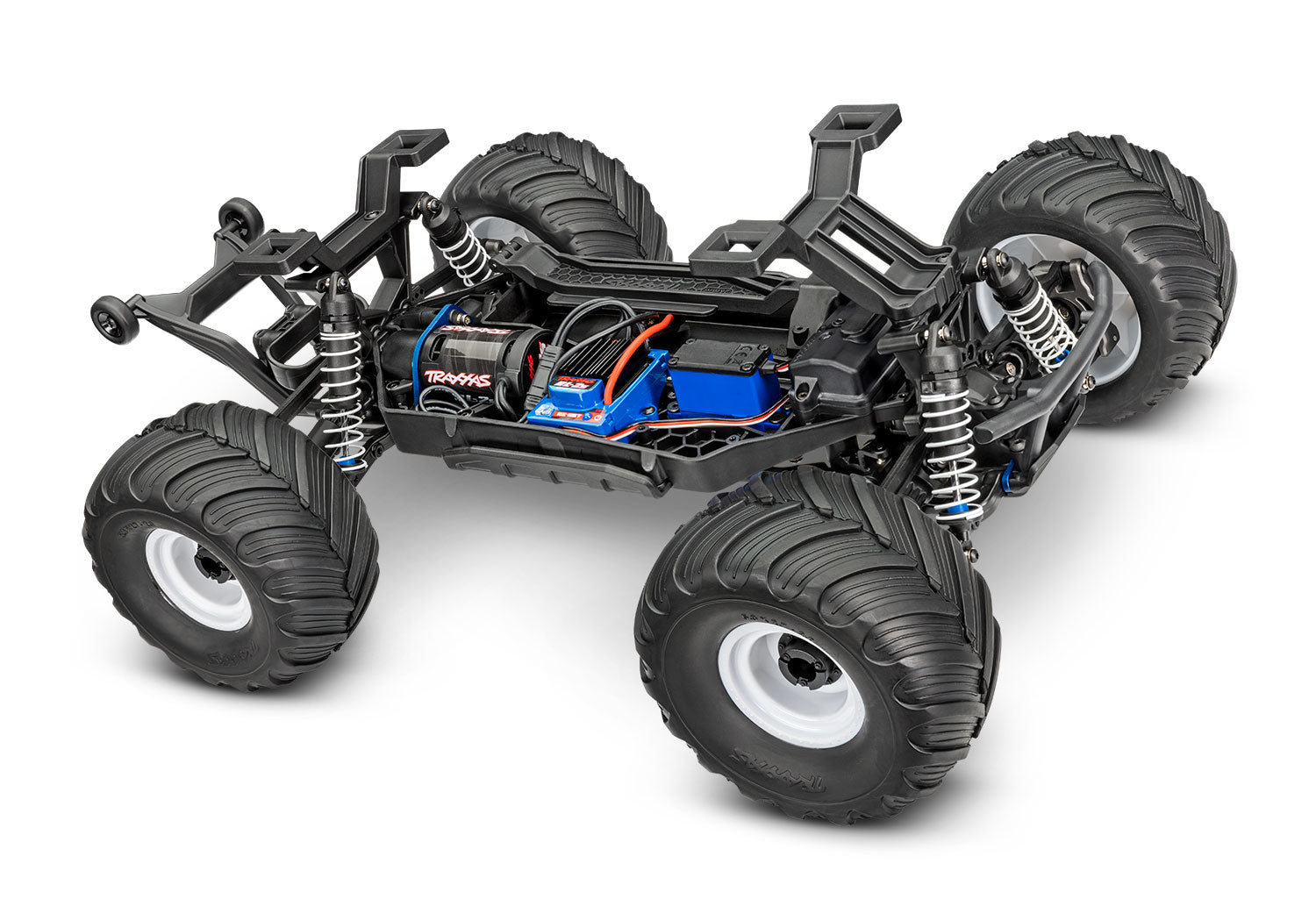

- Chassis
- Modular composite tub design
- Secure battery hold-down latch
- High angle bumpers
- 4-position adjustable wheelie bar
- Suspension
- HD-composite suspension arms
- Oil-filled Ultra Shocks
- White powder-coated springs
- Steering
- Chassis-mounted 2075 servo
- Dual bellcrank design with integrated servo saver
- Driveline
- Full-time shaft-driven four-wheel drive
- Sealed steel gear front and rear differentials
- Large 32-pitch steel spur gear
- Wheels and Tires
- Dual-profile white monster truck wheels
- Replica military-style axle hubs
- Pre-glued high profile Terra Groove shaved monster truck tires with foam inserts
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
MODEL 67134-4: BIGFOOT® 4X4: 1/10 scale 4X4 brushless monster truck, fully-assembled, waterproof electronics, Ready-To-Race®, with TQ™ 2.4 GHz 2-channel radio system, BL-2s™ brushless power system, and clipless BIGFOOT No. 8 replica body. Requires: battery and charger.What’s In The Box:
- BIGFOOT 4X4 with BL-2s ESC and 3300 Kv motor
- Quick Start Guide
- TQ 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- Batteries
BIGFOOT 4X4 requires a single 7.2 or 8.4-volt NiMH or 7.4-volt LiPo battery
- Charger
Traxxas EZ-Peak® charger (2970) is recommended for easy and fast charging performance
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter
Description
MODEL SPECS
| Name: | BIGFOOT 4X4 BL-2s |
|---|---|
| Type: | Monster Truck |
| Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 5.98 pounds (2.7 kg) |
| Length: | 17.87 inches (454 mm) |
| Width: | 13.10 inches (333 mm) |
| Front Track: | 13.10 inches (333 mm) |
| Rear Track: | 13.10 inches (333 mm) |
| Height: | 8.34 inches (212 mm) |
MOTOR SPECS
| Name: | BL-2s 3300 Kv |
|---|---|
| Motor Type: | Sensorless brushless |
| Weight: | 7.51 ounces (213 g) |
| Length: | 3.15 inches (80 mm) |
| Diameter: | 1.42 inches (36 mm) |
| Shaft Size: | 3 mm |
| Connector Type: | Traxxas Quick Connect Motor Plug |
ESC SPECS
| Name: | BL-2s Electronic Speed Control |
|---|---|
| ESC Type: | Brushless |
| Case Size: | 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm) |
| Weight: | 3.07 ounces (87 g) |
| Motor Connectors: | Traxxas Quick Connect Motor Plug |
| Battery Connectors: | Traxxas High-Current Connector |
- Licensed BIGFOOT No. 8 Clipless Body
- Brilliant blue metallic officially licensed Ford® F-150® body
- Chrome front and rear bumpers
- Holds tight for intense action
- Quick and easy removal
- BL-2s™ Waterproof Electronic Speed Control
- Heat sink accepts accessory cooling fan (3340)
- Three Programmable Drive Profiles
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
- LiPo battery packs: 2 cells (7.4 volts)
- 3300 Kv Brushless Motor
- Integrated cooling fan
- Low-maintenance design
- Efficient ball bearings
- 3300 Kv
- TQ™ 2.4 GHz Transmitter
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control
- Extreme Heavy-Duty Upgrade Kit Installed
- Strengthened C-hubs, axle carriers, and steering blocks
- Maxx-duty driveshafts
- Oversize diameter
- 6 mm axles
- Steel wheel hexes
- Chassis
- Modular composite tub design
- Secure battery hold-down latch
- High angle bumpers
- 4-position adjustable wheelie bar
- Suspension
- HD-composite suspension arms
- Oil-filled Ultra Shocks
- White powder-coated springs
- Steering
- Chassis-mounted 2075 servo
- Dual bellcrank design with integrated servo saver
- Driveline
- Full-time shaft-driven four-wheel drive
- Sealed steel gear front and rear differentials
- Large 32-pitch steel spur gear
- Wheels and Tires
- Dual-profile white monster truck wheels
- Replica military-style axle hubs
- Pre-glued high profile Terra Groove shaved monster truck tires with foam inserts
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
MODEL 67134-4: BIGFOOT® 4X4: 1/10 scale 4X4 brushless monster truck, fully-assembled, waterproof electronics, Ready-To-Race®, with TQ™ 2.4 GHz 2-channel radio system, BL-2s™ brushless power system, and clipless BIGFOOT No. 8 replica body. Requires: battery and charger.
What’s In The Box:
- BIGFOOT 4X4 with BL-2s ESC and 3300 Kv motor
- Quick Start Guide
- TQ 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- Batteries
BIGFOOT 4X4 requires a single 7.2 or 8.4-volt NiMH or 7.4-volt LiPo battery
- Charger
Traxxas EZ-Peak® charger (2970) is recommended for easy and fast charging performance
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter
