Furitek NANO UNITY TORQUE 2-in-1 FOC ESC & Motor for Axial SCX30

Furitek NANO UNITY TORQUE 2-in-1 FOC ESC & Motor for Axial SCX30

Direct bolt-on design installs to the stock Axial SCX30 transmission with no additional adapter or mount required.

All-in-One Torque Power. Smart Wireless Control. Built for Crawling.

Introducing the Furitek NANO UNITY TORQUE, a next-generation 2-in-1 brushless power system designed exclusively for the Axial SCX30. Built for serious micro crawler enthusiasts, UNITY TORQUE combines torque-focused brushless performance, advanced FOC control, and smart wireless tuning into one ultra-compact, clean, and reliable solution.

By integrating the ESC and motor into a single unit, NANO UNITY TORQUE eliminates unnecessary wiring, simplifies installation, and maximizes space efficiency inside the tight SCX30 chassis.

Designed for Axial SCX30

The NANO UNITY TORQUE system is precision-engineered specifically for the Axial SCX30 platform. Its compact footprint and optimized layout ensure proper fitment, balanced weight distribution, and efficient power transfer through the SCX30 drivetrain.

This system is ideal for builders who demand both performance and a clean, organized chassis layout.

True 2-in-1 ESC and Motor Integration

Unlike traditional setups that require a separate ESC and motor, NANO UNITY TORQUE integrates both into a single streamlined unit.

This true 2-in-1 architecture reduces wiring complexity, minimizes potential connection issues, and delivers a cleaner and more reliable installation. The result is a lighter, simpler, and more robust micro crawler build.

Torque-Focused Brushless Performance

NANO UNITY TORQUE is engineered with a torque-first philosophy. The motor and control system are optimized to deliver strong low-end torque, stable power output, and precise throttle modulation.

This makes it ideal for technical crawling, steep climbs, and controlled low-speed maneuvering where smoothness and torque matter more than raw top speed.

The system is optimized to operate efficiently on 2S and 3S LiPo, giving drivers flexibility to increase torque output while maintaining excellent drivability and control.

Advanced FOC Control Technology

Powered by Furitek’s refined FOC (Field Oriented Control) algorithm, NANO UNITY TORQUE delivers ultra-smooth startup, super slow crawl capability, and stable torque even at extremely low RPM.

Throttle response remains smooth, predictable, and consistent under load, allowing precise control in demanding crawling situations.

Built-in Wireless Tuning and Smart Control

The ESC inside NANO UNITY TORQUE is based on Furitek’s NanoPython ESC architecture, featuring a built-in wireless module for seamless mobile tuning and monitoring.

Users can connect directly to the Furicar App on iOS and Android for setup, tuning, and system monitoring. No programming cards, no cables, and no external modules are required.

Key parameters such as throttle response, startup behavior, and torque characteristics can be adjusted wirelessly, allowing easy customization directly from a mobile device.

Real-Time Telemetry and Wireless Firmware Updates

With built-in wireless connectivity, NANO UNITY TORQUE provides real-time telemetry through the Furicar App, including voltage, current, temperature, and throttle data, with update rates up to 10Hz.

Firmware updates are performed wirelessly via the app, with free lifetime firmware updates, ensuring continued optimization and long-term system support.

Integrated 5.5V 3A BEC

NANO UNITY TORQUE features an integrated 5.5V 3A BEC, designed to provide stable and reliable power for most standard micro servos used in SCX30 applications.

This BEC output is optimized for efficiency and thermal stability within the ultra-compact 2-in-1 design, ensuring consistent steering performance during technical crawling and trail driving.

Key Features

• True 2-in-1 brushless ESC and motor design

• Torque-focused performance optimized for crawling

• Advanced FOC control for ultra-smooth throttle response

• Built-in wireless tuning module

• Direct connection to Furicar App on iOS and Android

• No cables or external modules required for tuning

• Real-time telemetry up to 10Hz

• Wireless firmware updates with free lifetime updates

• Integrated 5.5V 3A BEC

• Optimized for 2S and 3S LiPo batteries

• Ultra-compact design for clean SCX30 installations

• Designed specifically for Axial SCX30

Why Choose NANO UNITY TORQUE

The Furitek NANO UNITY TORQUE is the ultimate all-in-one power solution for Axial SCX30 owners who want strong crawling torque, smooth low-speed control, smart wireless tuning, and the cleanest possible installation.

It combines advanced brushless technology, intelligent control, and extreme compactness into one unified system built for the future of micro crawling.

Furitek NANO UNITY TORQUE

All-in-one torque power. Smart control. Clean integration.

Built for Axial SCX30.

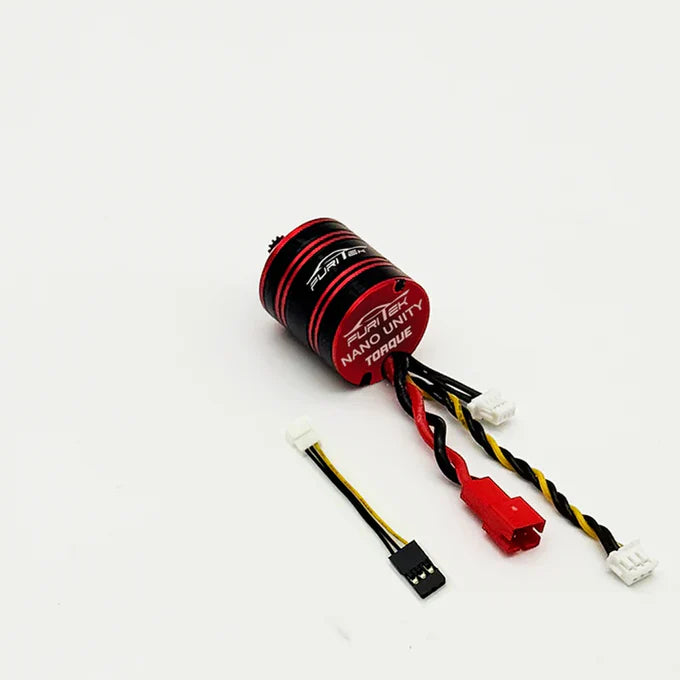

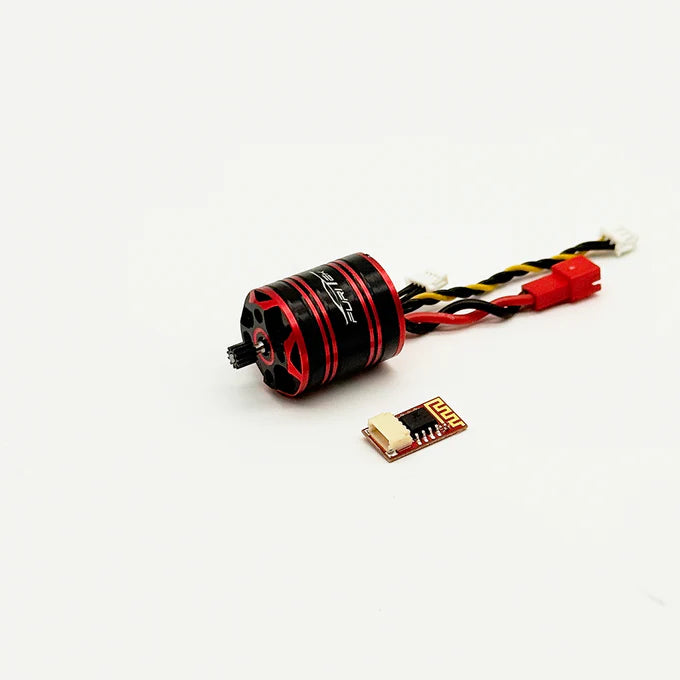

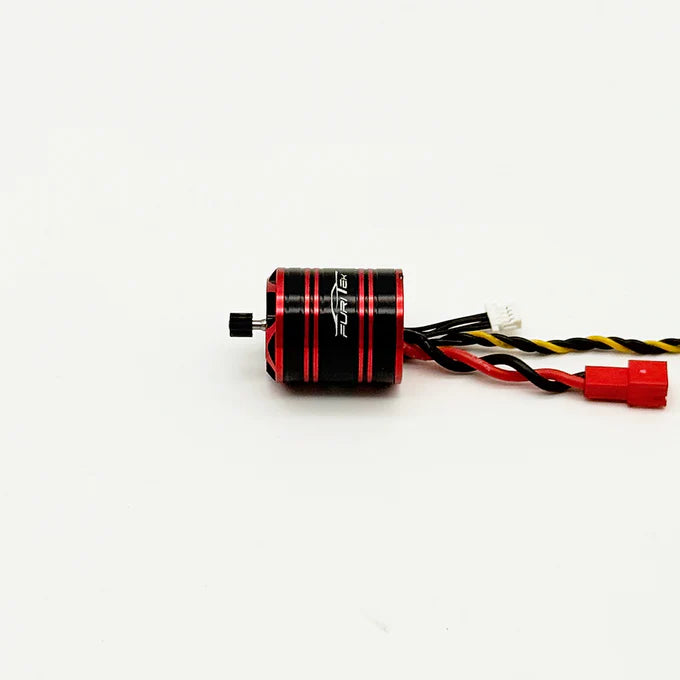

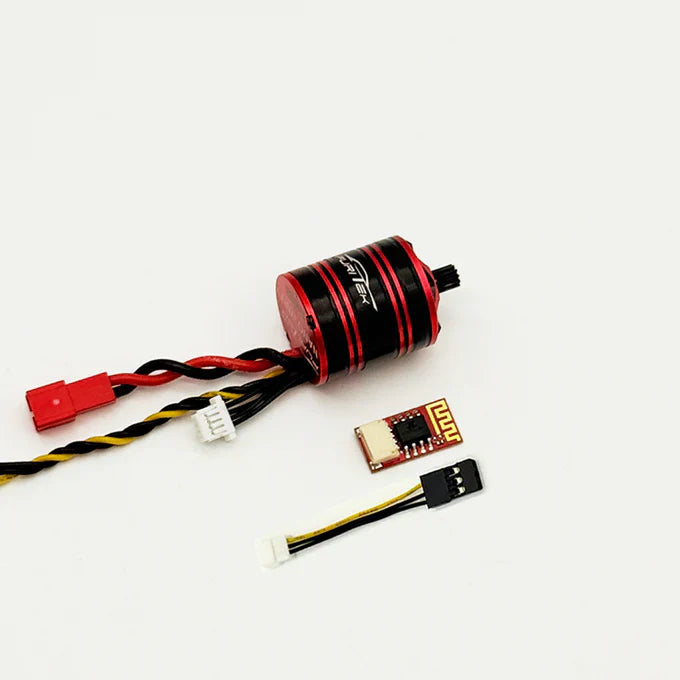

What’s Included

• Furitek NANO UNITY TORQUE 2-in-1 FOC ESC & Motor

  Integrated brushless ESC and motor system designed specifically for Axial SCX30

• 11T Pinion Gear

  Pre-selected pinion optimized for torque-focused crawling performance

• Built-in Wireless Module

  Integrated wireless module for direct connection to the Furicar App on iOS and Android

• Signal Adapter Cable

  Adapter cable for connecting the system to a standard radio receiver

Requirements

• 2-channel or higher TX and RX radio system required

• ESC signal cable must be connected to CH2 on the receiver
