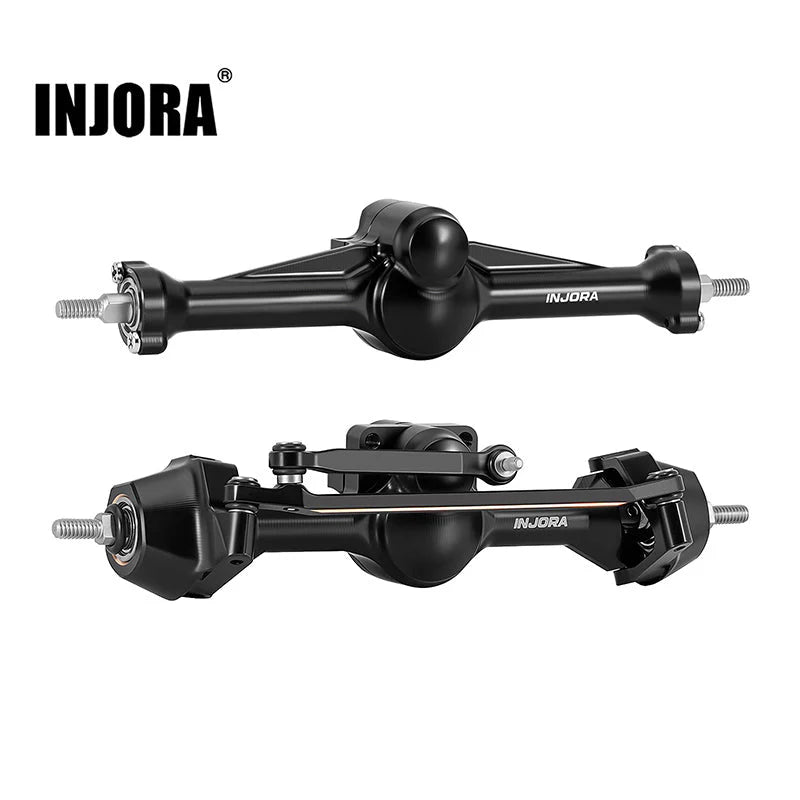

INJORA +3mm Planet Axles with Brass Steering Knuckles for 1/30 SCX30

INJORA +3mm Planet Axles with Brass Steering Knuckles for 1/30 Axial SCX30

Note:

• If using stock SCX30 chassis links with INJORA planet axles, replace the original ball studs with those included in the axle kit, as the screw length differs.
• Compatible with both INJORA and stock SCX30 servos, gears, steering knuckles, chassis links.
• Not compatible with original SCX30 size steering links and dogbone shafts as the axle housings are 3mm extended per side.
• Not compatible with INJORA and stock SCX30 diff covers.

Features:

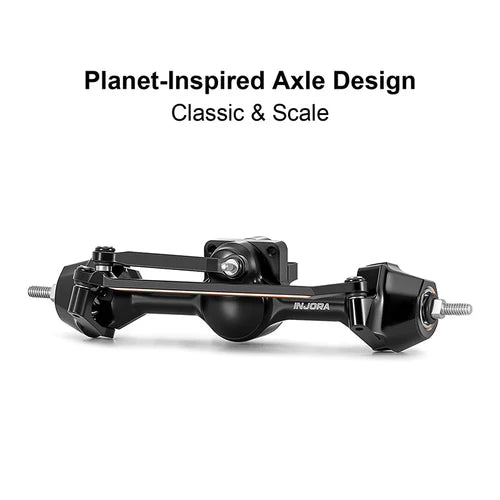

• Planet-shaped differential housing, precision CNC-machined for a realistic scale appearance
• Integrated axle housing and tubes for a clean, scale-accurate look

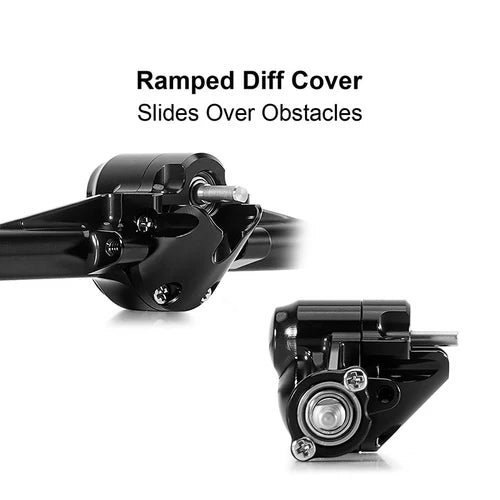

• Ramped diff cover design helps the axle slide over obstacles more easily

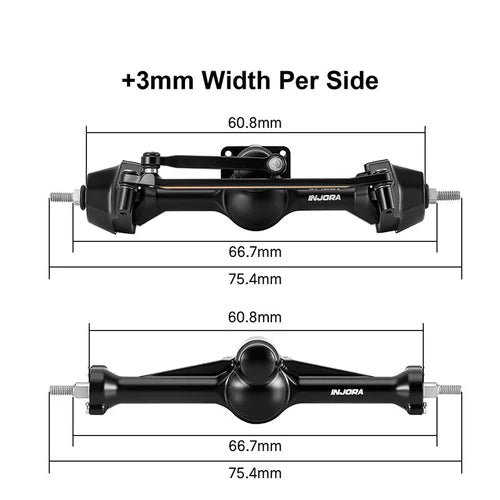

• +3mm per side track width improves stability while maintaining scale proportions

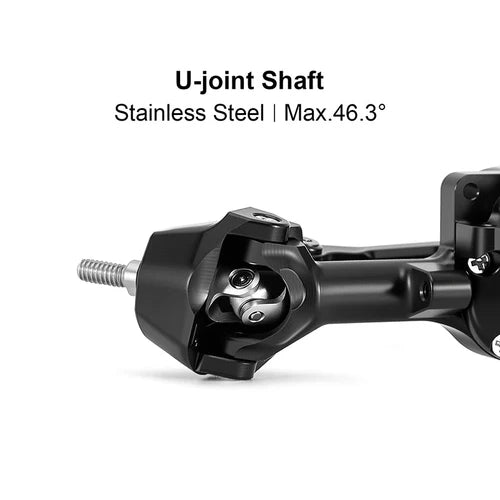

• Upgraded stainless steel U-joint front axle shafts allow up to 46.3° steering angle

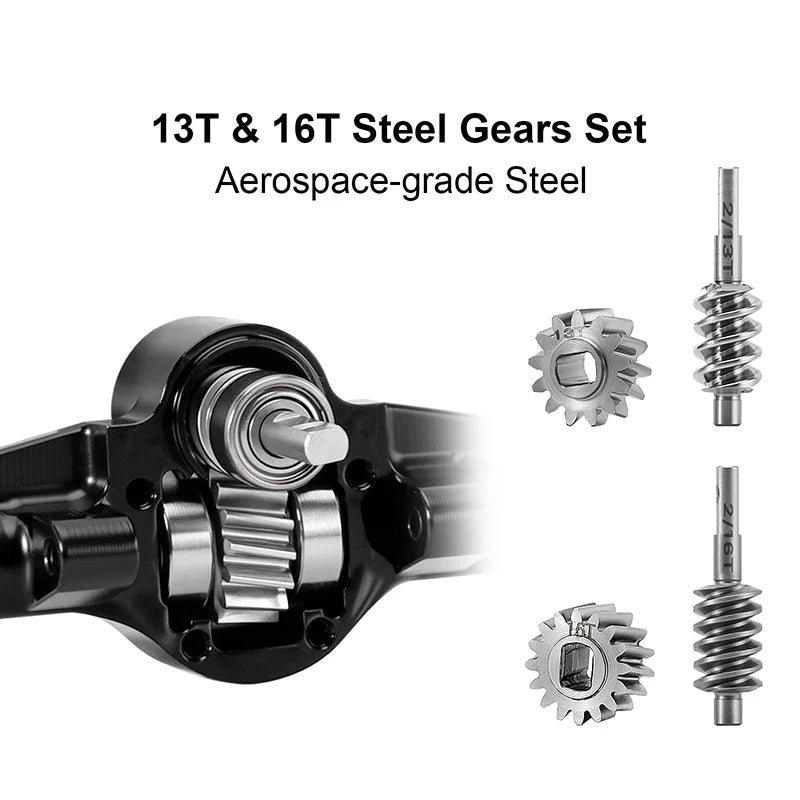

• 2/13T front and 2/16T rear gears create front overdrive for improved climbing traction and steering control
• Brass steering knuckles and steering links add front-end weight for improved climbing performance

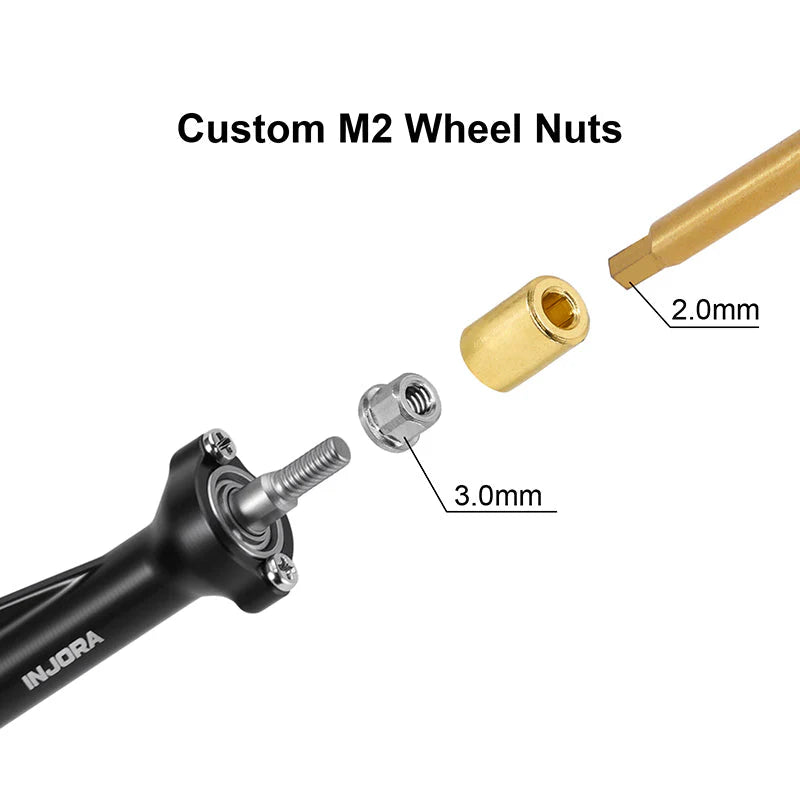

• Custom-designed compact M2 wheel nuts specifically for SCX30 ensure secure wheel mounting

Specifications:

• Part Number: SCX30-25BKFR
• Housing Material: Aluminum
• Ramped Diff Cover Material: Aluminum
• Steering Links Material: Brass
• Steering Knuckles Material: Brass
• Gears & Shafts Material: Stainless Steel
• Shaft Type: U-joint
• Gear Ratio: 2/13T (Front), 2/16T (Rear)
• Maximum Steering Angle: Approx. 46.3°
• Overall Length: 75.4mm
• Front Axle Weight: 25.5g
• Rear Axle Weight: 11.2g

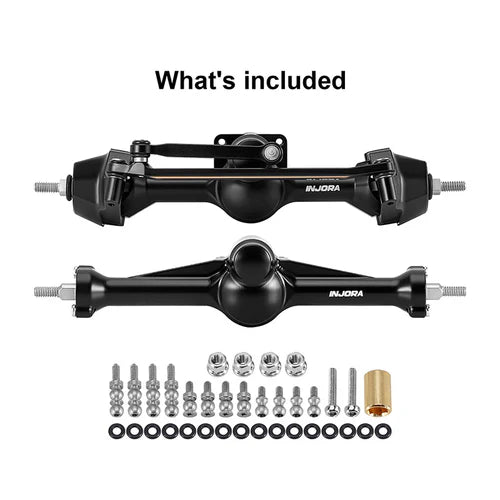

Package List:

• 1 × Front Axle
• 1 × Rear Axle
• 1 × Torx Screwdriver
• 1 × Nut Tool (Brass)

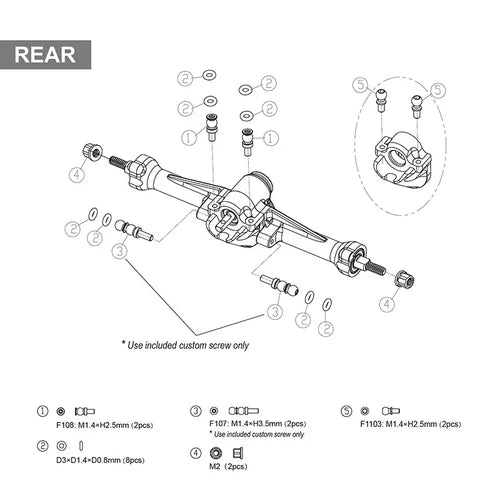

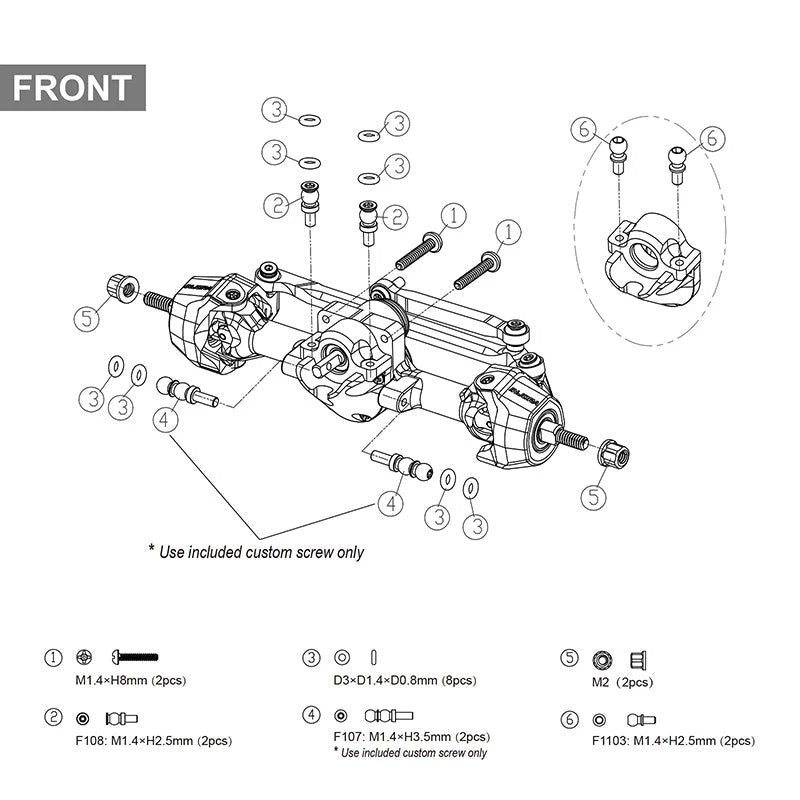

• 1 × Assembly Manual
• 4 × Custom M2 Nuts
