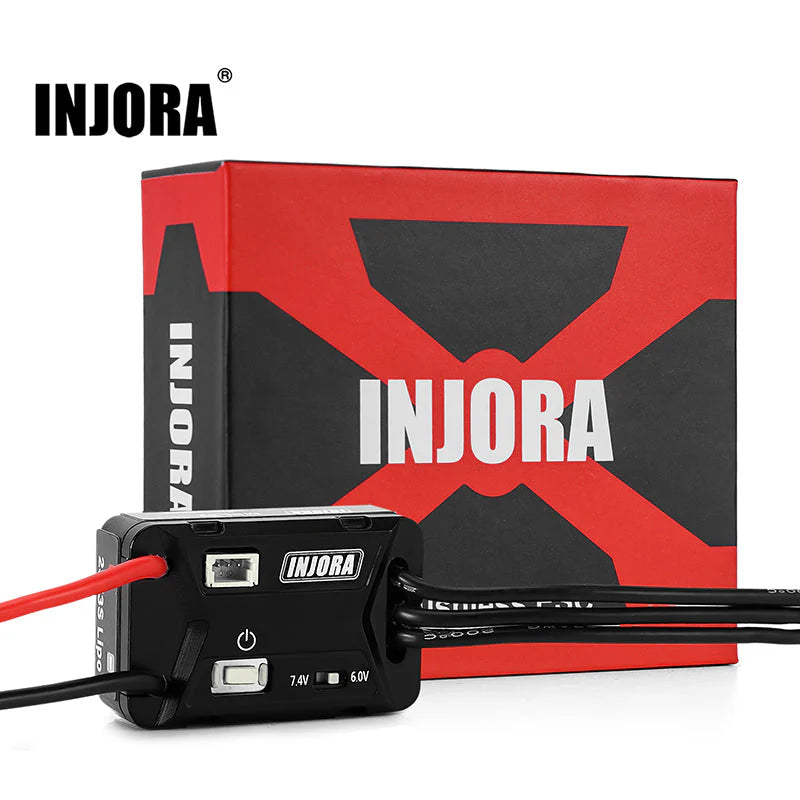

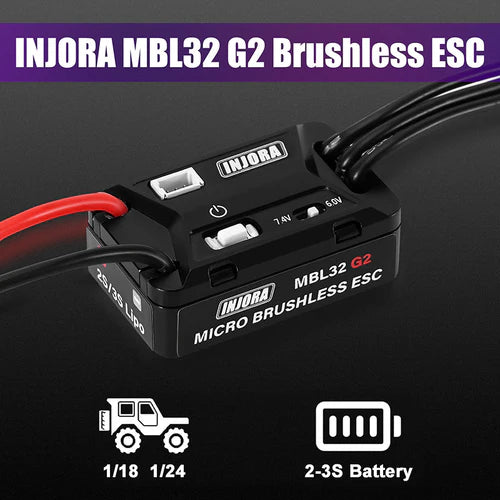

INJORA MBL32 G2 Waterproof Micro Brushless ESC for 1/18 TRX4M Ascent18 1/24 SCX24

INJORA MBL32 G2 Waterproof Micro Brushless ESC for 1/24 1/18 RC Crawlers TRX4M Ascent18 SCX24

• Programming Tutorial

Compatible with:

• INJORA 1721 Purple Viper motors
• INJORA 2204 Fat Viper motors

Features:

• The INJORA MBL32 G2, based on the AM32 firmware, is meticulously tailored for Micro crawlers and is programmable.
• Smooth and linear at low speeds, powerful and aggressive at high speeds. Runs more quietly than brushed systems, producing virtually no noise
• MBL32 G2 features a built-in BEC with adjustable output: 6V/7.4V
• Waterproof Design for all-weather performance

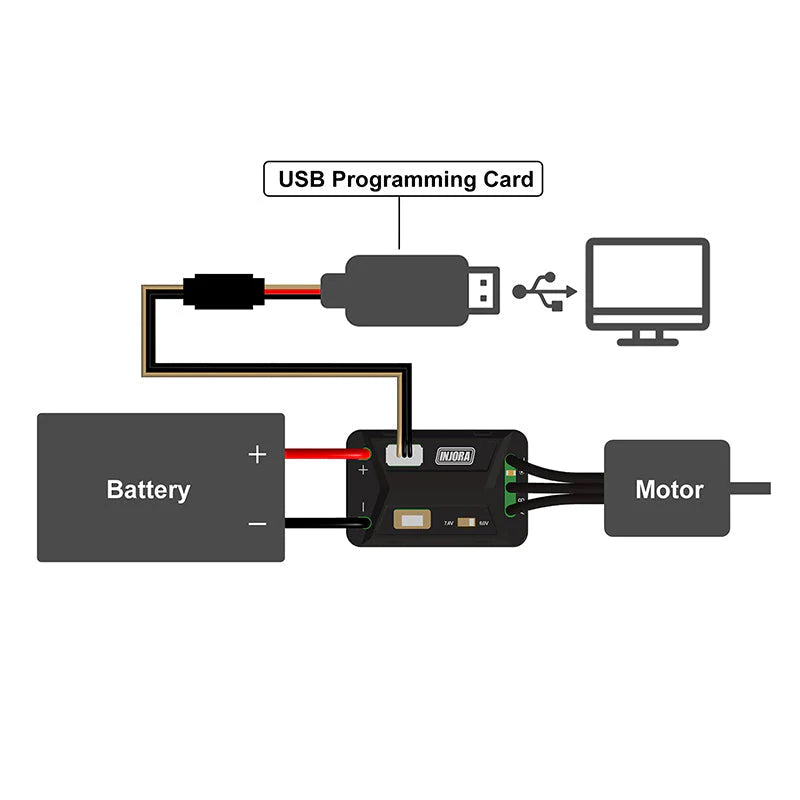

• Supports PC Programming via USB programmer card. Factory settings are optimized for INJORA 1721/2204 motors—adjustments are not recommended.
• Multiple Protections: Low-voltage, fail-safe, and rotor lock protection

Specifications:

• Part Number: MBL32 G2
• LiPo Cells: 2-3S
• Continuous Current: 25A
• Peak Current: 60A
• BEC Output: 6.0V/7.4V adjustable
• BEC Current: 3A
• Dimensions (L*W*H): 30*19*12mm
• Waterproof: Yes
• App Tuning: Not Supported
• Weight: 0.45oz (13g)
• Suggested Applications: 1/18 1/24 RC Crawler car

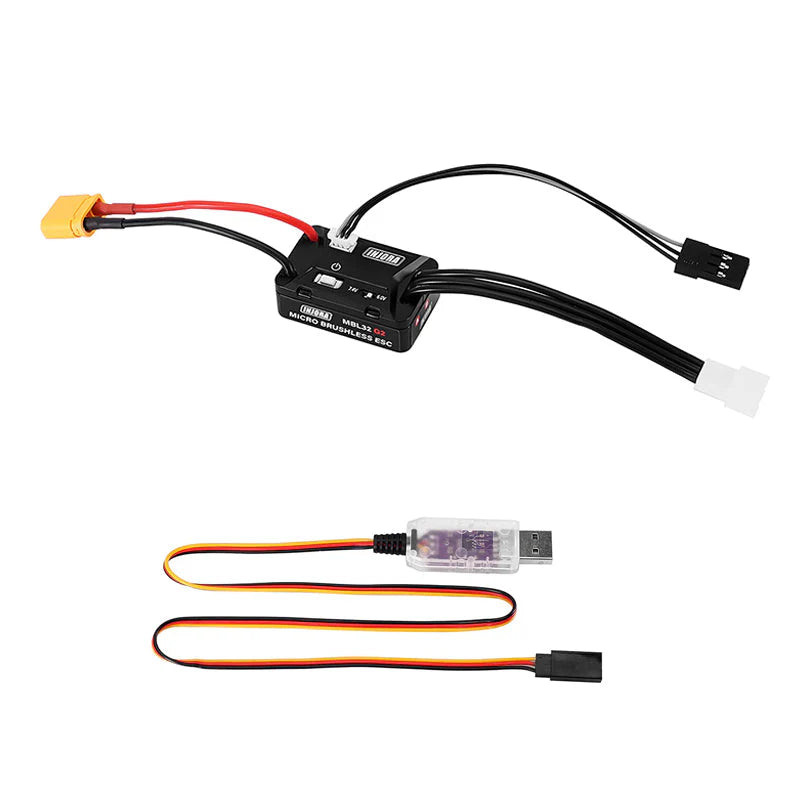

Package List:

• 1 * Micro Brushless ESC

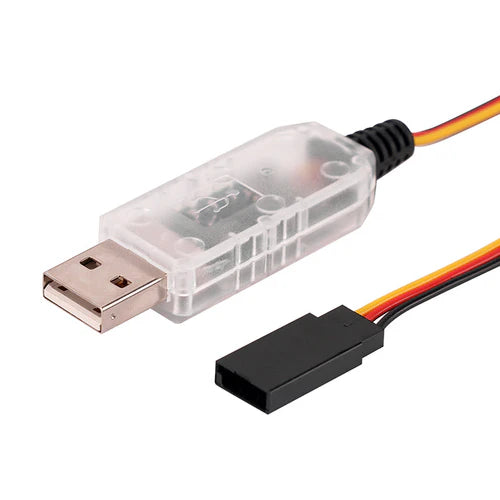

• 1 * USB programmer Card
• 1 * Receiver Connector Cable
• 1 * Battery Adapter Cable (Female XT30 to Male TRX-4M)
• 1 * Battery Adapter Cable (Female XT30 to Male JST-PH2.0)
• 1 * Instruction Manual
