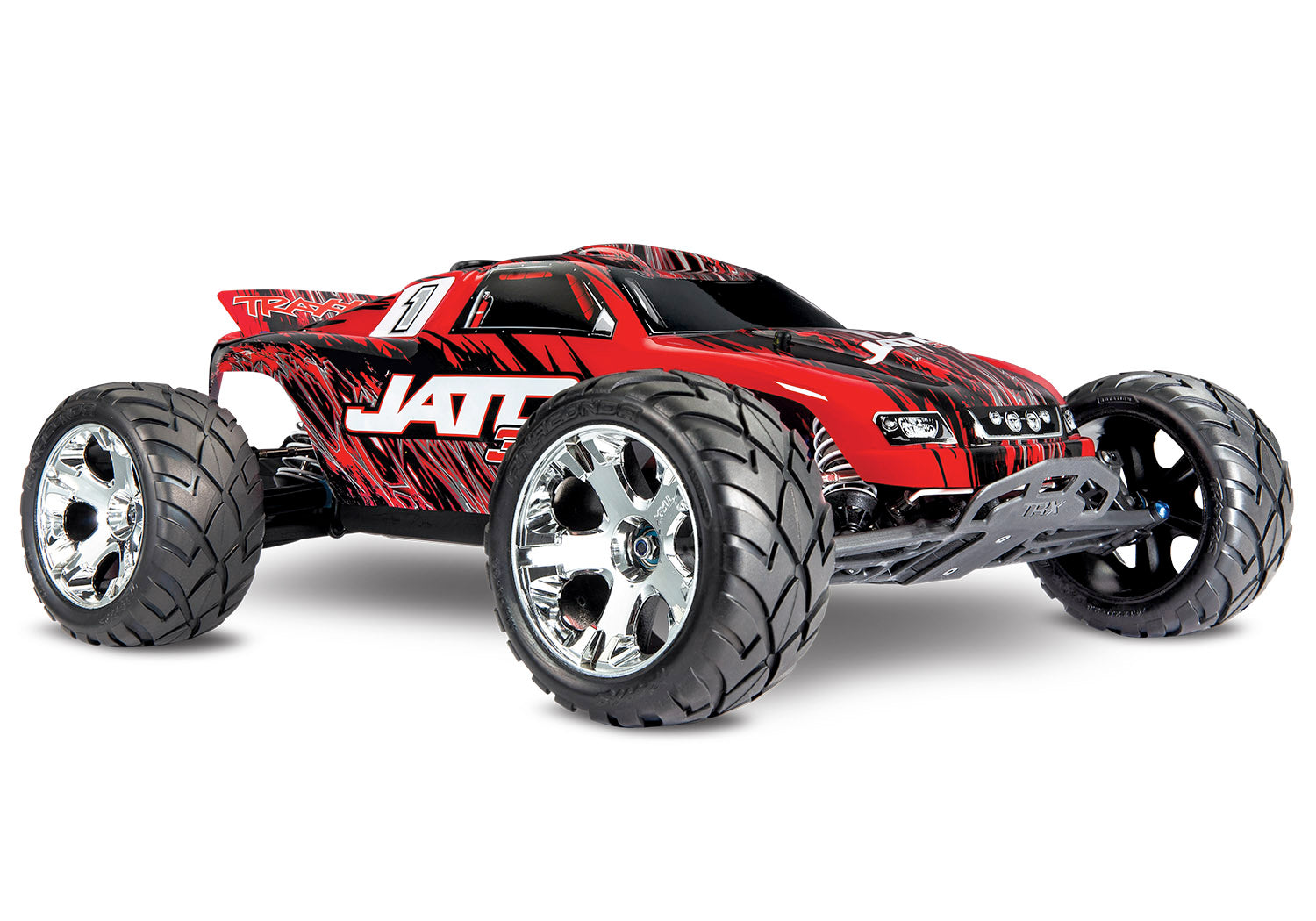

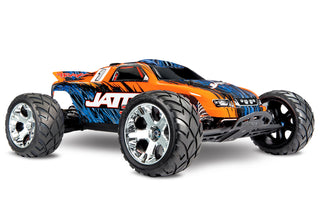

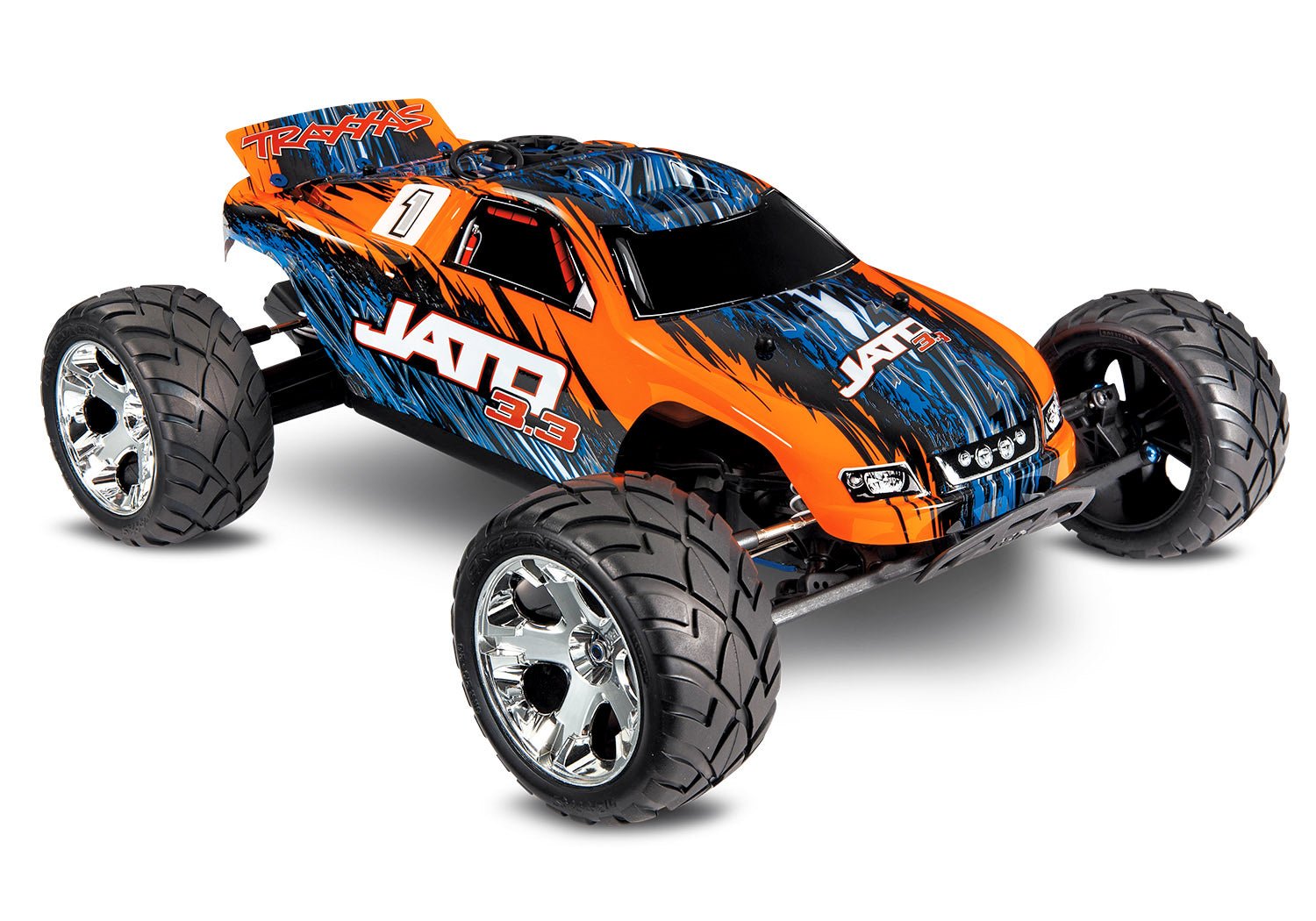

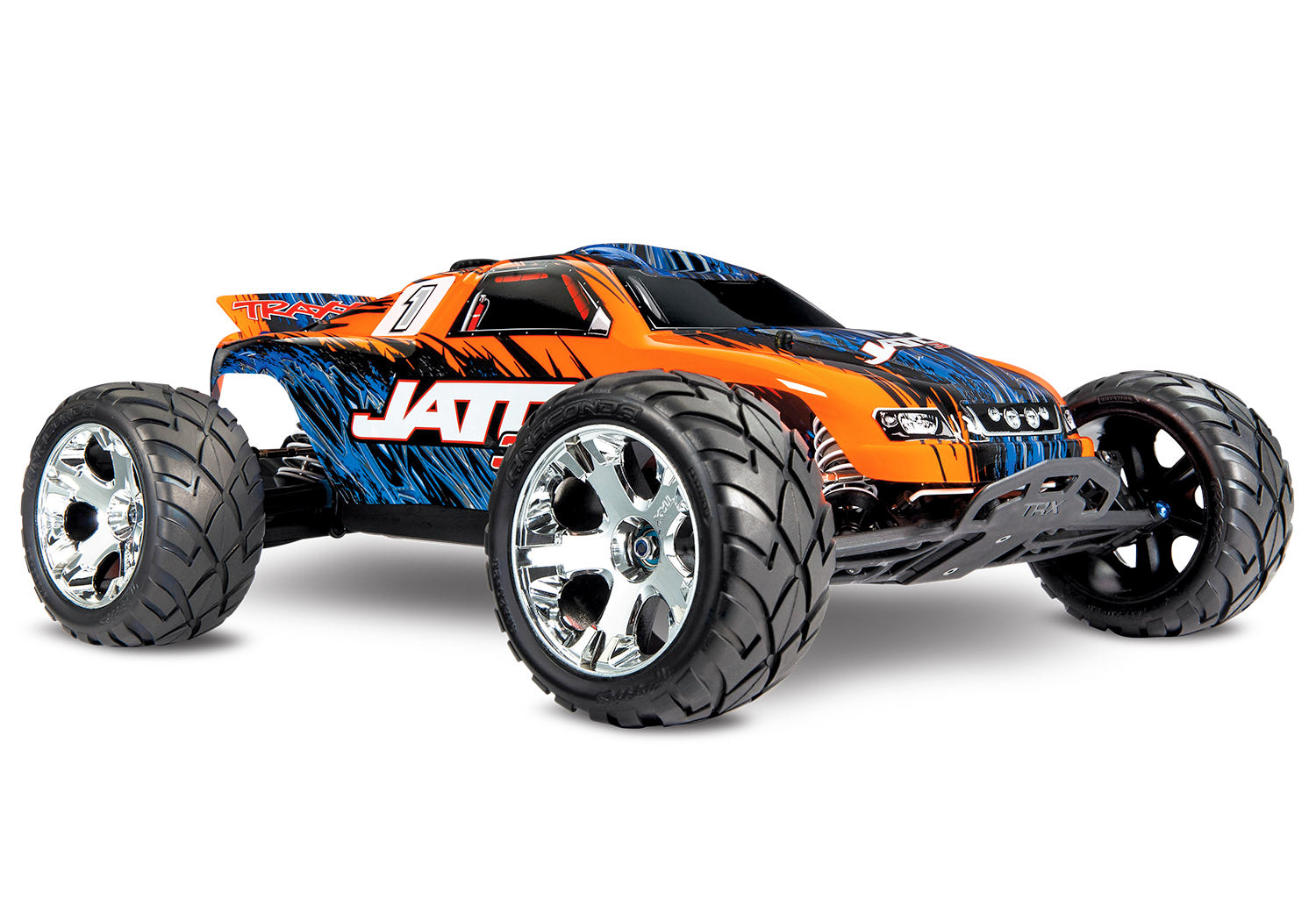

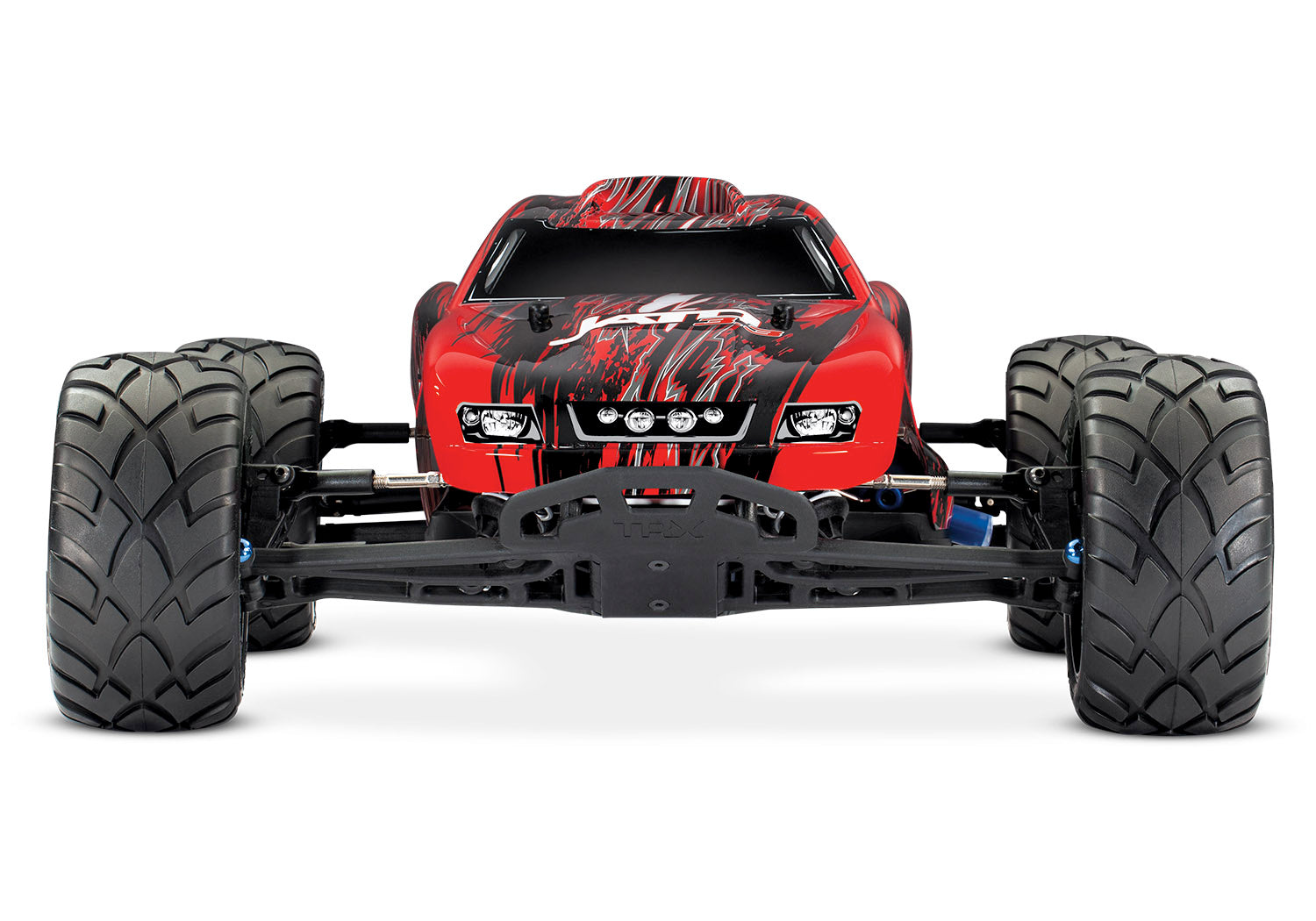

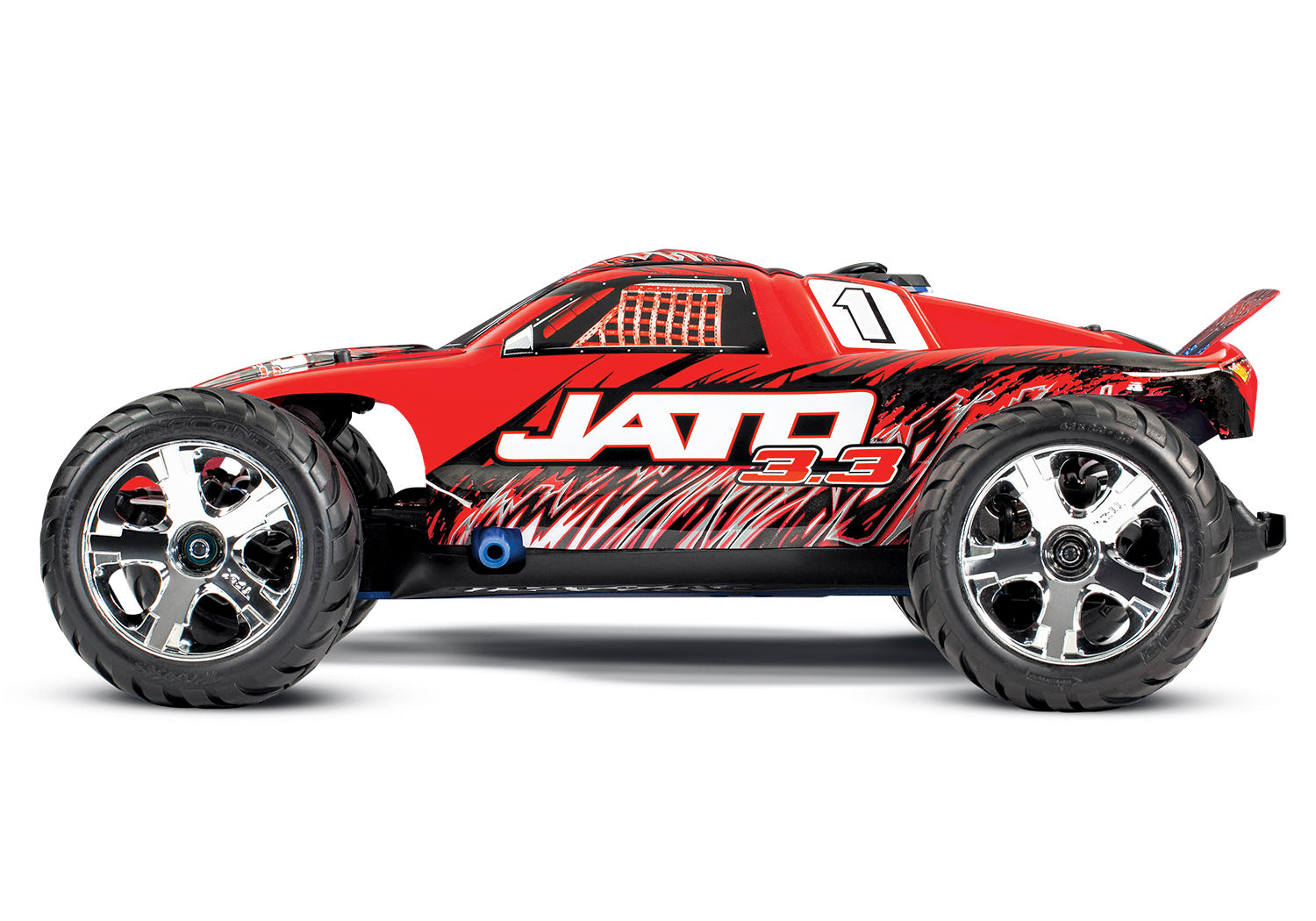

Jato 3.3

Part Number:  55077-3

MODEL SPECS

Name:	Jato® 3.3
Type:	Nitro Stadium Truck
Speed:	65+ mph
Skill Level:	5
Scale:	1/10
Weight:	5.18 pounds (2.35 kg)
Length:	16.53 inches (420 mm)
Width:	13.00 inches (330 mm)
Front Track:	12.87 inches (327 mm)
Rear Track:	13.00 inches (330 mm)
Height:	5.70 inches (145 mm)
Wheelbase:	11.22 inches Long (285 mm)

Driveline:	2WD
Transmission:	Auto two-speed
Differential Type:	Hardened-steel bevel gear, sealed
Gear Ratio (Internal):	9.77:1 (1st gear total gear reduction) 7.29:1 (2nd gear total gear reduction)
Gear Pitch:	32 pitch
Steering Servo:	2055 high-torque
Radio System:	TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver and 6511 Wireless Module
Size:	3.3 cc
Starter:	Electric EZ-Start®
Carburetor:	Two-needle slide carburetor
Air Filter:	Dual-stage foam
Tank Size:	75 cc

MOTOR SPECS

Engine Name:	TRX® 3.3 Racing
Fuel Type:	Nitromethane
Displacement:	3.3 cc
Starter:	Electric EZ-Start®
Carburetor:	Two-needle slide carburetor
Air Filter:	Dual-stage foam

• ProGraphix^® Painted Body
• Pre-painted body with applied decals
• Aggressive, aerodynamic body with rear wing
• Integrated dirt guards form a barrier against dirt and rocks.
• Includes wheelie bar
• TRX^® 3.3 Racing Engine
• Large bore piston and sleeve deliver extreme power
• High-volume dual-stage air filter
• Tuned blue aluminum Resonator™ exhaust pipe
• Slide carburetor
• Knife-edged connecting rod
• Large aluminum blue-anodized cooling head
• Super-light piston and rod
• High-performance ball bearings
• EZ-Start^® Electric Starting System
• Lights the glow plug and cranks the engine with the push of a button
• Status LEDs
• Includes starter battery and charger
• Traxxas Stability Management^® (TSM)
• Improves straight line acceleration and braking on low-traction surfaces
• Maintains steering composure to allow throttle-on powerslides
• Never dulls throttle or slows the vehicle

• Adjusts from off to 100% assistance from the transmitter

TQi™ 2.4 GHz High Output Radio System

• 2-channel high output transmitter
• Includes Traxxas Link™ Wireless Module
• Factory installed speed, RPM, and temperature telemetry sensors
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• 5-channel TSM receiver (6533) with fail-safe security and integrated telemetry ports
• Enclosed radio box protects sensitive electronics from dirt and fuel spills

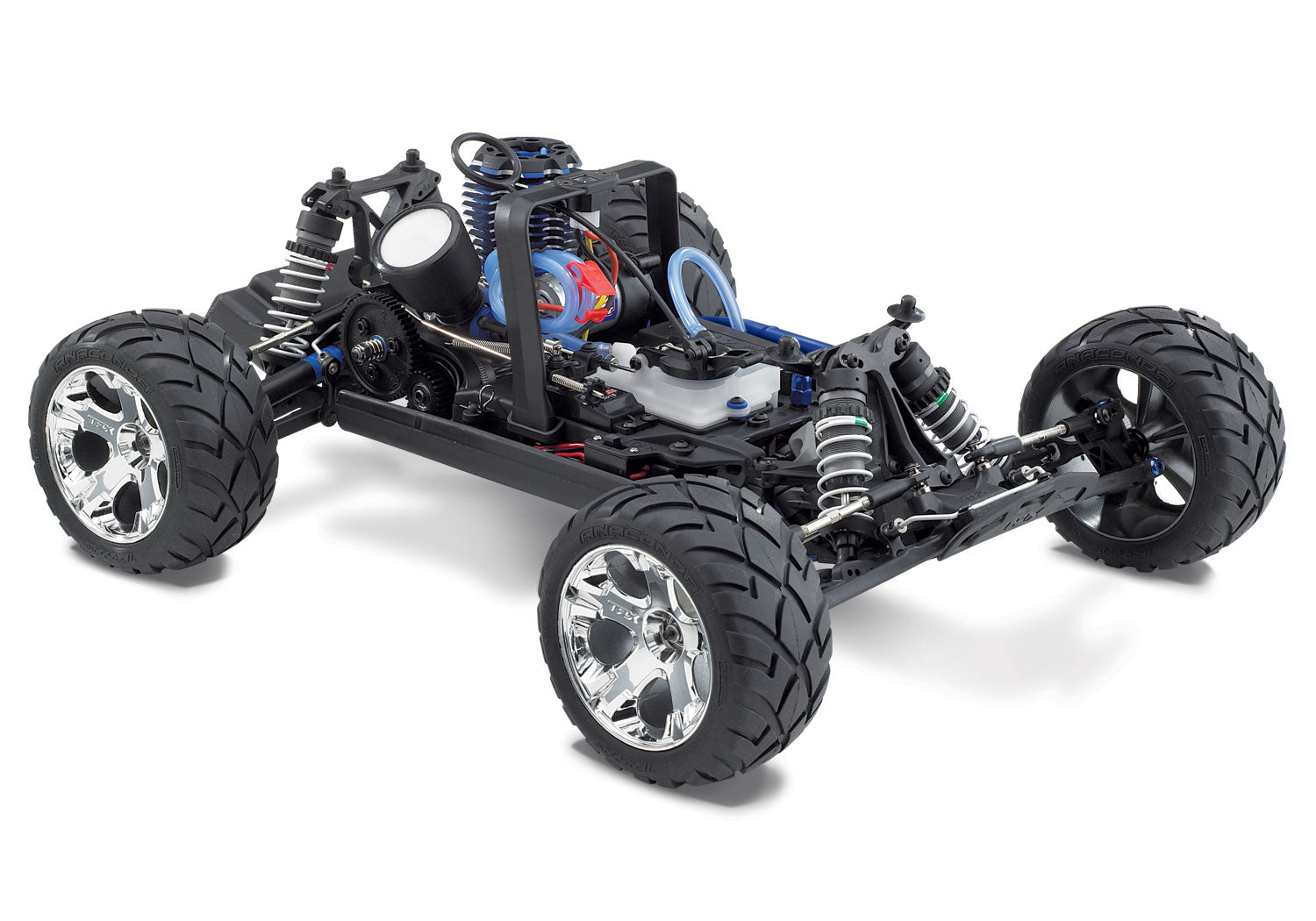

Blue-Anodized Aluminum Chassis

• Strong 3 mm 6061-T6 aluminum construction
• Removable roll hoop helps protect critical chassis components
• The low-profile 75 cc fuel tank

Transmission and Driveline

• Adjustable two-speed transmission for unmatched acceleration and top speed
• Sealed gearbox protects transmission components from dirt and rocks
• Large diameter semi-metallic brake disc
• Sealed, limited-slip gear differential is fully tunable
• Semi-metallic pads
• Finned aluminum alloy pressure plates
• Rubber seals for smooth, trouble-free performance

• Extreme deflection for the most suspension travel

Steering

• High-torque Traxxas 2055 steering servo
• High-performance bellcrank system eliminates bump steer

Suspension

• Full suspension adjustability including caster, camber, toe, anti-squat, ride height, weight bias, and roll-center
• Front & rear sway bars
• Captured rod ends won't pop off

Springs and Shocks

• Precise GTR™ shocks provide smooth, consistent damping performance
• Threaded shock bodies for precise ride height adjustment
• White powder-coated springs

Wheels and Tires

• Super-sticky 2.8-inch Anaconda^® performance tires with foam inserts
• Tough 2.8″ bright chrome wheels

Backed by Unparalleled Traxxas Support and Parts AvailabilityPrecision rubber-sealed ball bearingsPrecision metric hex hardware throughout
