Maxx

Part Number:  89086-4

MODEL SPECS

Name:	Maxx
Type:	Monster Truck
Speed:	60+ mph with 4S LiPo battery and optional gearing
Skill Level:	4
Scale:	1/10
Weight:	10.40 pounds (4.7 kg)
Length:	22.50 inches (572 mm)
Width:	15.95 inches (405 mm)
Front Track:	15.95 inches (405 mm)
Rear Track:	15.95 inches (405 mm)
Height:	9.12 inches (232 mm)

Wheelbase:	13.85 inches (352 mm)
Center Ground Clearance:	2.6 inches (67 mm)
Driveline:	Shaft-driven 4WD
Transmission:	Single speed
Differential Type:	Sealed, hardened steel bevel, limited slip
Gear Ratio (Internal):	12.37:1
Gear Pitch:	1.0 metric pitch
Steering Servo:	2090 digital high-torque waterproof (285 oz-in)
Radio System:	TQi™ 2.4 GHz transmitter with TSM® receiver
Battery Compartment Specs:	186 mm X 48 mm X 43 mm

MOTOR SPECS

Name:	540XL
Type:	2400 Kv sensorless brushless
Weight:	317 g (11.1 8 oz)
Length:	3.58 inches (91 mm)
Diameter:	1.41 inches (36 mm)
Shaft Size:	5 mm
Connector Type:	6.5 mm bullet connectors

ESC SPECS

Name:	Velineon VXL-4s
Type:	Brushless
Case Size:	72 mm L x 59 mm W x 49 mm H
Weight:	7.09 ounces (201 grams)
Motor Connectors:	6.5 mm bullet connectors
Battery Connectors:	Traxxas High-Current Connectors

• VXL-4s™ Waterproof Electronic Speed Control
• 3S–4S LiPo compatible
• Built-in cooling fan
• Real-time telemetry via Traxxas Link
• Machined heat sinks
• 10-gauge silicone wire
• Integrated protection circuits
• LED status lights
• Velineon^® 540XL Brushless Motor
• Long format brushless motor
• 4-pole 2400 Kv
• 5 mm output shaft
• Aluminum heat sink
• Cooling fan
• 55+ mph out of the box using single 4S LiPo battery (sold separately)
• 60+ mph with optional gearing and single 4S LiPo battery (sold separately)
• Traxxas Stability Management^®
• Helps prevents spinouts and loss of control
• Adjusts from off to 100% assistance from the transmitter
• TQi™ 2.4 GHz High Output Radio System
• Traxxas Link enabled
• 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Multi-Function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Telemetry-ready 5-channel micro receiver

• Clipless Body Mount System
• Quick one-hand installation and removal
• Uses pivoting rear latch mechanism
• Eliminates body posts and clips
• Reinforced for extra protection against tearing
• Driveline
• Full-time shaft-driven 4-wheel drive
• Torque-Biasing Center Drive™ absorbs shocks and distributes power
• Sealed, silicone fluid-filled diffs with large module ring and pinion gears
• Splined outdrives attached with external thru-bolt method
• Heavy-duty Cush Drive™
• Extreme-duty telescoping driveshafts
• Splined aluminum center driveshaft
• Secure Motor Mounting System
• Precision, preset gear mesh adjustments
• Motor retention separate from gear mesh
• Full-length motor cradle
• 17 mm keyed wheel hex with 5 mm nut

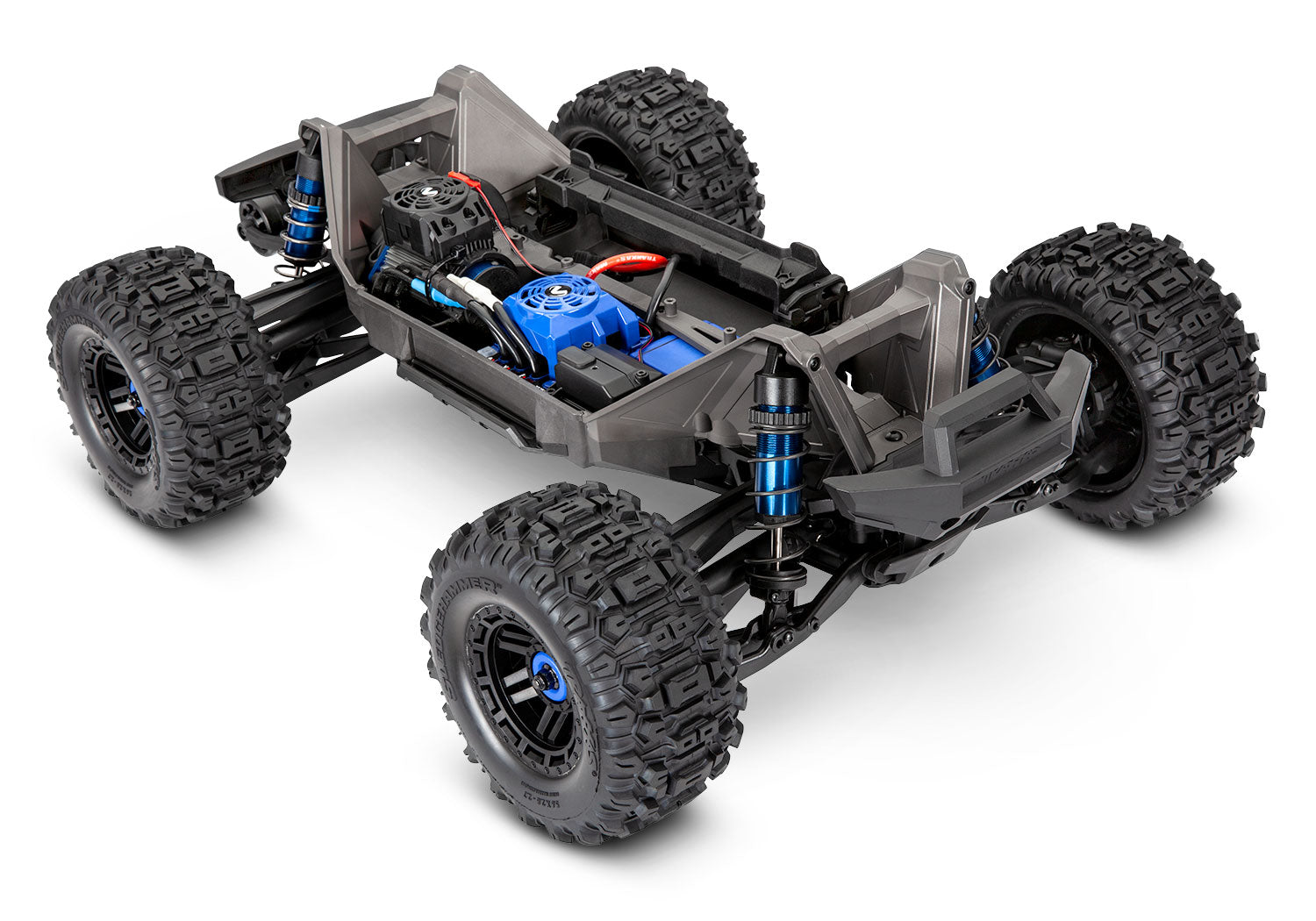

• Extended modular chassis design interlocks with front and rear bulkheads
• Absorbs and distributes impact energy
• Easy to service and access components
• Driveline is sealed in the chassis to keep out dirt and grit
• New Modular Composite Chassis
• Easy Battery Access
• Extended battery tray accepts 6700 mAh 4-cell LiPo battery
• Extended battery tray accepts 6700 mAh 4-cell LiPo battery
• Battery is protected deep in the chassis
• Battery is protected deep in the chassis
• Battery hold-downs pivot for easy access
• Battery hold-downs pivot for easy access
• More secure than conventional retention systems
• More secure than conventional retention systems
• Bumpers
• Tough energy absorbing front and rear bumpers
• Lower front and rear skids for impact and abrasion resistance
• Integrated nerf bars for side impact resistance
• Wheelie bar with integrated carry handle

• Heavy-Duty Steering Bell Cranks and Servo Saver
• 285 oz-in of torque
• 0.18 sec transit speed
• Large-scale high-output steering servo
• Triangulated mounting system to fully support case
• Heavy-duty double-shear bellcranks
• Suspension
• WideMaxx^® double-shear suspension arms
• 1.57" (40 mm) wider for improved handling
• Tough composite formula resists impact damage, even in cold weather
• Engineered to optimize suspension travel and steering angles
• All critical suspension points have double shear strength
• Steel pivot balls
• 4 mm machined pivot balls
• C-hub and steering block geometry maximizes steering angle
• Fixed, high-strength camber and toe links
• Steel upper and lower tie bars
• Full contact sealed bearings used in exposed locations
• GT-Maxx^® Shocks
• Machined aluminum threaded body
• Extra-large bore and capacity
• Large-diameter damper shaft
• Lower seal cartridge with dual X-rings
• Adjustable upper spring retainer
• Plastic shock caps with pivot balls
• Lower spring perches bolted on
• Wheels/Tires
• Tough 2.8" wheels with keyed 17 mm hex receptor
• Sledgehammer^® extreme tires for sure-footed traction
• 1-piece foam inserts
• Pre-glued and ready for action
• TSM^® rated

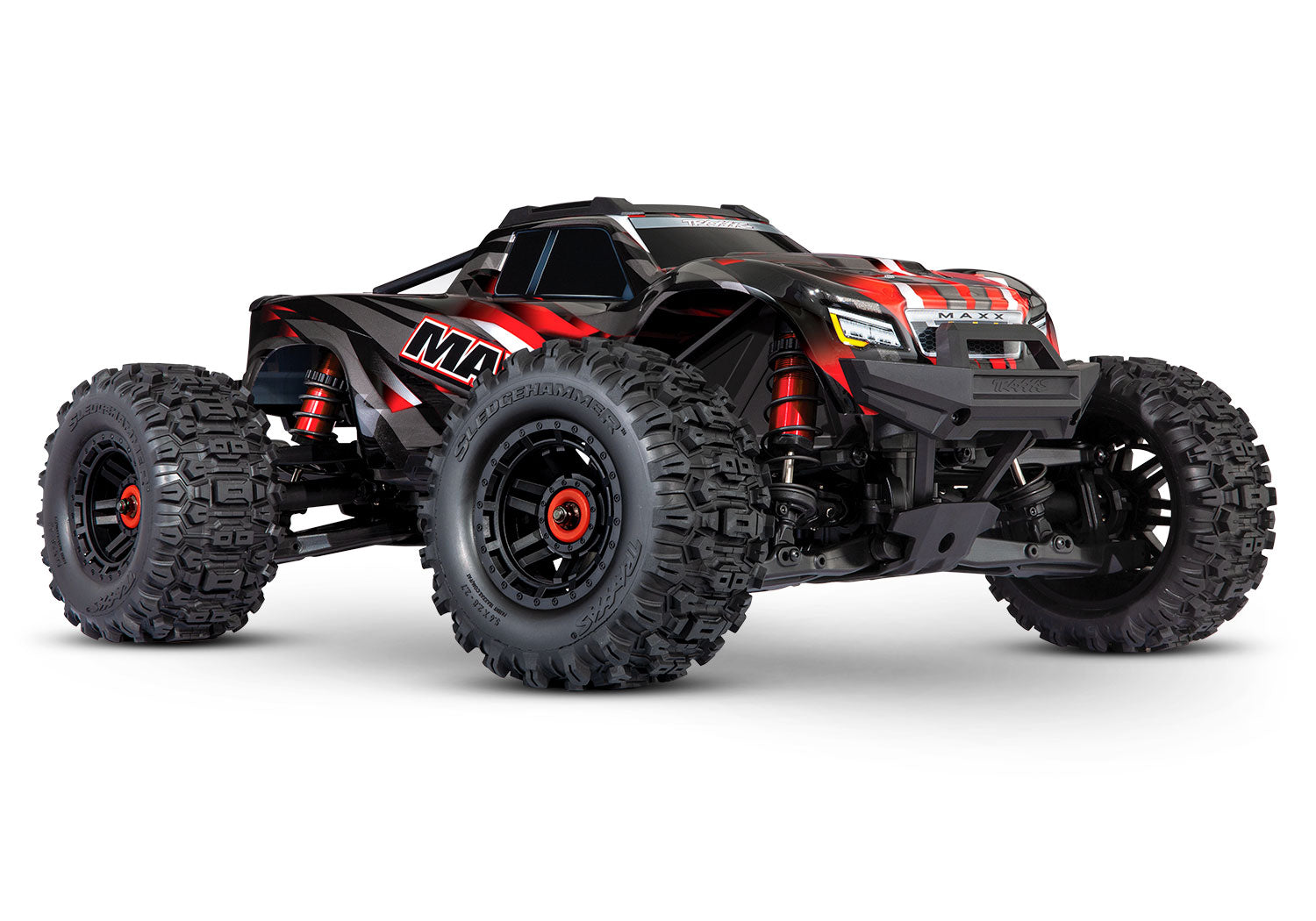

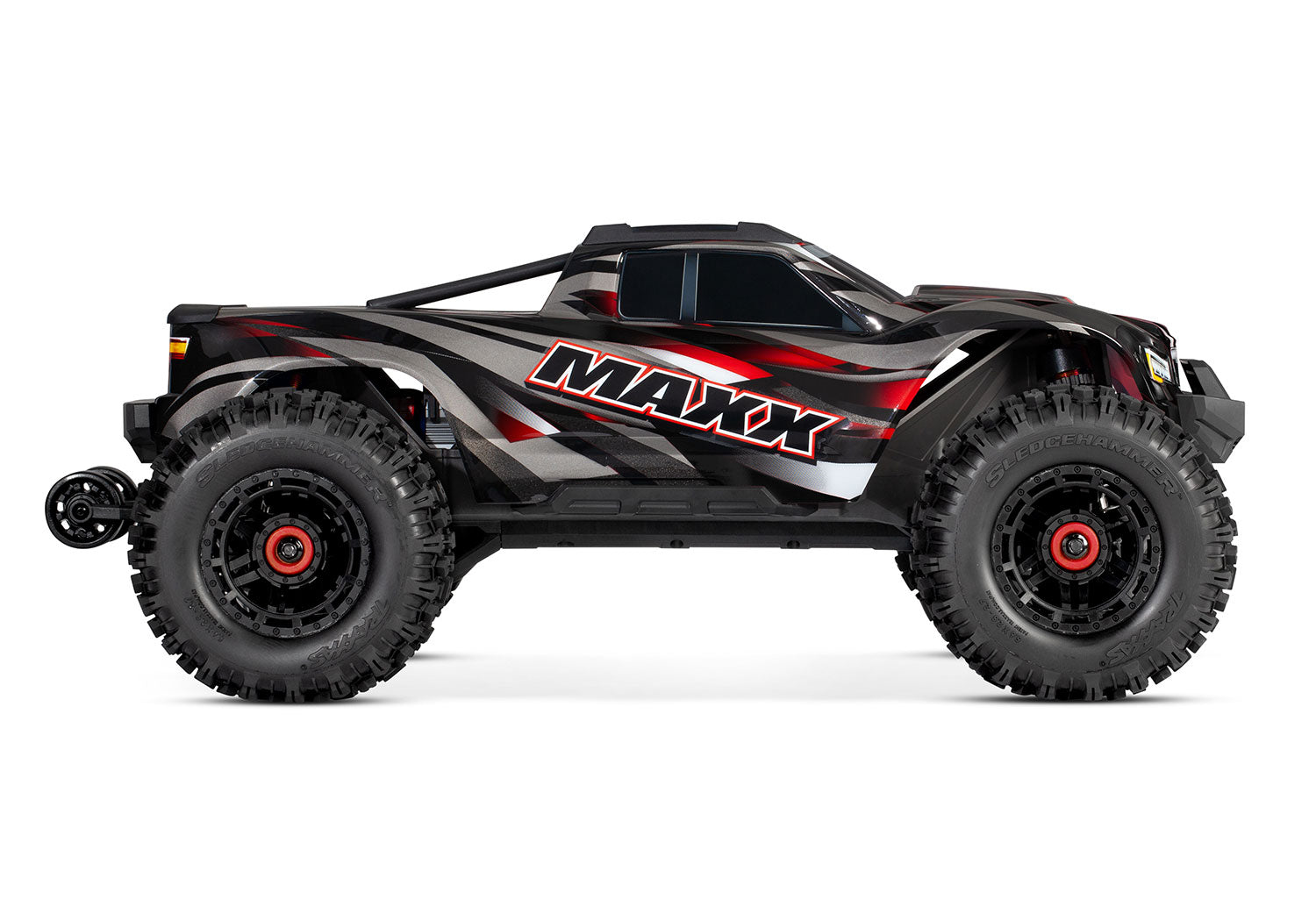

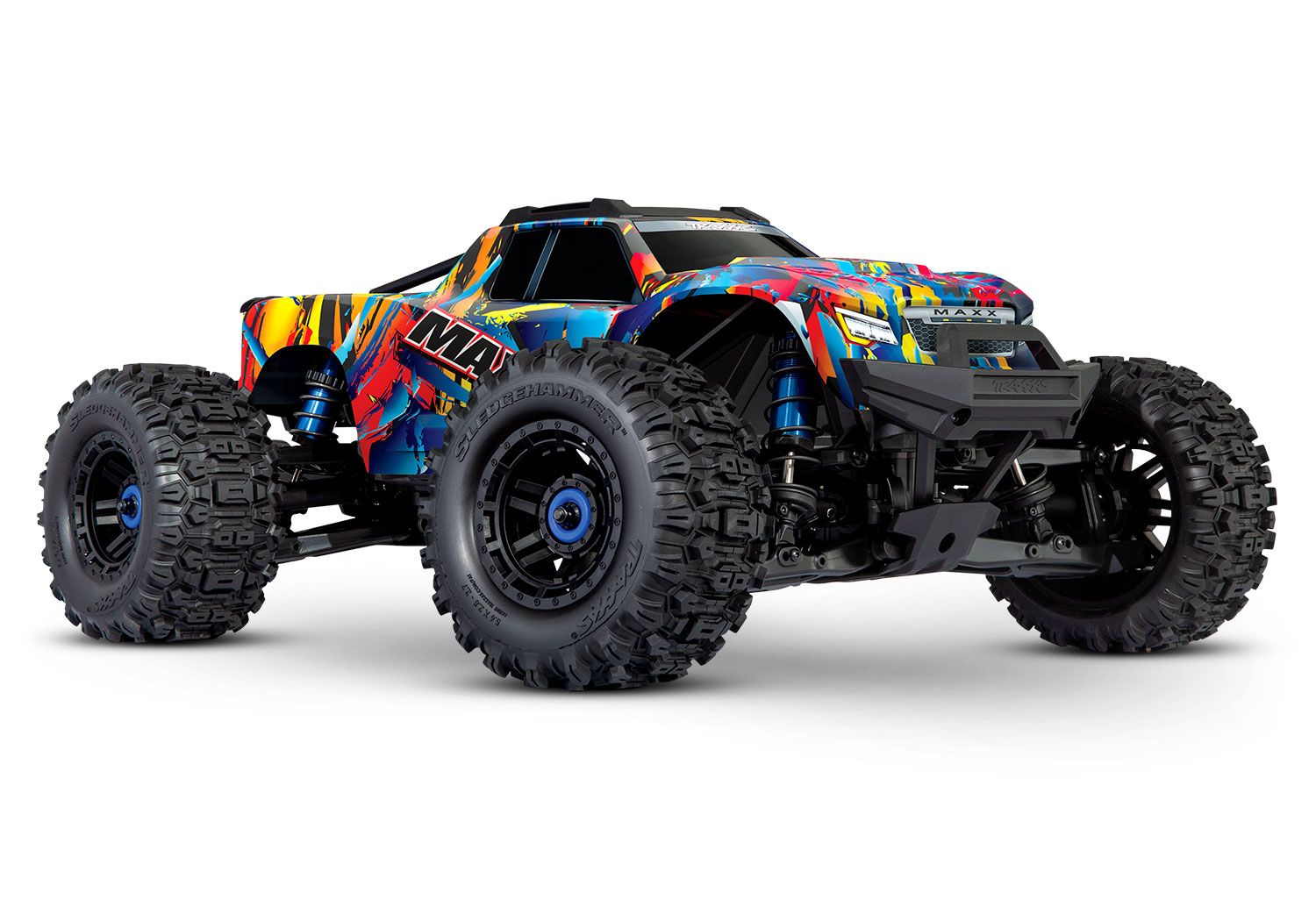

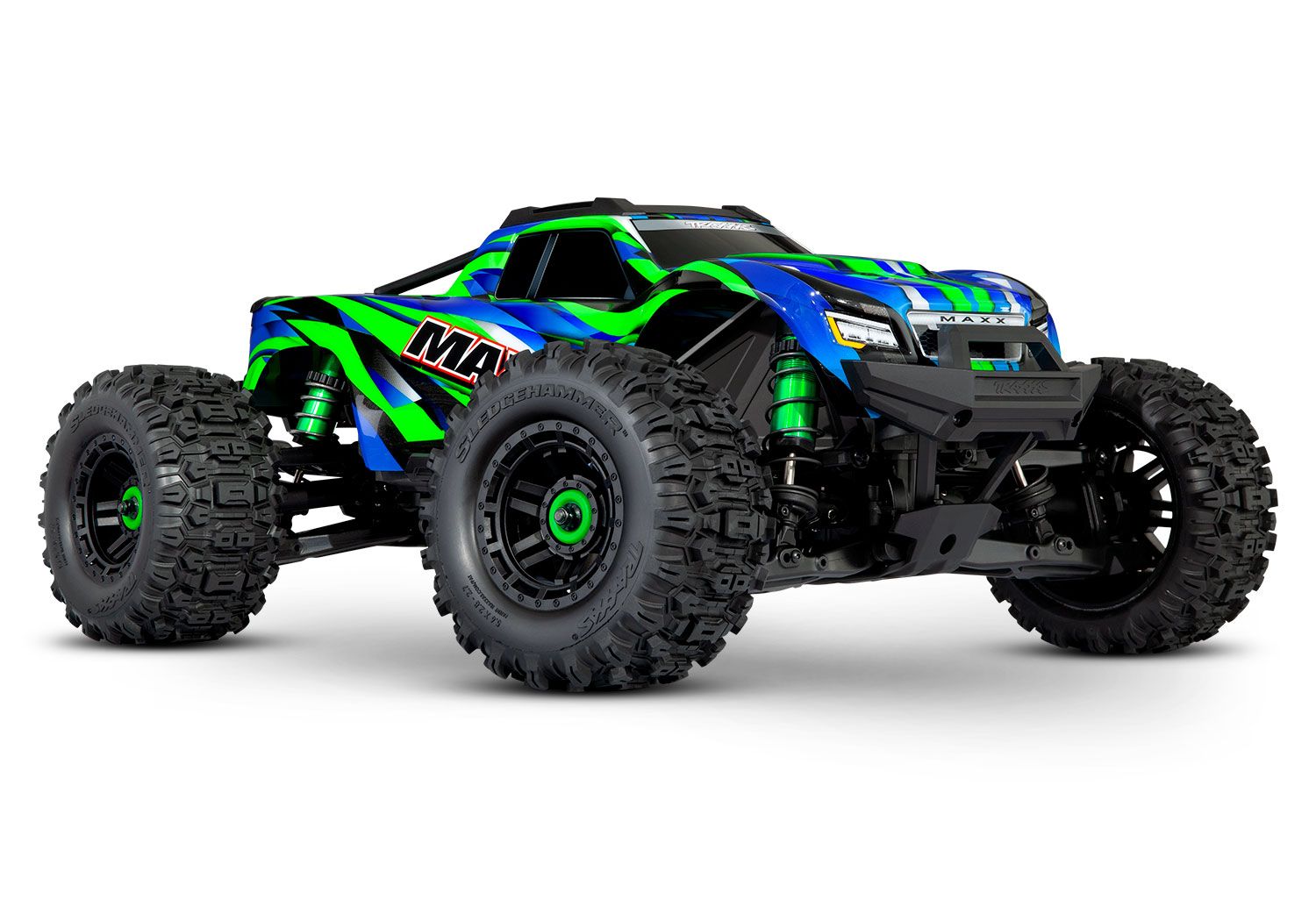

MODEL 89086-4: Maxx 1/10 scale monster truck. Fully assembled, Ready-To-Race^®, with TQi™ 2.4 GHz radio system, VXL-4s™ brushless power system, and painted clipless body.

What’s In The Box:

• Maxx, Ready-To-Race^® model with Traxxas 540XL brushless motor
• VXL-4s waterproof electronic speed control with integrated telemetry
• TQi™ 2.4 GHz radio system
• High quality maintenance tools

What You’ll Need:

• LiPo Battery

  Traxxas recommends a 4-cell 14.8 V Power Cell LiPo battery for maximum performance. A 3-cell 11.1 V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.

• Charger

  LiPo Balance Charger with iD^®

• AA Alkaline Batteries

  Four AA alkaline batteries for the transmitter.
