Description
MODEL SPECS
Name: BIGFOOT No 1 HD w/USB-C Type: Monster Truck Speed: 30+ mph with 7-cell battery Skill Level: 1 Scale: 1/10 Weight: 4.08 pounds (1.85 kg) Length: 16.25 inches (413 mm) Width: 12.75 inches (324 mm) Front Track: 12.75 inches (324 mm) Rear Track: 12.75 inches (324 mm) Height: 9.5 inches (241 mm) MOTOR SPECS
Name: Titan® 12T 550 Type: High-speed brushed motor Weight: 8.47 ounces (240 g) Length: 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length Diameter: 1.41 inches (36 mm) Shaft Size: 3 mm Connector Type: Bullet ESC SPECS
Name: Waterproof XL-5™ ESC with low-voltage detection Type: Brushed Case Size: 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm) Weight: 2.44 ounces (69 g) Motor Connectors: Bullet Battery Connectors: Traxxas High-Current Connector Power Wire: 14 gauge - Licensed BIGFOOT® No. 1 Clipless Body

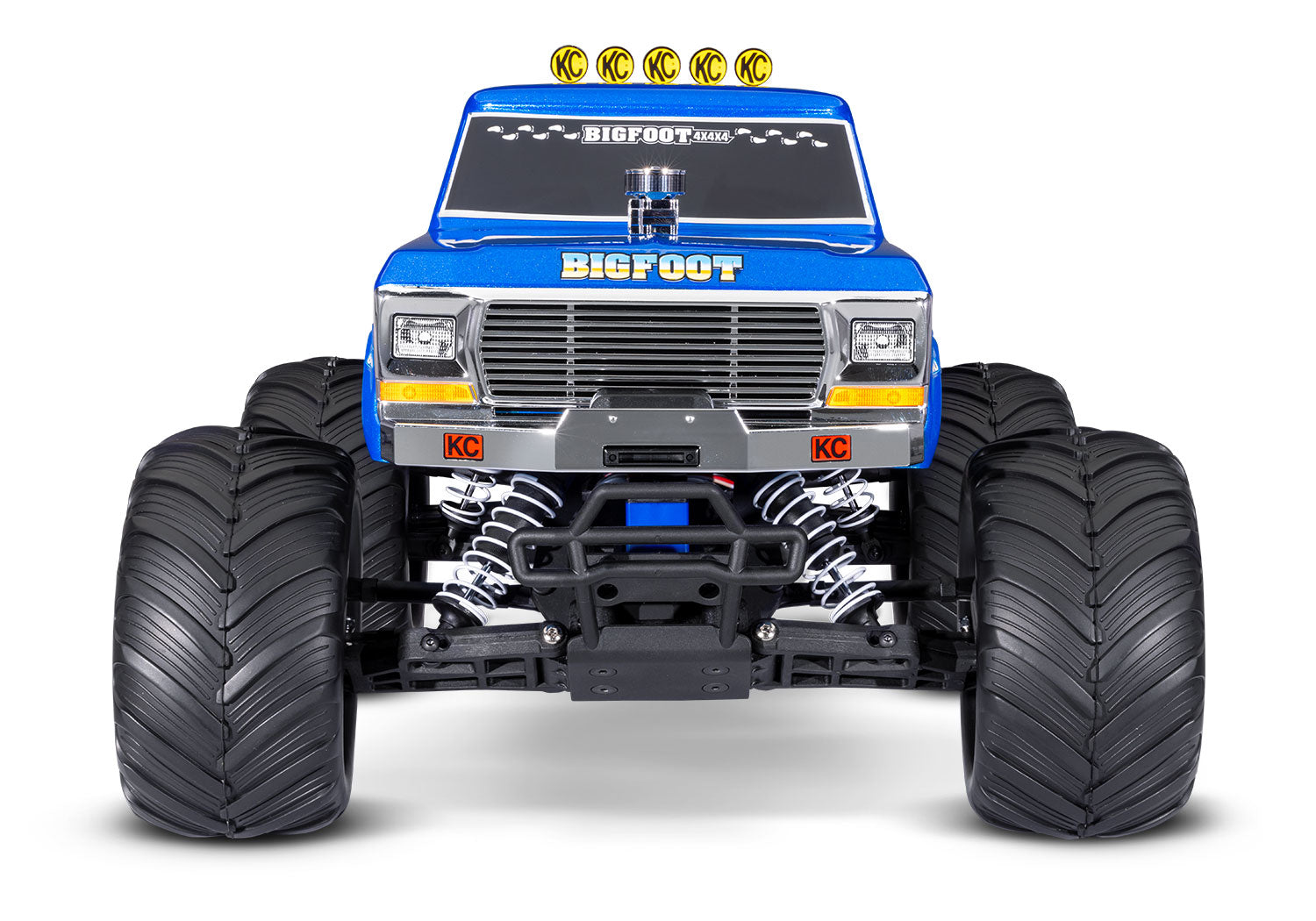

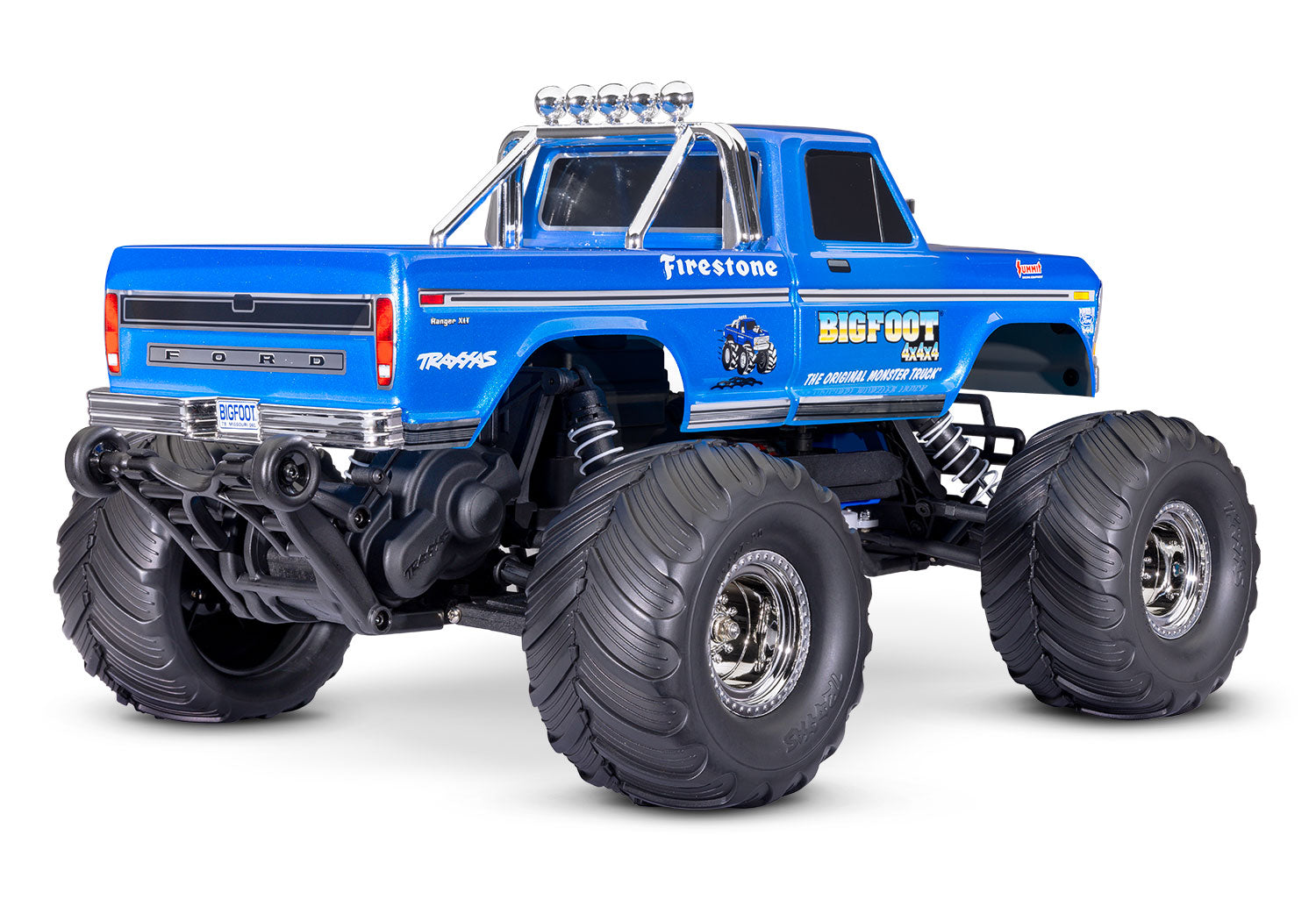

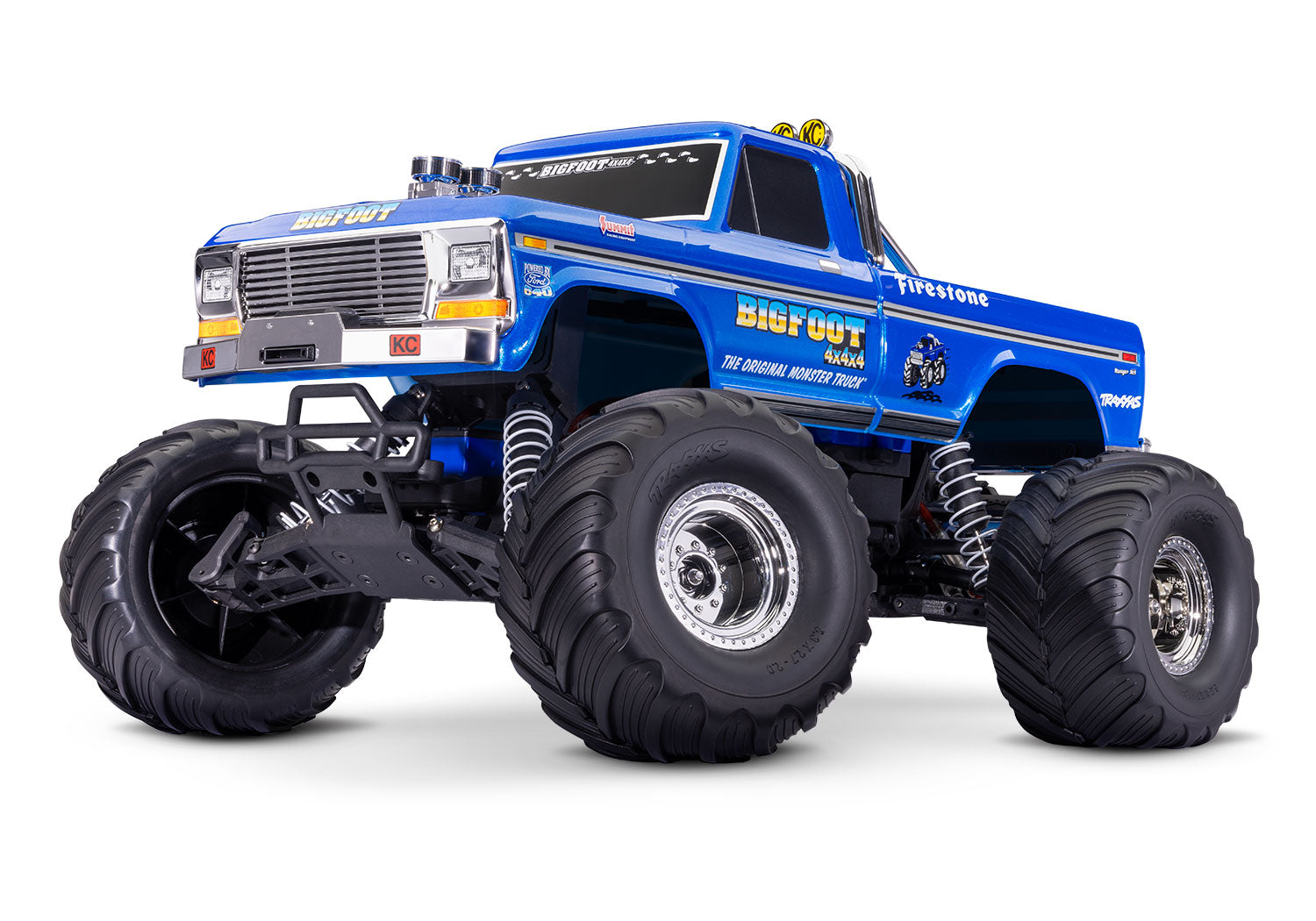

- Brilliant blue metallic officially licensed F-100 Ford® XLT Ranger body
- Chrome front bumper with replica winch
- Chrome grille with light buckets and reflectors
- Replica high-rise dual-carb intake manifold
- Chrome roll bar with replica KC lights
- Body reinforcements to prevent pull-through damage
- Holds tight for intense action
- Quick and easy removal
- Smooth appearance with no body posts or clips

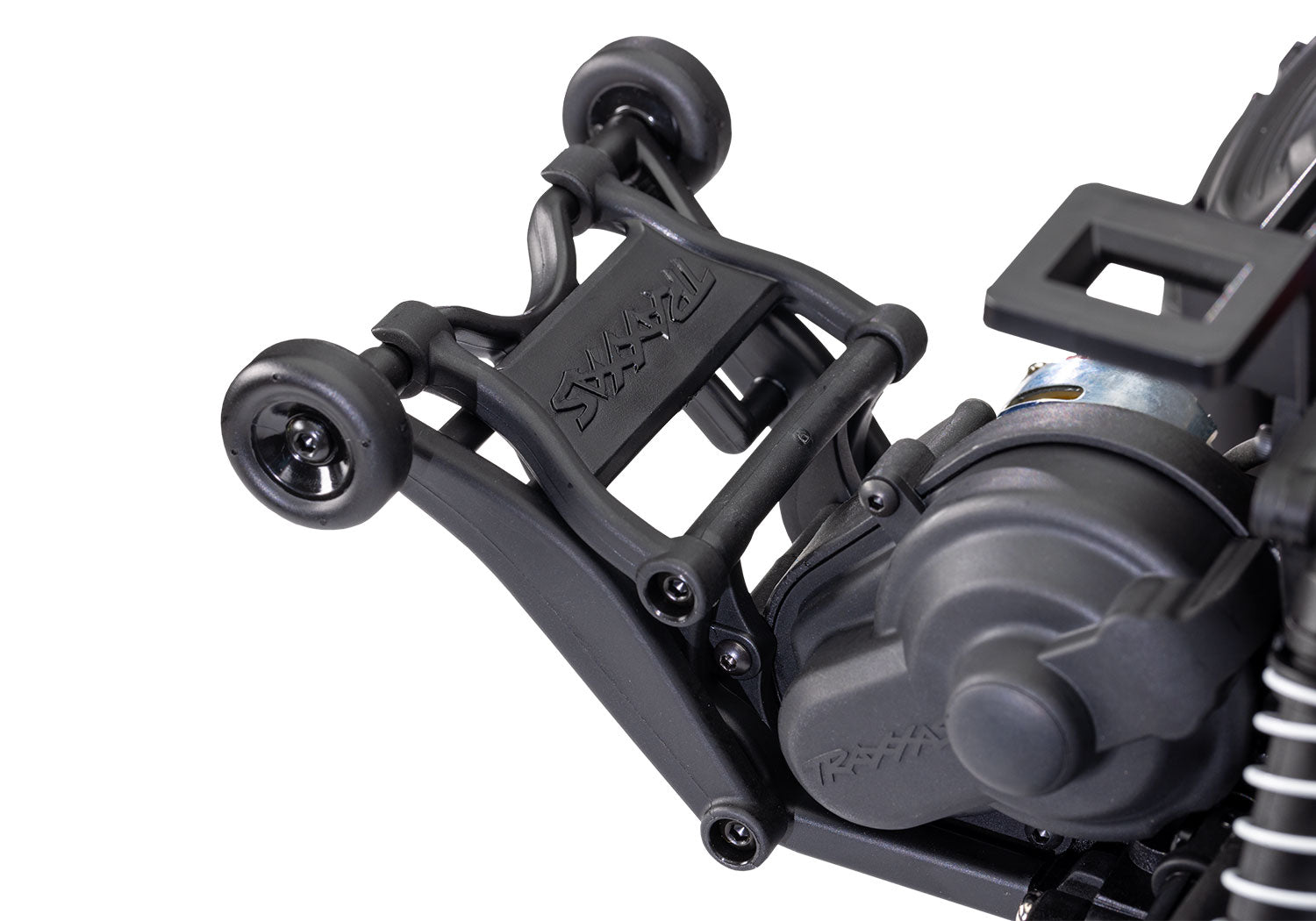

- Includes wheelie bar
- High-Performance Waterproof XL-5™ Electronic Speed Control
- Innovative waterproof design
- Three drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Traxxas EZ-Set® one-button setup
- LiPo and NiMH compatible with two-stage low-voltage detection
- Titan 550 Motor
- Powerful Titan® 12T 550 brushed motor with internal cooling fan
- Oversized armature for big torque and increased power handling
- Virtually maintenance-free operation
- Extreme Heavy Duty Parts Installed

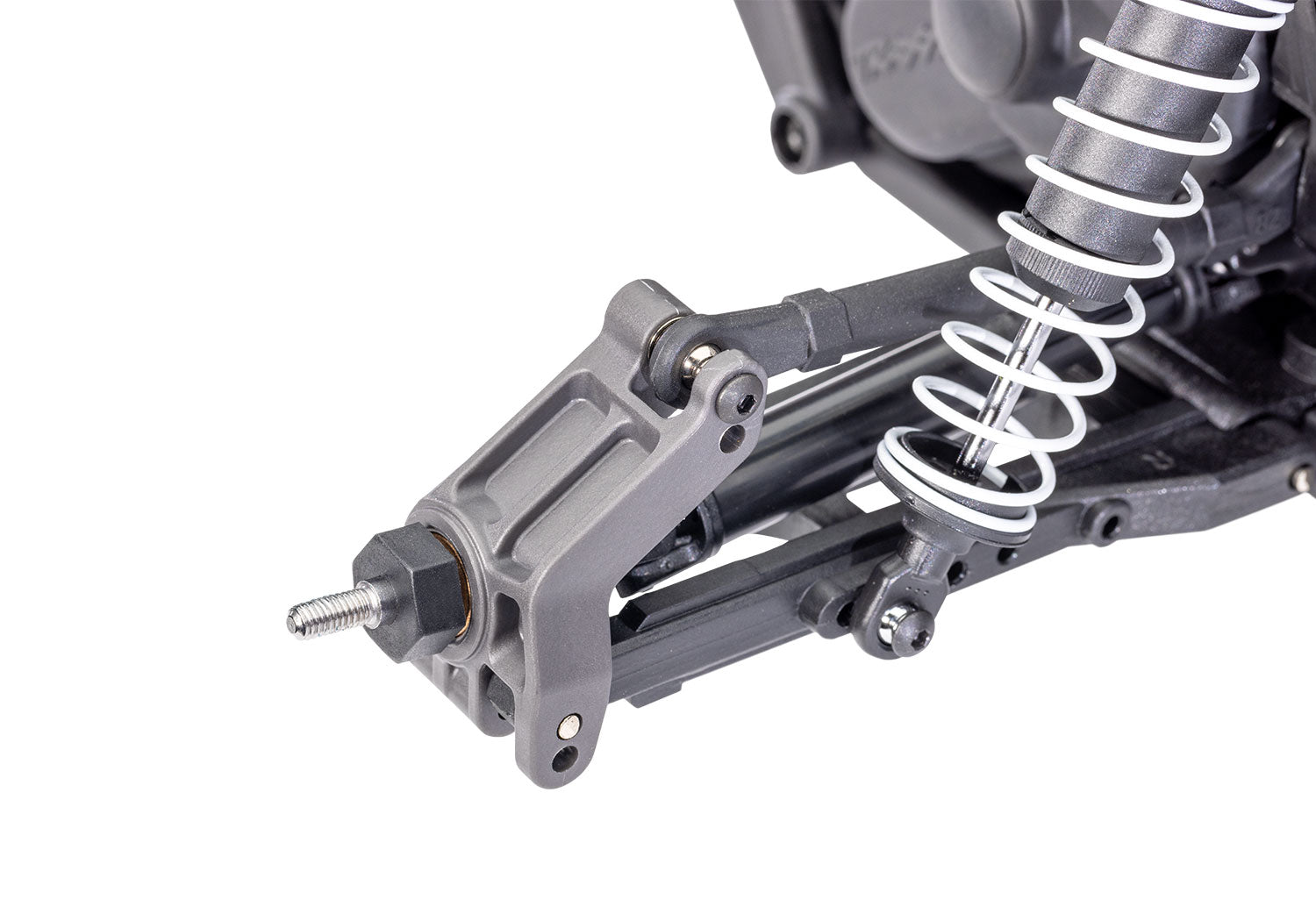

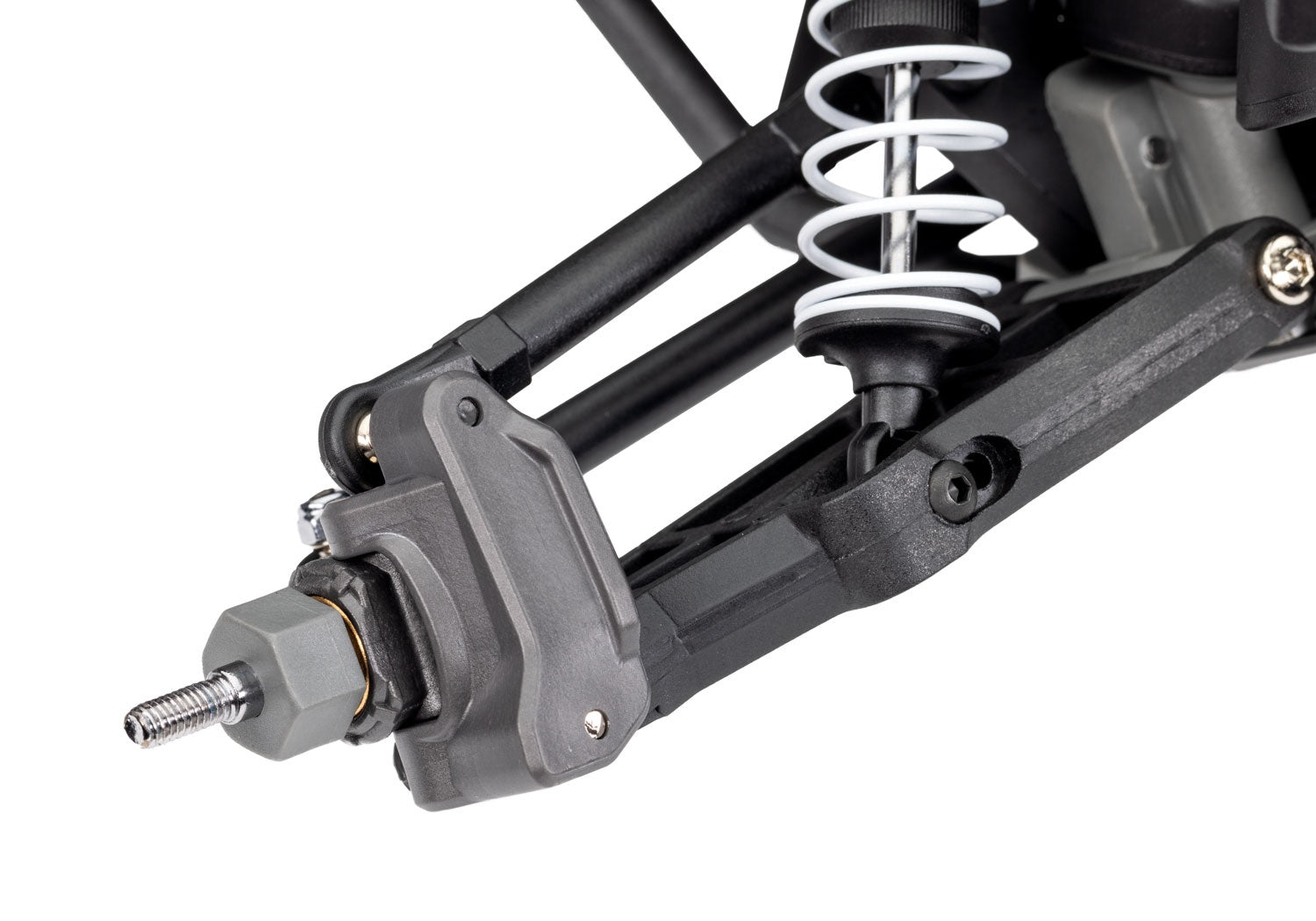

- Strengthened C-hubs, axle carriers, and steering blocks
- HD suspension arms
- TQ™ 2.4 GHz 2-Channel Radio System
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security
- Sealed watertight receiver box keeps the receiver dry
- Includes Battery and USB-C Charger
- 4-amp USB-C fast charger
- 3000 mAh Traxxas 7-cell 8.4 V NiMH battery with iD®

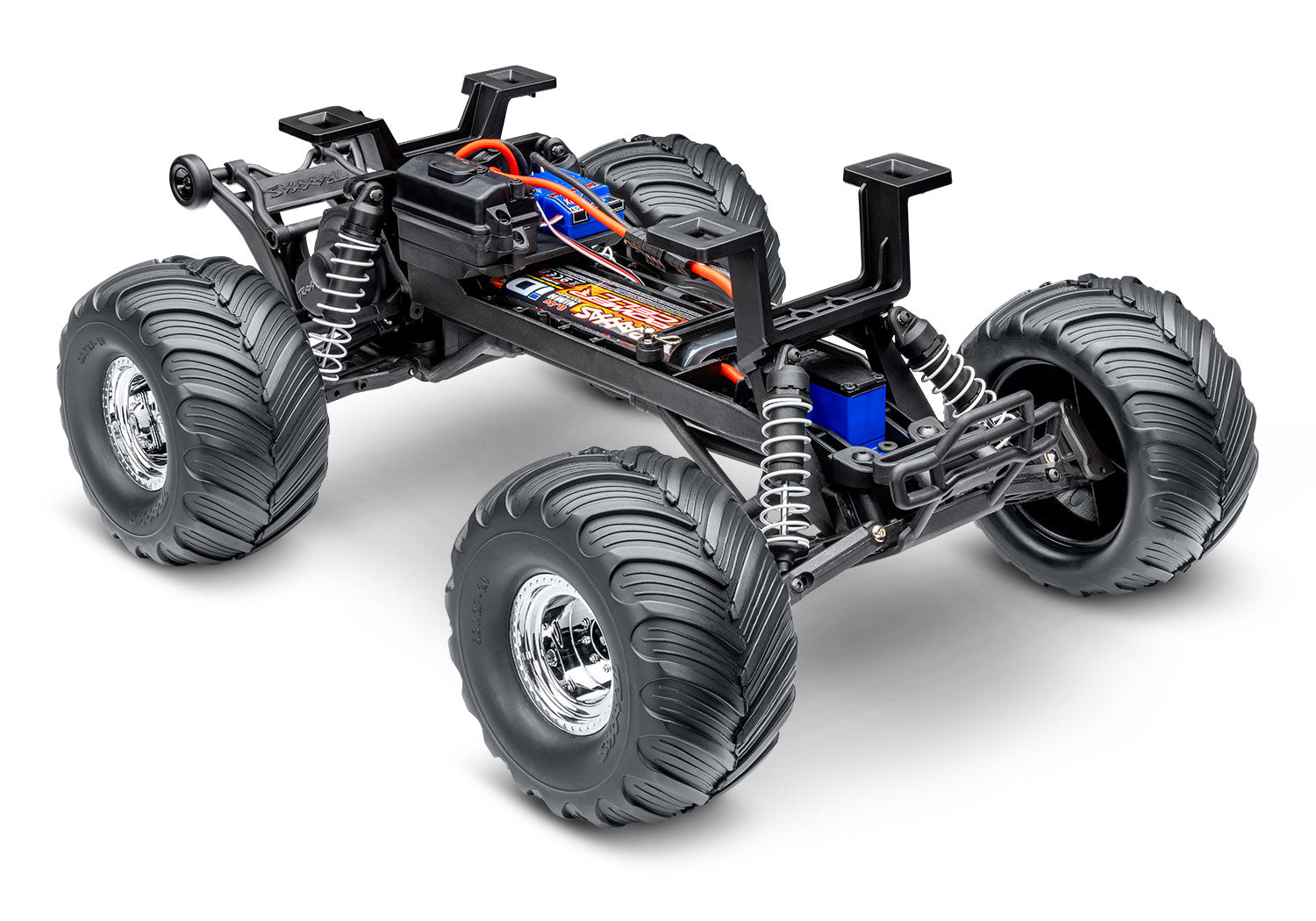

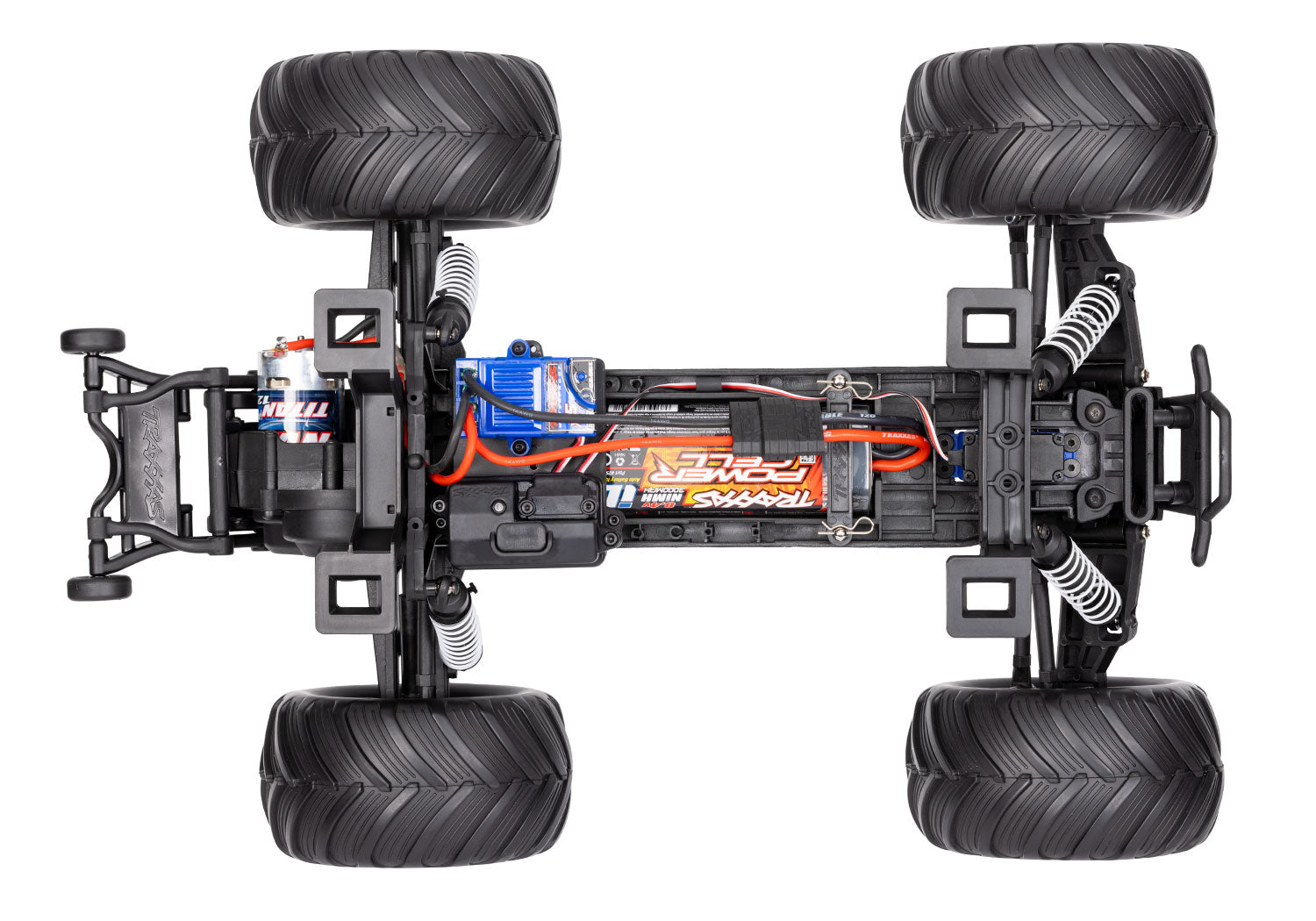

- Tough Fiber-Composite Monocoque Chassis

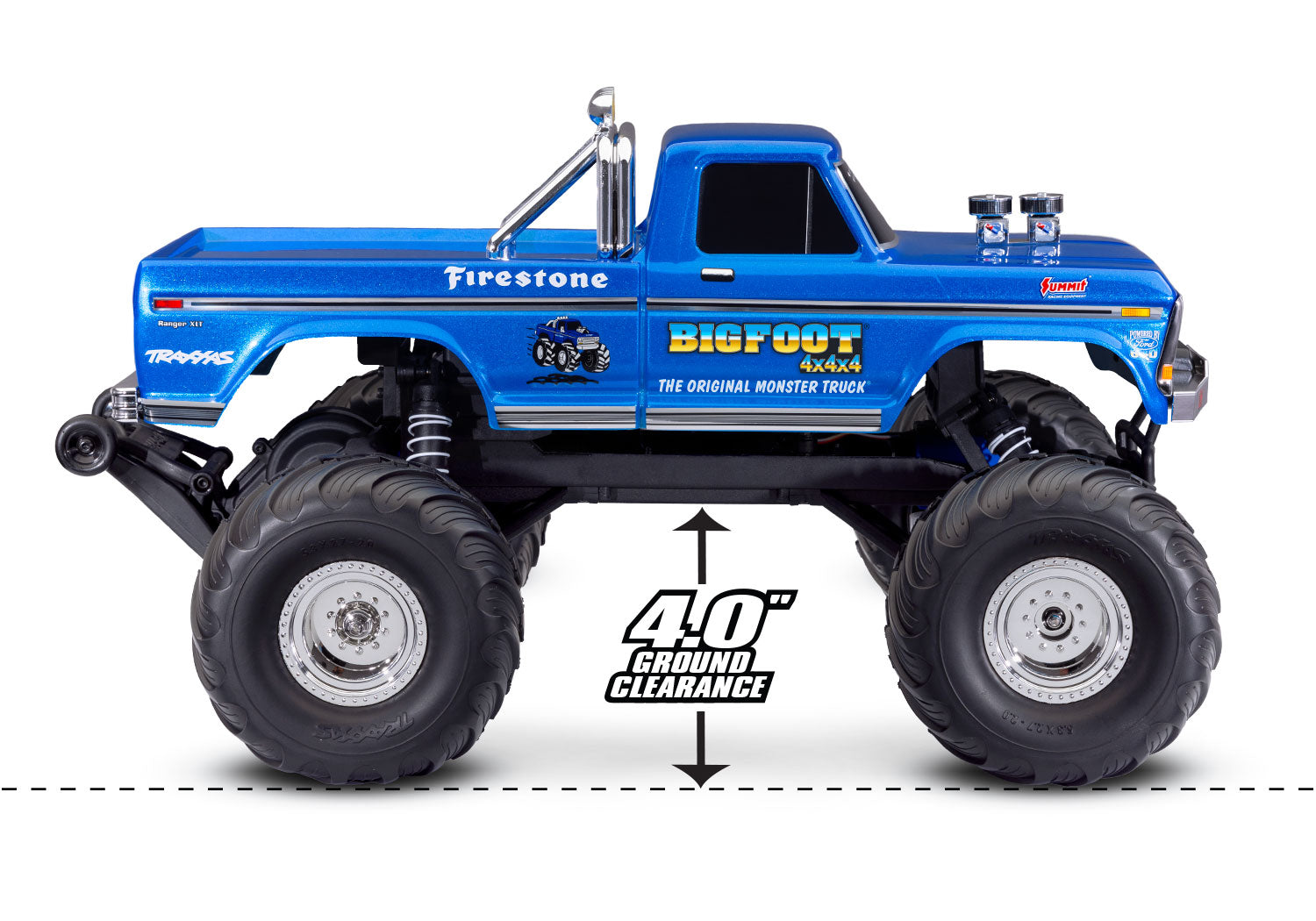

- Tall 4″ center ground clearance to drive over obstacles
- Easy Access Battery Compartment
- Accepts NiMH 6 and 7-cell flat packs and hump packs
- Accepts 2-cell LiPo batteries
- Transmission and Driveline

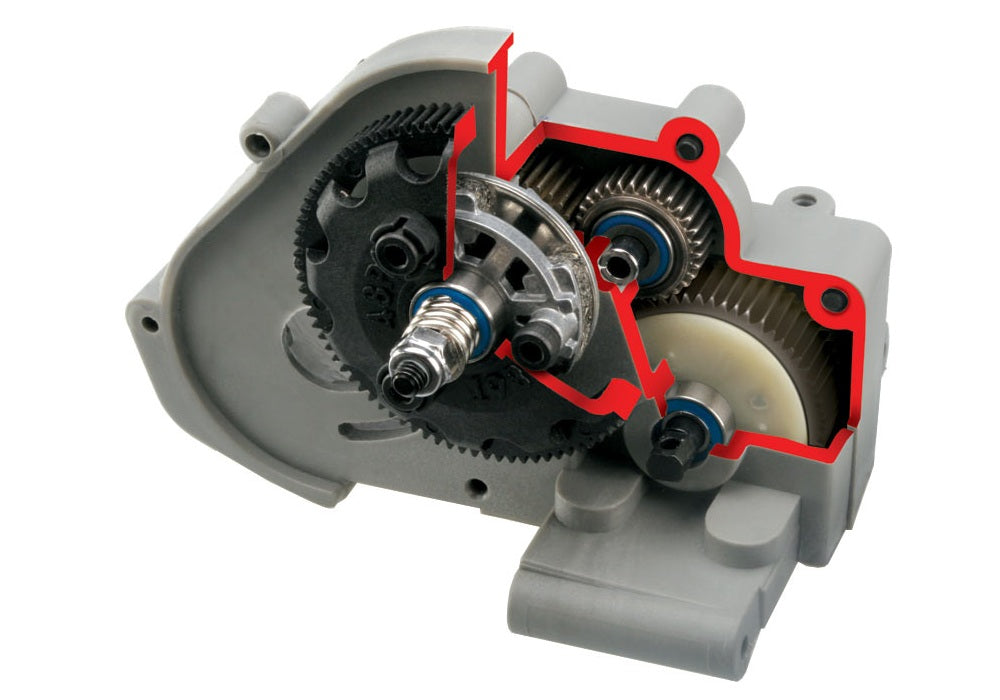

- Brushless-ready Magnum 272™ metal-gear transmission

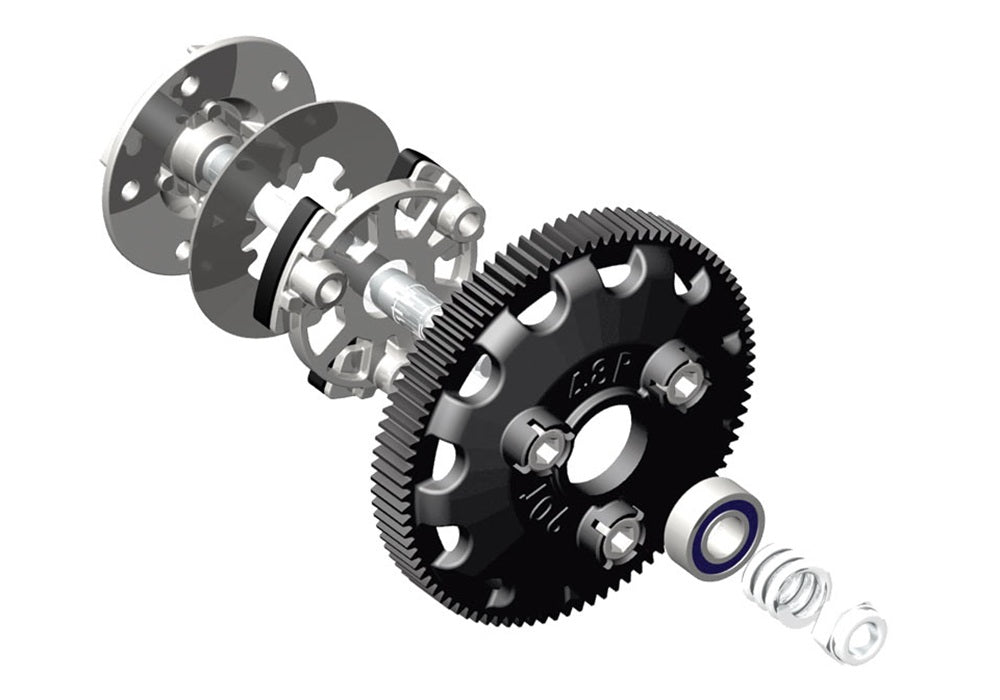

- Torque-Control™ slipper clutch system

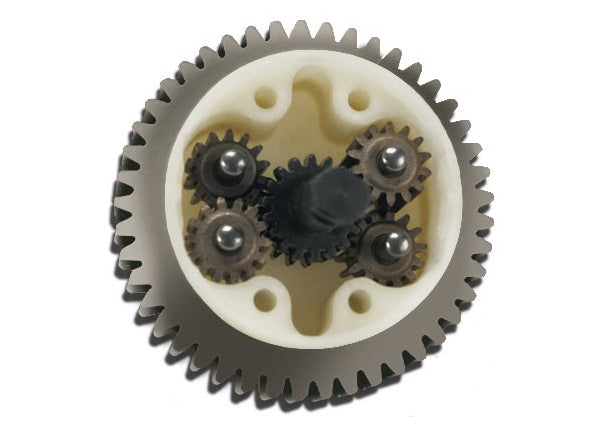

- Planetary gear differential with steel ring gear

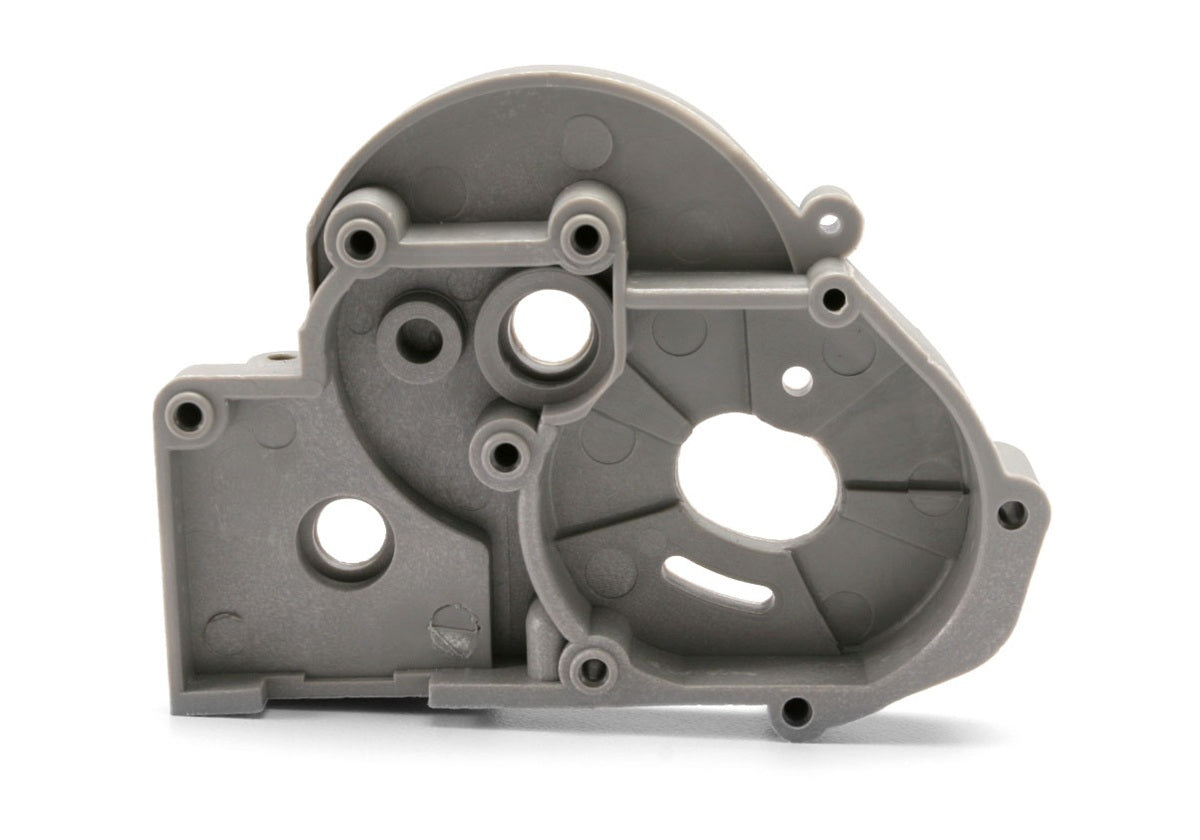

- Sealed gearbox protects the transmission with beefed up motor guard
- External gear cover with easy clutch access

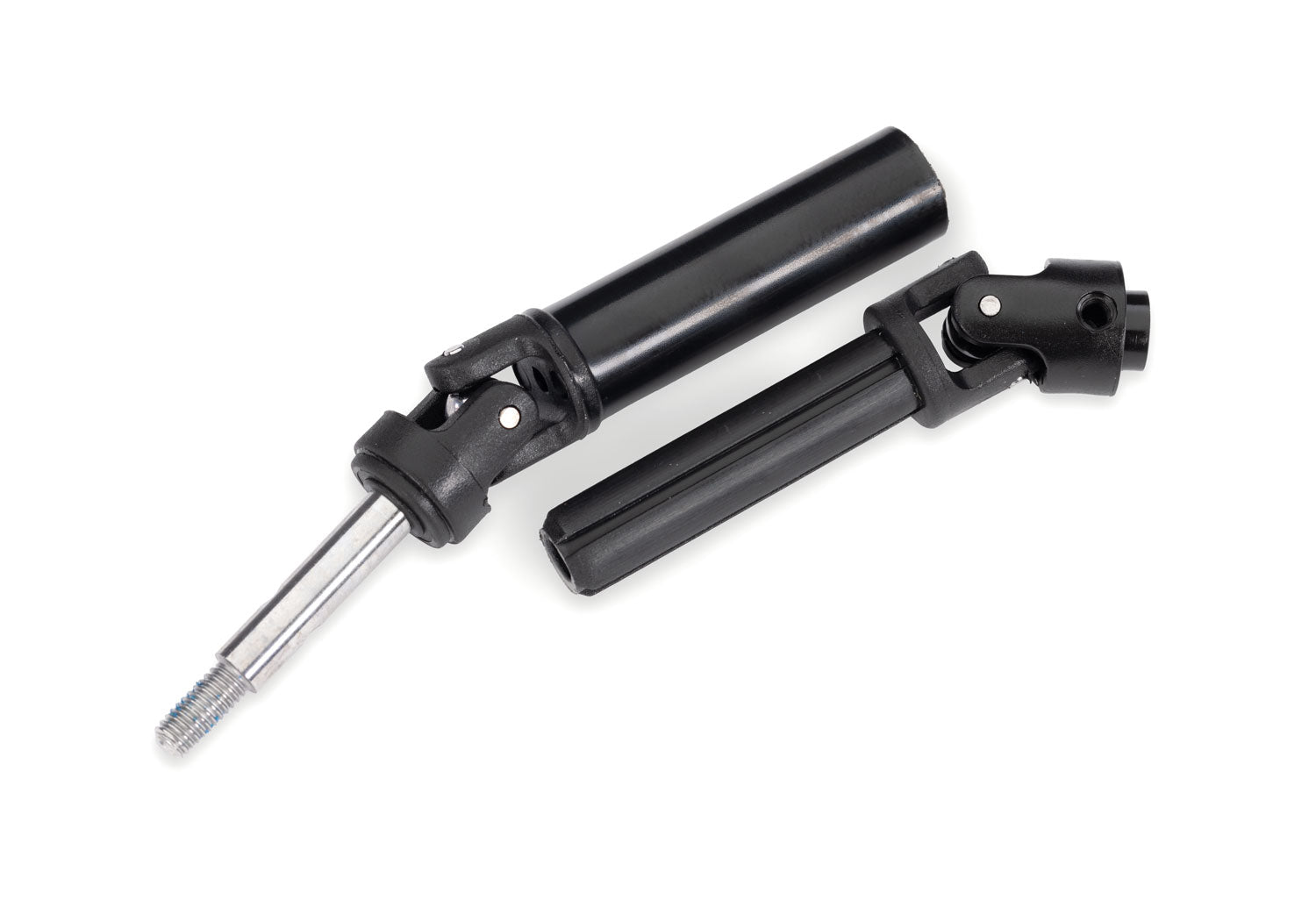

- Heavy-duty telescoping U-joint driveshafts and yokes
- Steering
- High-torque waterproof Traxxas 2056 steering servo
- Spring-loaded servo saver helps protect against impacts
- Suspension

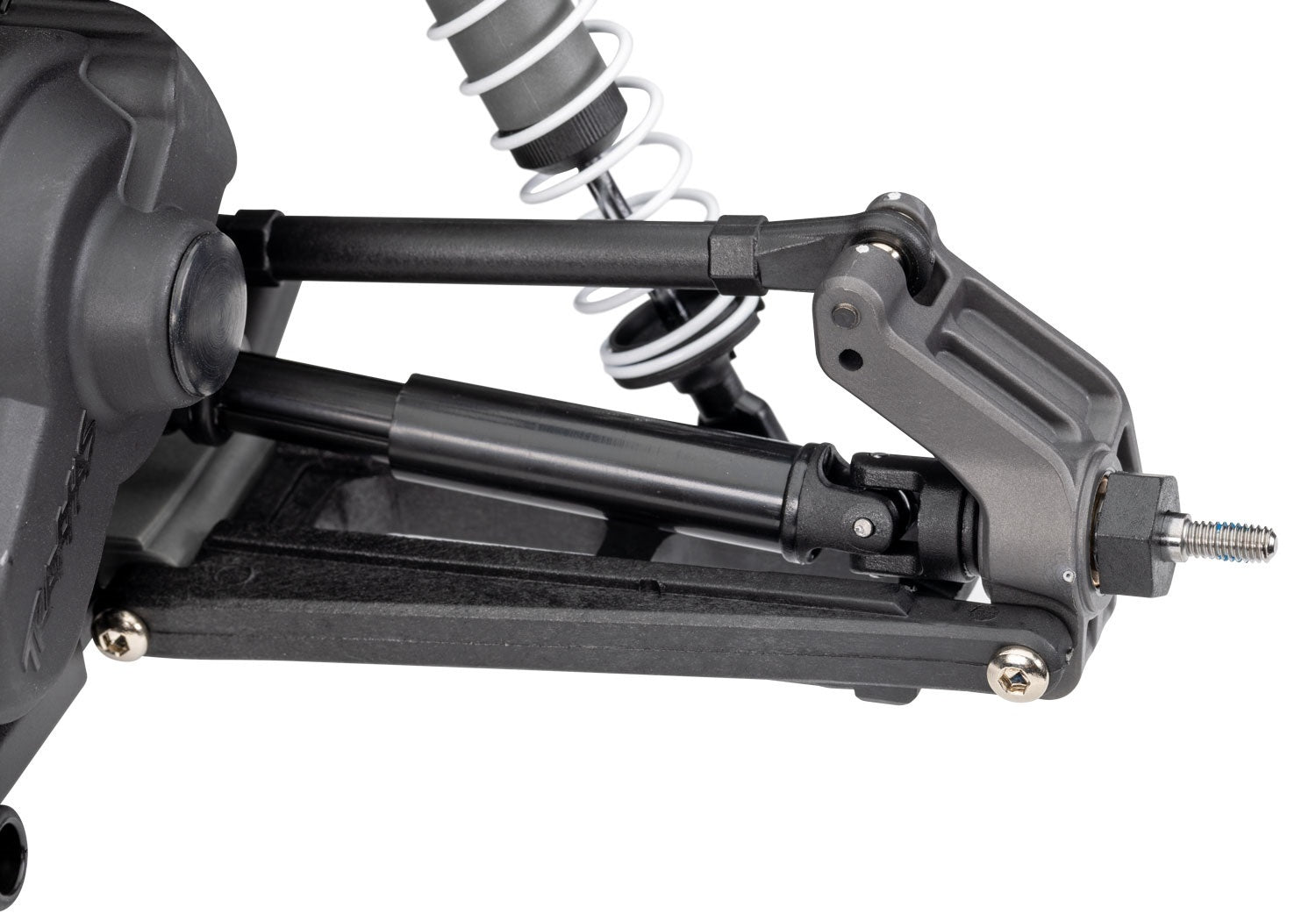

- Durable solid camber links eliminate the need for adjustment
- Captured rod ends won't pop off
- Springs and Shocks

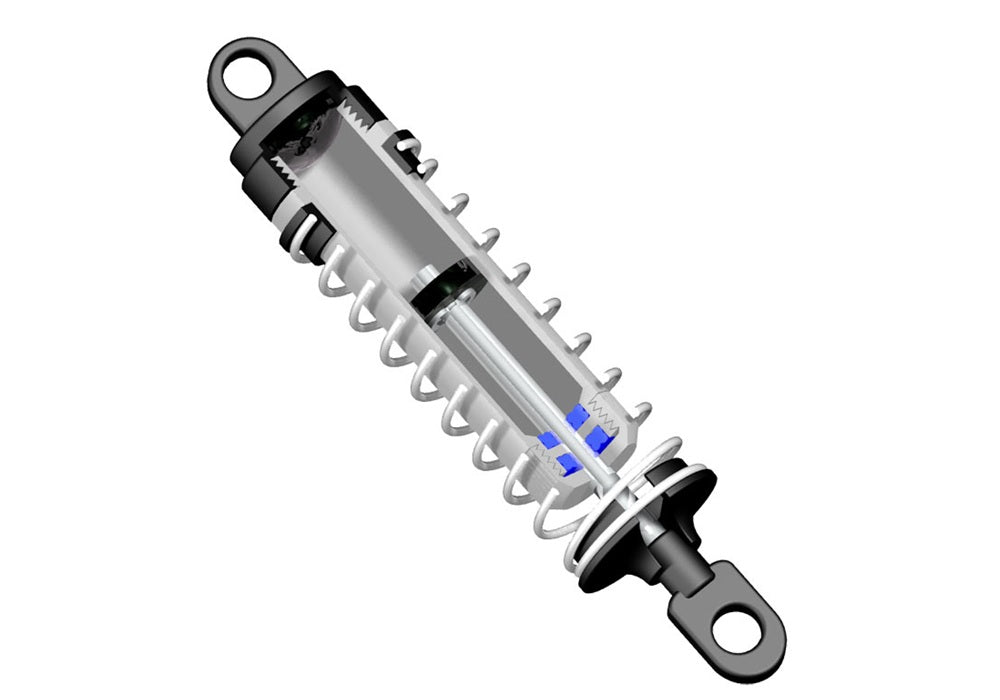

- Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
- White powder-coated springs
- Wheels and Tires
- Pre-glued high profile Terra-Groove shaved monster truck tires
- 2.2″ Deep dish mirror-chrome beadlock-style wheels
- Precision Hex Hardware

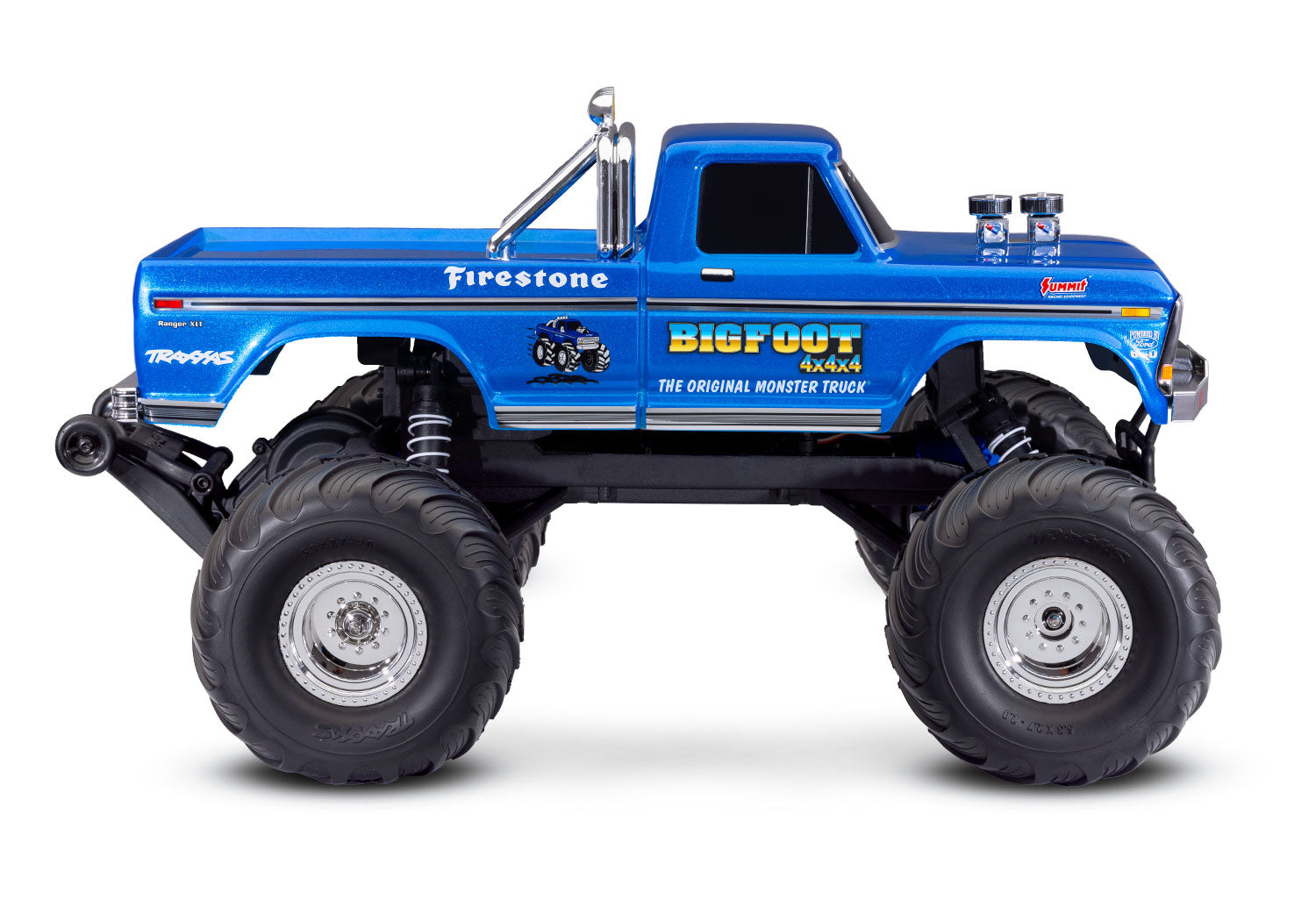

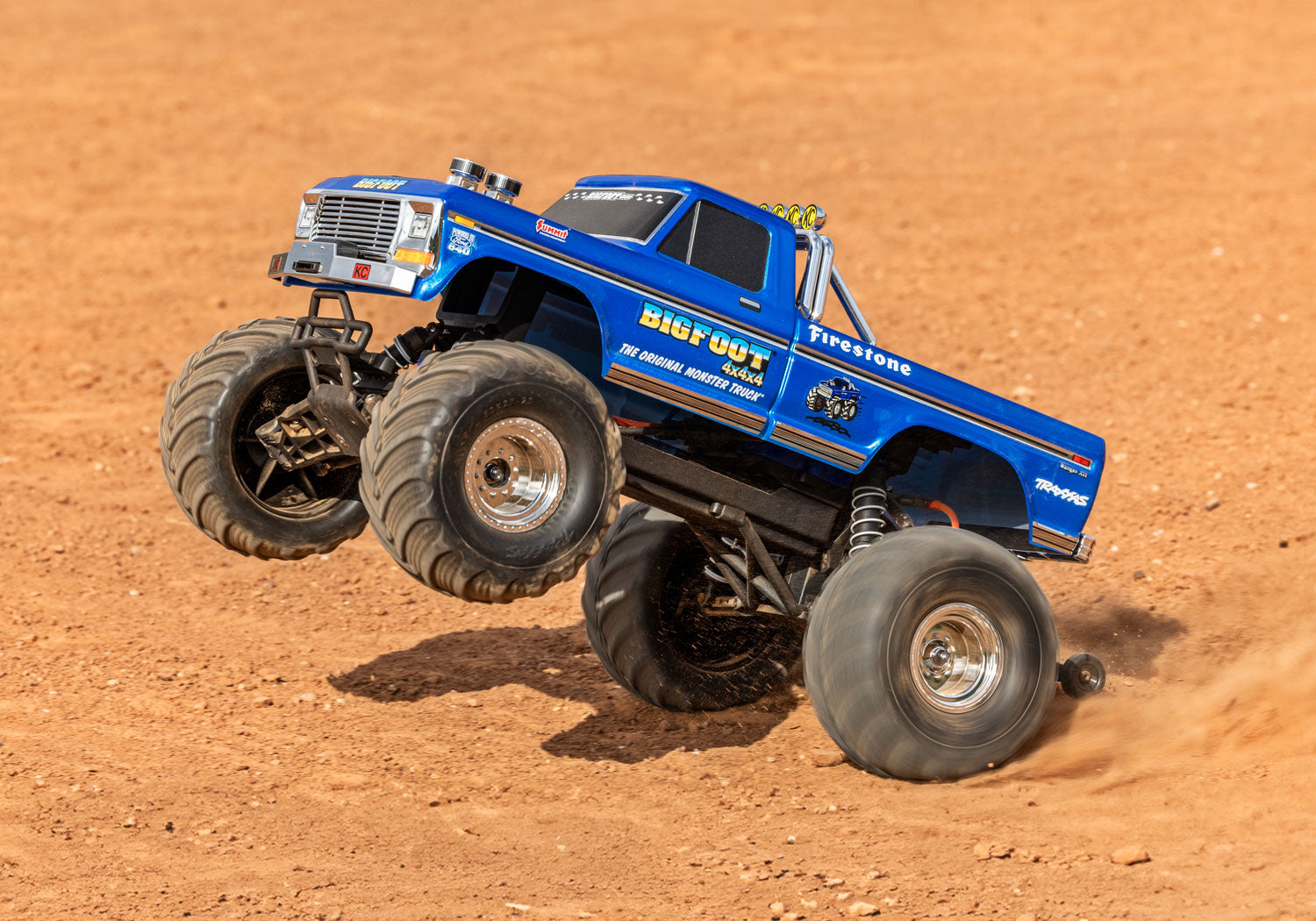

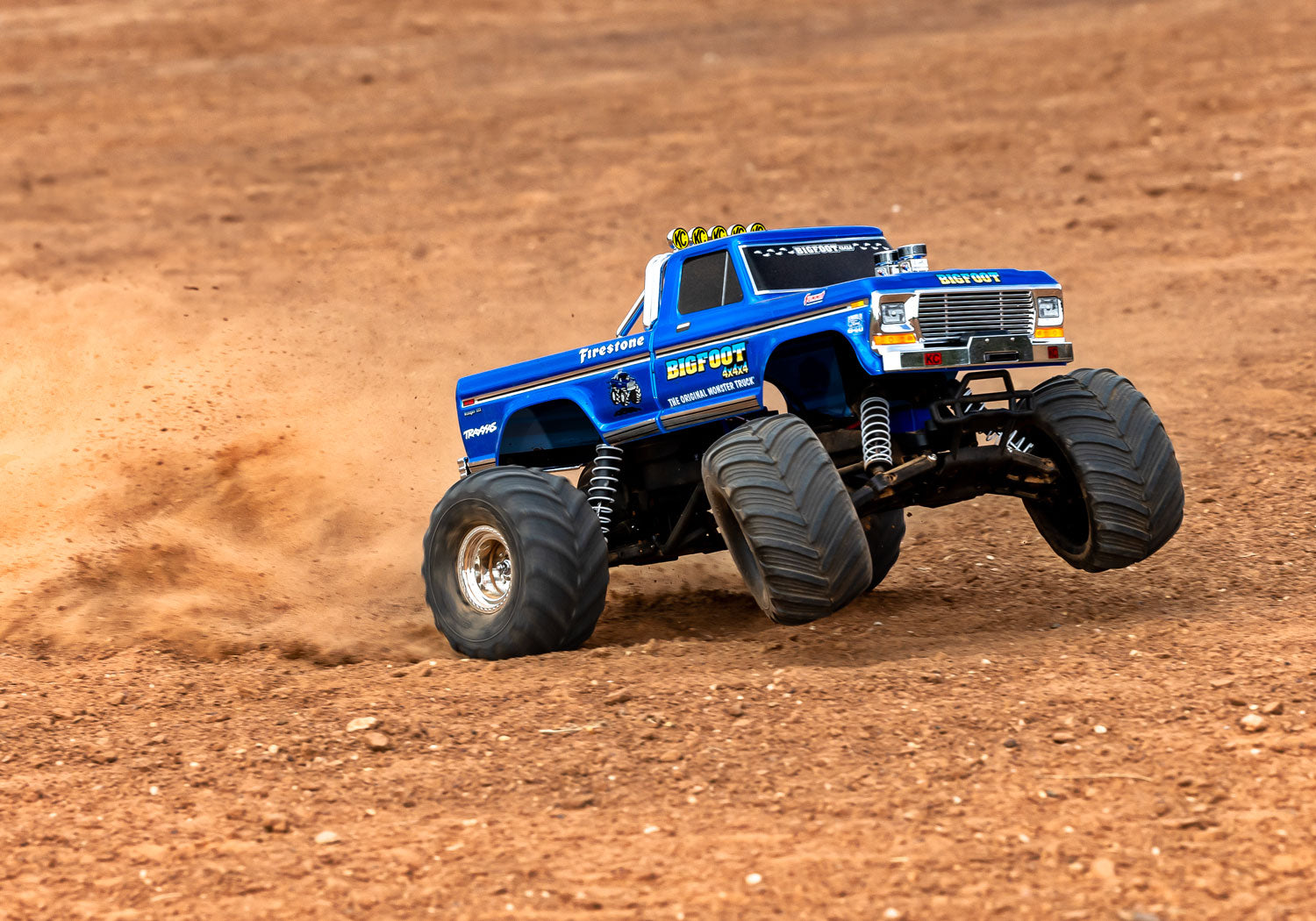

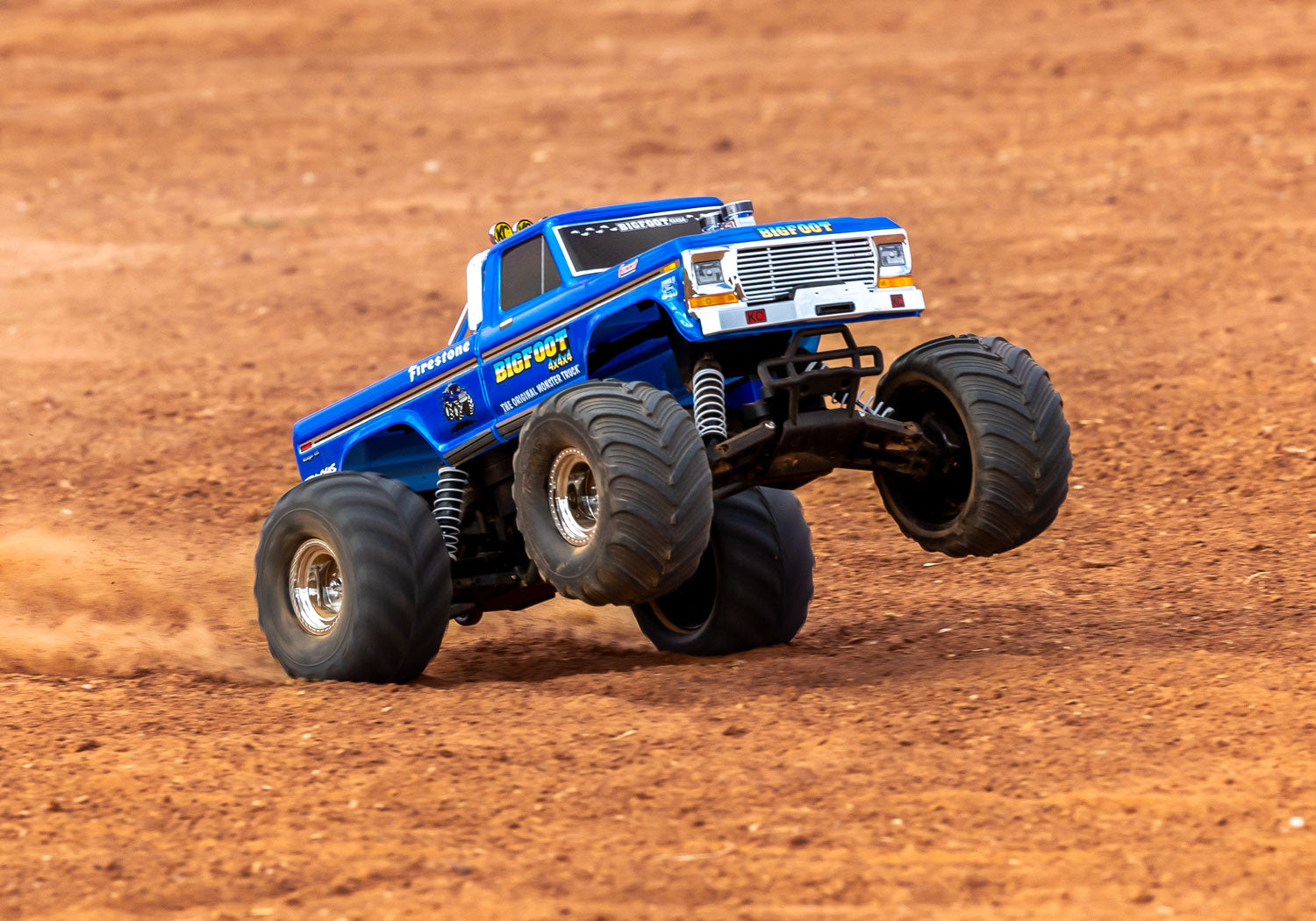

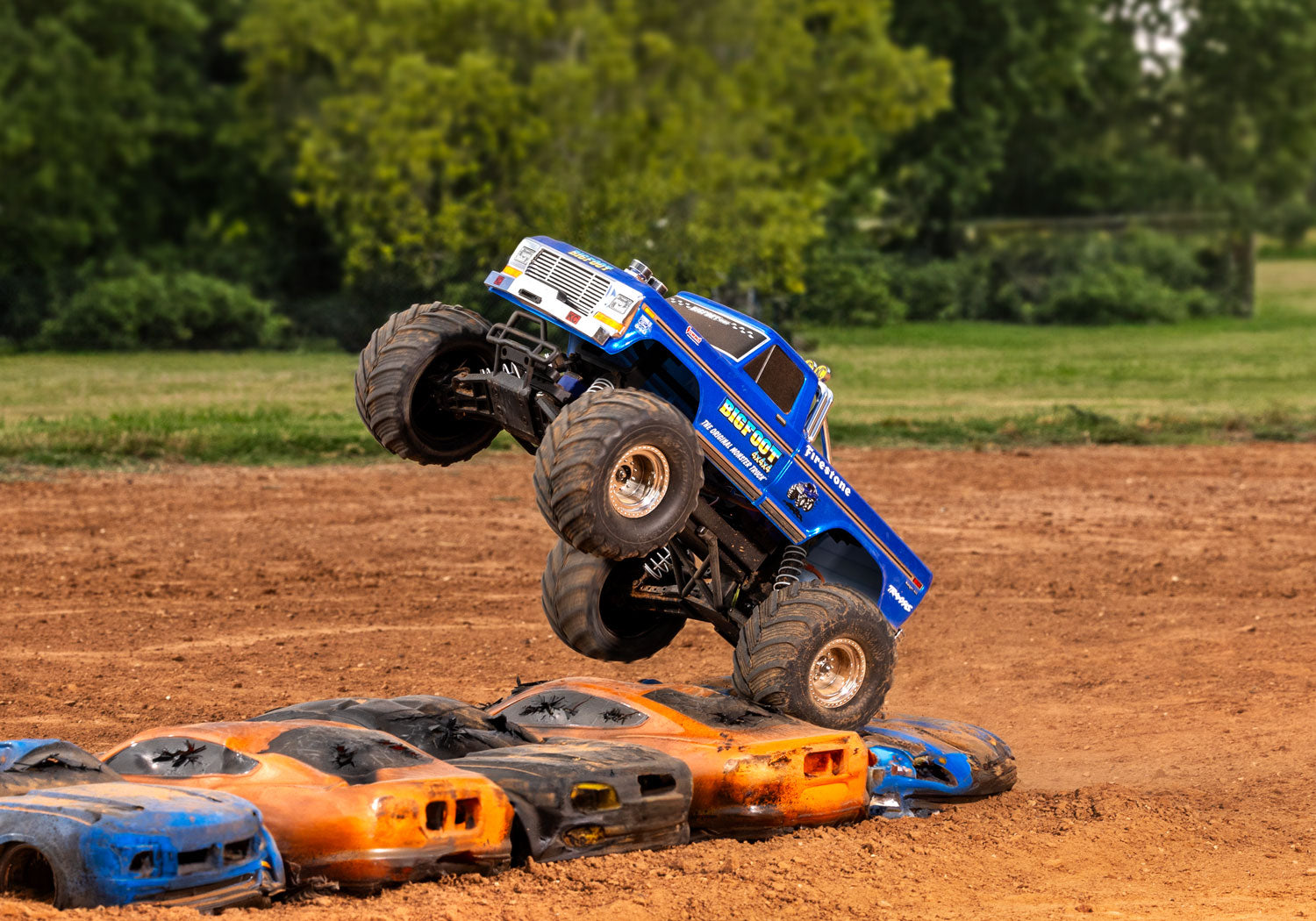

MODEL 36234-8: BIGFOOT® No. 1: 1/10 Scale 2WD monster truck, fully-assembled, waterproof, Ready-To-Race®, with TQ™ 2.4 GHz radio system, XL-5™ electronic speed control, 4-amp USB-C fast charger, and clipless replica body.What’s In The Box:- BIGFOOT No. 1 with XL-5 ESC and Titan® 550 Motor
- TQ 2.4 GHz radio system
- Traxxas 3000 mAh, 8.4-volt 7-cell NiMH battery with iD®
- 4-amp USB-C fast charger
- High quality maintenance tools
Description
MODEL SPECS
| Name: | BIGFOOT No 1 HD w/USB-C |
|---|---|
| Type: | Monster Truck |
| Speed: | 30+ mph with 7-cell battery |
| Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 4.08 pounds (1.85 kg) |
| Length: | 16.25 inches (413 mm) |
| Width: | 12.75 inches (324 mm) |
| Front Track: | 12.75 inches (324 mm) |
| Rear Track: | 12.75 inches (324 mm) |
| Height: | 9.5 inches (241 mm) |
MOTOR SPECS
| Name: | Titan® 12T 550 |
|---|---|
| Type: | High-speed brushed motor |
| Weight: | 8.47 ounces (240 g) |
| Length: | 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
| Diameter: | 1.41 inches (36 mm) |
| Shaft Size: | 3 mm |
| Connector Type: | Bullet |
ESC SPECS
| Name: | Waterproof XL-5™ ESC with low-voltage detection |
|---|---|
| Type: | Brushed |
| Case Size: | 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm) |
| Weight: | 2.44 ounces (69 g) |
| Motor Connectors: | Bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| Power Wire: | 14 gauge |
- Licensed BIGFOOT® No. 1 Clipless Body
- Brilliant blue metallic officially licensed F-100 Ford® XLT Ranger body
- Chrome front bumper with replica winch
- Chrome grille with light buckets and reflectors
- Replica high-rise dual-carb intake manifold
- Chrome roll bar with replica KC lights
- Body reinforcements to prevent pull-through damage
- Holds tight for intense action
- Quick and easy removal
- Smooth appearance with no body posts or clips
- Includes wheelie bar
- High-Performance Waterproof XL-5™ Electronic Speed Control
- Innovative waterproof design
- Three drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Traxxas EZ-Set® one-button setup
- LiPo and NiMH compatible with two-stage low-voltage detection
- Titan 550 Motor
- Powerful Titan® 12T 550 brushed motor with internal cooling fan
- Oversized armature for big torque and increased power handling
- Virtually maintenance-free operation
- Extreme Heavy Duty Parts Installed
- Strengthened C-hubs, axle carriers, and steering blocks
- HD suspension arms
- TQ™ 2.4 GHz 2-Channel Radio System
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security
- Sealed watertight receiver box keeps the receiver dry
- Includes Battery and USB-C Charger
- 4-amp USB-C fast charger
- 3000 mAh Traxxas 7-cell 8.4 V NiMH battery with iD®
- Tough Fiber-Composite Monocoque Chassis
- Tall 4″ center ground clearance to drive over obstacles
- Easy Access Battery Compartment
- Accepts NiMH 6 and 7-cell flat packs and hump packs
- Accepts 2-cell LiPo batteries
- Transmission and Driveline
- Brushless-ready Magnum 272™ metal-gear transmission
- Torque-Control™ slipper clutch system
- Planetary gear differential with steel ring gear
- Sealed gearbox protects the transmission with beefed up motor guard
- External gear cover with easy clutch access
- Heavy-duty telescoping U-joint driveshafts and yokes
- Steering
- High-torque waterproof Traxxas 2056 steering servo
- Spring-loaded servo saver helps protect against impacts
- Suspension
- Durable solid camber links eliminate the need for adjustment
- Captured rod ends won't pop off
- Springs and Shocks
- Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
- White powder-coated springs
- Wheels and Tires
- Pre-glued high profile Terra-Groove shaved monster truck tires
- 2.2″ Deep dish mirror-chrome beadlock-style wheels
- Precision Hex Hardware
MODEL 36234-8: BIGFOOT® No. 1: 1/10 Scale 2WD monster truck, fully-assembled, waterproof, Ready-To-Race®, with TQ™ 2.4 GHz radio system, XL-5™ electronic speed control, 4-amp USB-C fast charger, and clipless replica body.
What’s In The Box:
- BIGFOOT No. 1 with XL-5 ESC and Titan® 550 Motor
- TQ 2.4 GHz radio system
- Traxxas 3000 mAh, 8.4-volt 7-cell NiMH battery with iD®
- 4-amp USB-C fast charger
- High quality maintenance tools
