Description
MODEL SPECS
Name: TRX-4 Sport High Trail Edition Type: Trail / Crawler Skill Level: 1 Chassis: Steel ladder frame Scale: 1/10 Weight: 7.04 lb (3.20 kg) Length: 22 inches (564 mm) Width: 10.63 inches (270 mm) Front Track: 10.63 inches (270 mm) Rear Track: 10.63 inches (270 mm) Height: 10.8 inches (275 mm) MOTOR SPECS
Name: Titan® 550 21T reverse rotation Motor Type: High-torque brushed motor Weight: 390 g (13.76 oz) Length: 3.071″ (78 mm) overall length, 2.25″ (57 mm) can length Diameter: 1.532″ (39 mm diameter) Shaft Size: 3 mm Connector Type: Bullet ESC SPECS
Name: XL-5™ HV ESC Type: Brushed Case Size: 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm) Weight: 2.6 ounces (74 g) Motor Connectors: Bullet Battery Connectors: Traxxas High-Current Connector Power Wire: 14 gauge - Tough, Lightweight Pickup Truck Body
- High-angle bumpers for increased clearance
- Molded grille and tailgate
- LED-ready headlights, tail lights
- Full Nylon composite wheel wells and floor pans

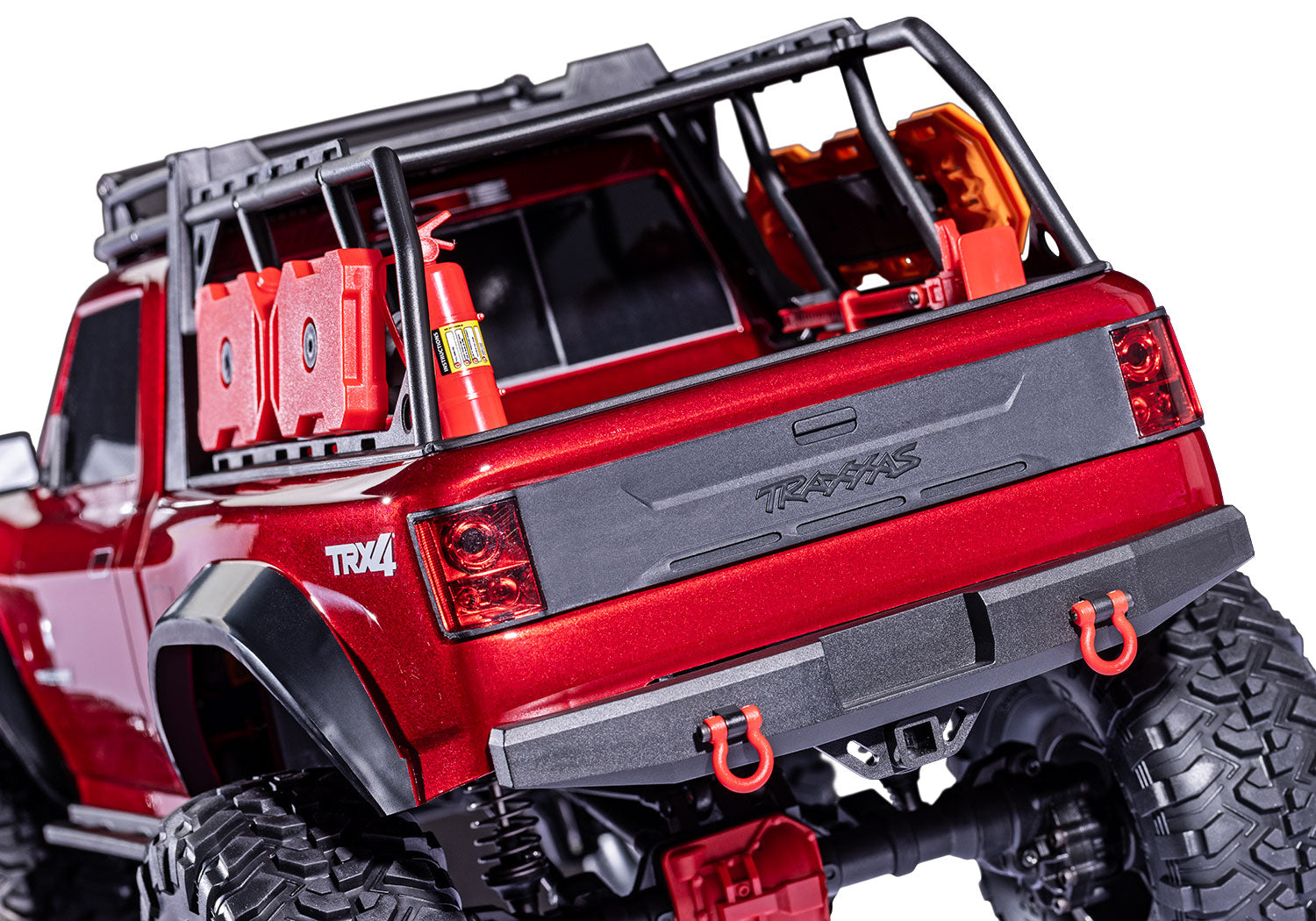

- Scale Accessories

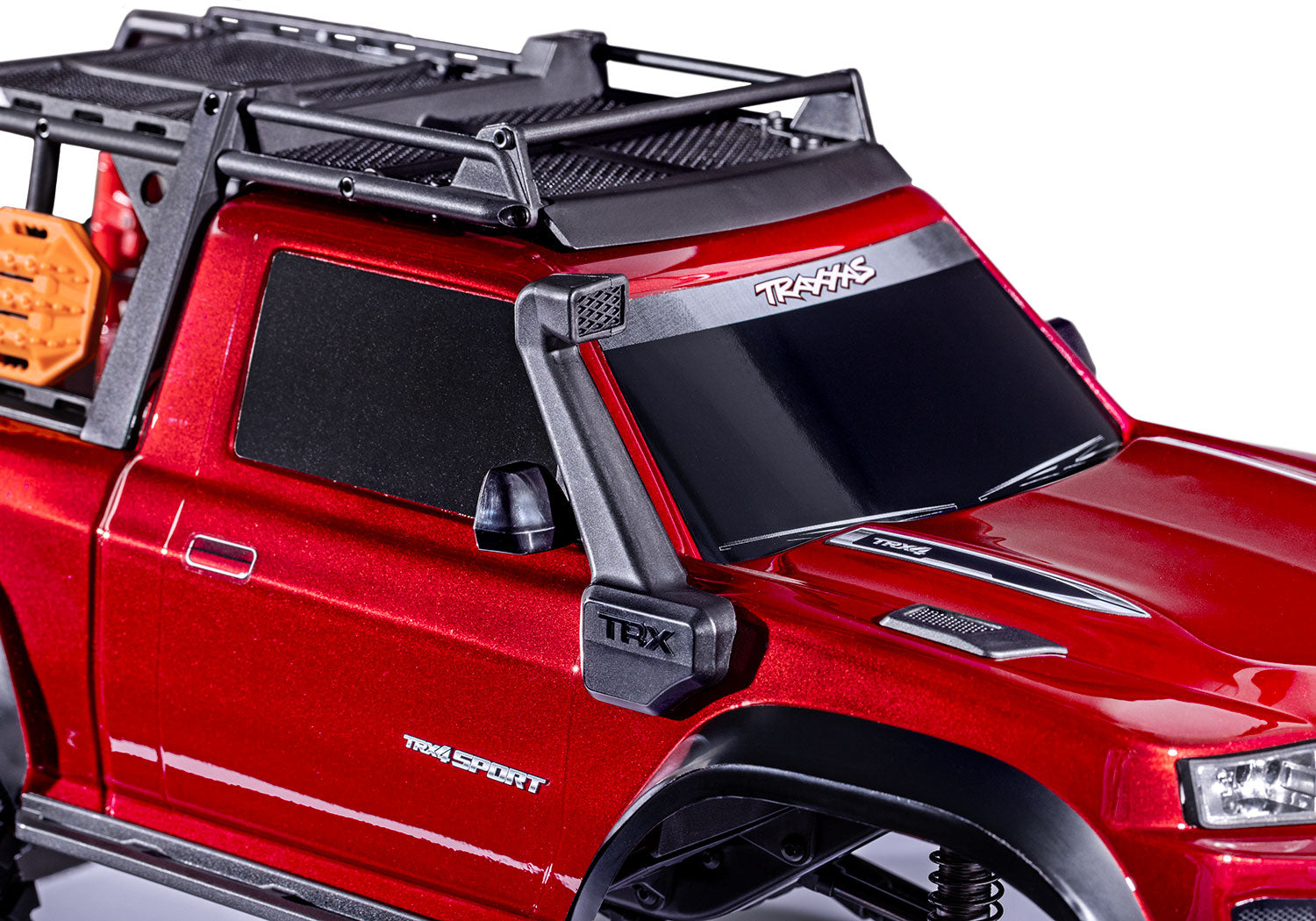

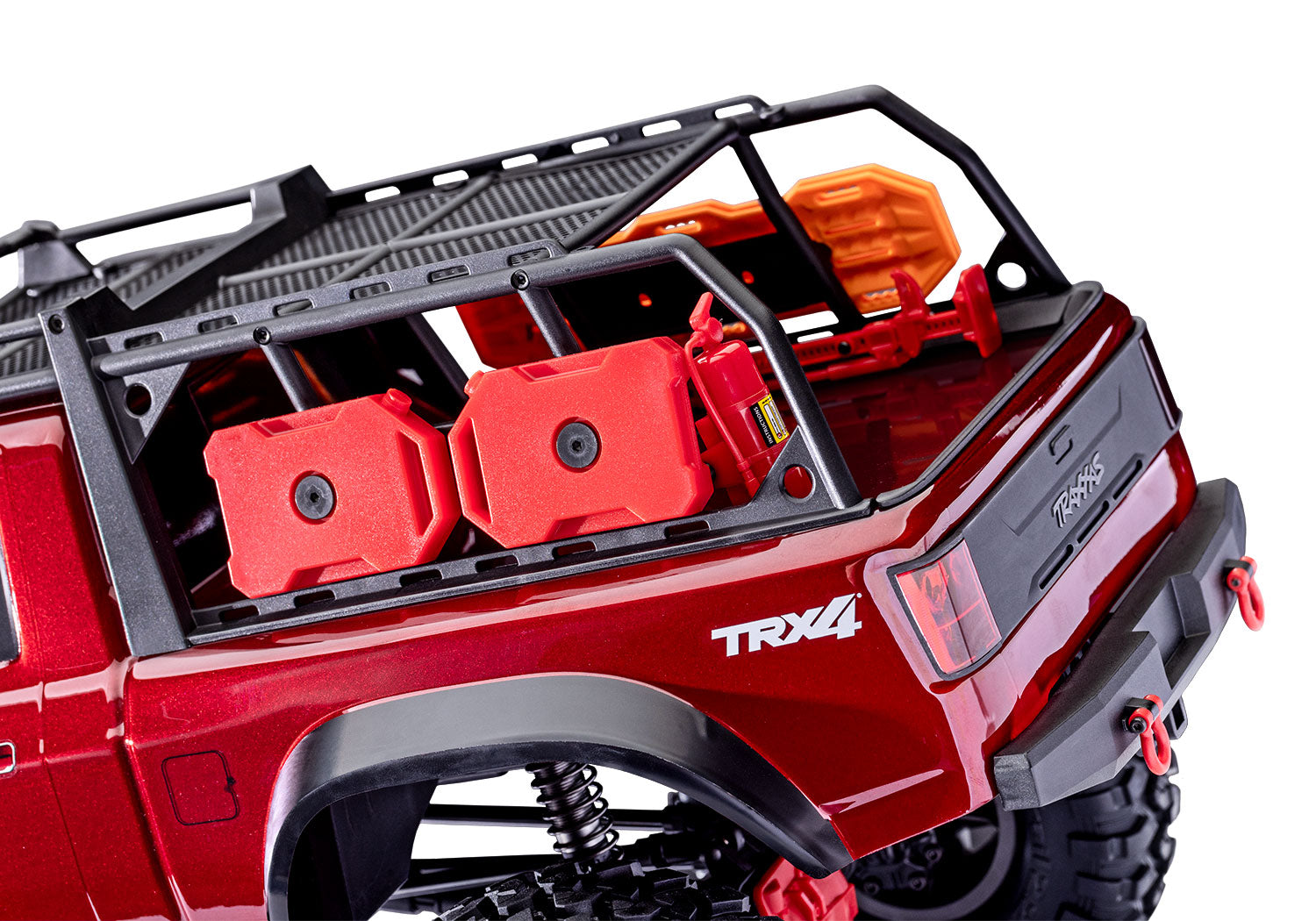

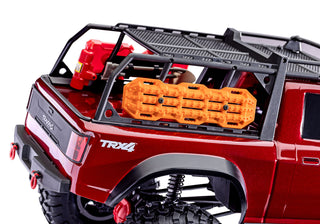

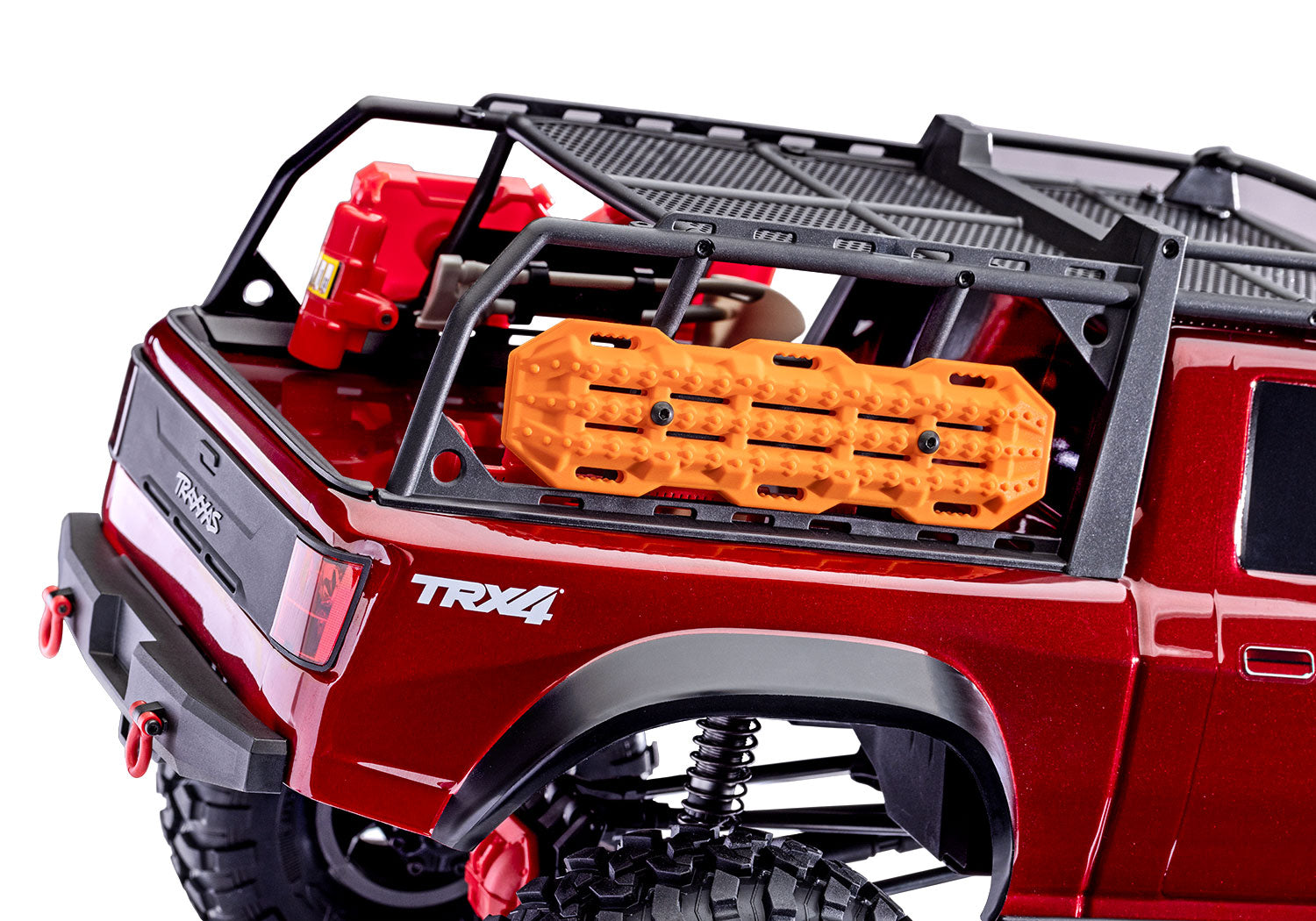

- Rugged Expedition Rack with detailed accessories
- Injection-molded snorkel and side mirrors

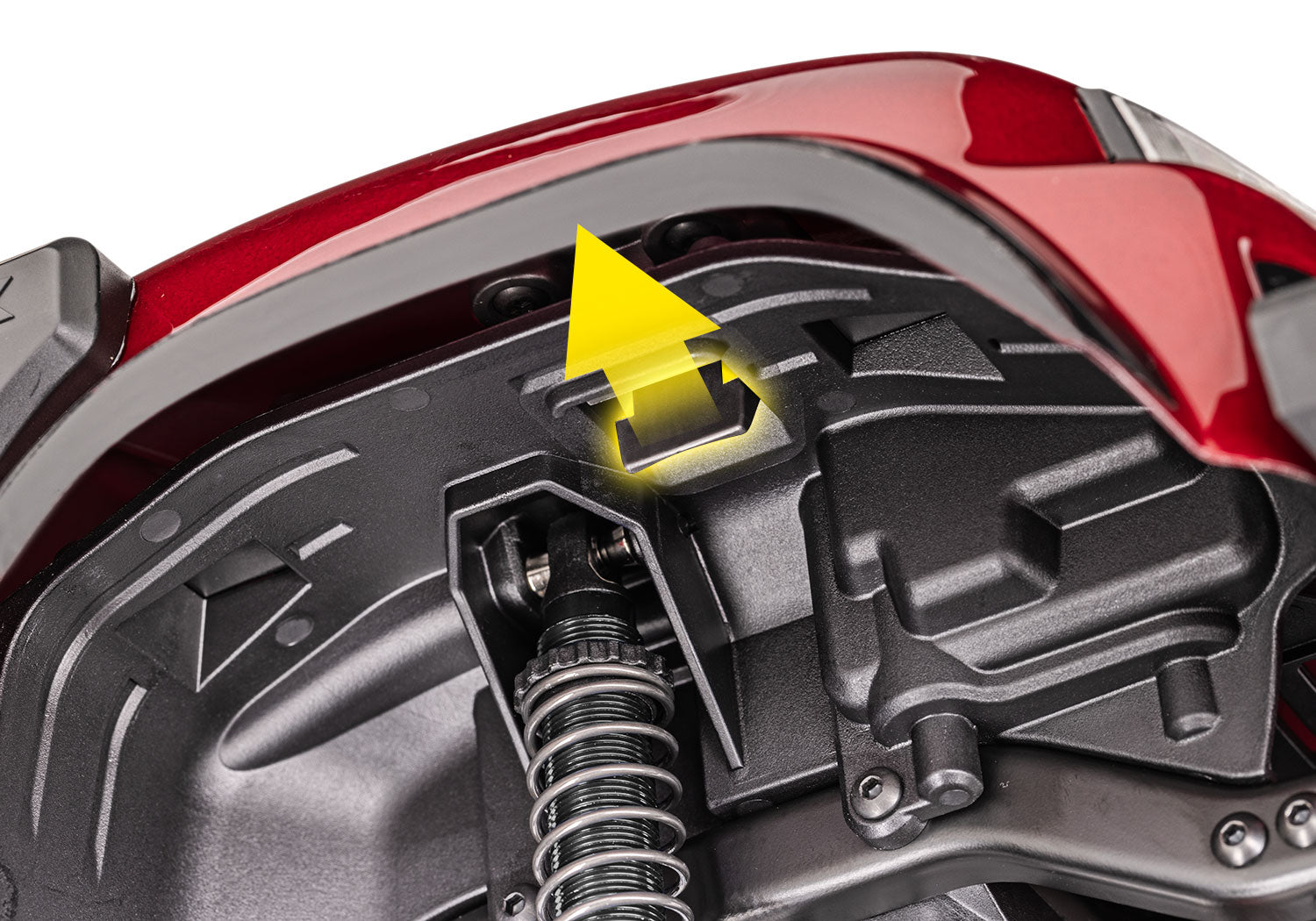

- Clipless Body mounting
- Clipless design for smooth body appearance
- Body details mount directly to internal frame
- Trail-tuned XL-5™ HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
- Two stage low voltage protection (LVD)
- Titan® 550 Motor
- Powerful Titan 21T reverse rotation motor with internal cooling fan
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh

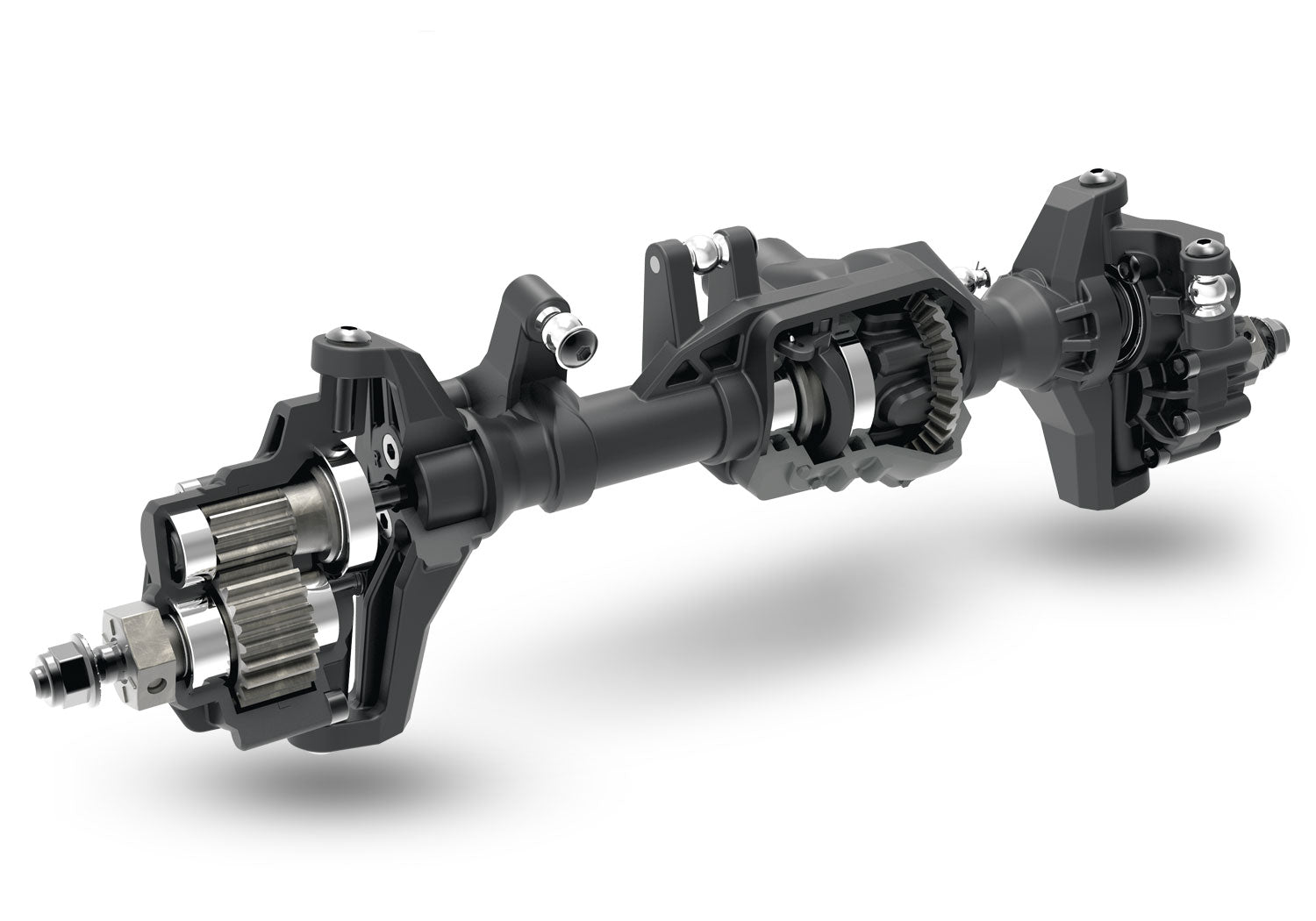

- Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
- Driveline
- Full-time shaft driven 4-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts

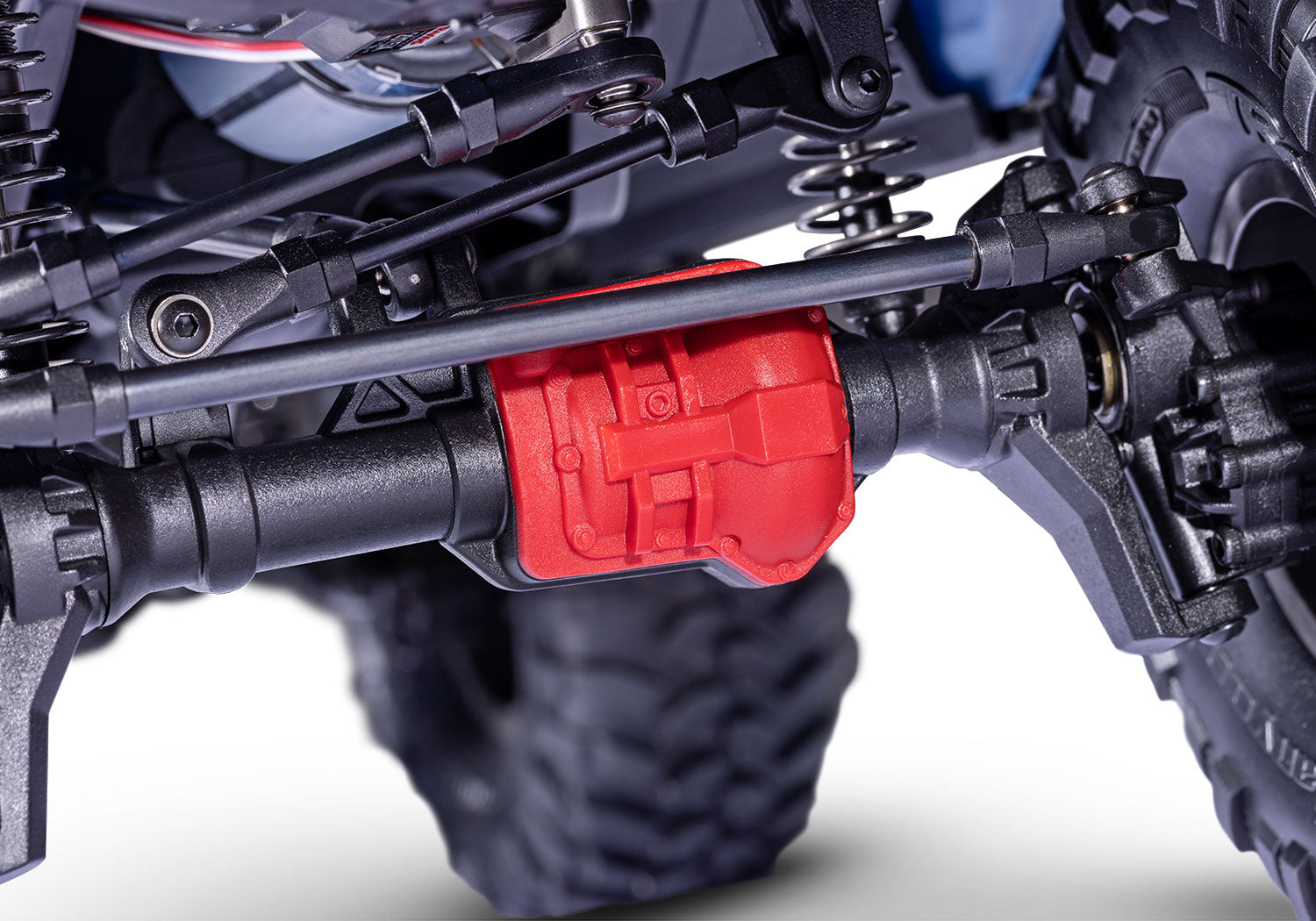

- Spool-locked front and rear differentials
- Steel gear transfer case

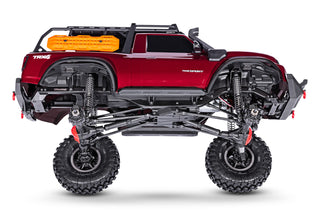

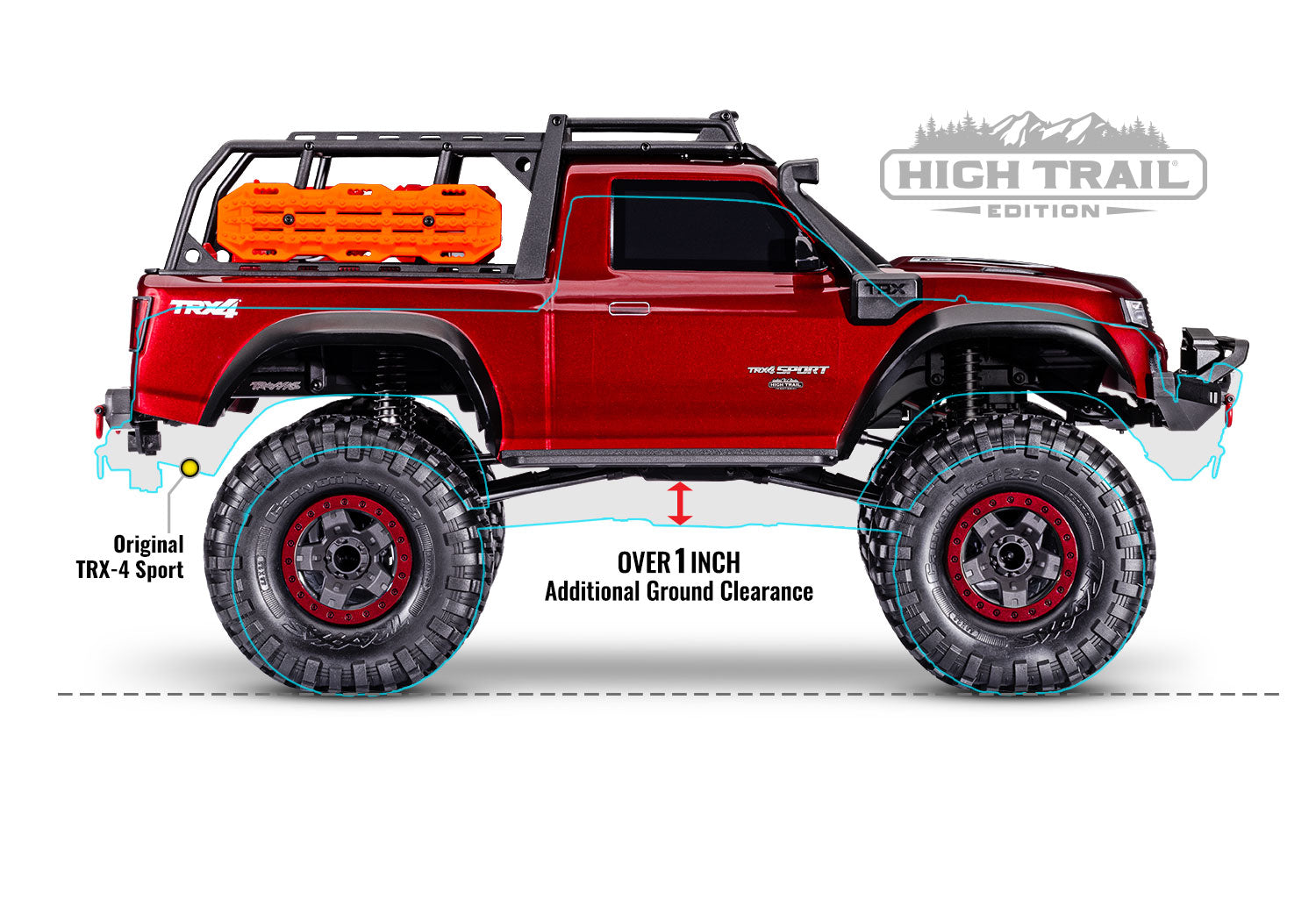

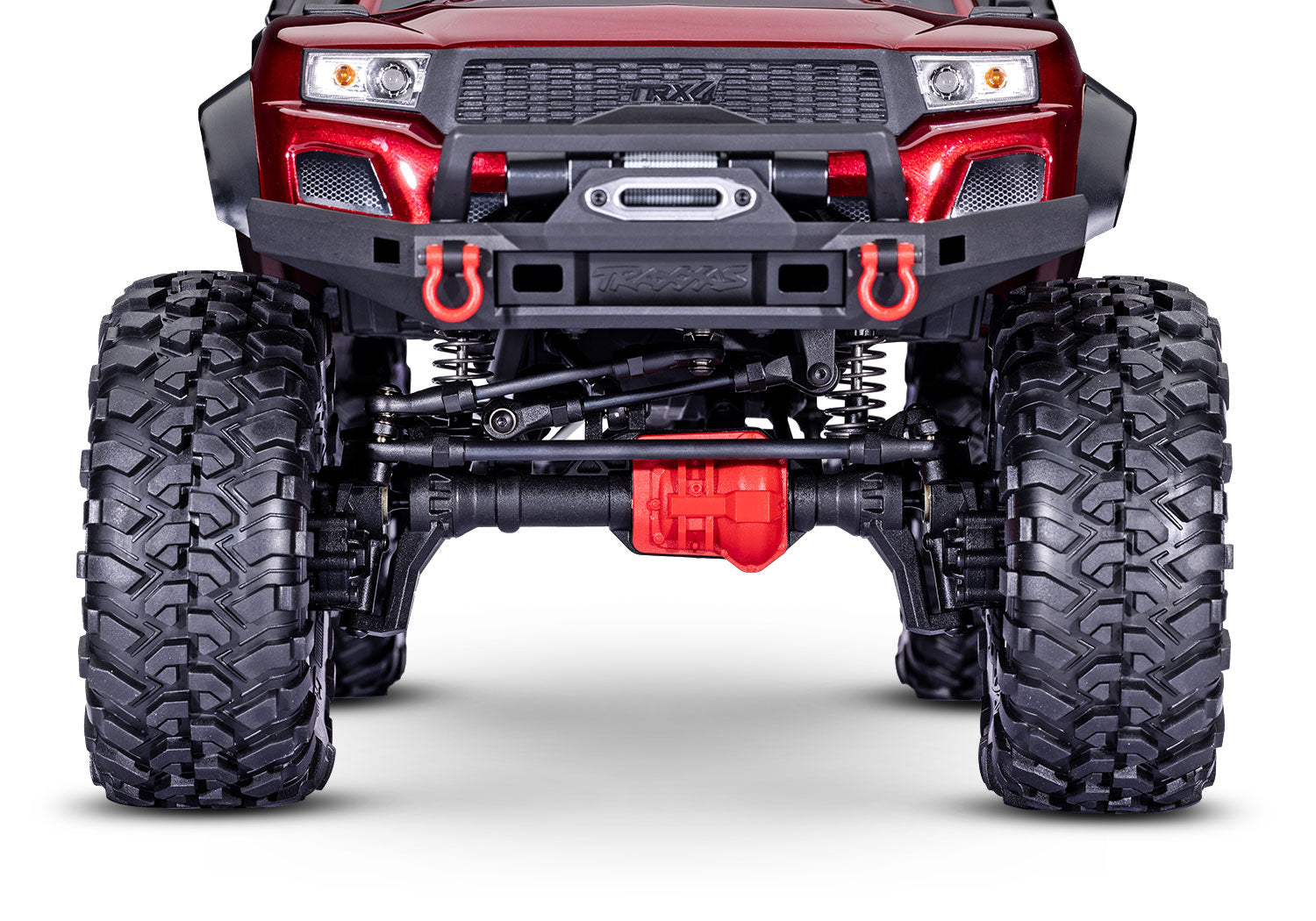

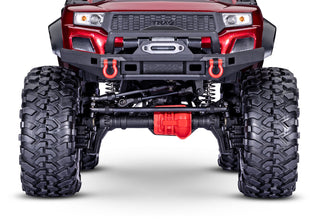

- Factory-Installed Long Arm Lift Kit
- Increases ground clearance over 1″
- Maintains precise steering geometry
- Accommodates oversize 2.2″ wheels and tires
- TQ™ 2.4 GHz 2-Channel
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry

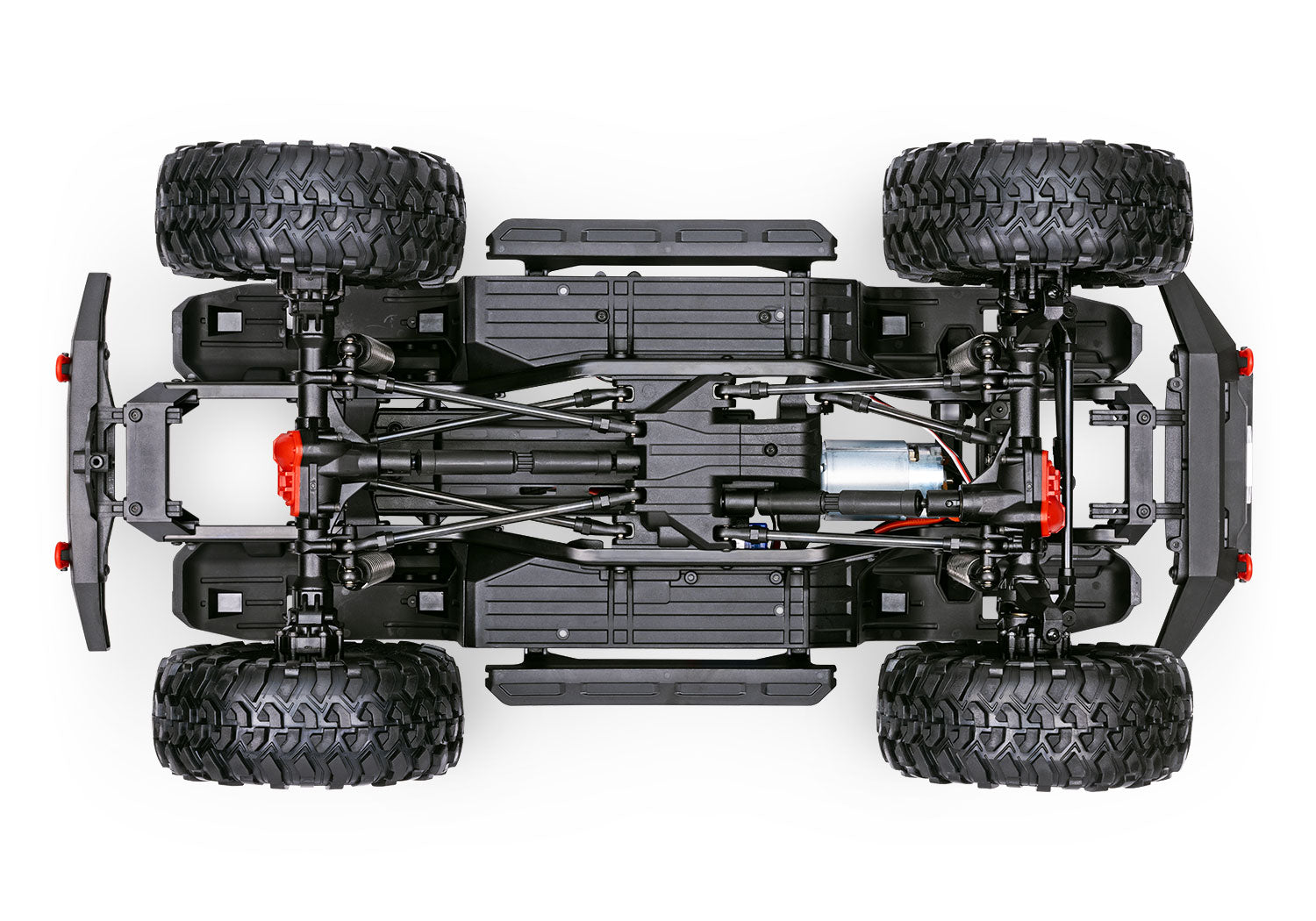

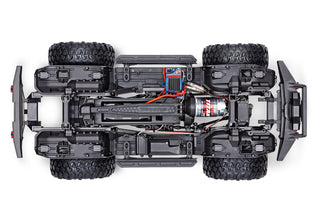

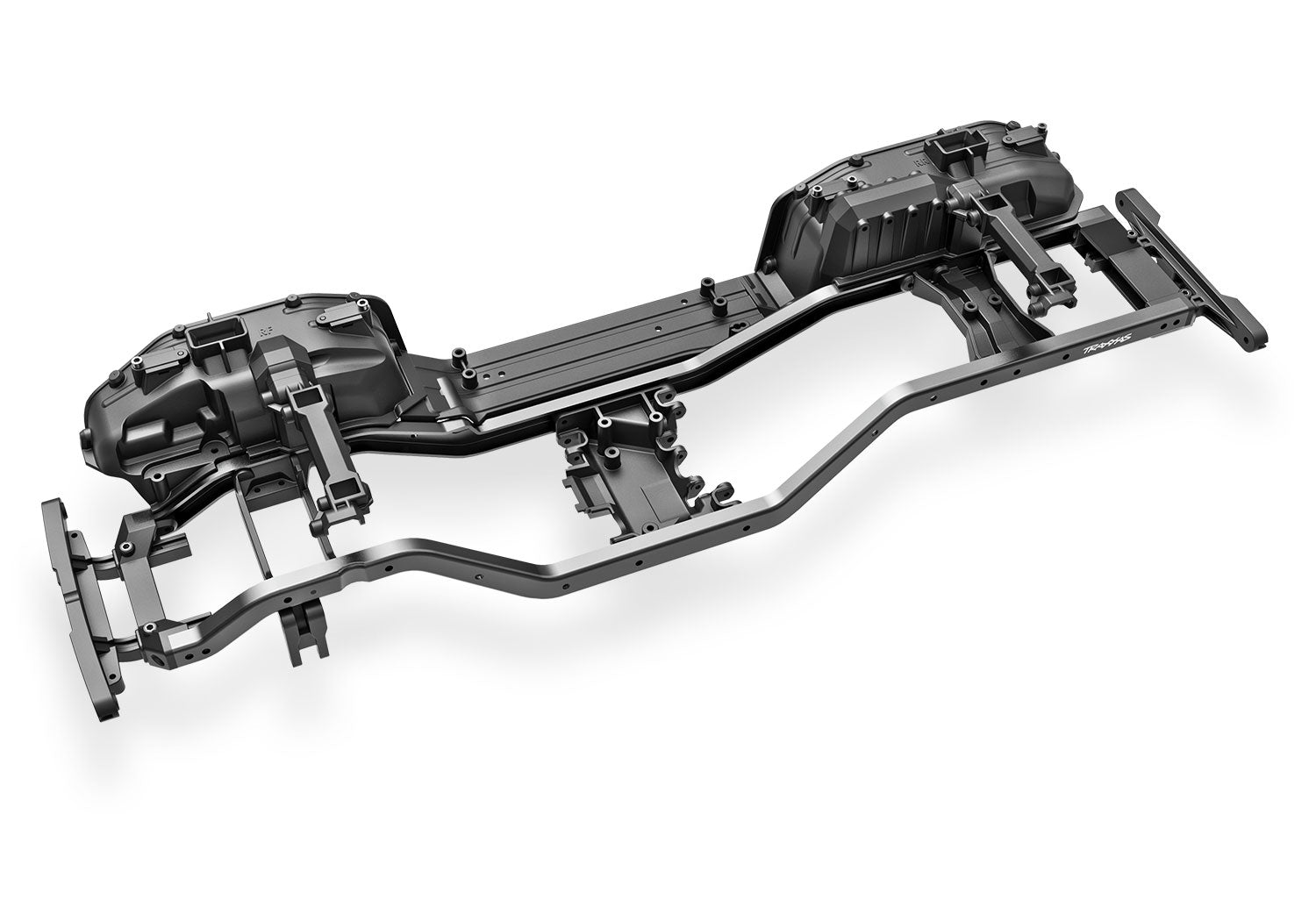

- Reinforced Steel Ladder Frame
- Full-length 1.5 mm thick steel frame rails
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
- Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)

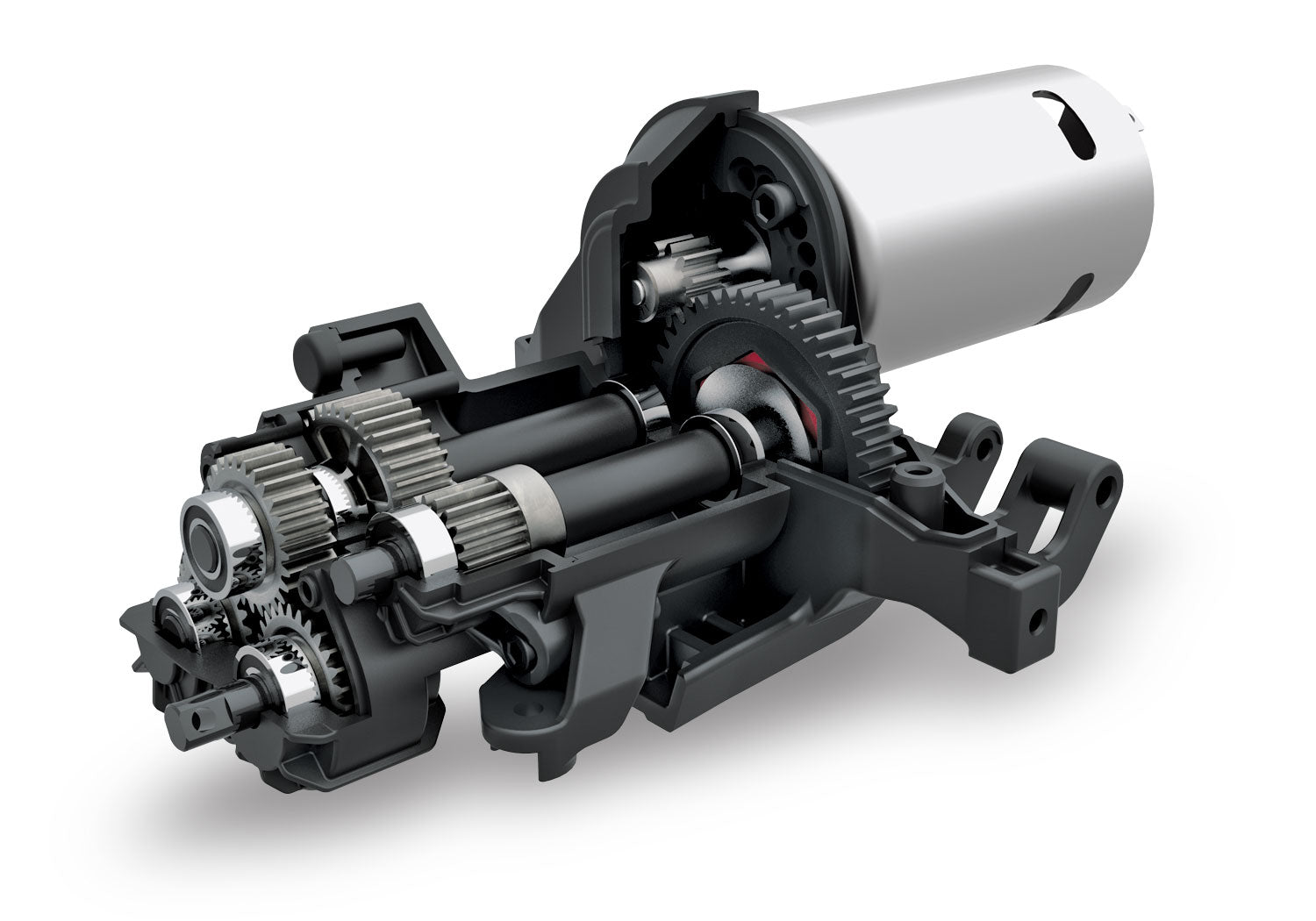

- Transmission
- Single-speed with steel gears
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Steering

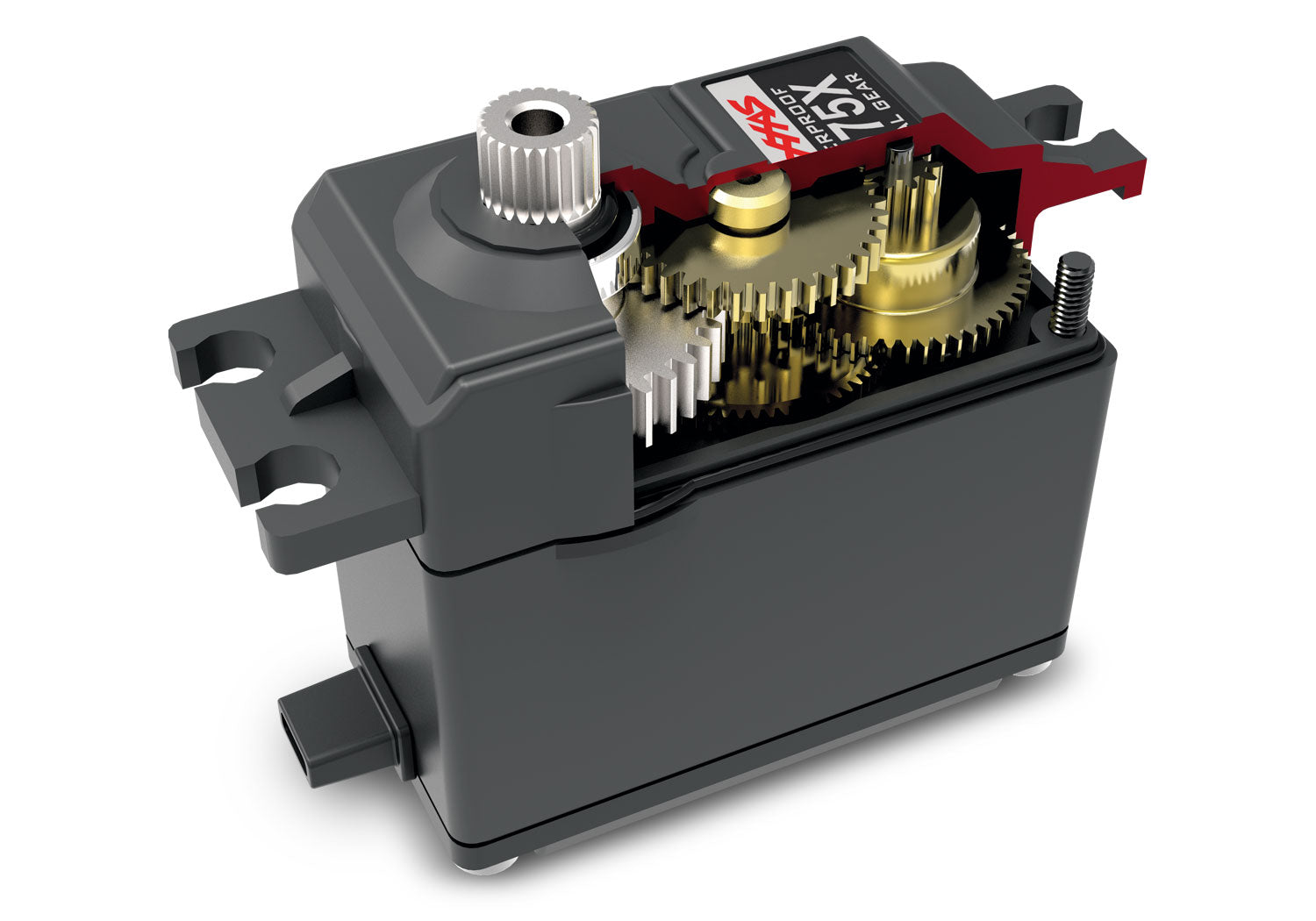

- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
- Suspension
- Front — 3 link with panhard
- Rear — Triangulated 4 link
- Heavy-duty rod ends with steel hollow balls

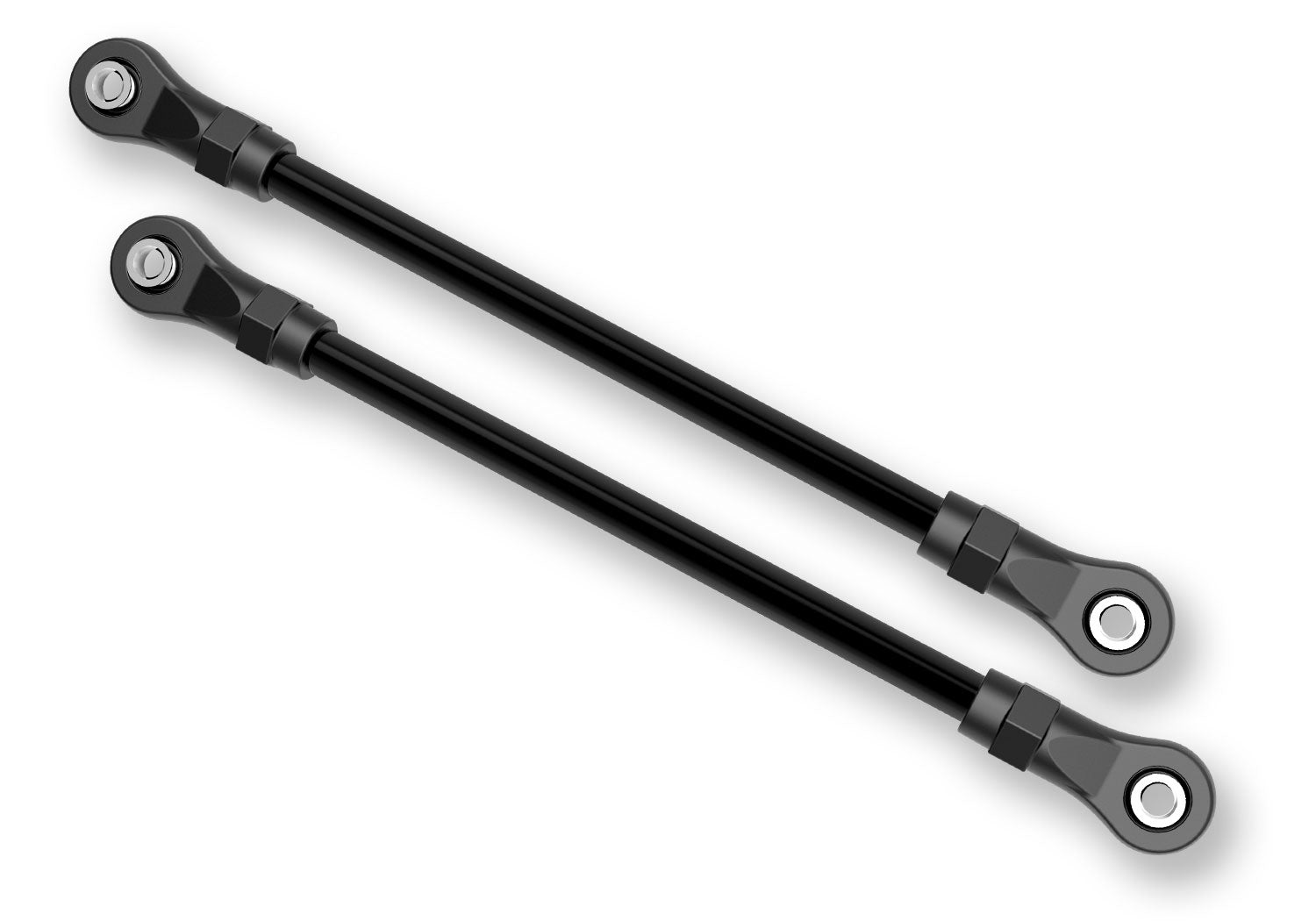

- 5 mm diameter steel link rods with 4 mm threaded ends
- Extended Aluminum GTS Shocks
- Oil-filled coilover GTS shocks
- Extra-long aluminum bodies for greater articulation
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals

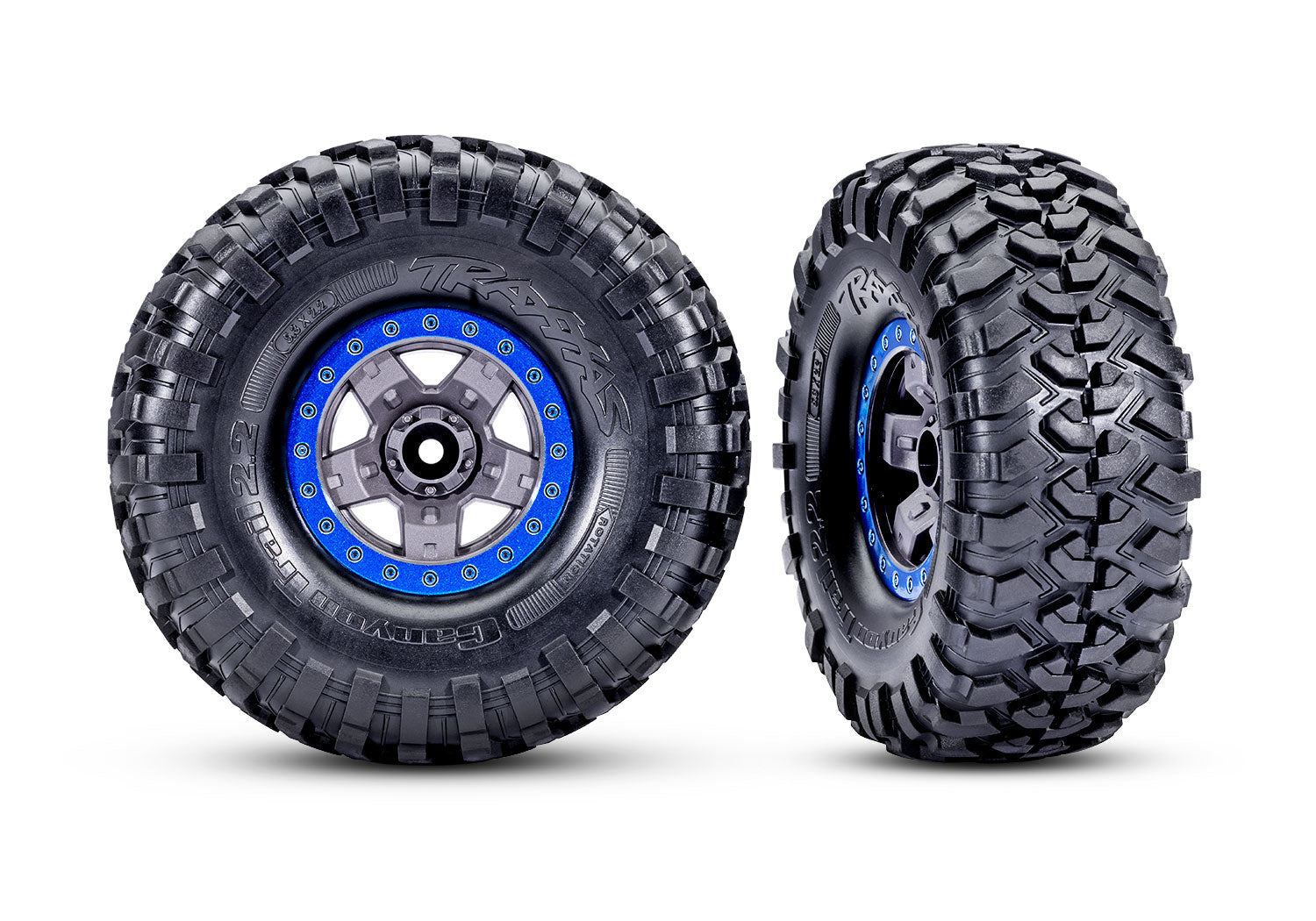

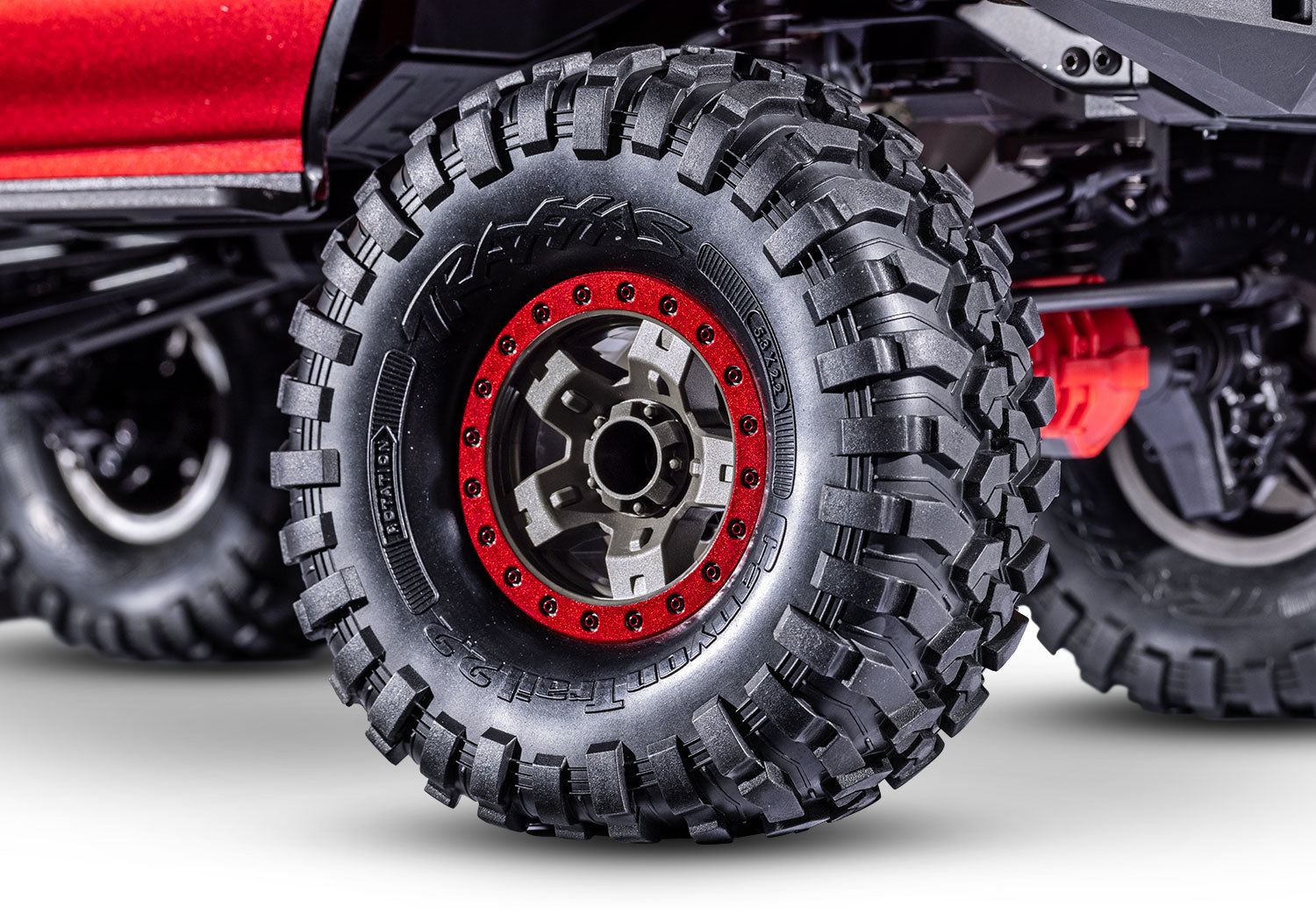

- Oversize Wheels and Tires
- 2.2” 5-spoke wheels with replica beadlock rings
- Pre-mounted 2.2” Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12 mm steel hex

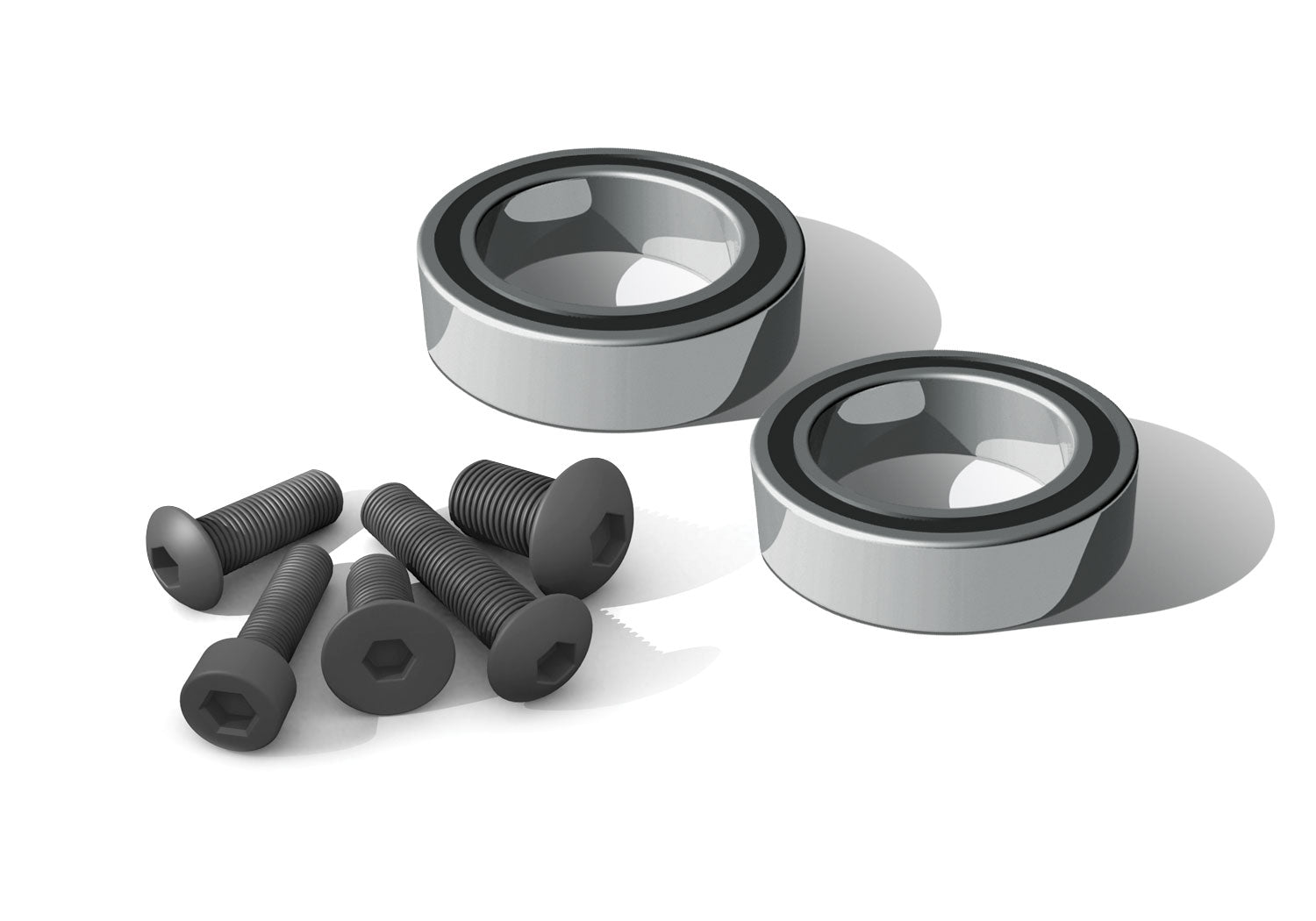

- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
- Requires Battery and Charger (Sold Separately)

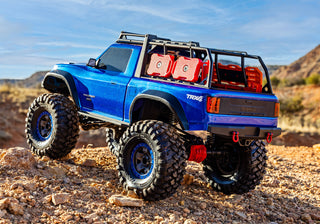

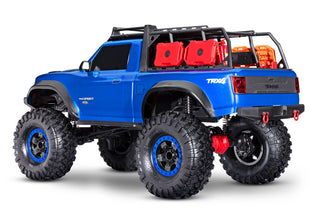

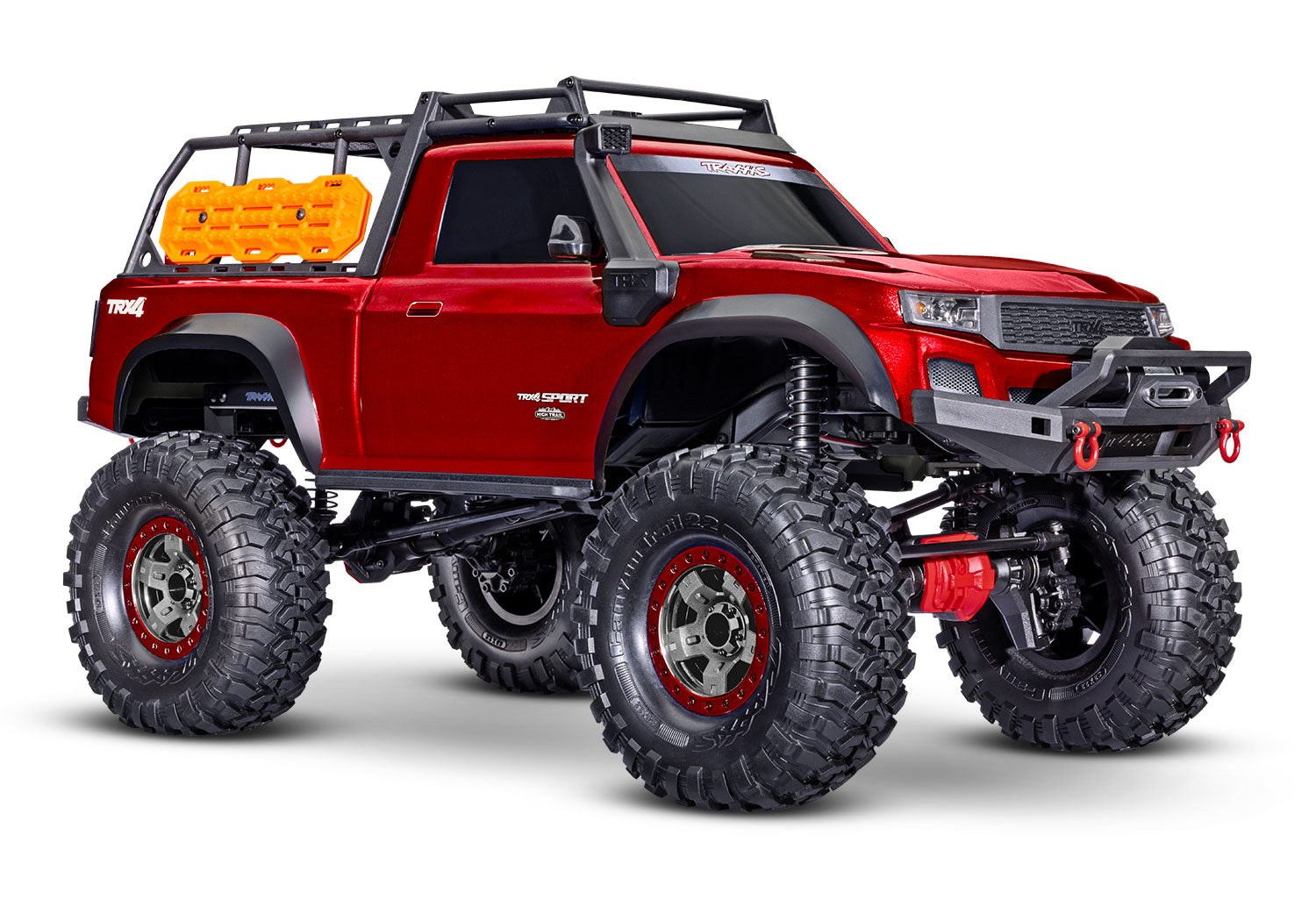

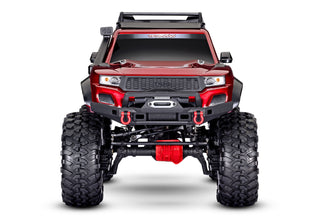

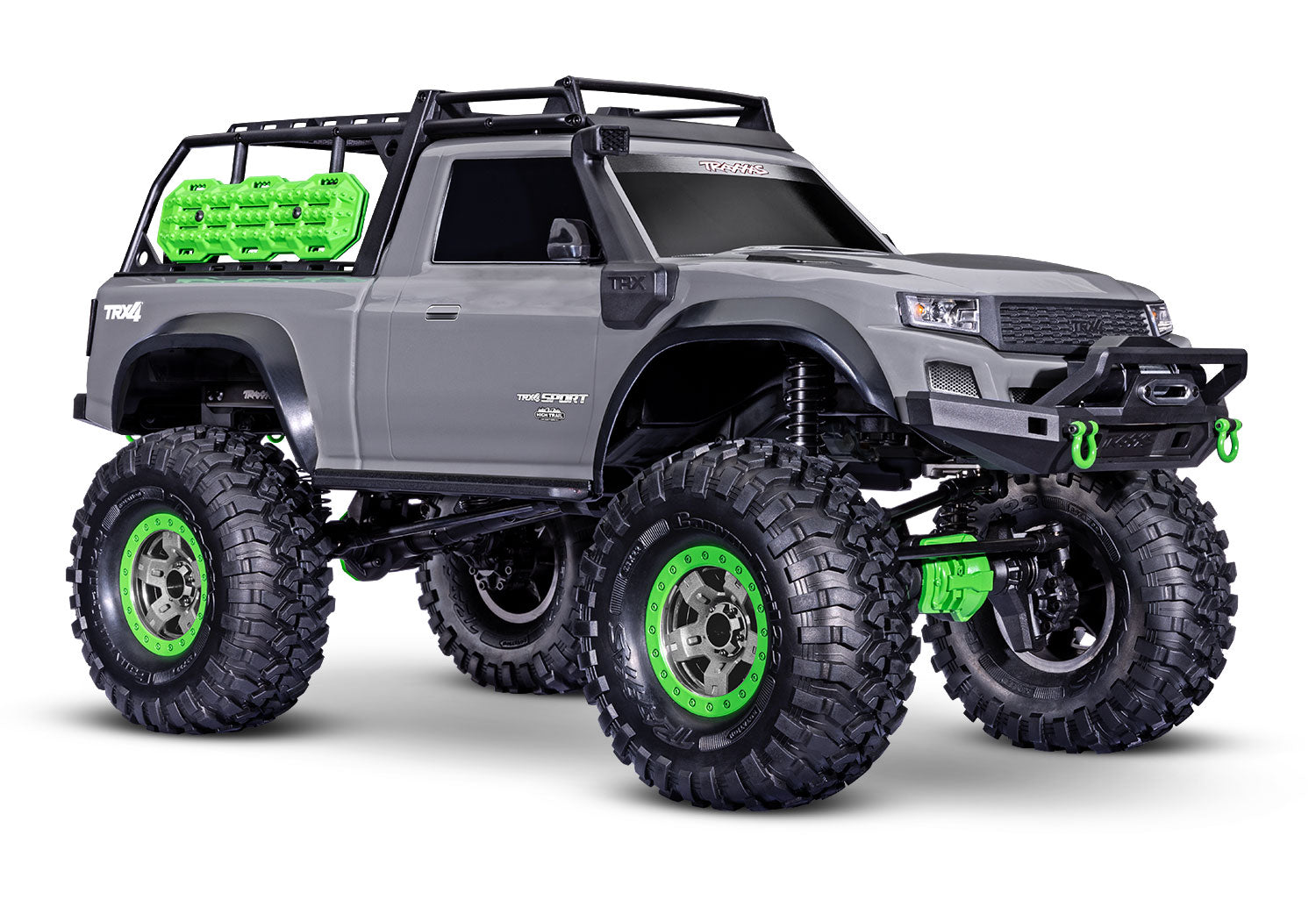

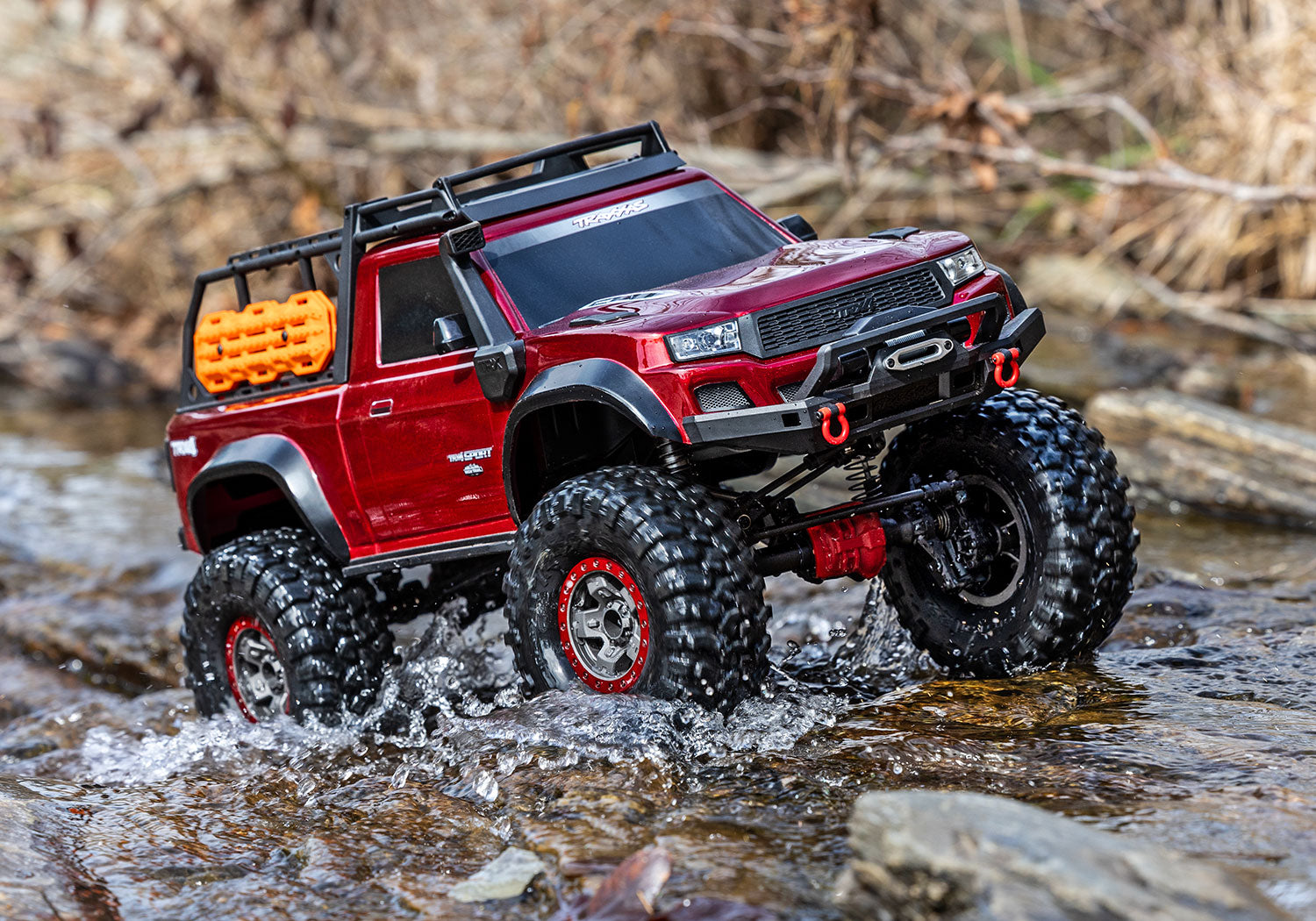

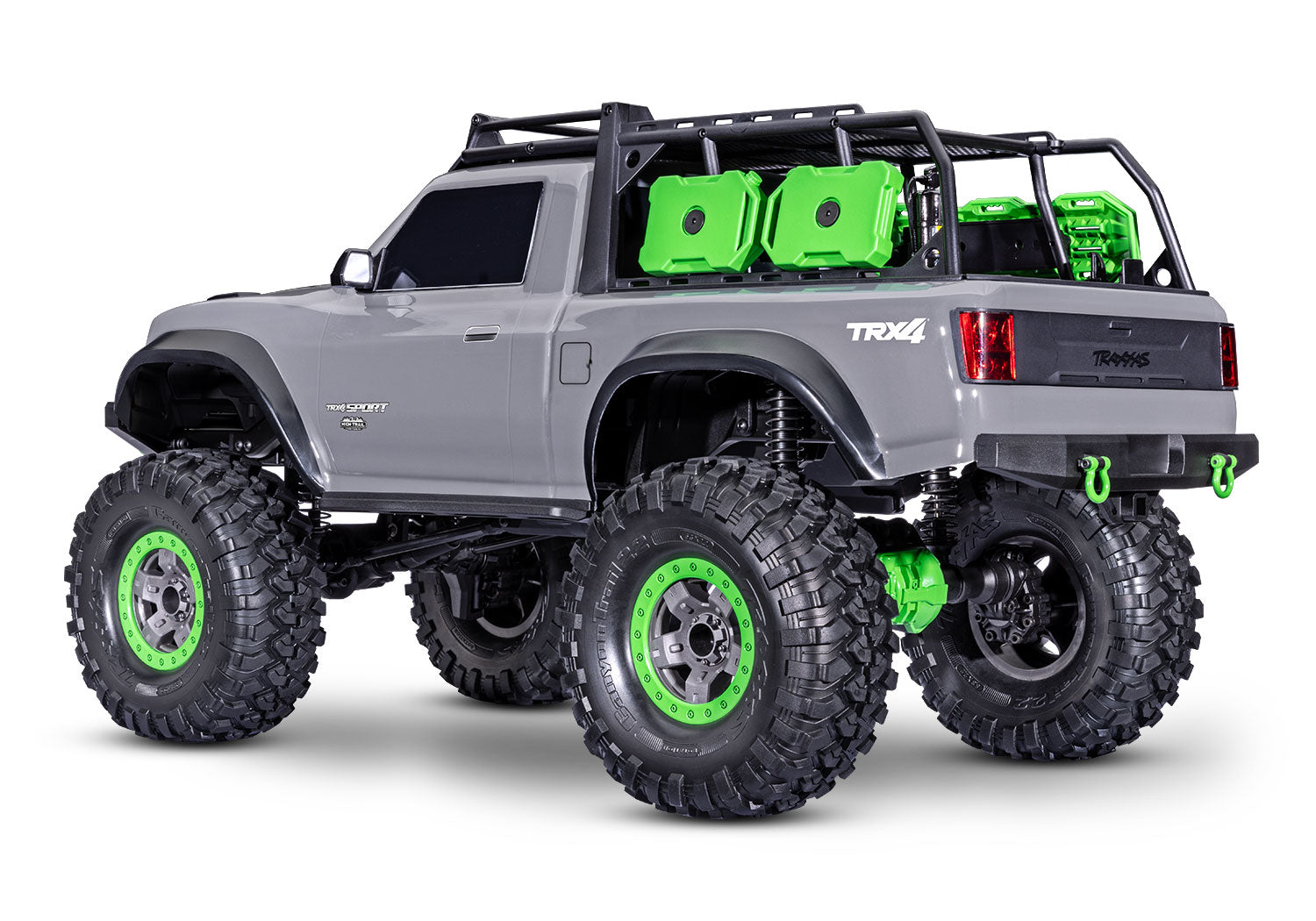

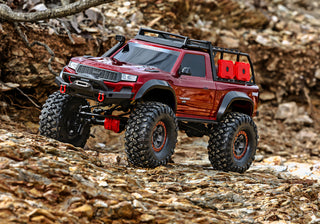

MODEL 82044-4: TRX-4® Sport High Trail® Edition with Long Arm Lift Kit: 1/10 scale 4X4 trail truck, fully-assembled, waterproof electronics, Ready-To-Explore®, with TQ™ 2.4 GHz 2-channel radio system, XL-5™ HV speed control, and Titan® 550 motor.What’s In The Box:- TRX-4 trail truck
- XL-5 HV waterproof electronic speed control
- Titan 21T reverse rotation motor
- TQ 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:- Batteries
TRX-4 accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) batteries.
- Charger
The Traxxas EZ-Peak® charger 2970 is recommended for easy and fast charging performance.
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
Description
MODEL SPECS
| Name: | TRX-4 Sport High Trail Edition |
|---|---|
| Type: | Trail / Crawler |
| Skill Level: | 1 |
| Chassis: | Steel ladder frame |
| Scale: | 1/10 |
| Weight: | 7.04 lb (3.20 kg) |

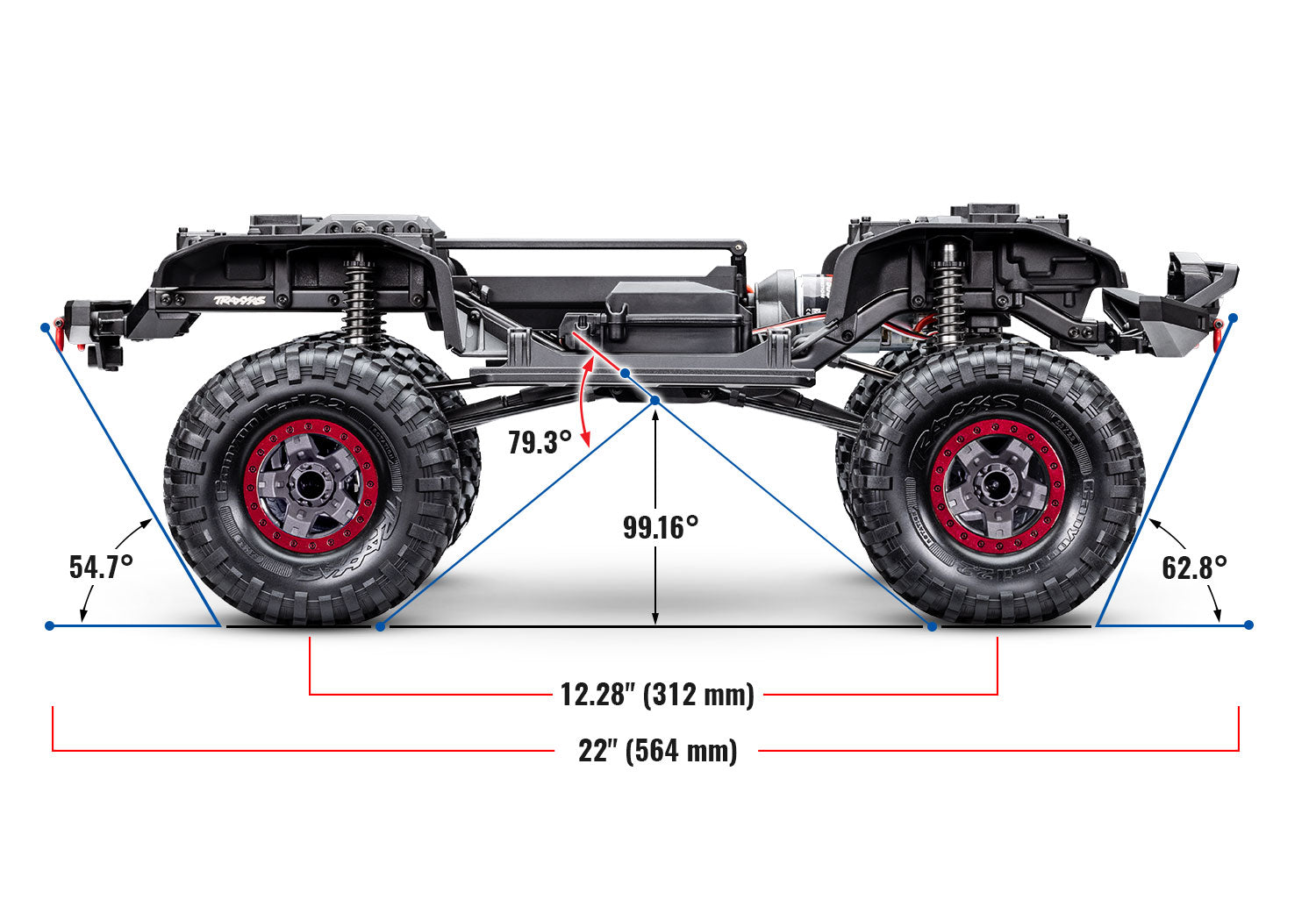

| Length: | 22 inches (564 mm) |
| Width: | 10.63 inches (270 mm) |
| Front Track: | 10.63 inches (270 mm) |
| Rear Track: | 10.63 inches (270 mm) |
| Height: | 10.8 inches (275 mm) |
MOTOR SPECS
| Name: | Titan® 550 21T reverse rotation |
|---|---|
| Motor Type: | High-torque brushed motor |
| Weight: | 390 g (13.76 oz) |
| Length: | 3.071″ (78 mm) overall length, 2.25″ (57 mm) can length |
| Diameter: | 1.532″ (39 mm diameter) |
| Shaft Size: | 3 mm |
| Connector Type: | Bullet |
ESC SPECS
| Name: | XL-5™ HV |
|---|---|
| ESC Type: | Brushed |
| Case Size: | 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm) |
| Weight: | 2.6 ounces (74 g) |
| Motor Connectors: | Bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| Power Wire: | 14 gauge |
- Tough, Lightweight Pickup Truck Body

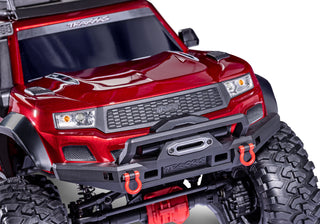

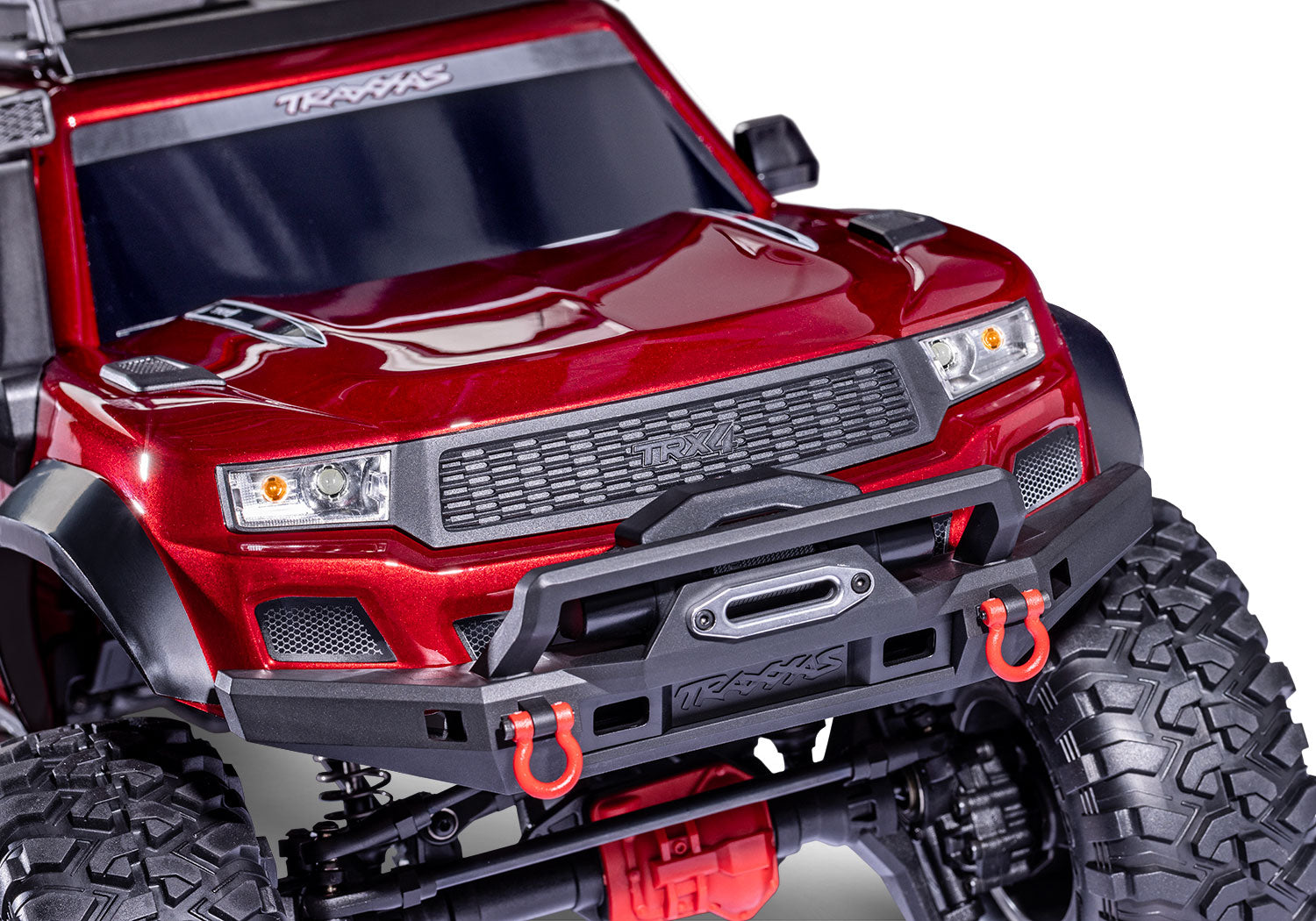

- High-angle bumpers for increased clearance
- Molded grille and tailgate
- LED-ready headlights, tail lights
- Full Nylon composite wheel wells and floor pans
- Scale Accessories
- Rugged Expedition Rack with detailed accessories
- Injection-molded snorkel and side mirrors
- Clipless Body mounting
- Clipless design for smooth body appearance
- Body details mount directly to internal frame
- Trail-tuned XL-5™ HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
- Two stage low voltage protection (LVD)
- Titan® 550 Motor
- Powerful Titan 21T reverse rotation motor with internal cooling fan
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh
- Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
- Driveline
- Full-time shaft driven 4-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Spool-locked front and rear differentials
- Steel gear transfer case

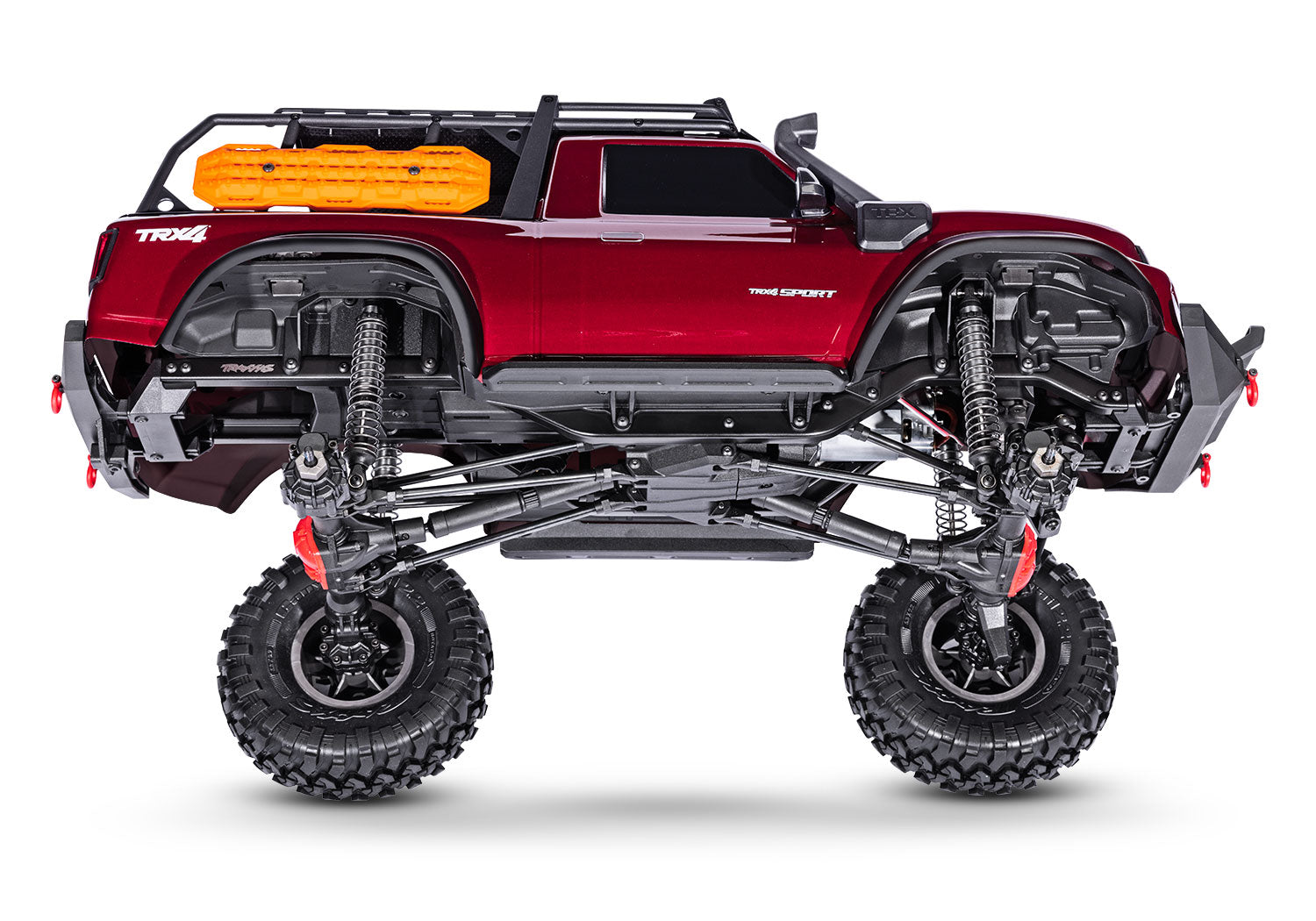

- Factory-Installed Long Arm Lift Kit
- Increases ground clearance over 1″
- Maintains precise steering geometry
- Accommodates oversize 2.2″ wheels and tires
- TQ™ 2.4 GHz 2-Channel
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry
- Reinforced Steel Ladder Frame
- Full-length 1.5 mm thick steel frame rails
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
- Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Transmission
- Single-speed with steel gears
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
- Suspension
- Front — 3 link with panhard
- Rear — Triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter steel link rods with 4 mm threaded ends

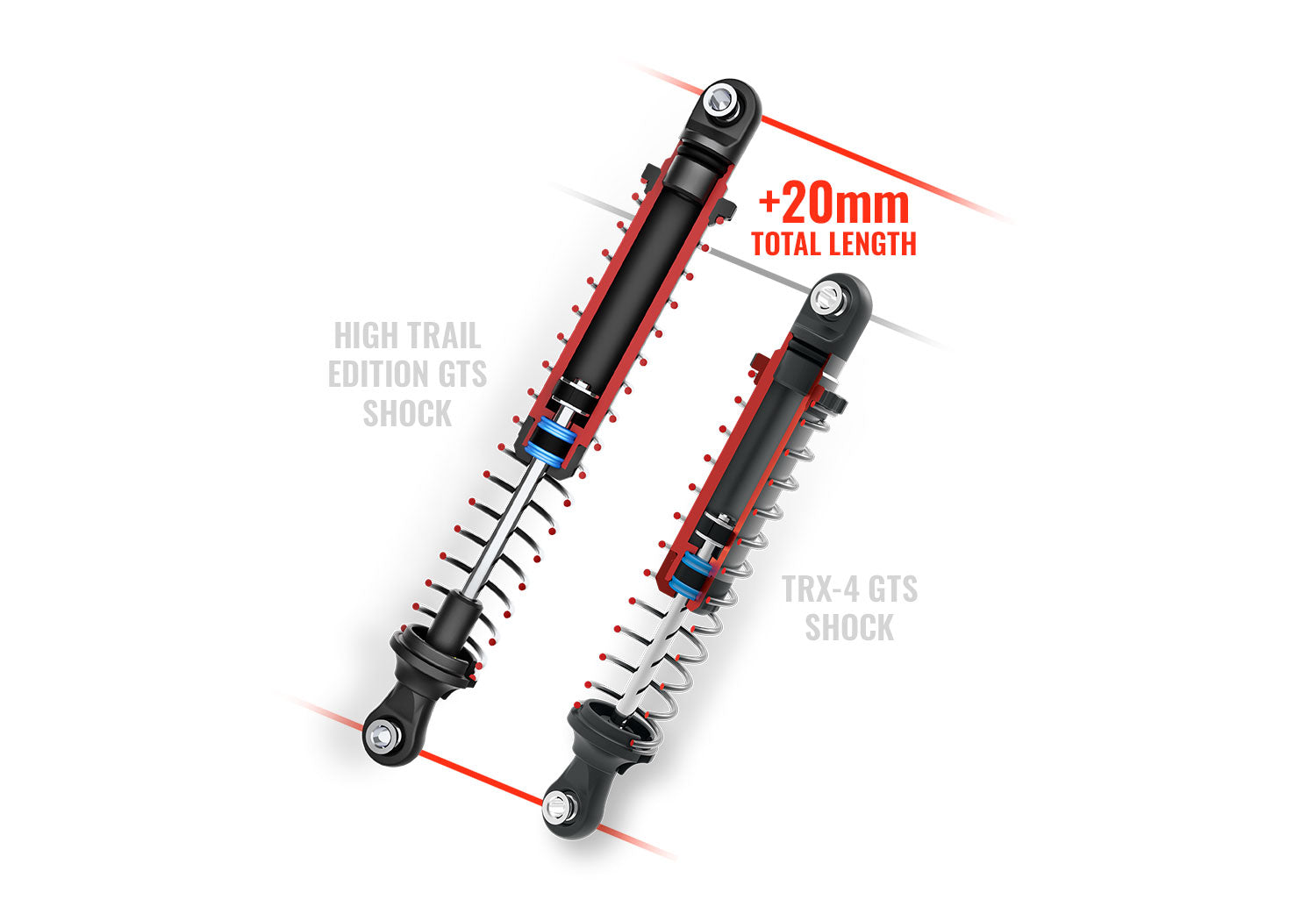

- Extended Aluminum GTS Shocks
- Oil-filled coilover GTS shocks
- Extra-long aluminum bodies for greater articulation
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
- Oversize Wheels and Tires
- 2.2” 5-spoke wheels with replica beadlock rings

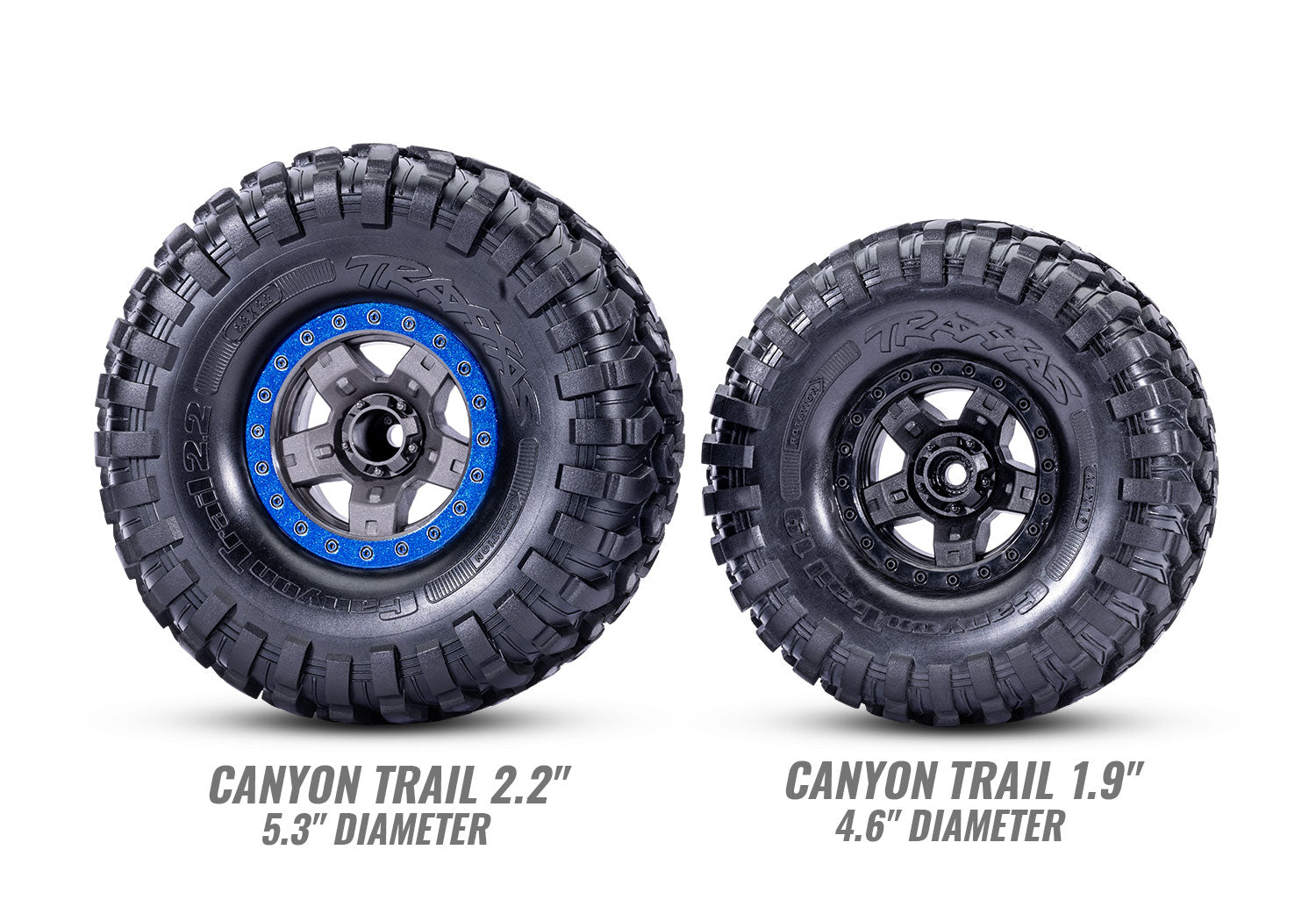

- Pre-mounted 2.2” Canyon Trail tires with trail-tuned foam inserts
