Description
Upgrade your scale crawler with officially licensed Rancho RS9000 XL V2 shocks from RC4WD. Machined aluminum bodies, internal springs, titanium-nitride-coated shafts, and X-ring seals provide detailed scale looks and smooth movement.
- Extended mounting length: 90 mm
- Compressed mounting length: 67.6 mm
- Overall length: 98.8 mm
- Travel: 22.4 mm
- Body diameter: 10 mm; shaft diameter: 3 mm
Includes two 90 mm V2 shocks. Designed to be oil filled for damping. Fits the manufacturer-listed Trail Finder 2 applications; check mounting dimensions for your build. RC4WD recommends medium blue thread lock on the lower shaft rod end.

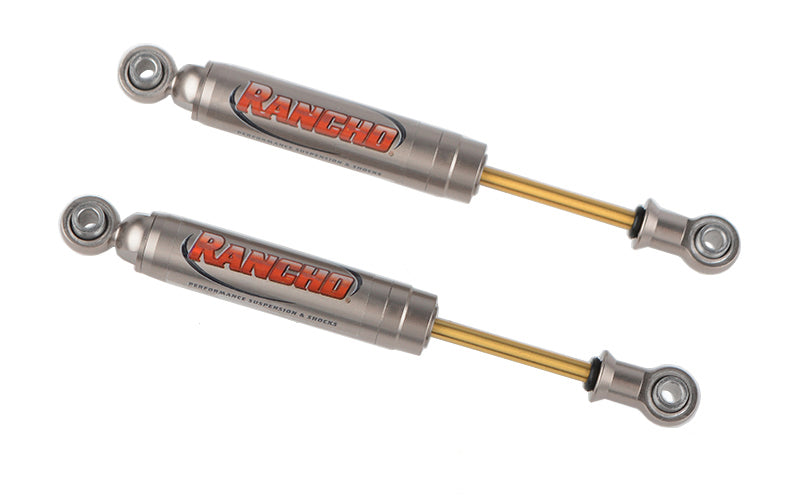

RC4WD Rancho RS9000 XL Shock Absorbers (90mm) (V2)
The latest update to the Licensed Rancho RS9000 XL Shock feature our new X-ring technology that reduces contact friction for smooth shock shaft movement while improving oil retention around the shock shaft. Built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks!
Specifications:- Machined Billet Aluminum
- Internal Spring Design
- X-ring Gaskets
- Titanium Nitride Coated Shock Shafts
- Hole to Hole (Compressed): 2.66in / 67.6mm
- Hole to Hole (Uncompressed): 3.54in / 90mm
- Overall Length: 3.89in / 98.8mm
- Travel Length: 0.88in / 22.4mm
- Shock Body OD: 0.39in / 10mm
- Shaft OD: 0.11in / 3.0mm
- Each Shock Weighs: 0.39oz / 11.2g
Shown installed on RC4WD Trail Finder 2 "LWB" 1/10 Scale Builders Kit (Z-K0065) with RC4WD 1987 Toyota XtraCab Hard Body Complete Set (Z-B0216) (Painted Black) for example (Not Included)
What's Included:- 2x RC4WD Rancho RS9000 XL Shock Absorbers (90mm)(V2)
Optional Parts:- Super Scale Shock Boot (Black) (Z-S0891)
- Super Scale Shock Boot (Red) (Z-S0948)
- Super Scale Shock Boot (Yellow) (Z-S0962)
- Super Scale Shock Boot (Blue) (Z-S0961)
Other Sizes:- RC4WD Rancho RS9000 XL Shock Absorbers (80mm) (V2) (Z-D0013)
- RC4WD Rancho RS9000 XL Shock Absorbers (100mm) (V2) (Z-D0017)
Notes:- Fits RC4WD Trail Finder 2 "LWB" 1/10 Scale Builders Kit (Z-K0065)
- Fits RC4WD Trail Finder 2 Truck 1/10 Scale Builders Kit (Z-K0069)
- Fits RC4WD Trail Finder 2 Truck Kit w/1982 Toyota Pickup Hard Body Complete Set (Z-K0070)
- Fits RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler Body Set (Z-RTR0034)
- Fits RC4WD Trail Finder 2 RTR w/1985 Toyota 4Runner Hard Body Set (Red) (Z-RTR0063)
- Fits RC4WD Trail Finder 2 "LWB" RTR w/ 1987 Toyota XtraCab Hard Body Set (White) (Z-RTR0064)
- Fits RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Black) (Z-RTR0067)
- Fits RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Midnight Edition) (Z-RTR0068)
- Fits RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Blue) (Z-RTR0069)
- Fits RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Red) (Z-RTR0070)
- Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.
- The new X-ring shocks are designed to be oil filled for smooth damping.
Rancho® is a registered trademark of the Rancho® company. The Rancho® logo is property of Rancho® and used under license by RC4W
