Description
MODEL SPECS
Name: Revo 3.3 Type: Monster Truck Speed: 45+ mph Skill Level: 4 Scale: 1/10 Weight: 10.3 pounds (4.69 kg) Length: 20.65 inches (525 mm) Width: 17.6 inches (447 mm) Front Track: 17.5 inches (445 mm) Rear Track: 17.6 inches (447 mm) Height: 11.02 inches (280 mm) MOTOR SPECS
Engine Name: TRX® 3.3 Racing Fuel Type: Nitromethane Displacement: 3.3 cc Starter: Electric EZ-Start® Carburetor: Two-needle slide carburetor Air Filter: Dual-stage foam - ProGraphix® Painted Body
- Pre-painted body with applied decals
- Tough front and rear tube bumpers
- Adjustable wheelie bar
- TRX® 3.3 Nitro Racing Engine
- Large bore piston and sleeve deliver extreme power
- Oversized dual-stage air filter
- Polished aluminum dual-chamber tuned exhaust pipe
- Slide carburetor
- Knife-edged connecting rod
- Large aluminum blue-anodized cooling head
- Super-light piston and rod
- High-performance ball bearings
- EZ-Start® Electric Starting System
- Lights the glow plug and cranks the engine with the push of a button
- Status LEDs
- Includes starter battery and charger
- Traxxas Stability Management® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the vehicle
- Adjusts from off to 100% assistance from the transmitter

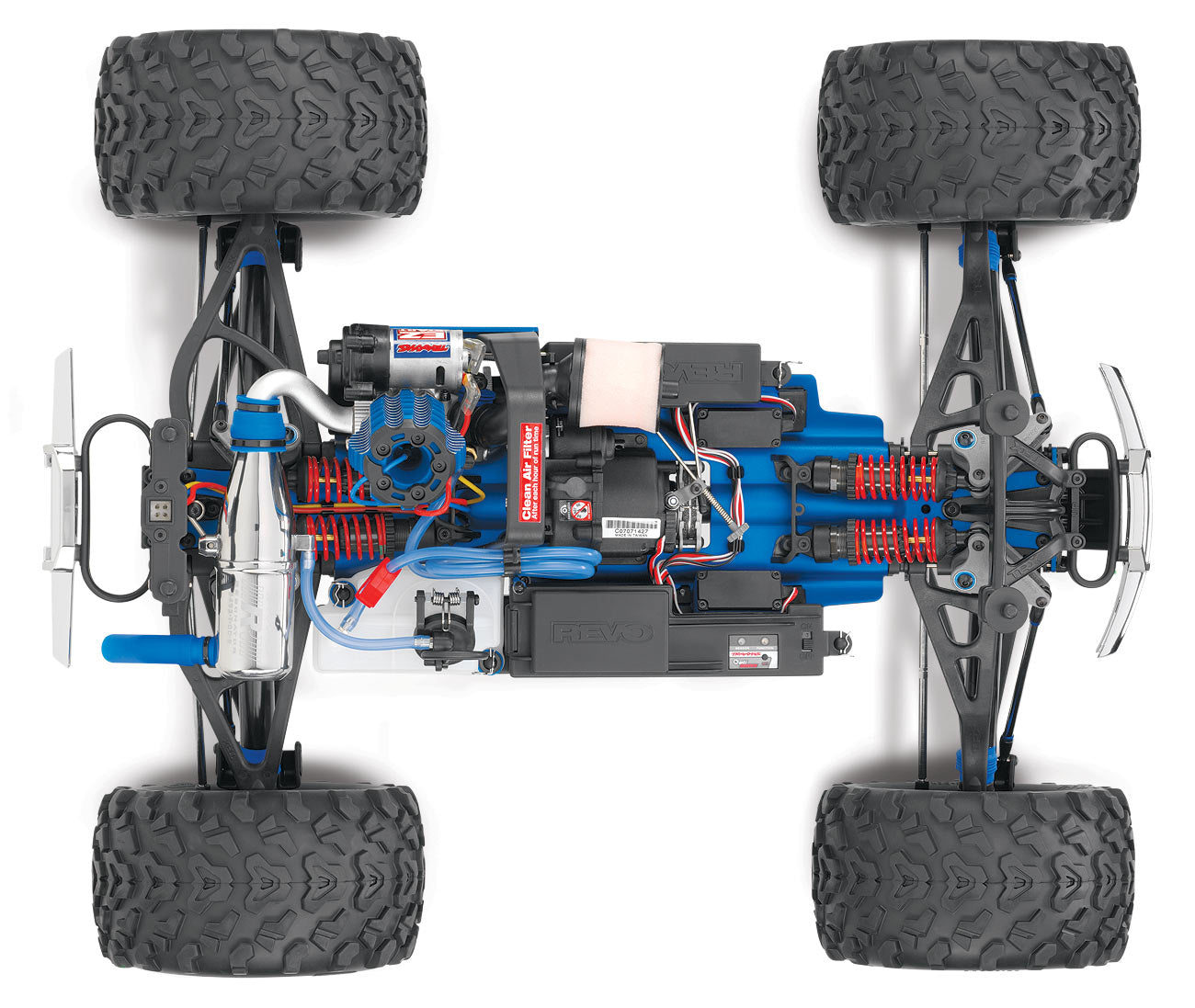

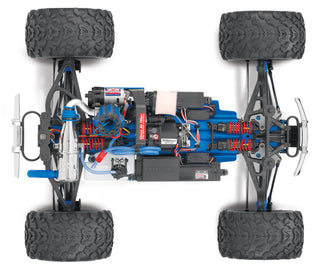

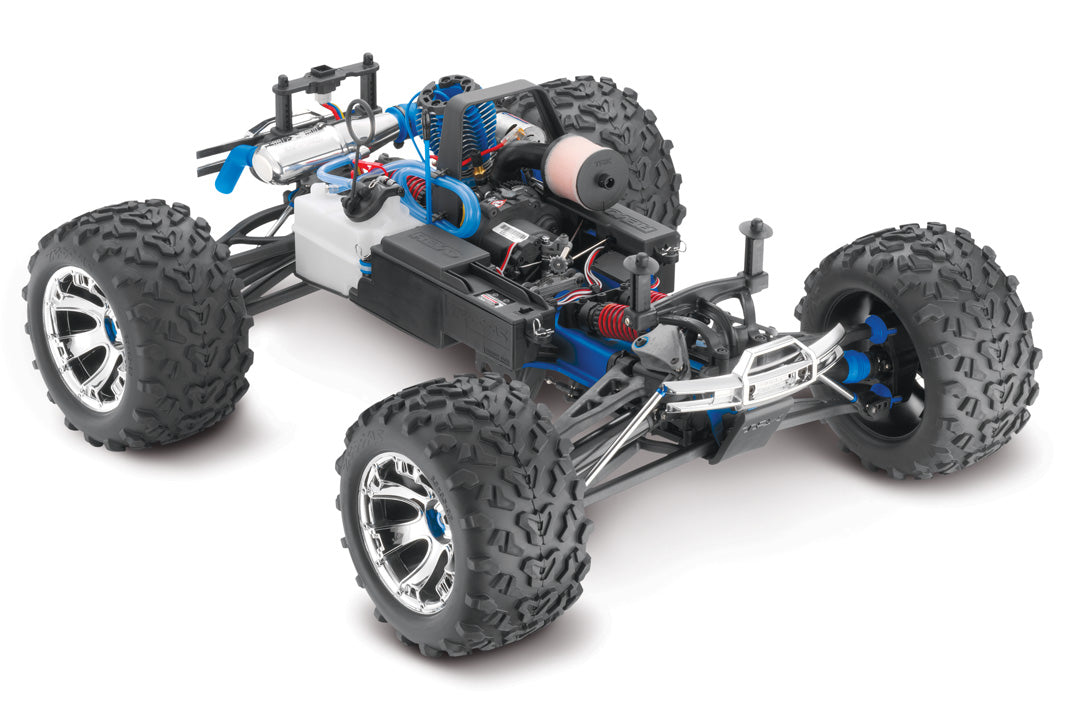

- Blue-Anodized Aluminum Chassis
- Blue-anodized 3 mm aluminum 3D semi-monocoque chassis
- Tall 4.25" center ground clearance
- Rugged front and rear skid plates
- Large 150 cc fuel tank extends run time
- TQi™ 2.4 GHz High Output Radio System
- Includes Traxxas Link™ Wireless Module
- Factory installed speed, RPM, and temperature telemetry sensors
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Multi-Function knob
- 5-channel TSM micro receiver (6533) with fail-safe security and integrated telemetry ports
- Includes 1200 mAh NiMH receiver pack battery
- Enclosed radio box protects sensitive electronics from dirt and fuel spills
- Transmission
- Ultra-compact, fewer moving parts
- Low rotating mass for quick, high-revving acceleration
- Constant drive engagement is smooth and instantly responsive
- Sealed case protects the gears and two-speed from debris
- Rubber seals for smooth, trouble-free performance
- Driveline
- Shaft-driven four wheel drive
- Tunable front and rear sealed, limited-slip gear differentials
- Large diameter semi-metallic brake disc
- Extreme deflection for the most suspension travel
- Finned aluminum alloy pressure plates
- Steering
- Dual digital waterproof high-torque Traxxas 2075 steering servos
- Heavy-duty bellcrank with integrated servo saver
- Suspension
- Progressive pushrod rocker-actuated suspension
- Shocks are rigidly mounted to the chassis to minimize crash damage
- Sealed pivot ball suspension arms
- Captured rod ends won't pop off
- Springs and Shocks
- Precise GTR™ shocks provide smooth, consistent damping performance
- Threaded shock bodies for precise ride height adjustment
- Hard-anodized PTFE-coated shock bodies with TiN coated shock shafts
- Red powder-coated springs
- Wheels and Tires
- Pre-glued 6.3" tall Maxx® tires with performance foam inserts
- 3.8" Mirror-chrome Geode™ wheels
- 17 mm splined hex
- Precision metric hex hardware throughout

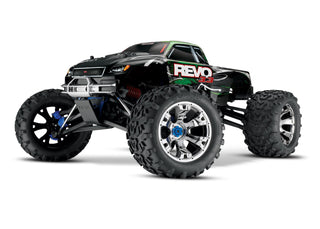

MODEL 53097-3: Revo® 3.3: 1/10 scale 4WD nitro monster truck, fully assembled, Ready-To-Race®, with TQi™ 2.4 GHz radio system with Traxxas Stability Management®, Traxxas Link Wireless Module, TRX® 3.3 Racing Engine, and painted body.What’s In The Box:- Revo 3.3 with TRX 3.3 engine
- Quick Start Guide
- TQi 2.4 GHz radio system with installed wireless module
- Starter box with battery and charger
- 5-cell 1200 mAh receiver pack battery
- Fuel bottle, spare filter & glow plug, and maintenance tools
What You’ll Need:- Nitro Fuel
Traxxas Top Fuel, 20% or 33%
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
Description
MODEL SPECS
| Name: | Revo 3.3 |
|---|---|
| Type: | Monster Truck |
| Speed: | 45+ mph |
| Skill Level: | 4 |
| Scale: | 1/10 |
| Weight: | 10.3 pounds (4.69 kg) |
| Length: | 20.65 inches (525 mm) |
| Width: | 17.6 inches (447 mm) |
| Front Track: | 17.5 inches (445 mm) |
| Rear Track: | 17.6 inches (447 mm) |
| Height: | 11.02 inches (280 mm) |
MOTOR SPECS
| Engine Name: | TRX® 3.3 Racing |
|---|---|
| Fuel Type: | Nitromethane |
| Displacement: | 3.3 cc |
| Starter: | Electric EZ-Start® |
| Carburetor: | Two-needle slide carburetor |
| Air Filter: | Dual-stage foam |
- ProGraphix® Painted Body
- Pre-painted body with applied decals
- Tough front and rear tube bumpers
- Adjustable wheelie bar
- TRX® 3.3 Nitro Racing Engine
- Large bore piston and sleeve deliver extreme power
- Oversized dual-stage air filter
- Polished aluminum dual-chamber tuned exhaust pipe
- Slide carburetor
- Knife-edged connecting rod
- Large aluminum blue-anodized cooling head
- Super-light piston and rod
- High-performance ball bearings
- EZ-Start® Electric Starting System
- Lights the glow plug and cranks the engine with the push of a button
- Status LEDs
- Includes starter battery and charger
- Traxxas Stability Management® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the vehicle
- Adjusts from off to 100% assistance from the transmitter
- Blue-Anodized Aluminum Chassis
- Blue-anodized 3 mm aluminum 3D semi-monocoque chassis
- Tall 4.25" center ground clearance
- Rugged front and rear skid plates
- Large 150 cc fuel tank extends run time
- TQi™ 2.4 GHz High Output Radio System
- Includes Traxxas Link™ Wireless Module
- Factory installed speed, RPM, and temperature telemetry sensors
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Multi-Function knob
- 5-channel TSM micro receiver (6533) with fail-safe security and integrated telemetry ports
- Includes 1200 mAh NiMH receiver pack battery
- Enclosed radio box protects sensitive electronics from dirt and fuel spills
- Transmission
- Ultra-compact, fewer moving parts
- Low rotating mass for quick, high-revving acceleration
- Constant drive engagement is smooth and instantly responsive
- Sealed case protects the gears and two-speed from debris
- Rubber seals for smooth, trouble-free performance
- Driveline
- Shaft-driven four wheel drive
- Tunable front and rear sealed, limited-slip gear differentials
- Large diameter semi-metallic brake disc
- Extreme deflection for the most suspension travel
- Finned aluminum alloy pressure plates
- Steering
- Dual digital waterproof high-torque Traxxas 2075 steering servos
- Heavy-duty bellcrank with integrated servo saver
- Suspension
- Progressive pushrod rocker-actuated suspension
- Shocks are rigidly mounted to the chassis to minimize crash damage
- Sealed pivot ball suspension arms
- Captured rod ends won't pop off
- Springs and Shocks
- Precise GTR™ shocks provide smooth, consistent damping performance
- Threaded shock bodies for precise ride height adjustment
- Hard-anodized PTFE-coated shock bodies with TiN coated shock shafts
- Red powder-coated springs
- Wheels and Tires
- Pre-glued 6.3" tall Maxx® tires with performance foam inserts
- 3.8" Mirror-chrome Geode™ wheels
- 17 mm splined hex
- Precision metric hex hardware throughout
MODEL 53097-3: Revo® 3.3: 1/10 scale 4WD nitro monster truck, fully assembled, Ready-To-Race®, with TQi™ 2.4 GHz radio system with Traxxas Stability Management®, Traxxas Link Wireless Module, TRX® 3.3 Racing Engine, and painted body.
What’s In The Box:
- Revo 3.3 with TRX 3.3 engine
- Quick Start Guide
- TQi 2.4 GHz radio system with installed wireless module
- Starter box with battery and charger
- 5-cell 1200 mAh receiver pack battery
- Fuel bottle, spare filter & glow plug, and maintenance tools
What You’ll Need:
- Nitro Fuel
Traxxas Top Fuel, 20% or 33%
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
