Description
MODEL SPECS
Name: Rustler 4X4 VXL Type: Stadium Trucks Speed: 65+ mph with 3-cell LiPo and 20/54 gearing Skill Level: 2 Scale: 1/10 Weight: 5.12 pounds (2.32 kg) Length: 18.78 inches (477 mm) Width: 12.94 inches (329 mm) Front Track: 12.94 inches (329 mm) Rear Track: 12.94 inches (329 mm) Height: 6.35 inches (161 mm) MOTOR SPECS
Name: Velineon® 3500 Motor Type: Sensorless brushless Weight: 9.24 ounces (262 g) Length: 3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length Diameter: 1.41 inches (36 mm) Shaft Size: 3 mm Connector Type: 3.5 mm bullet ESC SPECS
Name: VXL-3s™ electronic speed control ESC Type: Brushless Case Size: 1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm) Weight: 3.17 ounces (90 g) Motor Connectors: 3.5 mm bullet Battery Connectors: Traxxas High-Current Connector Power Wire: 12 gauge Maxx® Cable - Clipless ProGraphix® Body

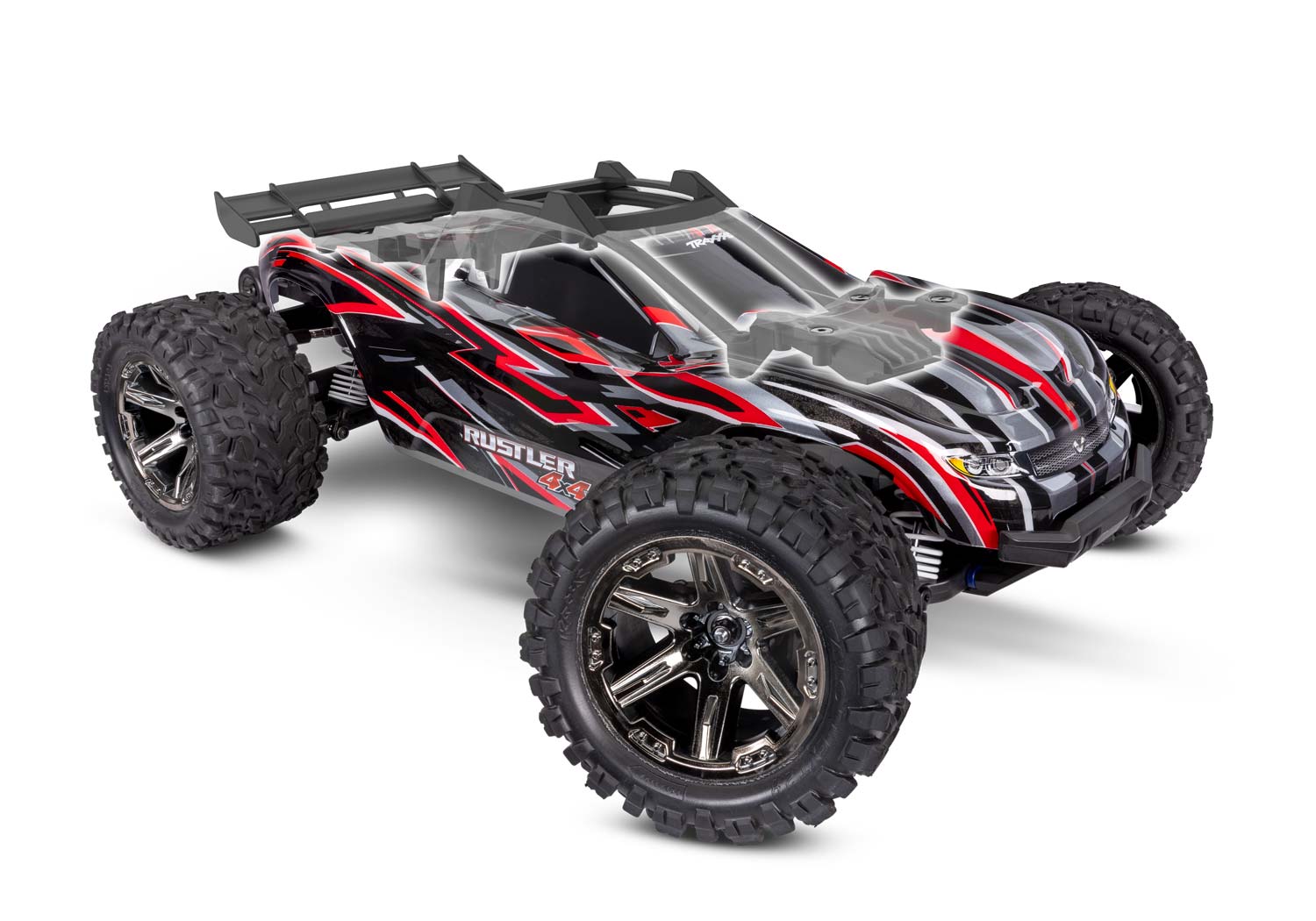

- Easy one-handed removal
- Reinforced inner cage

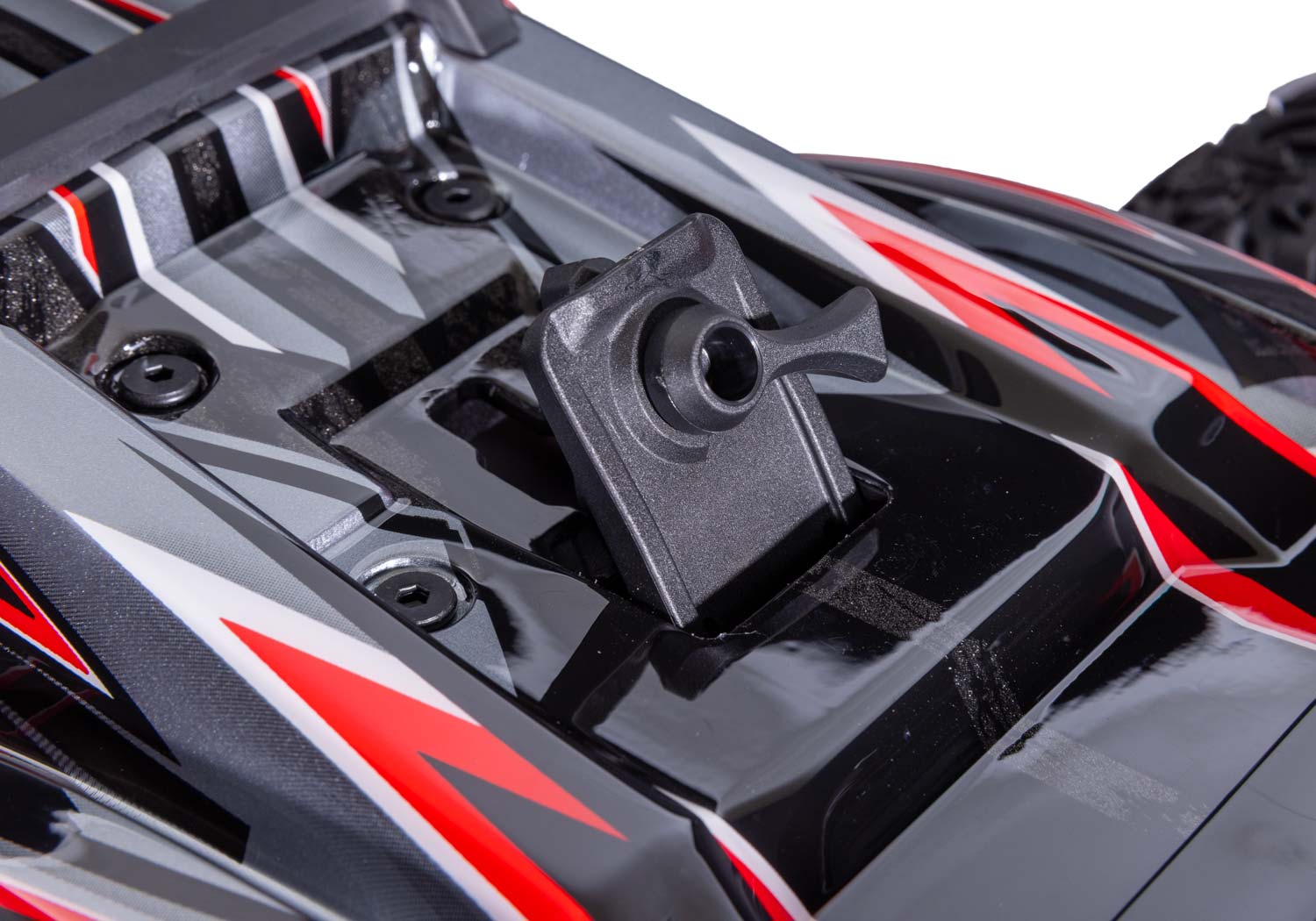

- Strong oversized latch
- Rugged roof rollover protector

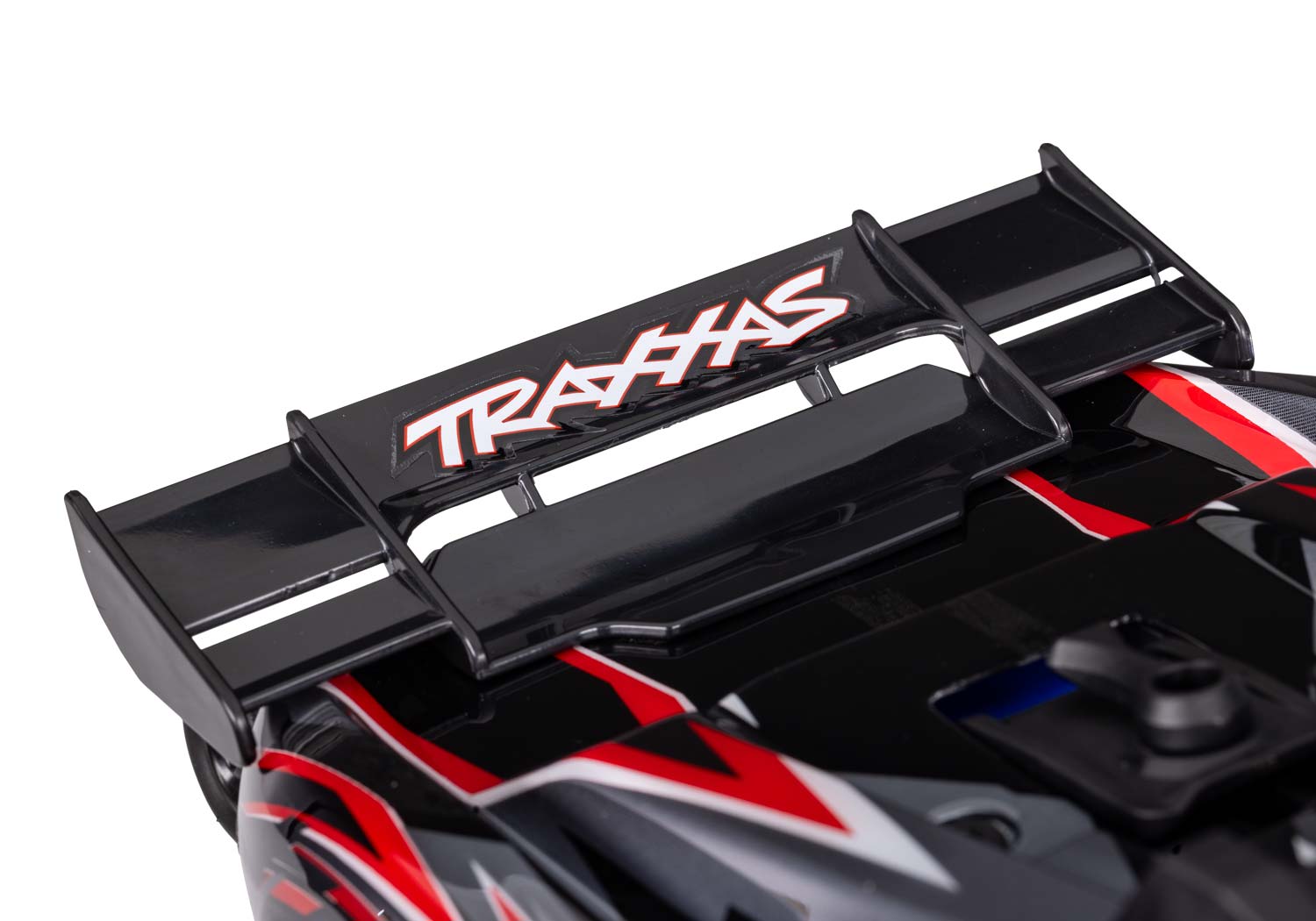

- Molded composite plastic wing
- Extreme Heavy Duty Upgrade Kit Installed

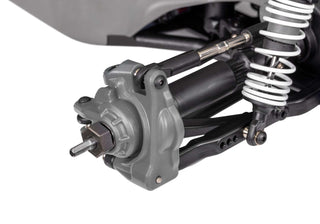

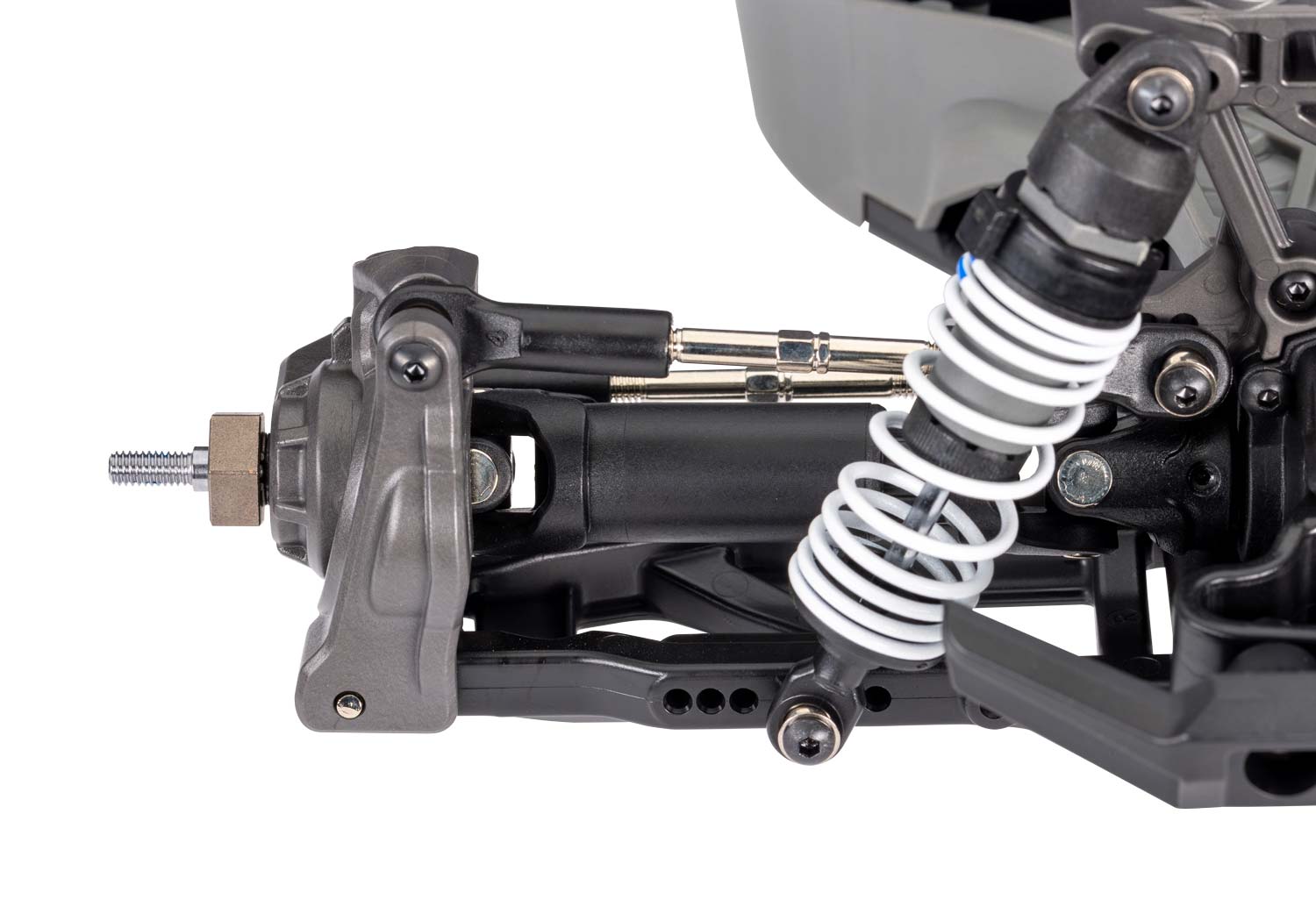

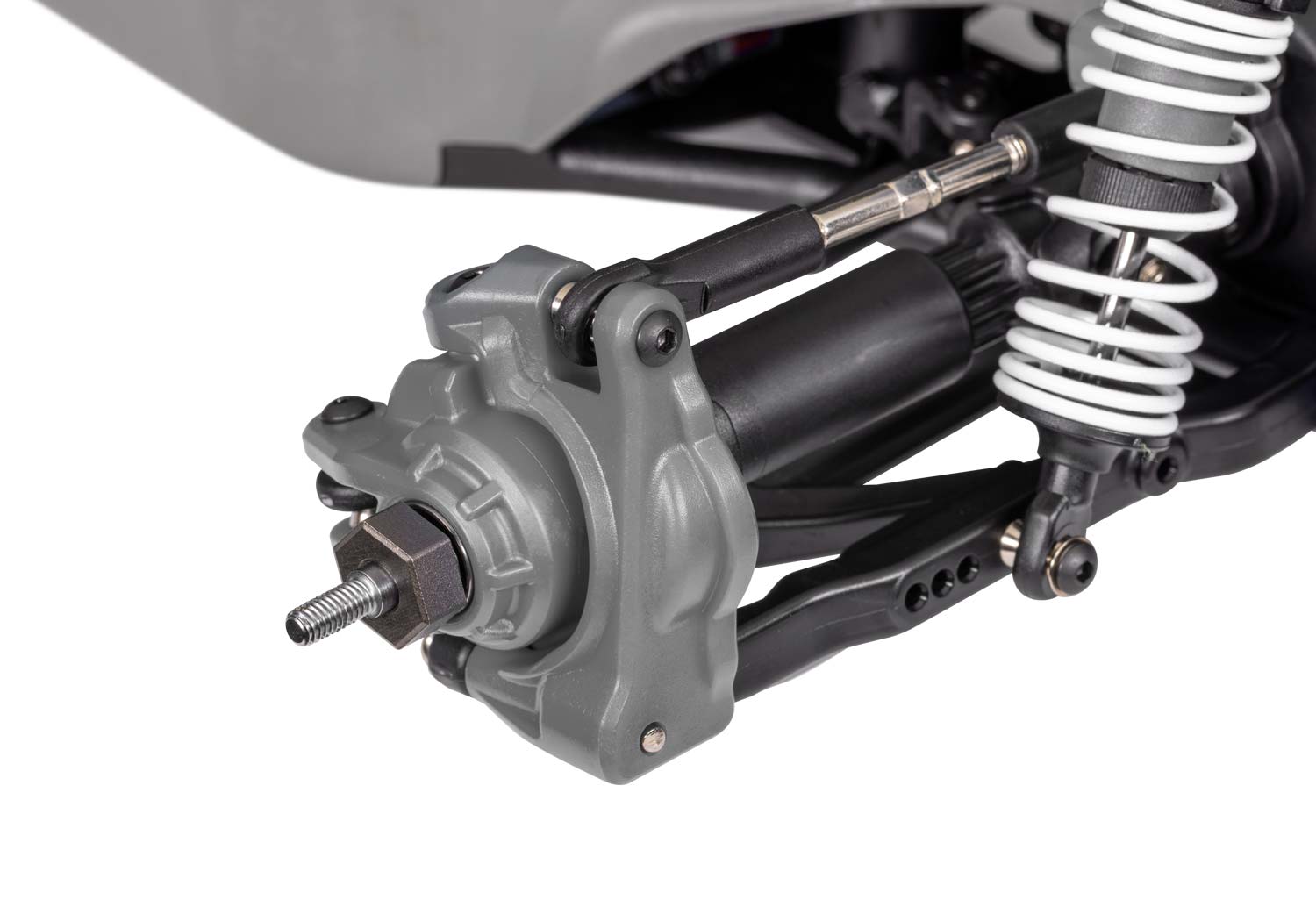

- Strengthened C-hubs, axle carriers, and steering blocks

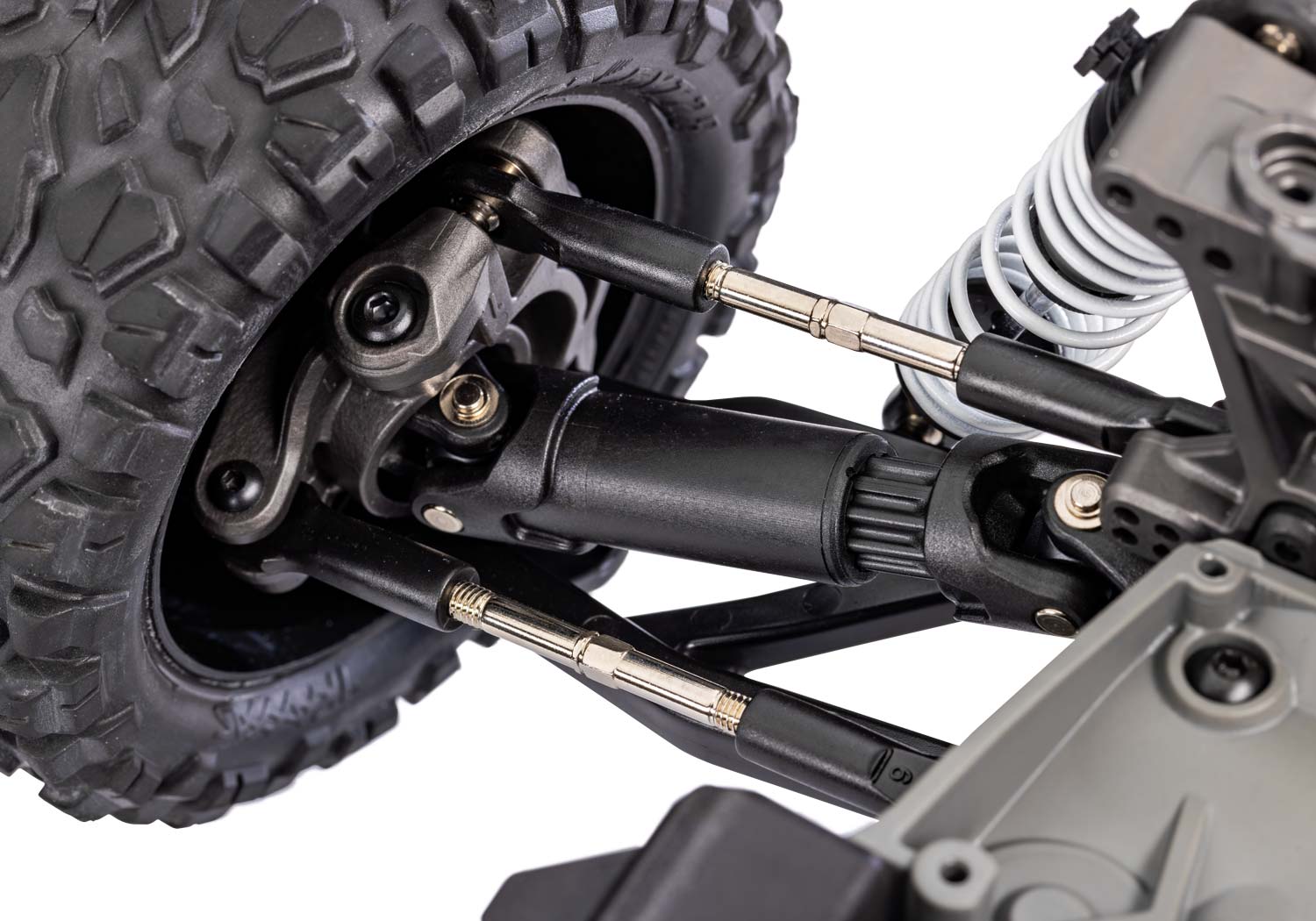

- Maxx duty driveshafts
- Oversize diameter
- 6 mm axles
- Steel wheel hexes
- TQi™ 2.4 GHz High Output Radio System
- TQi 2-channel transmitter
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable multi-function knob
- Patented waterproof receiver box
- VXL-3s™ Waterproof Electronic Speed Control
- Three programmable drive profiles:
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- Large heat sink
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-9 cells (7.2 to 10.8 volts)
- LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
- Velineon® Brushless Motor
- Ultra high-temperature sintered Neodymium magnets
- Low-maintenance design
- Efficient, high-speed ball bearings
- Precision-balanced rotor
- 3500 Kv
- Brilliant blue-anodized finish
- Traxxas Stability Management® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter

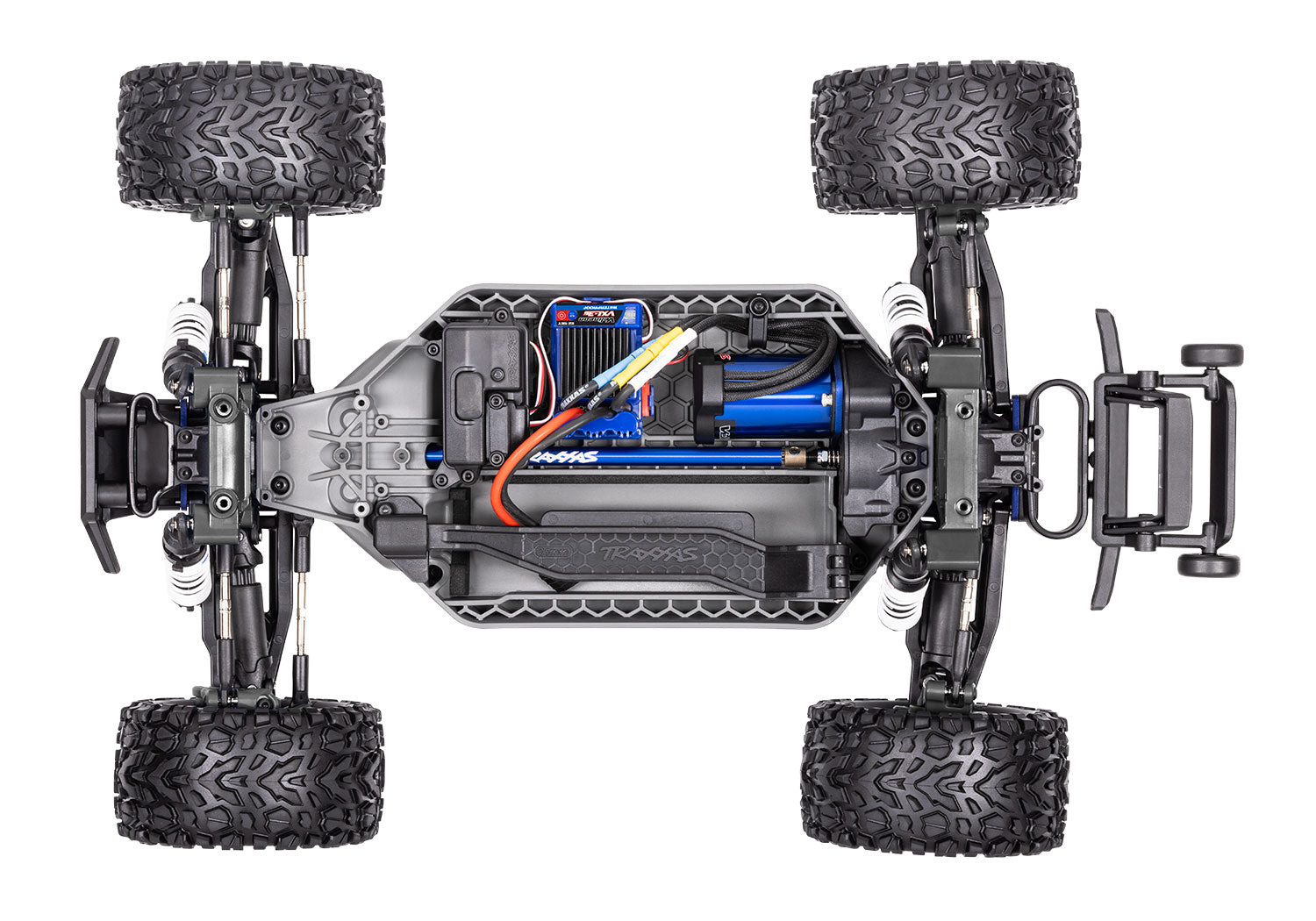

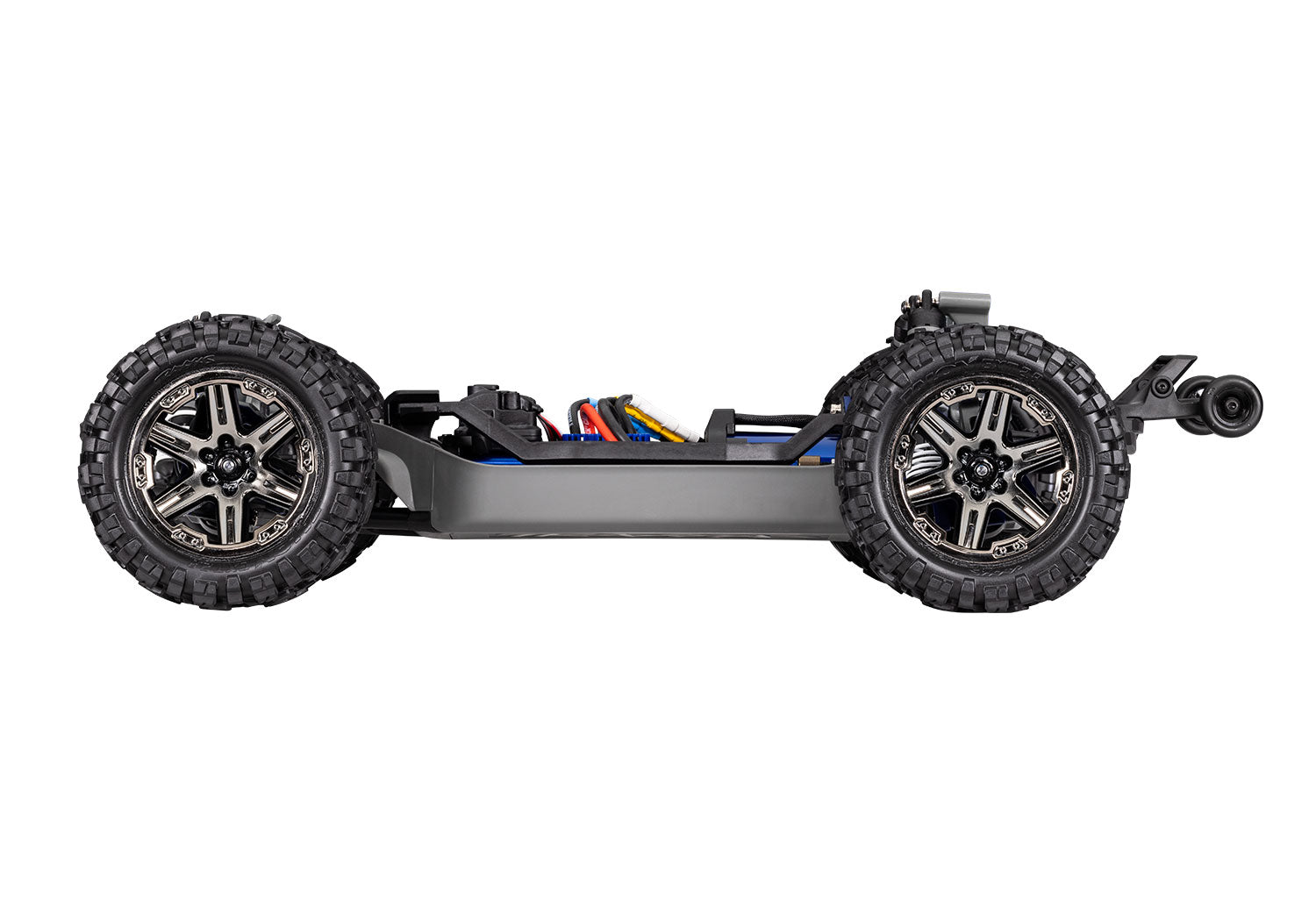

- Chassis
- Low-CG design for responsive handling

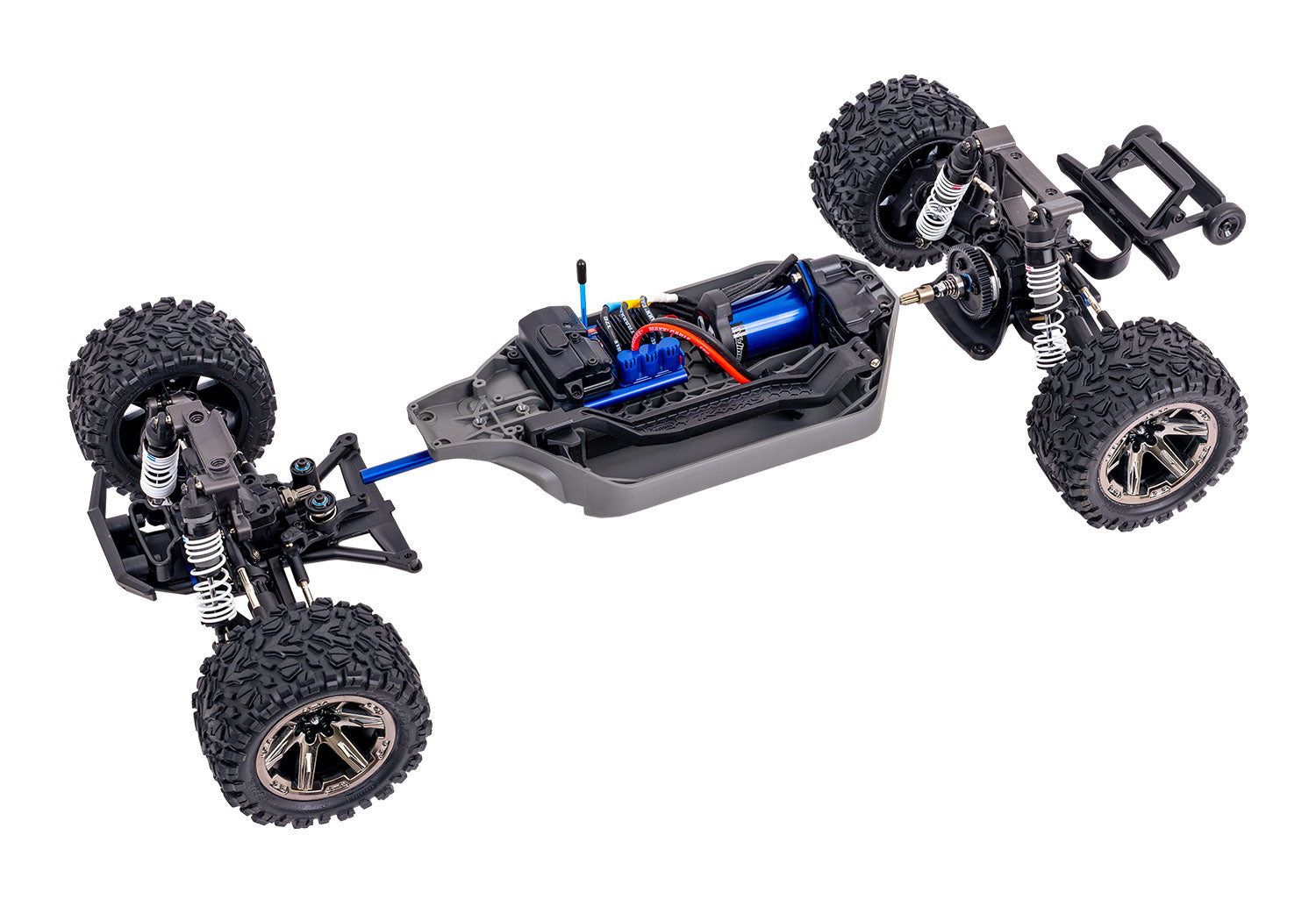

- Modular composite tub design
- Latching battery hold-down

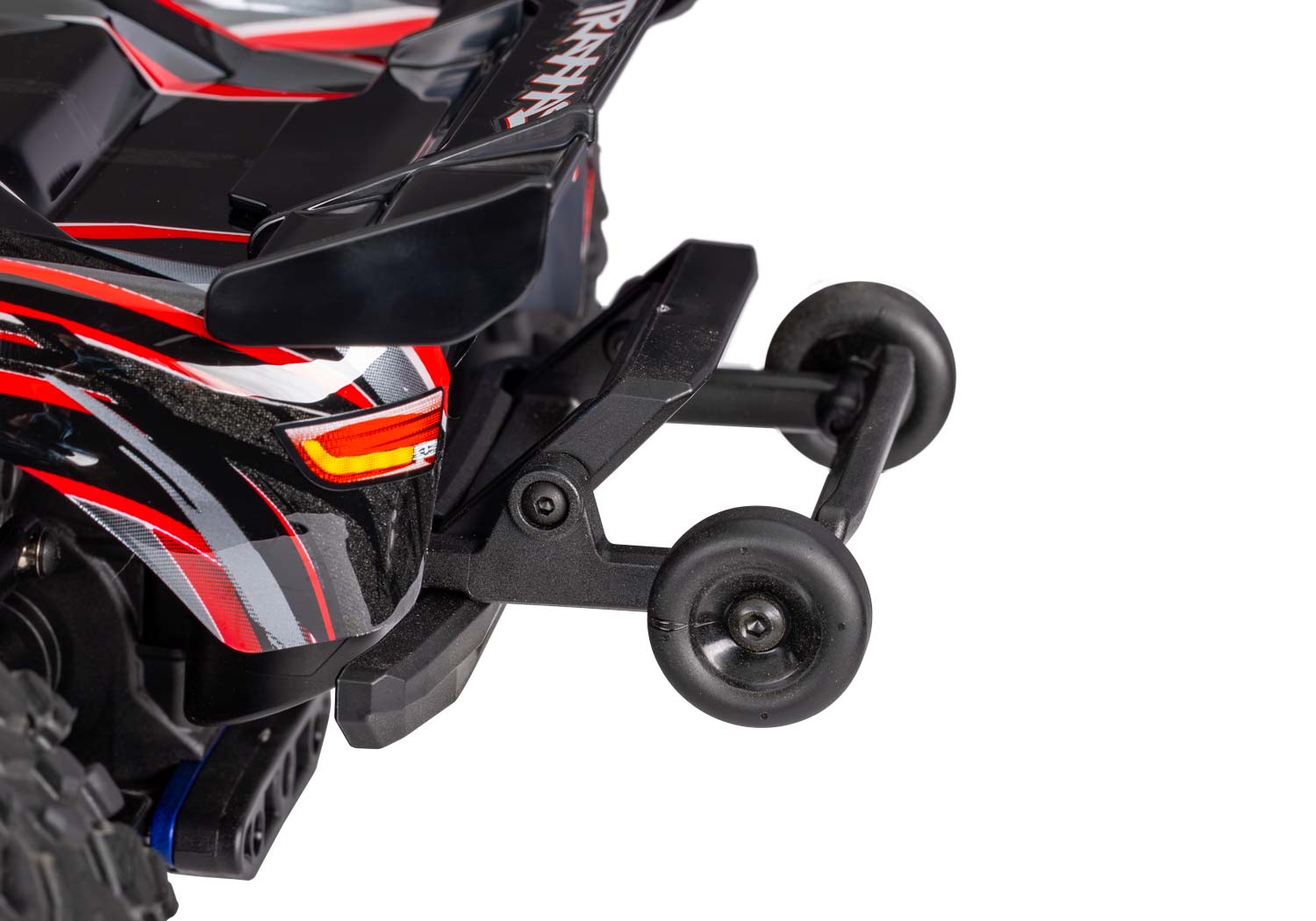

- Reinforced integrated wheelie bar
- High-approach front bumper to climb curbs
- Driveline
- Full-time shaft-driven 4-wheel drive
- Oil-filled steel gear front and rear differentials
- Large 32-pitch gearing
- Torque Control™ heavy-duty slipper clutch with aluminum pads
- Anodized-aluminum center driveshaft
- Steering
- Chassis-mounted 2075 servo
- Dual bellcrank design with integrated servo saver

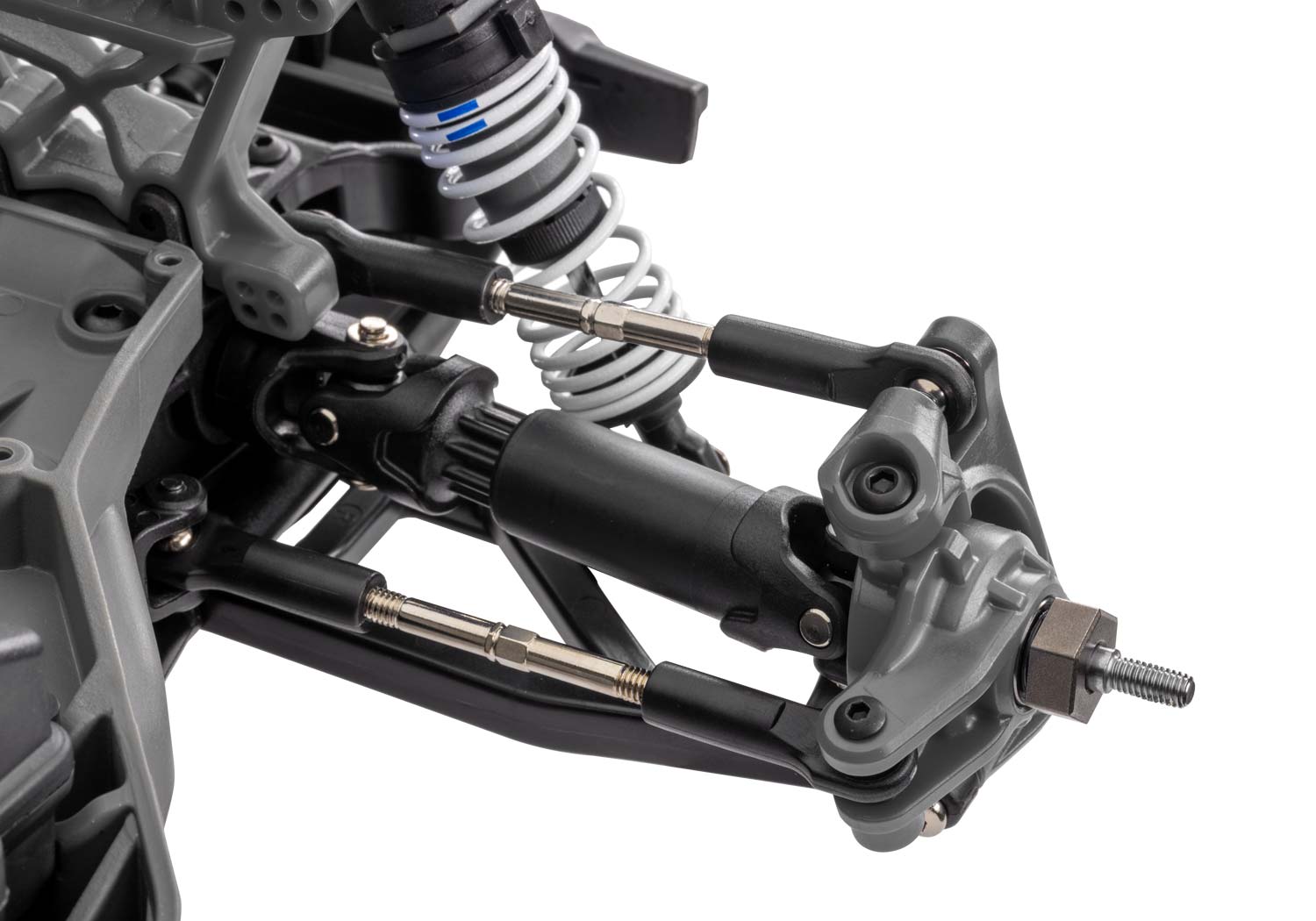

- Suspension
- Adjustable 4 mm steel toe and camber links

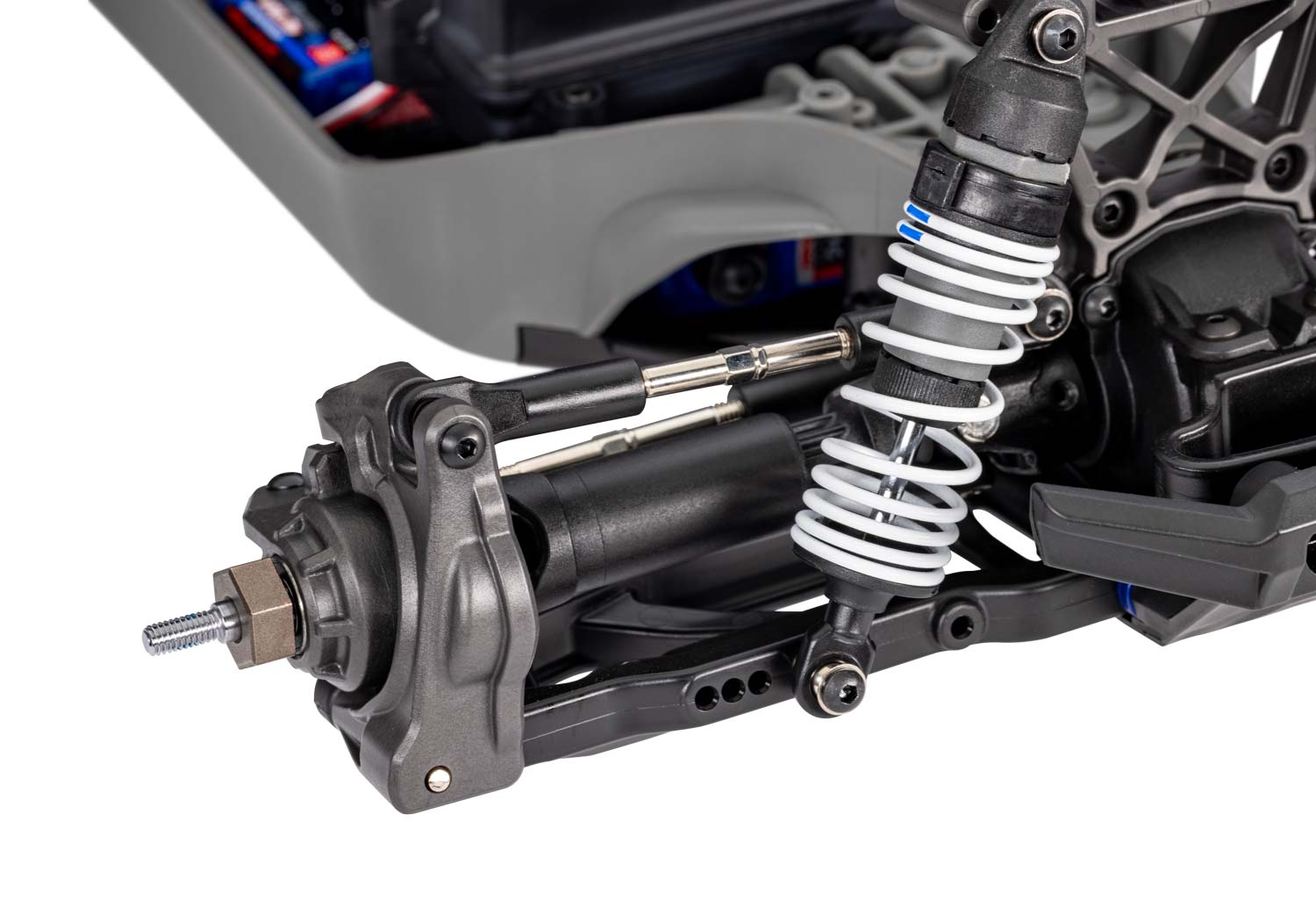

- HD suspension arms
- Oil-filled Ultra Shocks
- Rugged front and rear shock towers
- White powder-coated springs
- Wheels and Tires
- Large 2.8″ black chrome wheels
- Talon™ EXT tires
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating

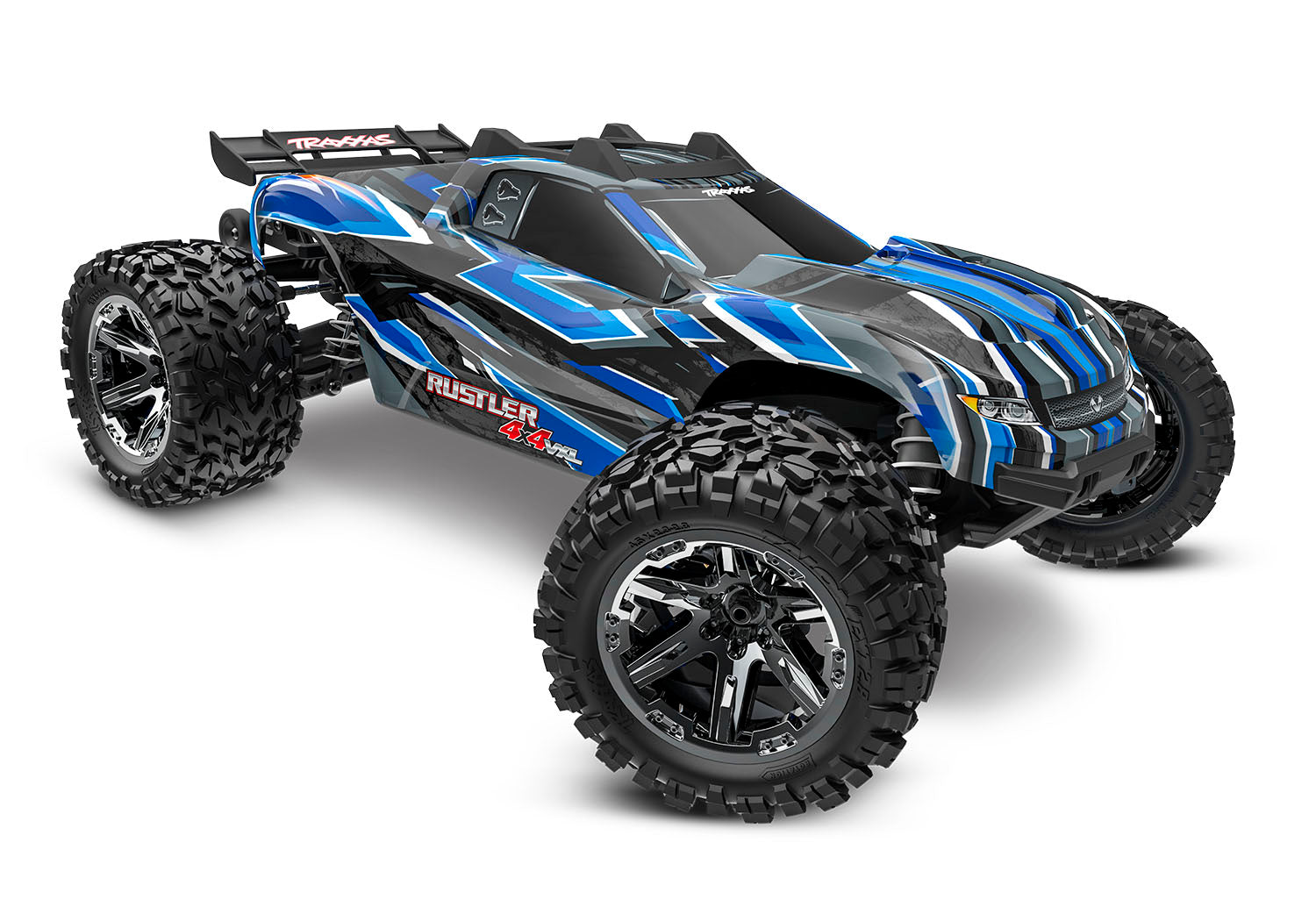

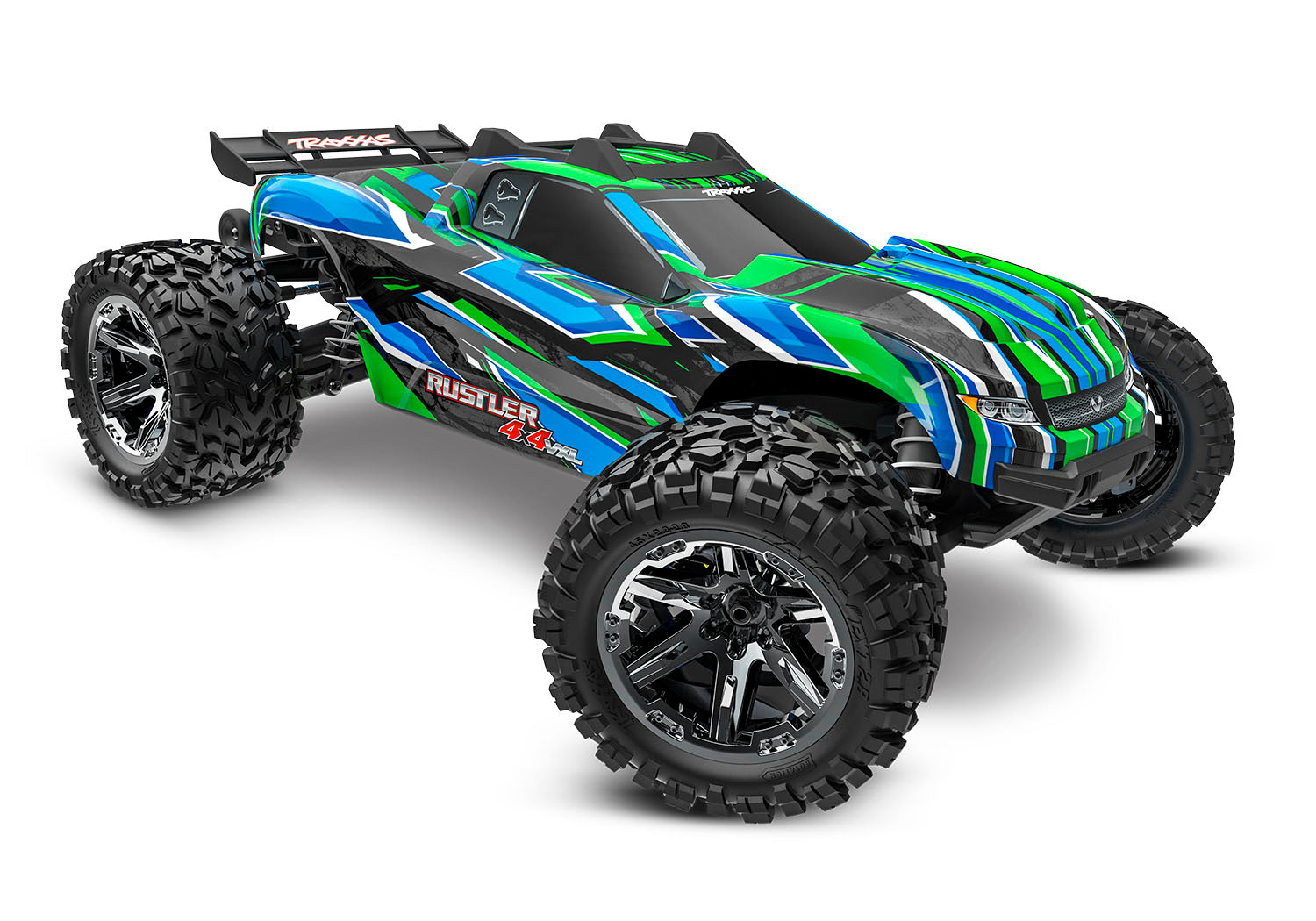

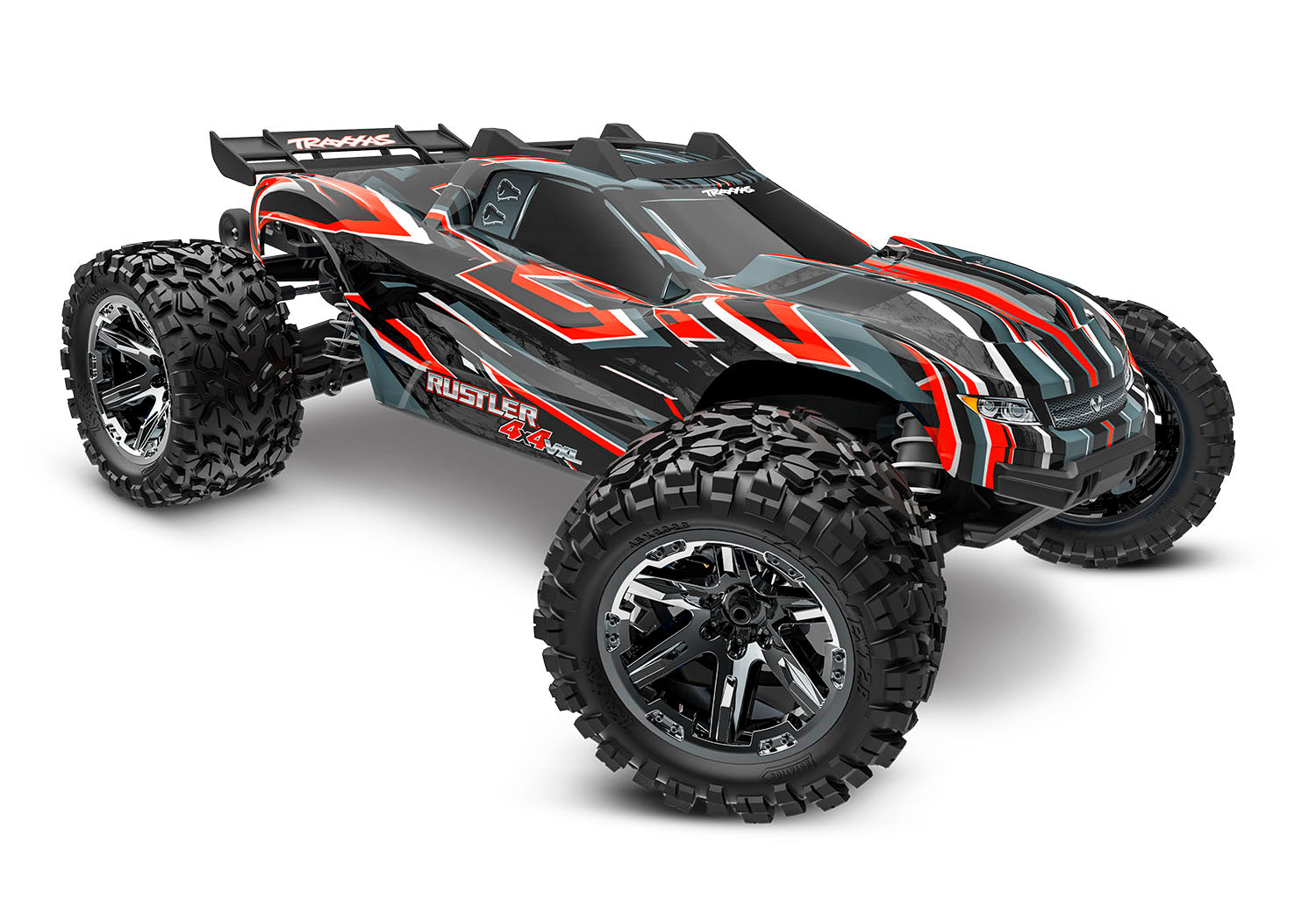

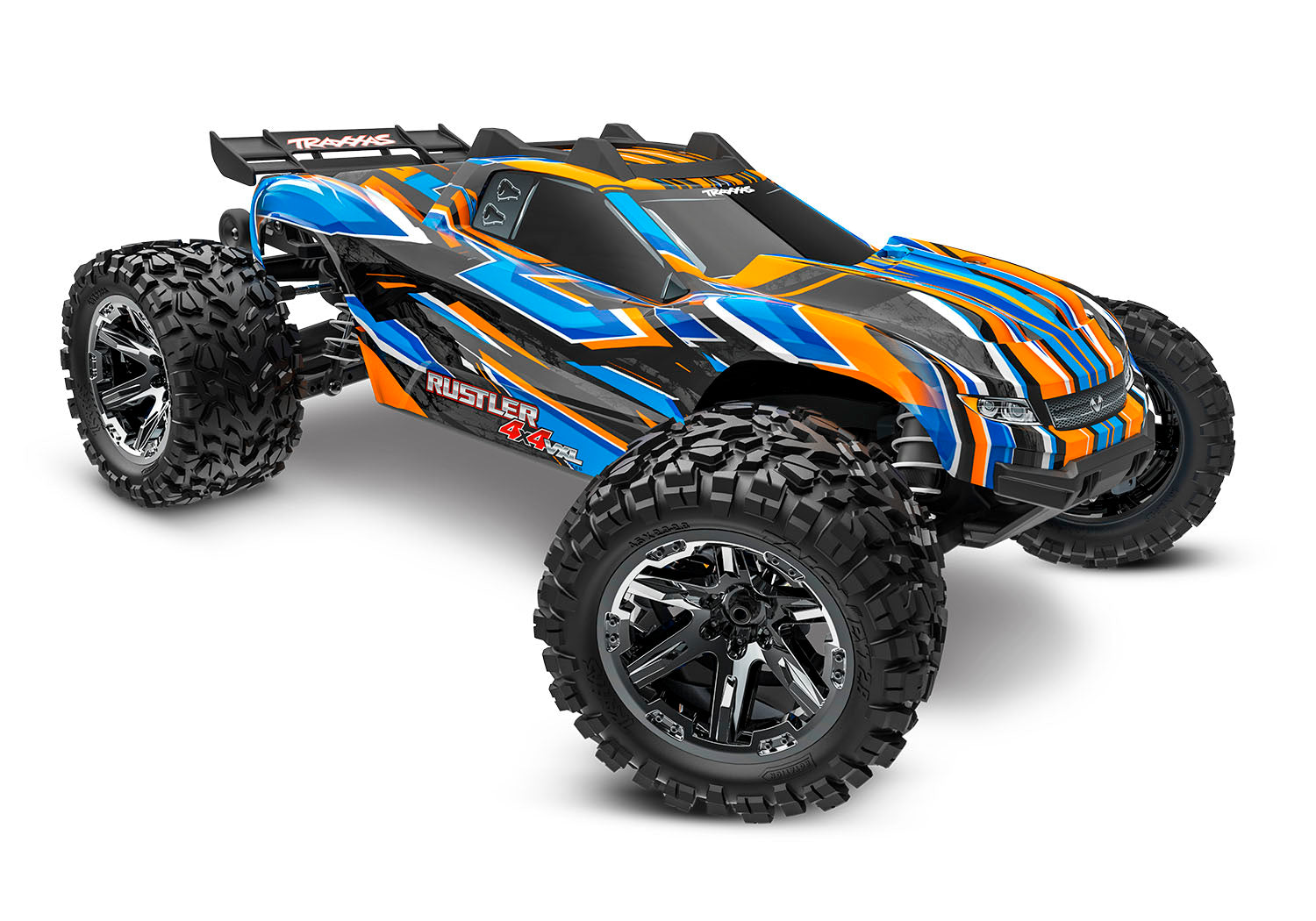

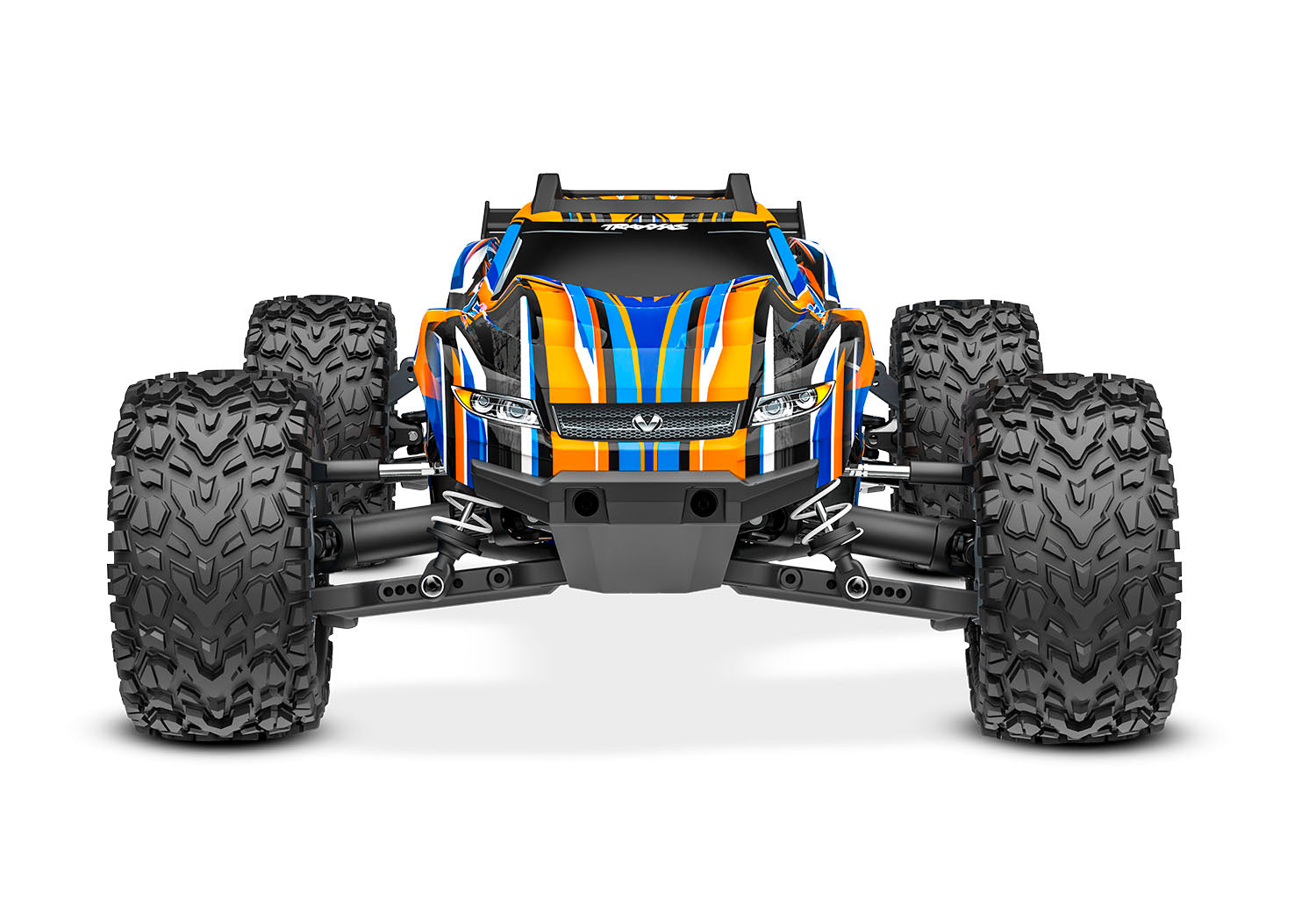

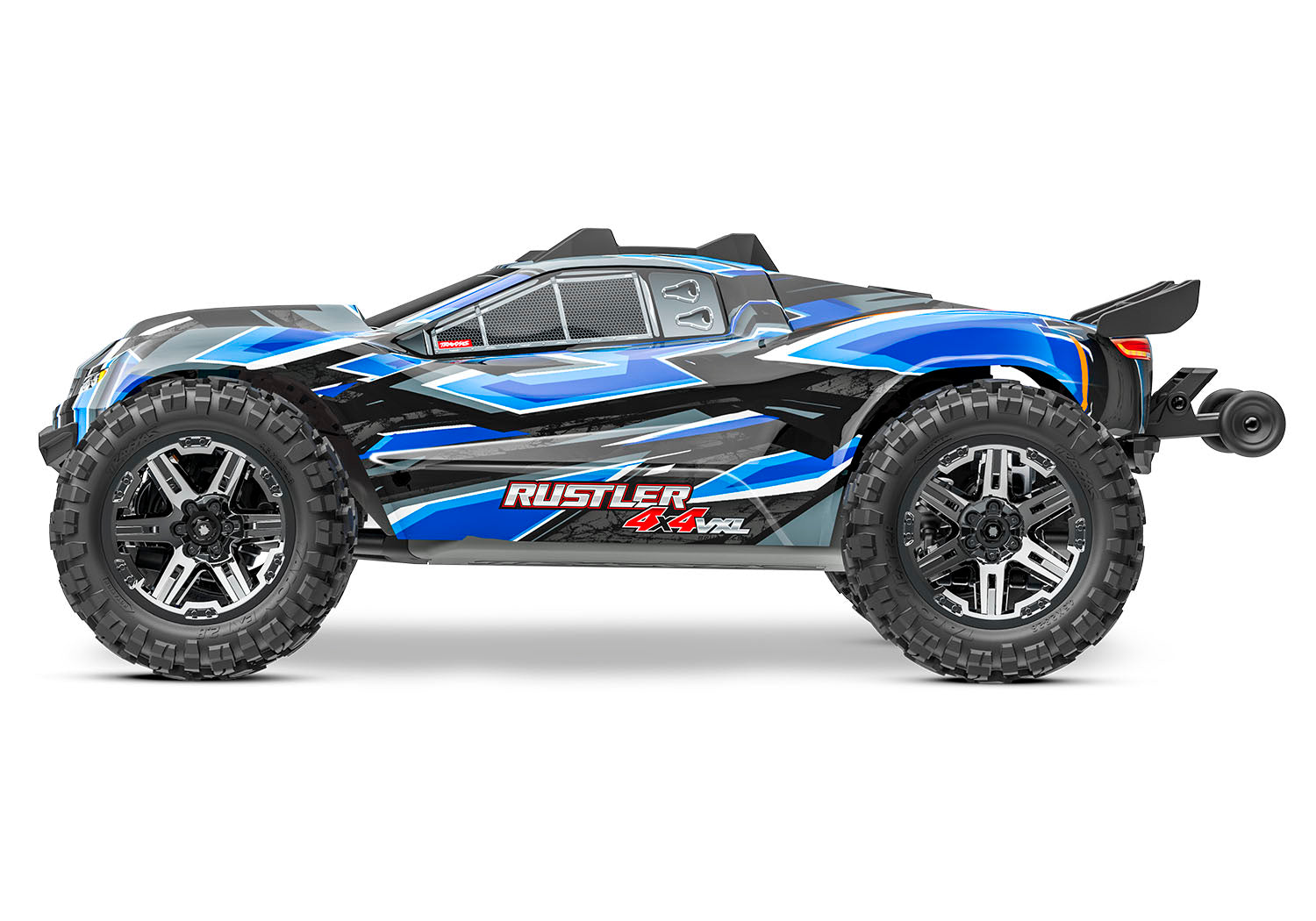

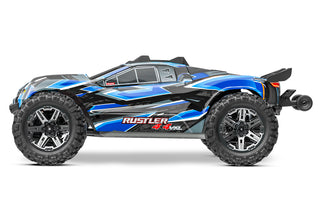

MODEL 67376-4: Rustler 4X4 VXL: 1/10 scale 4X4 stadium truck, fully-assembled, waterproof electronics, Ready-To-Race®, With TQi™ 2.4 GHz 2-channel radio system, Traxxas Stability Management (TSM)®, VXL-3s™ speed control, and clipless painted ProGraphix® body. Requires: battery and charger.What’s In The Box:
- Rustler 4X4 VXL with Velineon VXL-3s and 3500 kV motor
- Quick Start Guide
- TQi 2.4 GHz radio system
- High quality maintenance tools
- Includes speed pinion
What You’ll Need:
- Batteries
Rustler 4X4 VXL requires a single NiMH or LiPo battery. See full list of batteries
- Charger
Traxxas EZ-Peak® Live charger (2971) is recommended for easy and fast charging performance
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter
Description
MODEL SPECS
| Name: | Rustler 4X4 VXL |
|---|---|
| Type: | Stadium Trucks |
| Speed: | 65+ mph with 3-cell LiPo and 20/54 gearing |
| Skill Level: | 2 |
| Scale: | 1/10 |
| Weight: | 5.12 pounds (2.32 kg) |
| Length: | 18.78 inches (477 mm) |
| Width: | 12.94 inches (329 mm) |
| Front Track: | 12.94 inches (329 mm) |
| Rear Track: | 12.94 inches (329 mm) |
| Height: | 6.35 inches (161 mm) |
MOTOR SPECS
| Name: | Velineon® 3500 |
|---|---|
| Motor Type: | Sensorless brushless |
| Weight: | 9.24 ounces (262 g) |
| Length: | 3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length |
| Diameter: | 1.41 inches (36 mm) |
| Shaft Size: | 3 mm |
| Connector Type: | 3.5 mm bullet |
ESC SPECS
| Name: | VXL-3s™ electronic speed control |
|---|---|
| ESC Type: | Brushless |
| Case Size: | 1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm) |
| Weight: | 3.17 ounces (90 g) |
| Motor Connectors: | 3.5 mm bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| Power Wire: | 12 gauge Maxx® Cable |
- Clipless ProGraphix® Body
- Easy one-handed removal
- Reinforced inner cage
- Strong oversized latch
- Rugged roof rollover protector
- Molded composite plastic wing
- Extreme Heavy Duty Upgrade Kit Installed
- Strengthened C-hubs, axle carriers, and steering blocks
- Maxx duty driveshafts
- Oversize diameter
- 6 mm axles
- Steel wheel hexes
- TQi™ 2.4 GHz High Output Radio System
- TQi 2-channel transmitter
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable multi-function knob
- Patented waterproof receiver box
- VXL-3s™ Waterproof Electronic Speed Control
- Three programmable drive profiles:
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- Large heat sink
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-9 cells (7.2 to 10.8 volts)
- LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
- Velineon® Brushless Motor
- Ultra high-temperature sintered Neodymium magnets
- Low-maintenance design
- Efficient, high-speed ball bearings
- Precision-balanced rotor
- 3500 Kv
- Brilliant blue-anodized finish
- Traxxas Stability Management® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
- Chassis
- Low-CG design for responsive handling
- Modular composite tub design
- Latching battery hold-down
- Reinforced integrated wheelie bar
- High-approach front bumper to climb curbs
- Driveline
- Full-time shaft-driven 4-wheel drive
- Oil-filled steel gear front and rear differentials
- Large 32-pitch gearing
- Torque Control™ heavy-duty slipper clutch with aluminum pads
- Anodized-aluminum center driveshaft
- Steering
- Chassis-mounted 2075 servo
- Dual bellcrank design with integrated servo saver
- Suspension
- Adjustable 4 mm steel toe and camber links
- HD suspension arms
- Oil-filled Ultra Shocks
- Rugged front and rear shock towers
- White powder-coated springs
- Wheels and Tires
- Large 2.8″ black chrome wheels
- Talon™ EXT tires
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
MODEL 67376-4: Rustler 4X4 VXL: 1/10 scale 4X4 stadium truck, fully-assembled, waterproof electronics, Ready-To-Race®, With TQi™ 2.4 GHz 2-channel radio system, Traxxas Stability Management (TSM)®, VXL-3s™ speed control, and clipless painted ProGraphix® body. Requires: battery and charger.
What’s In The Box:
- Rustler 4X4 VXL with Velineon VXL-3s and 3500 kV motor
- Quick Start Guide
- TQi 2.4 GHz radio system
- High quality maintenance tools
- Includes speed pinion
What You’ll Need:
- Batteries
Rustler 4X4 VXL requires a single NiMH or LiPo battery. See full list of batteries
- Charger
Traxxas EZ-Peak® Live charger (2971) is recommended for easy and fast charging performance
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter
